Front Differential Transfer Drive Gear Assembly

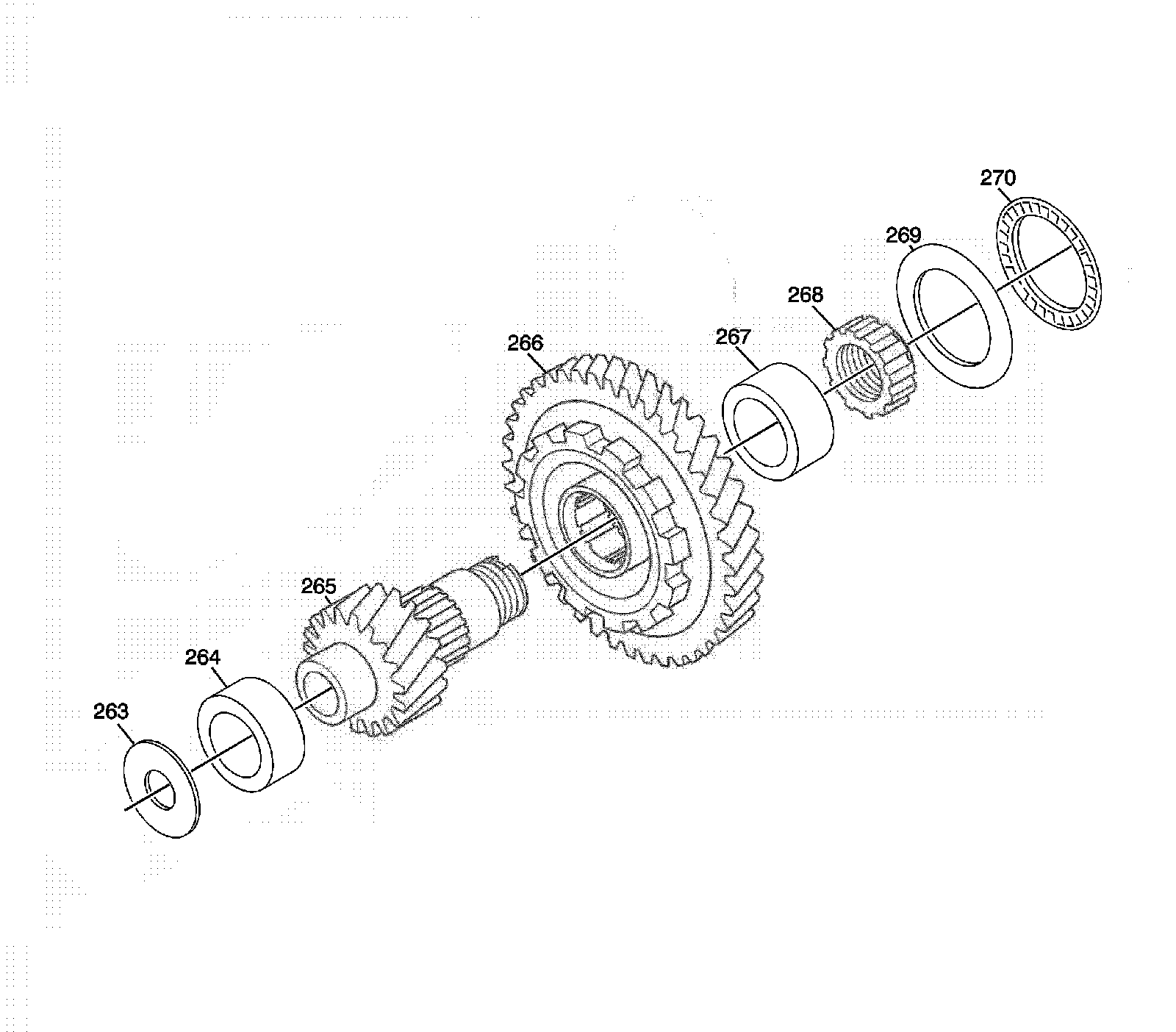

Disassembled Views

Front Differential Transfer Drive Gear Assembly




263 - Front Differential Transfer Drive Gear Front Thrust Bearing Race
264 - Front Differential Transfer Drive Gear Drive Pinion Bearing Inner Race
265 - Front Differential Transfer Drive Gear Drive Pinion
266 - Front Differential Transfer Drive Gear Counter Driven Gear
267 - Front Differential Transfer Drive Gear Bearing Inner Race
268 - Front Differential Transfer Drive Gear Lock Nut
269 - Front Differential Transfer Drive Gear Rear Thrust Bearing Race
270 - Front Differential Transfer Drive Gear Rear Thrust Bearing Assembly
