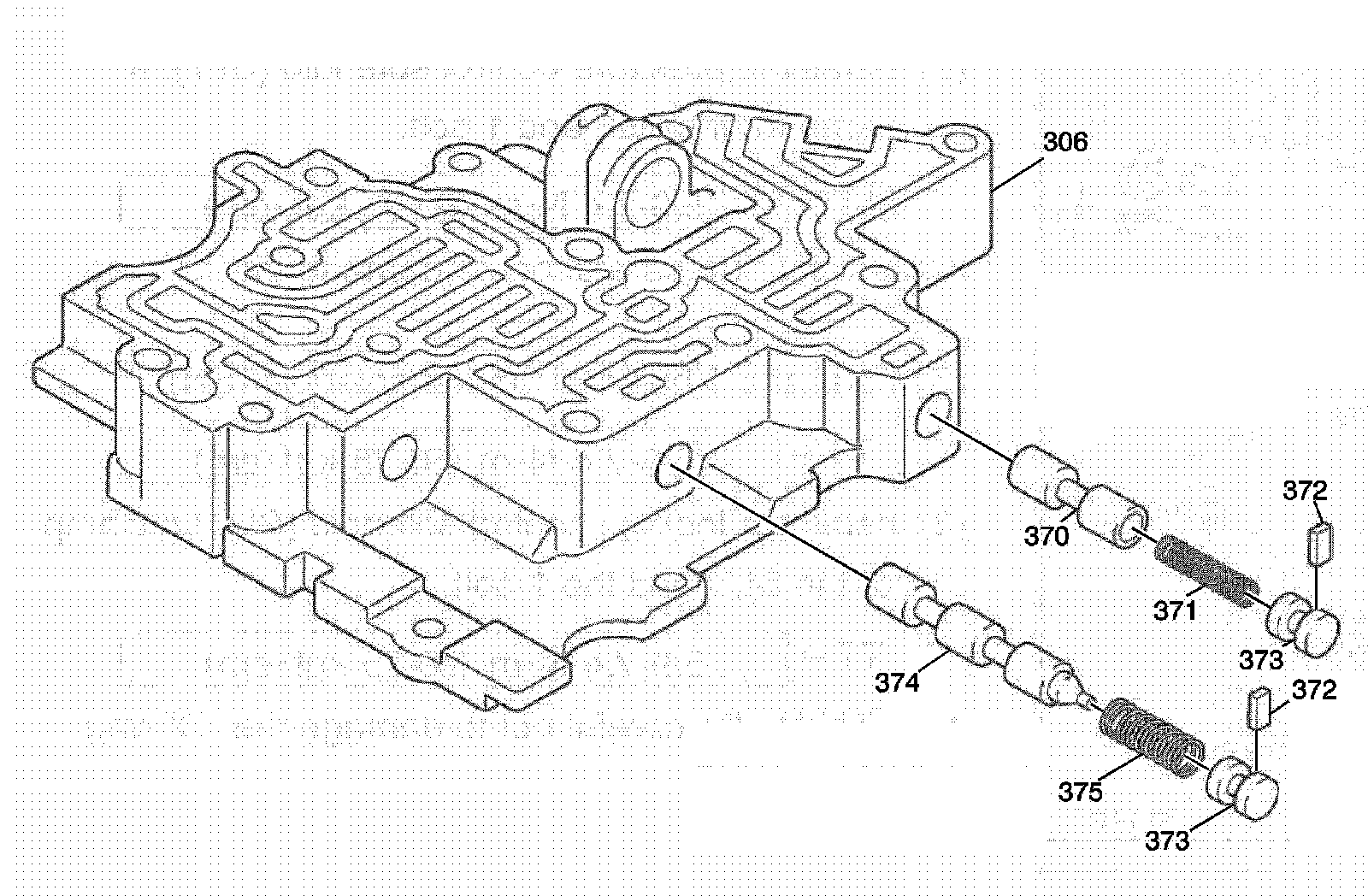

Front Valve Body Assembly

Disassembled Views

Front Valve Body Assembly




306 - Front Control Valve Body
370 - Solenoid B-1 Modulator No. 2
371 - Solenoid B-1 Modulator Valve No. 2 Spring
372 - Sleeve/Bore Plug Retainer
373 - Solenoid Modulator Valve Bore Plug
374 - Neutral Relay Valve
375 - Neutral Relay Valve Spring
