Electrical Diagrams




Automatic Transmission Controls Schematics

Power, Ground, Serial Data, and Winter Mode Switch





Automatic Transmission Shift Lever Position Indicator, and Park/Neutral Position (PNP) Switch

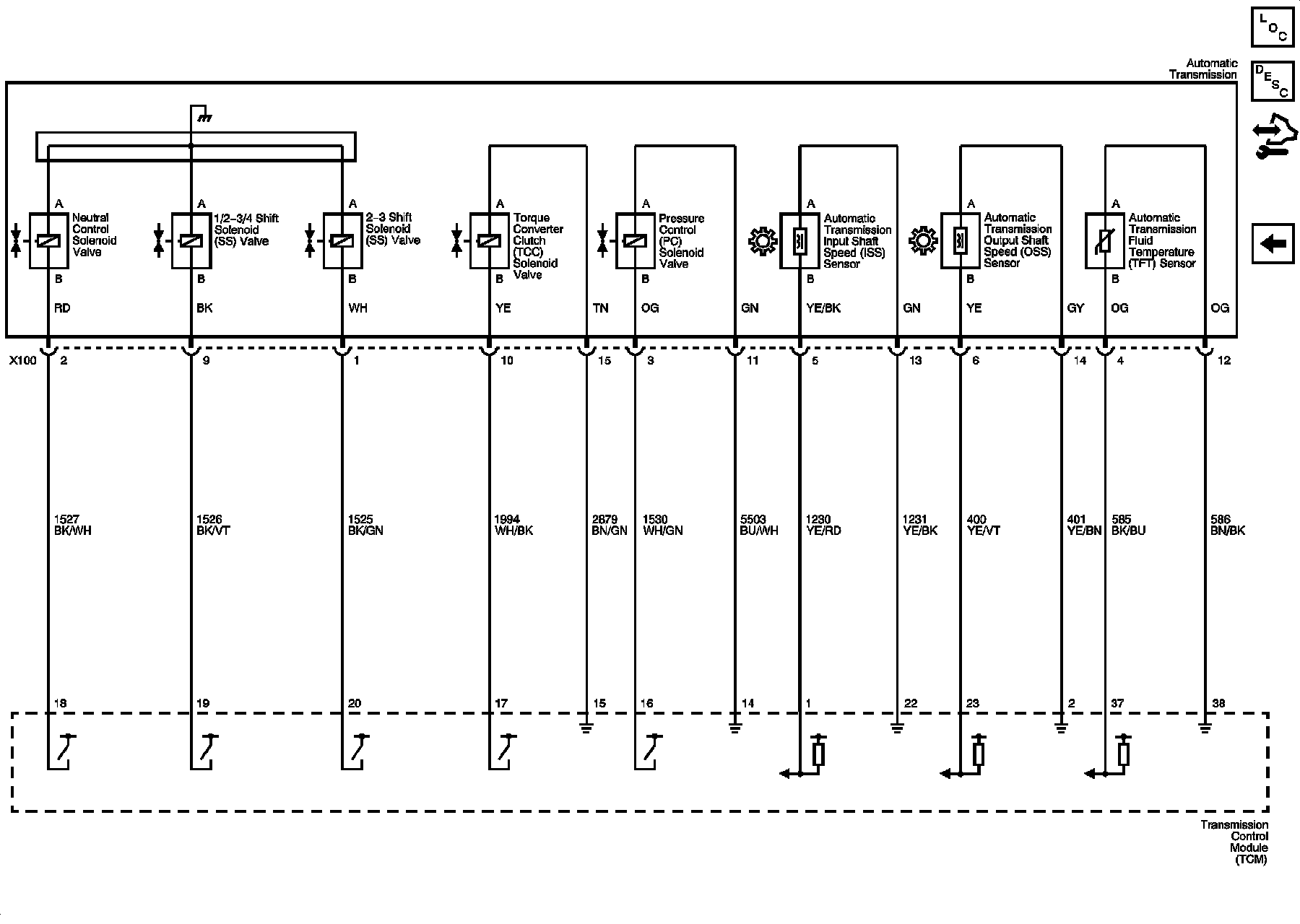

Neutral Control Solenoid Valve, Shift Solenoids, Torque Converter Clutch (TCC) Solenoid Valve, Transmission Speed Input, Transmission Speed Output, and Automatic Transmission Fluid Temperature (TFT) Sensor
