System Specifications

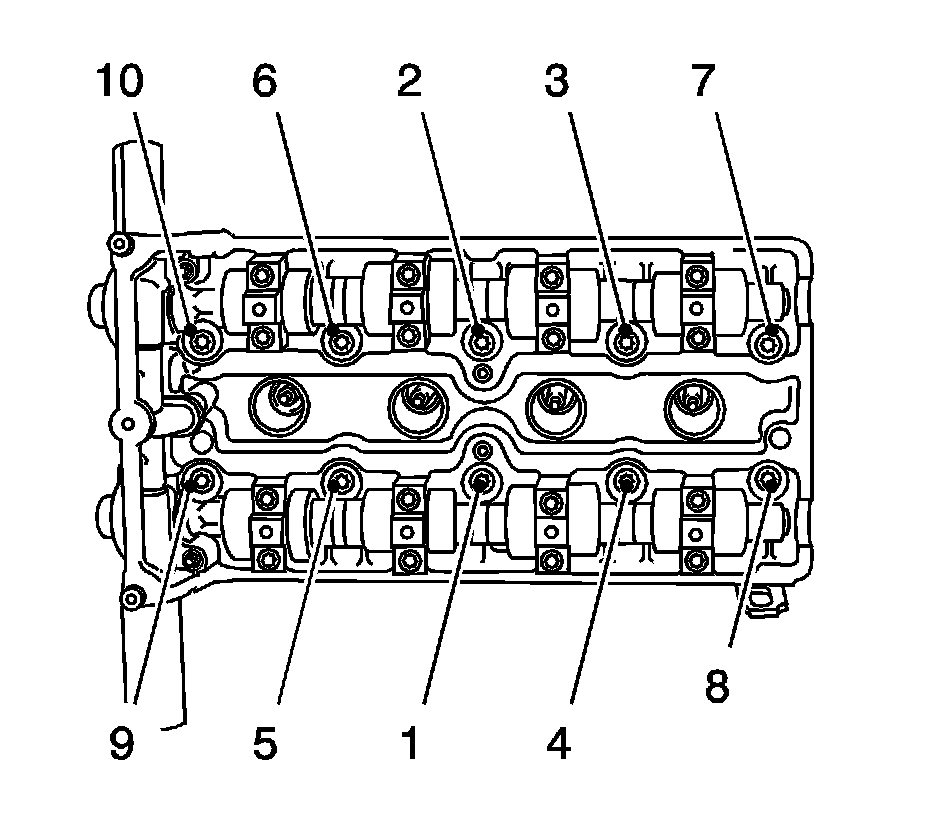

Cylinder Head-to-Cylinder Block 25 Nm (18 lb ft) + 90° + 90° + 90° + 45°

Cylinder Head Bolt Reuse/Replace
Use NEW cylinder head bolts.








Camshaft Bearing Caps-to-Cylinder Head 8 Nm (71 lb in)

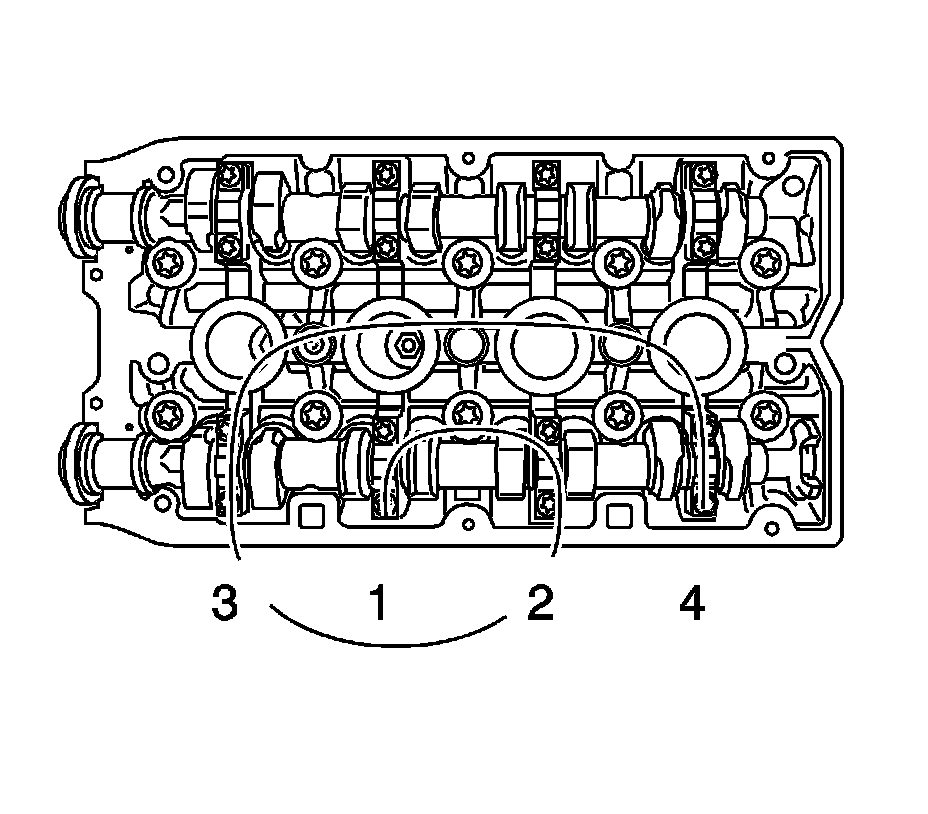

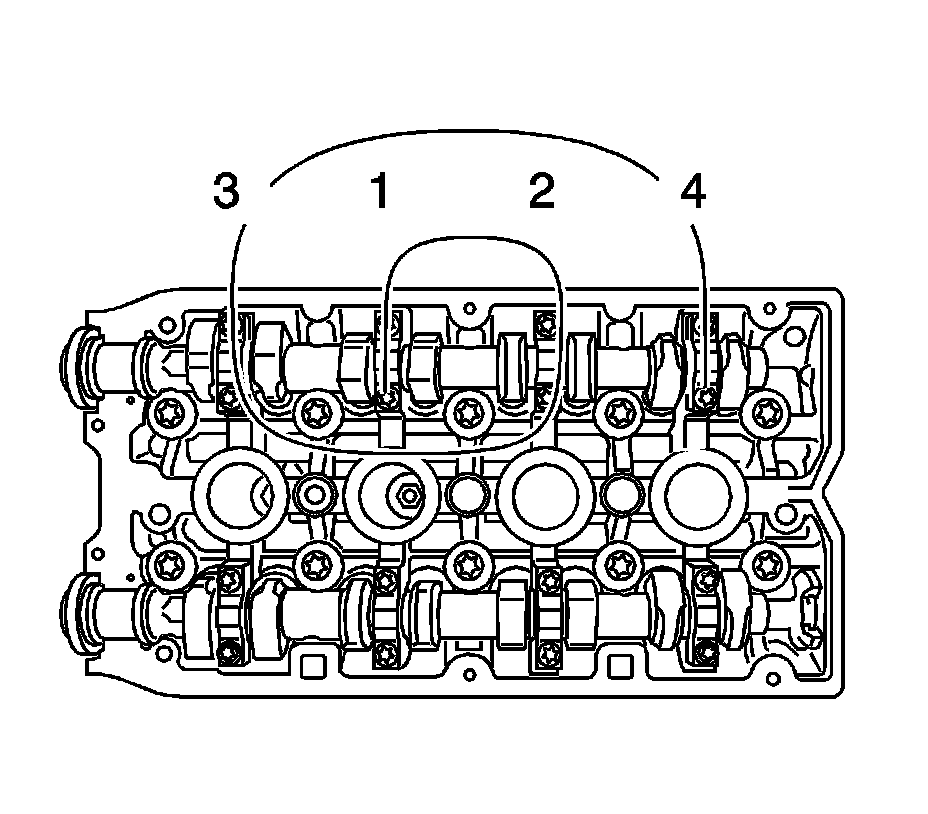

Tighten the camshaft bearing caps 2-5 in a spiral from the inside to the outside.

Intake Manifold-to-Cylinder Head 20 Nm (15 lb ft)

Exhaust Manifold-to-Cylinder Head 22 Nm (16 lb ft)

Camshaft Position Intake Actuator Bolt 65 Nm (48 lb ft) plus 120° plus 15°
Camshaft Position Exhaust Actuator Bolt 65 Nm (48 lb ft) plus 120° plus 15°
