Body Control System Schematics

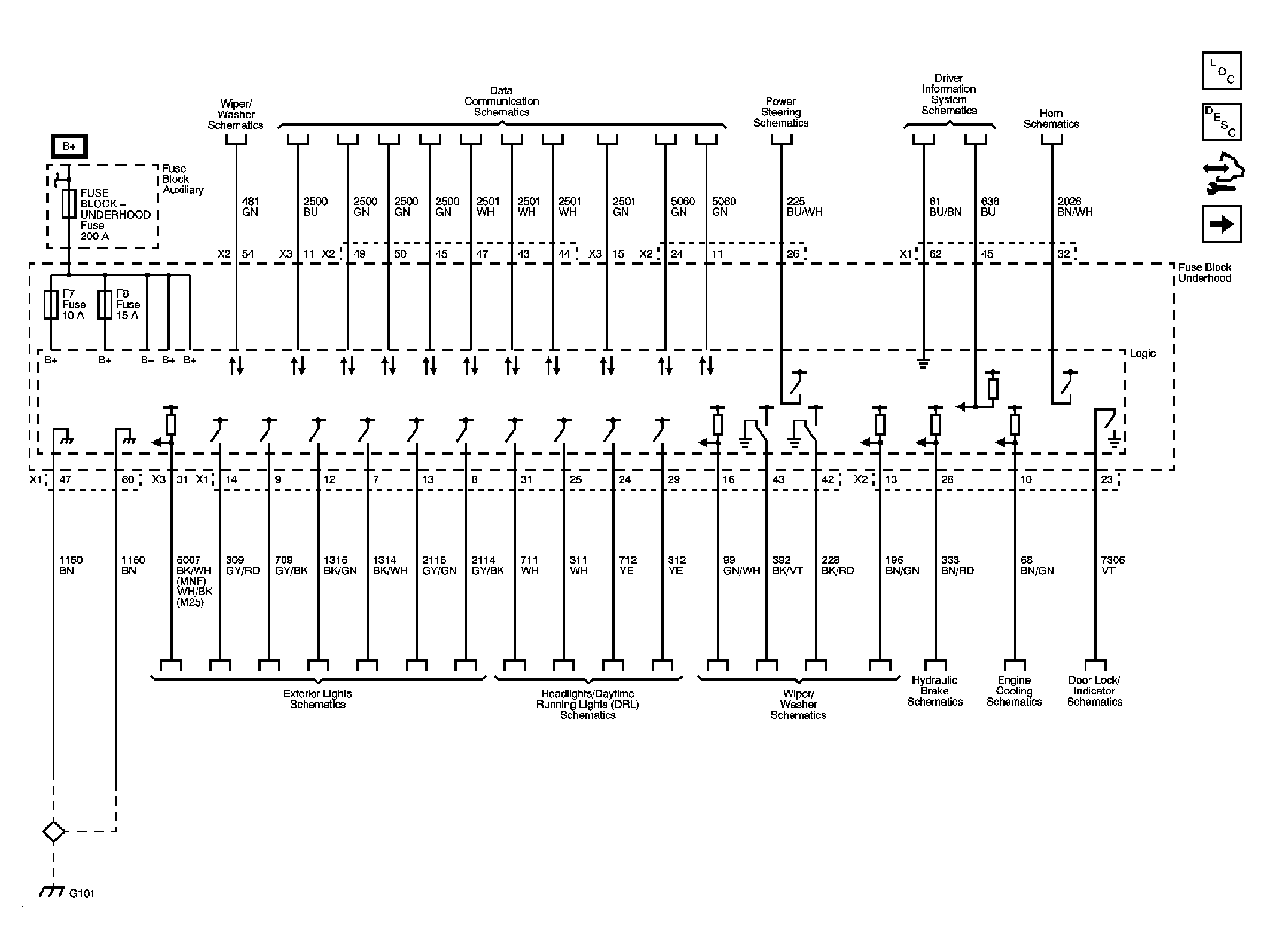

Fig 1: Fuse Block - Underhood
GM2151444Courtesy of GENERAL MOTORS CORP.

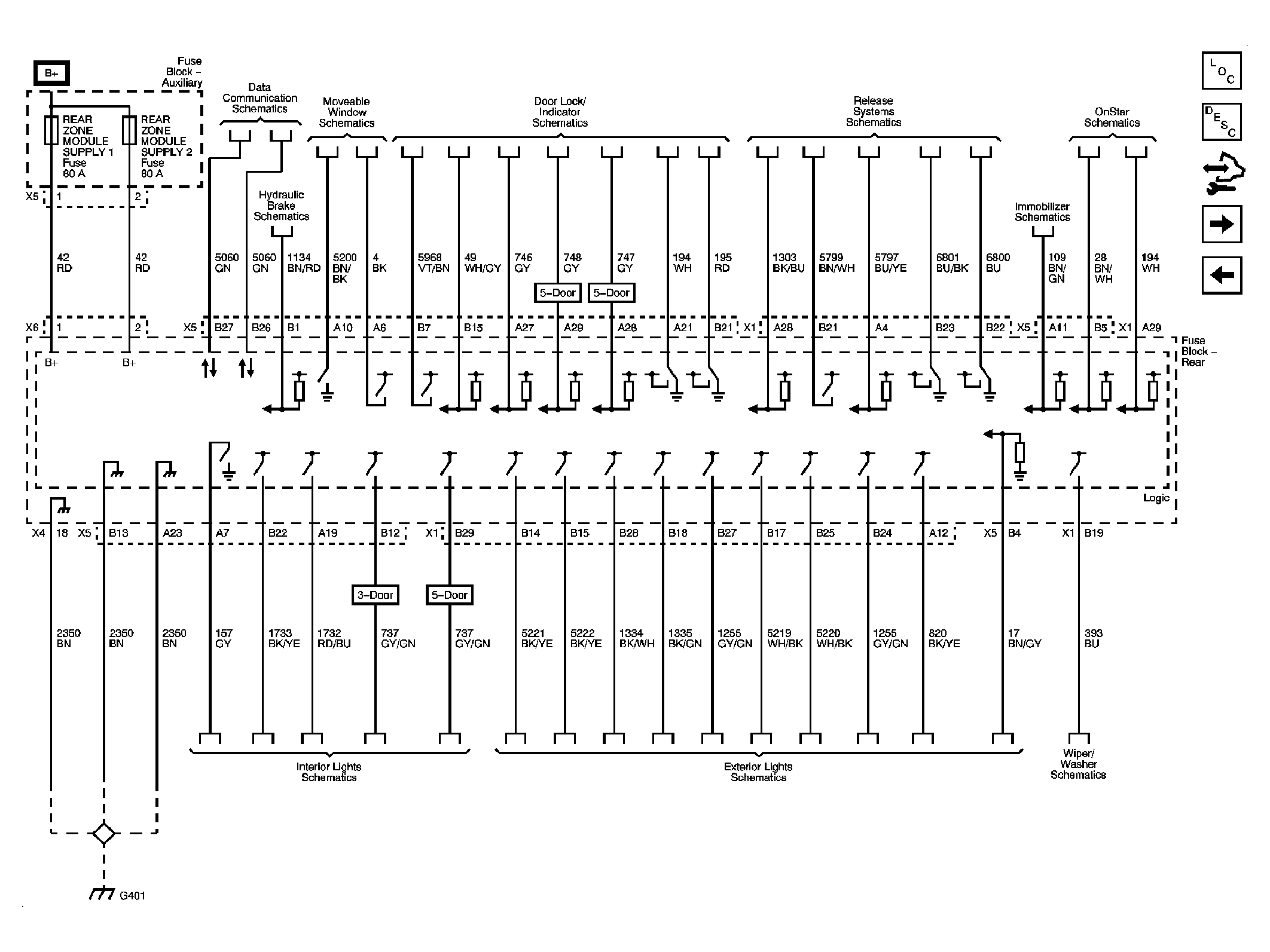

Fig 2: Fuse Block - Rear
GM2151447Courtesy of GENERAL MOTORS CORP.
Fig 3: Steering Column Control Module
GM2151448Courtesy of GENERAL MOTORS CORP.
