Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Front Of Engine Compartment

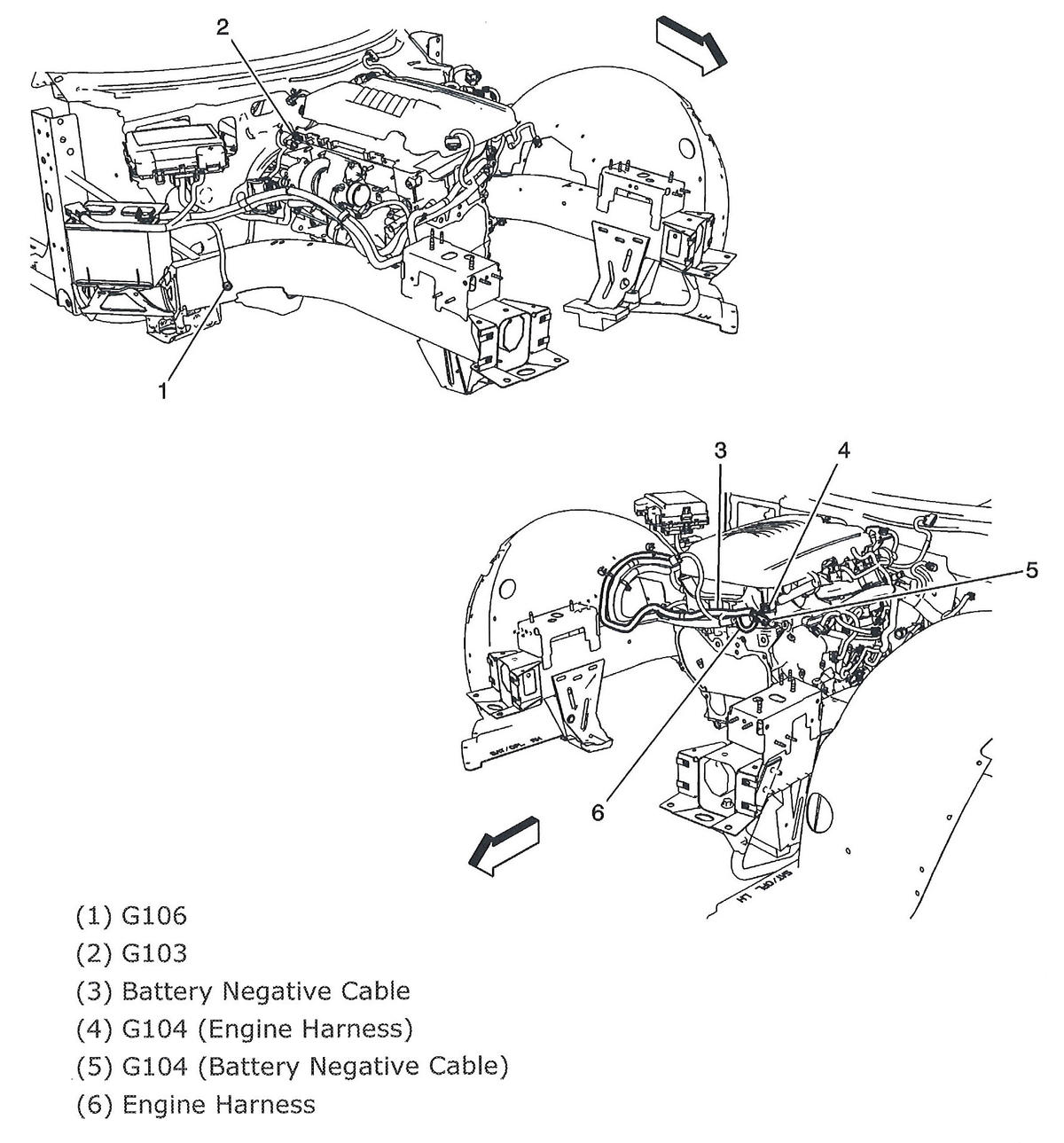

Courtesy of GENERAL MOTORS CORP.
Fig 2: Wheel Hub Assemblies
Courtesy of GENERAL MOTORS CORP.
Fig 3: Dash
Courtesy of GENERAL MOTORS CORP.

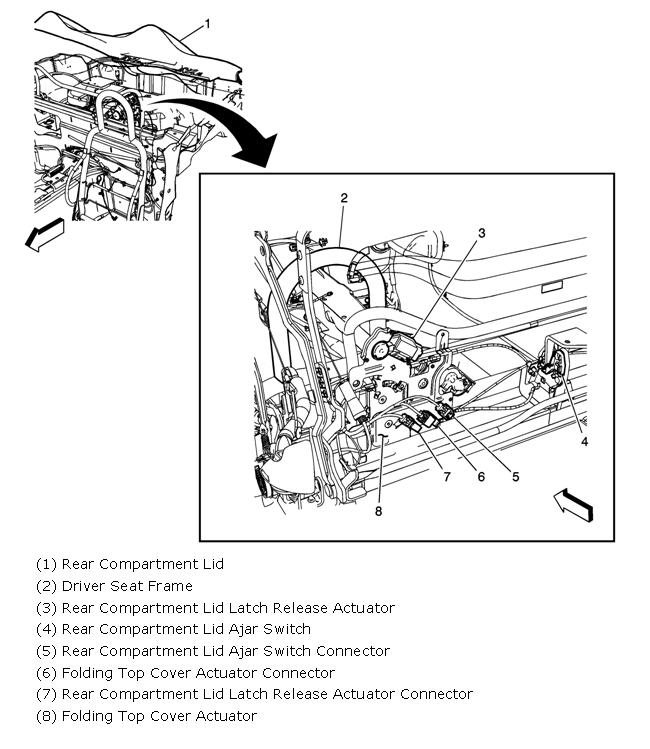

Fig 4: Rear Of Vehicle (Convertible)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 6: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

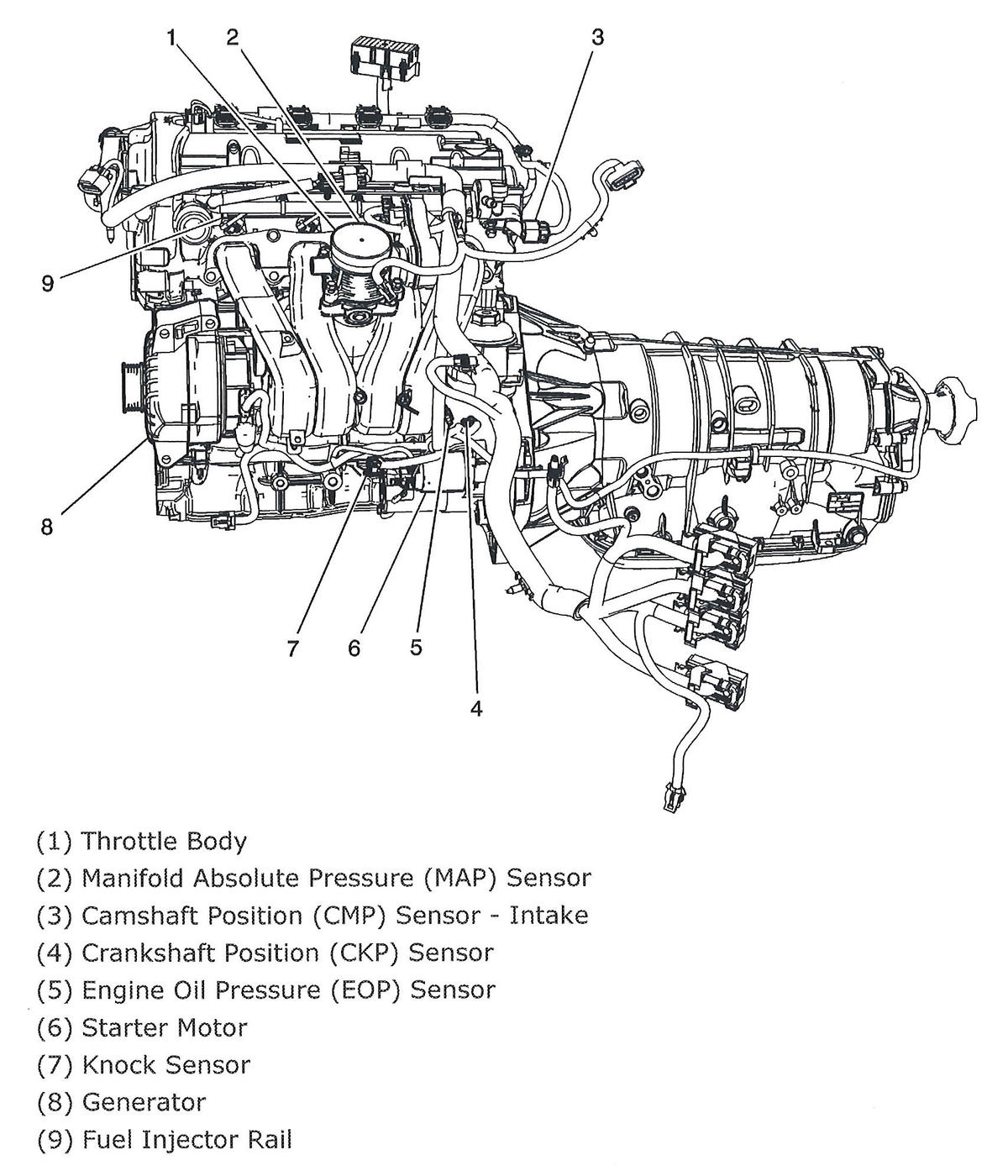

Fig 7: Engine & Manual Transmission (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 9: Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 10: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

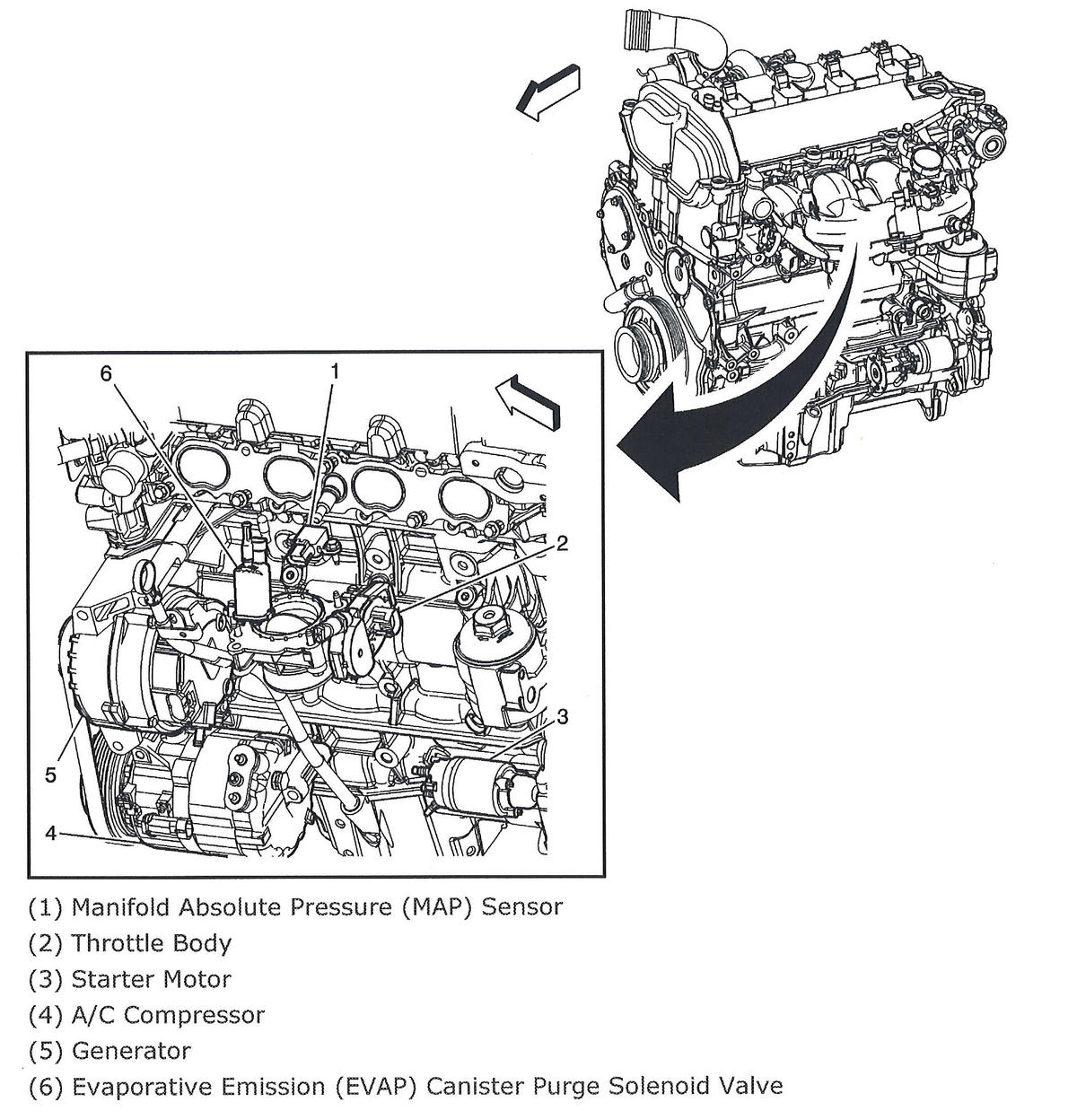

Fig 11: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

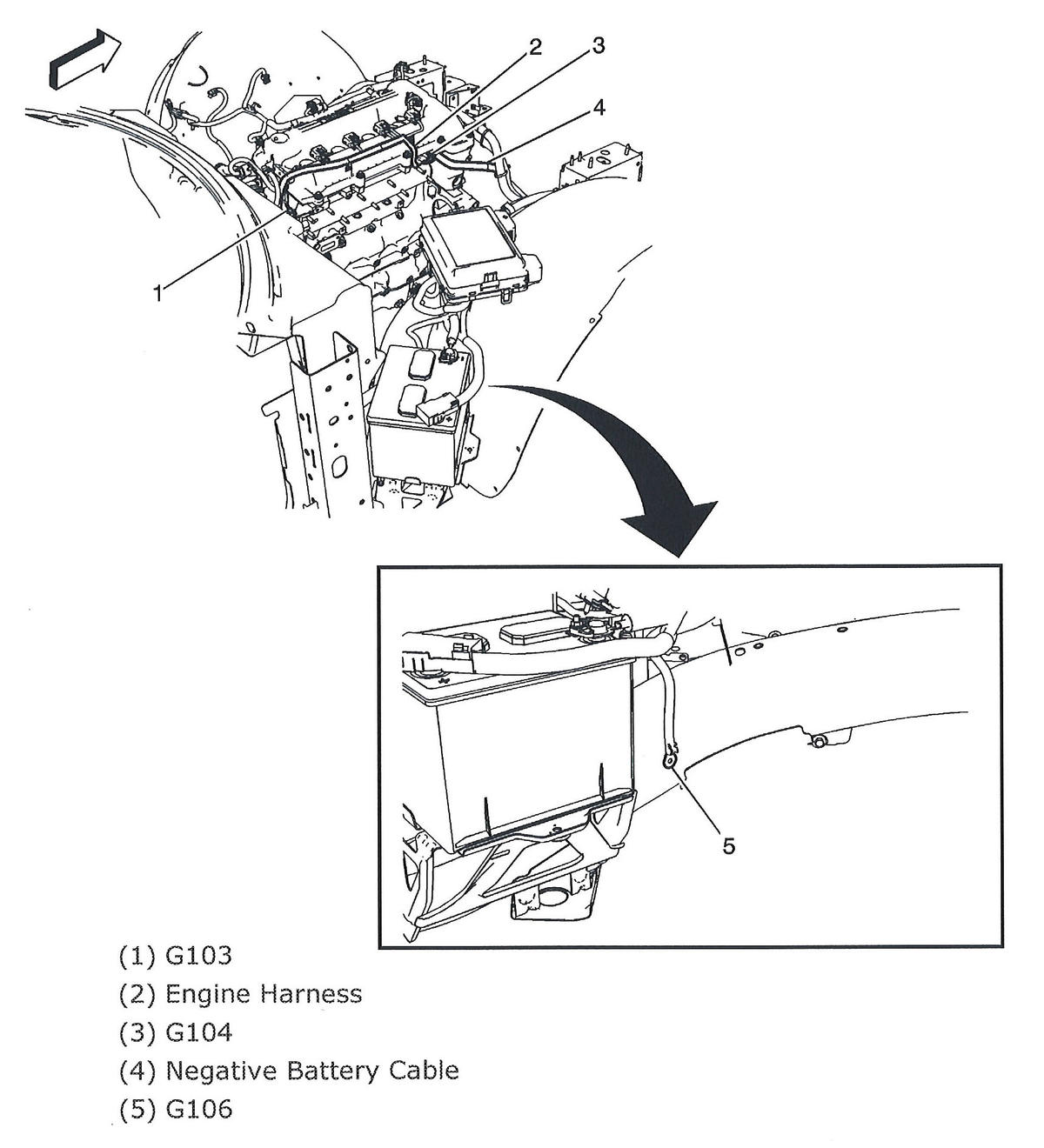

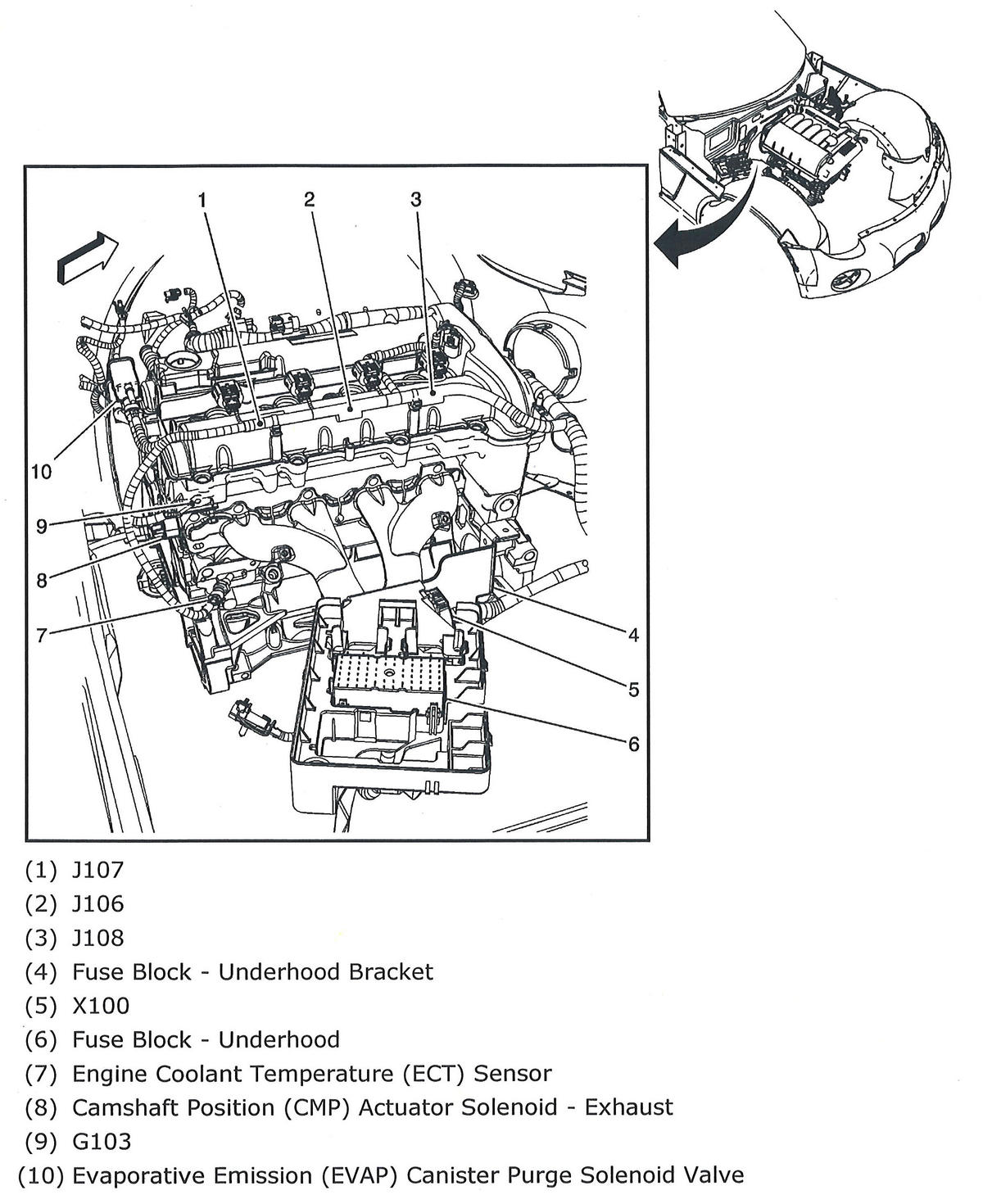

Fig 12: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 13: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 14: Vehicle Overview (SRS)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

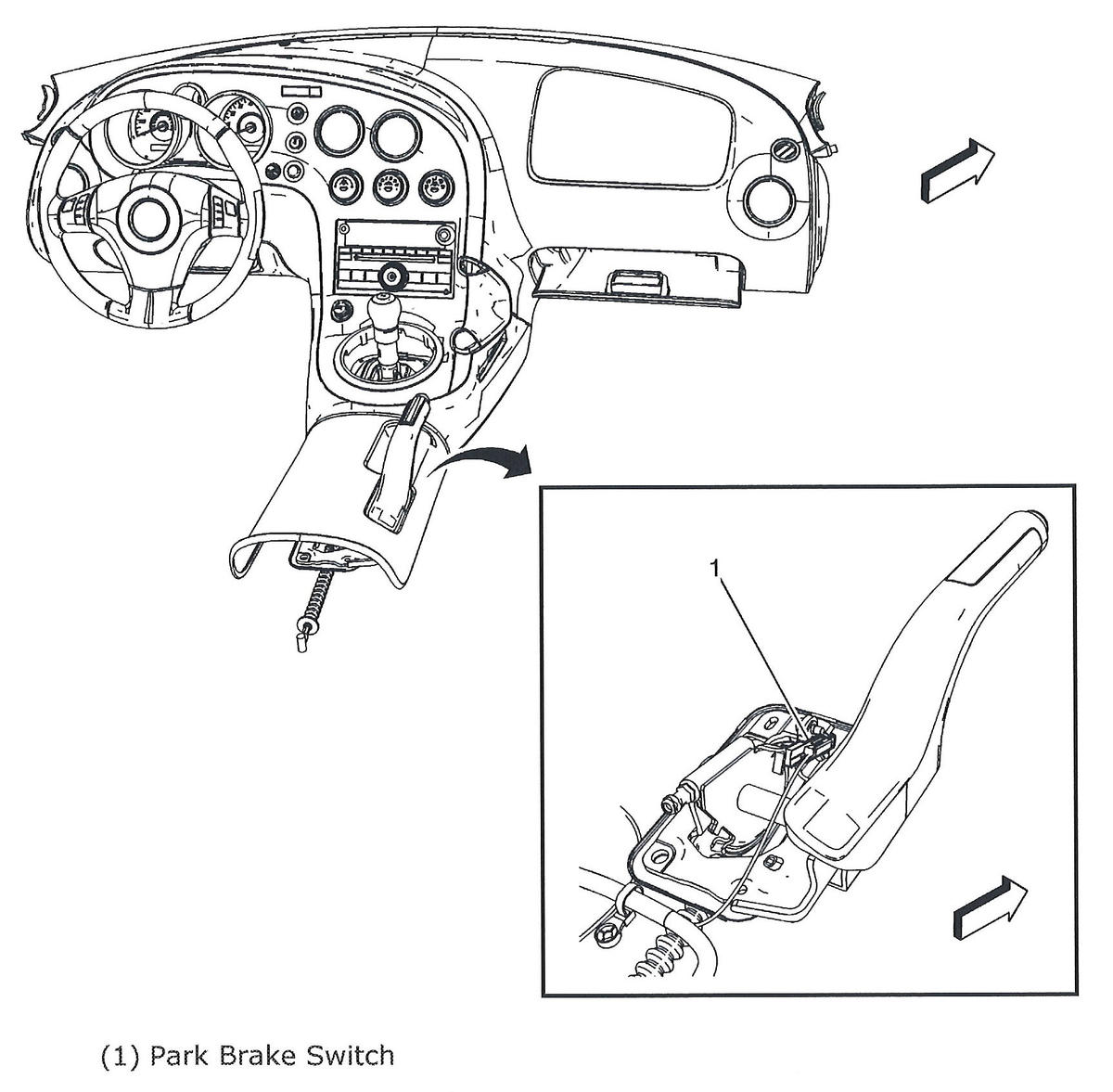

Fig 16: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 17: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 18: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 19: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 20: Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 21: Underhood Fuse Block (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

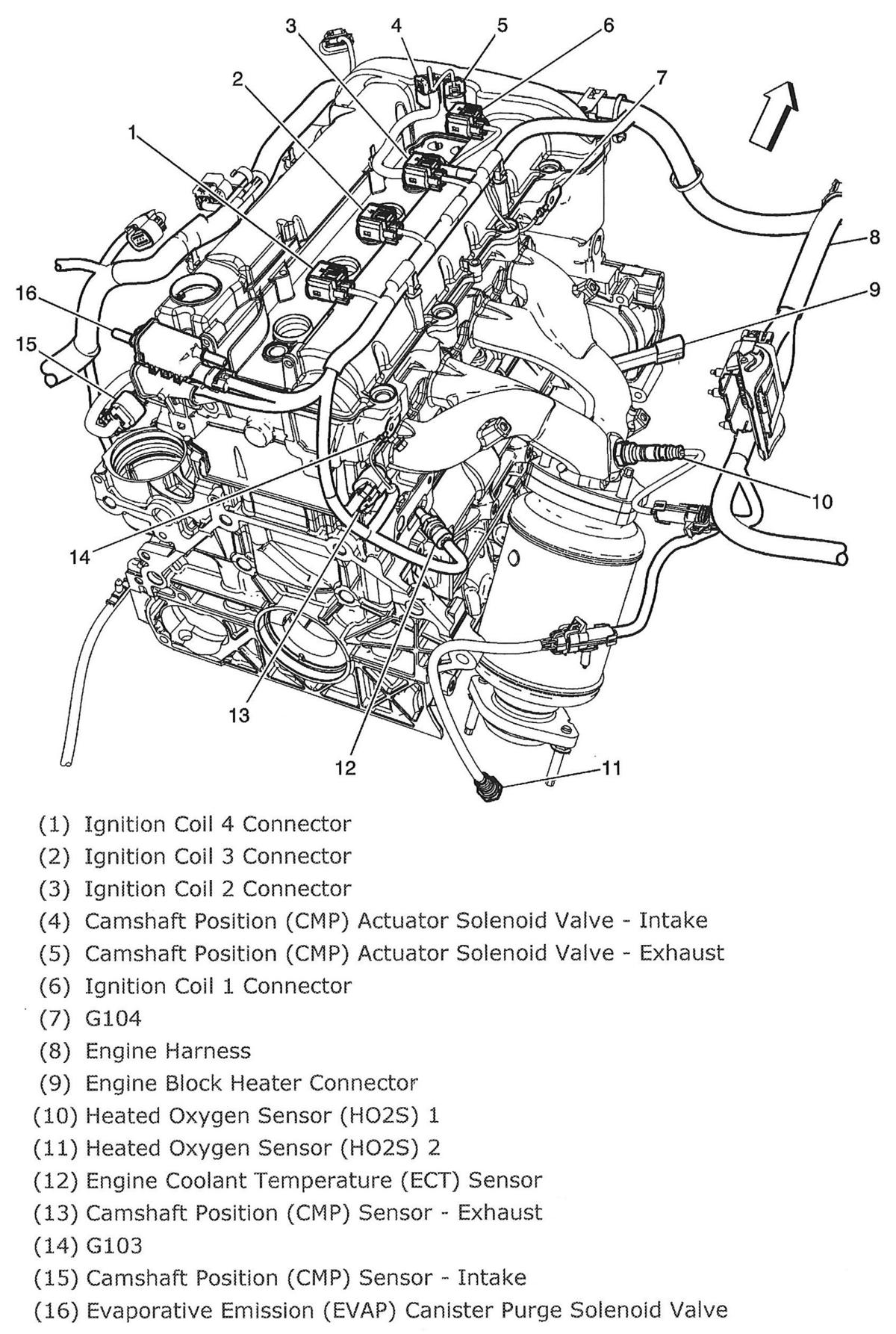

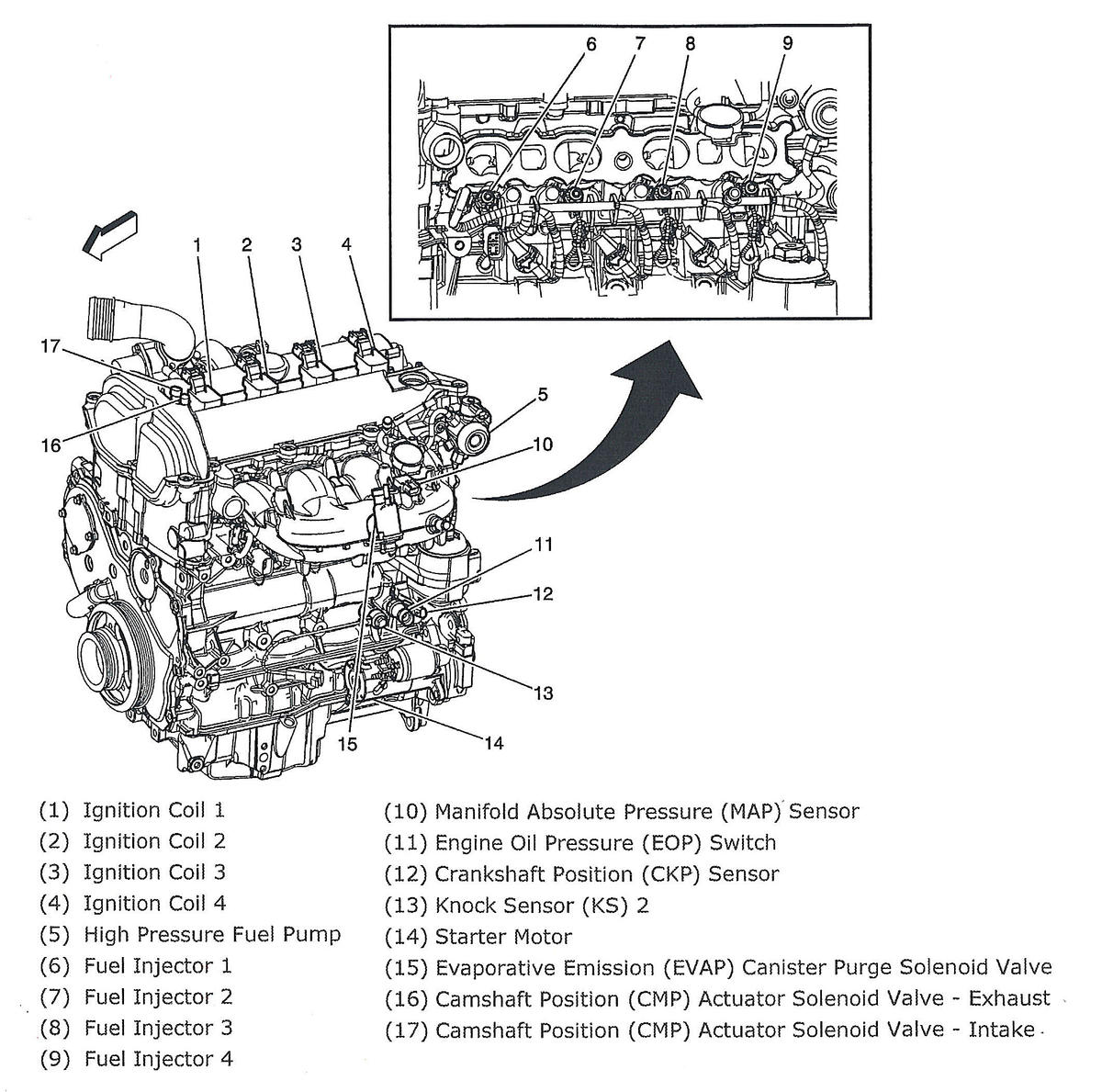

Fig 23: Left Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Left Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Body Control Module
Courtesy of GENERAL MOTORS CORP.
Fig 26: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 27: Right Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Engine Overview
Courtesy of GENERAL MOTORS CORP.

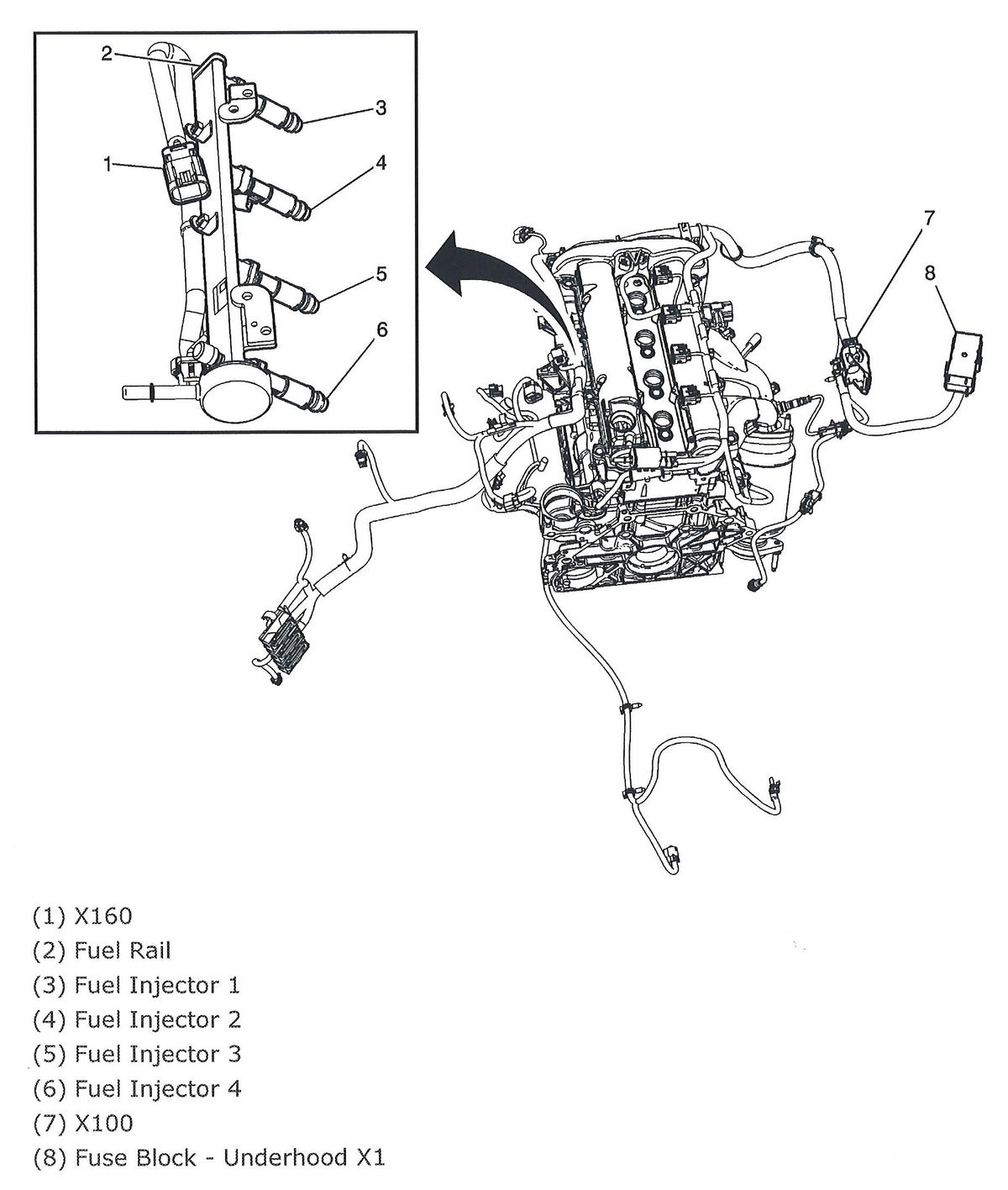

Fig 29: Engine Harness Routing Views
Courtesy of GENERAL MOTORS CORP.

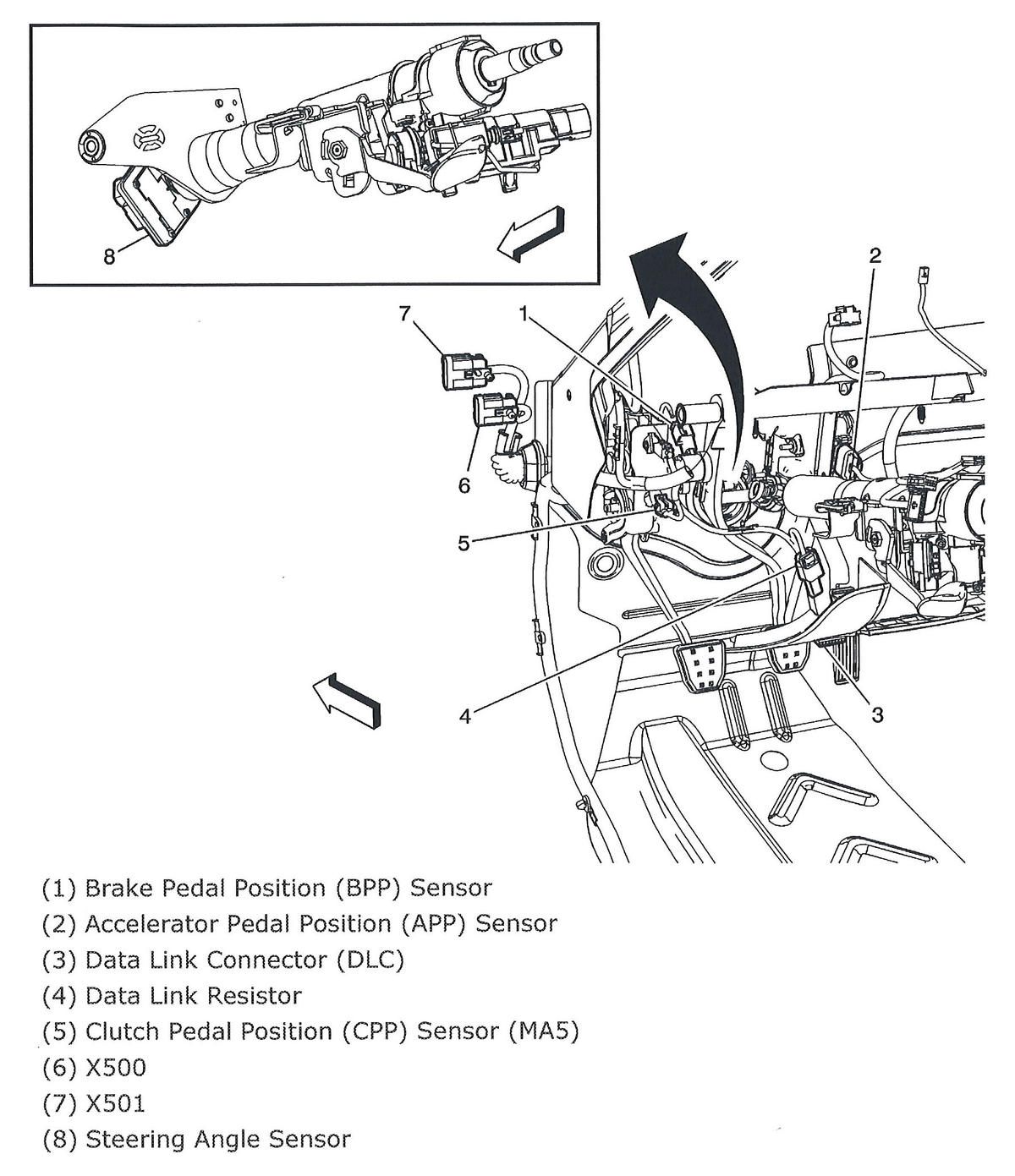

Fig 30: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 31: Lower Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 32: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

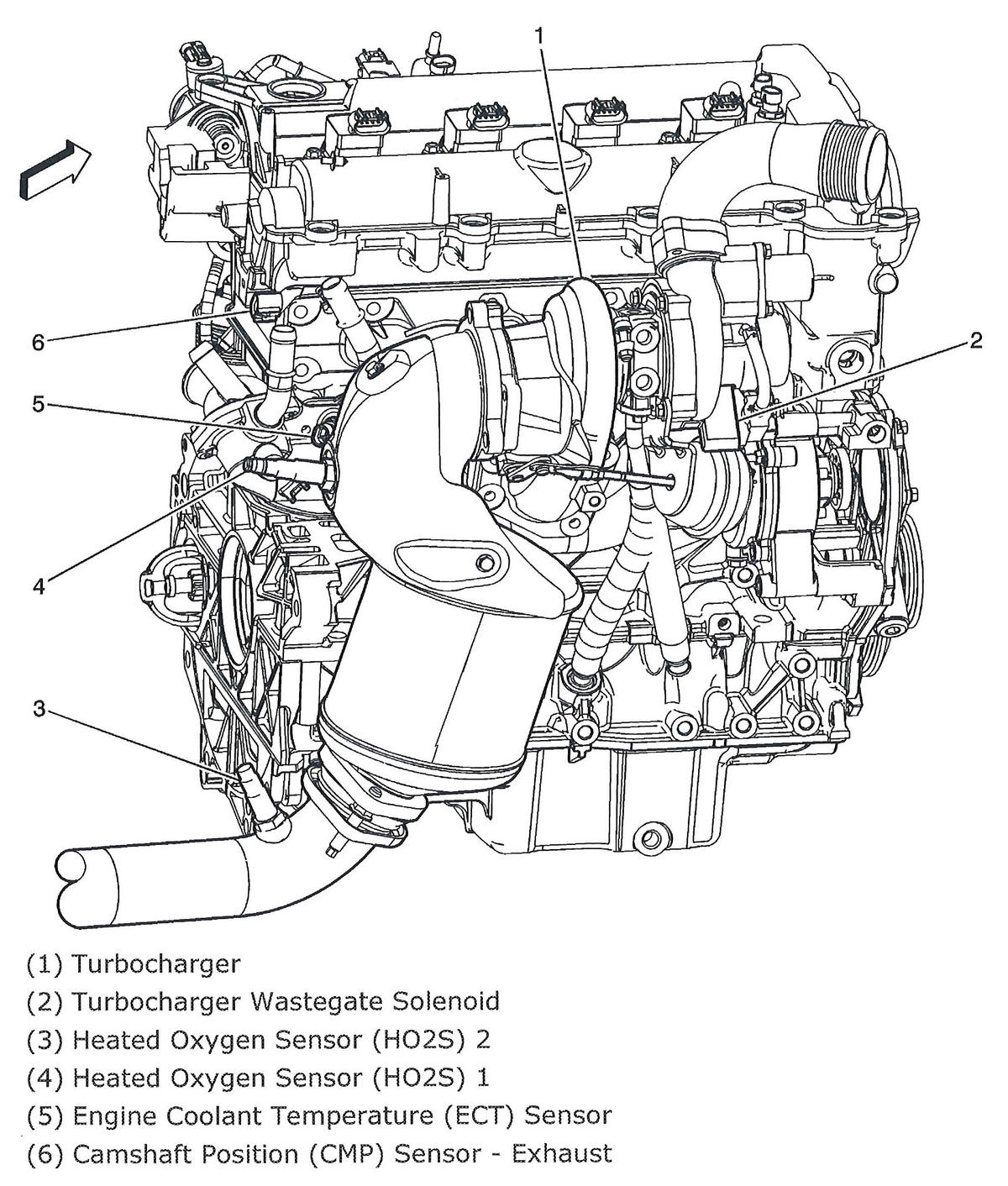

Fig 33: Right Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Steering Column Components
Courtesy of GENERAL MOTORS CORP.
Fig 35: HVAC Module Components
Courtesy of GENERAL MOTORS CORP.
Fig 36: Entertainment Components
Courtesy of GENERAL MOTORS CORP.
Fig 37: Floor Shifter
Courtesy of GENERAL MOTORS CORP.
Fig 38: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 39: Front Passenger's Seat Bottom
Courtesy of GENERAL MOTORS CORP.
Fig 40: Instrument Panel Harness
Courtesy of GENERAL MOTORS CORP.
Fig 41: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 42: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 43: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 44: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 45: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

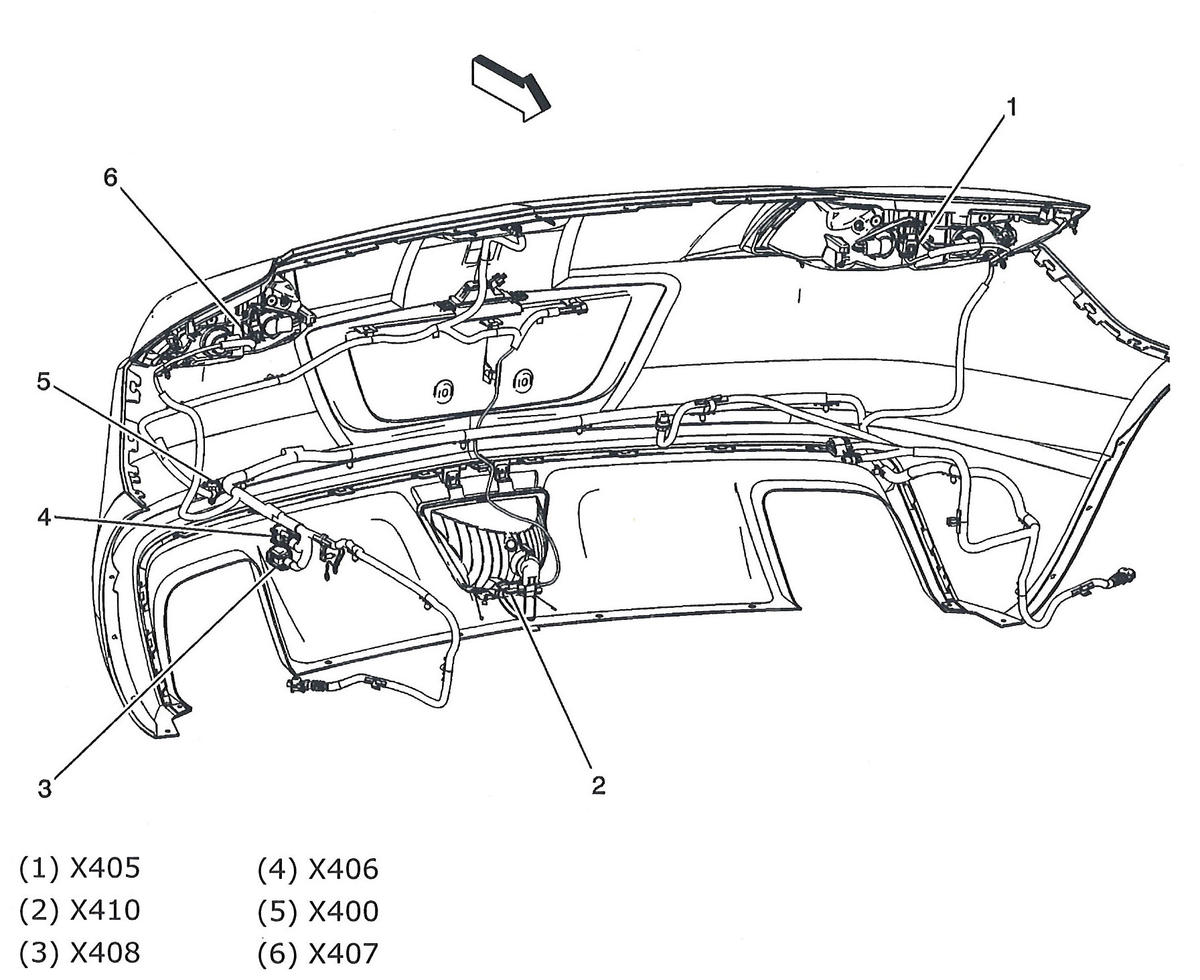

Fig 46: Rear Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 47: Rear Fascia Harness
Courtesy of GENERAL MOTORS CORP.

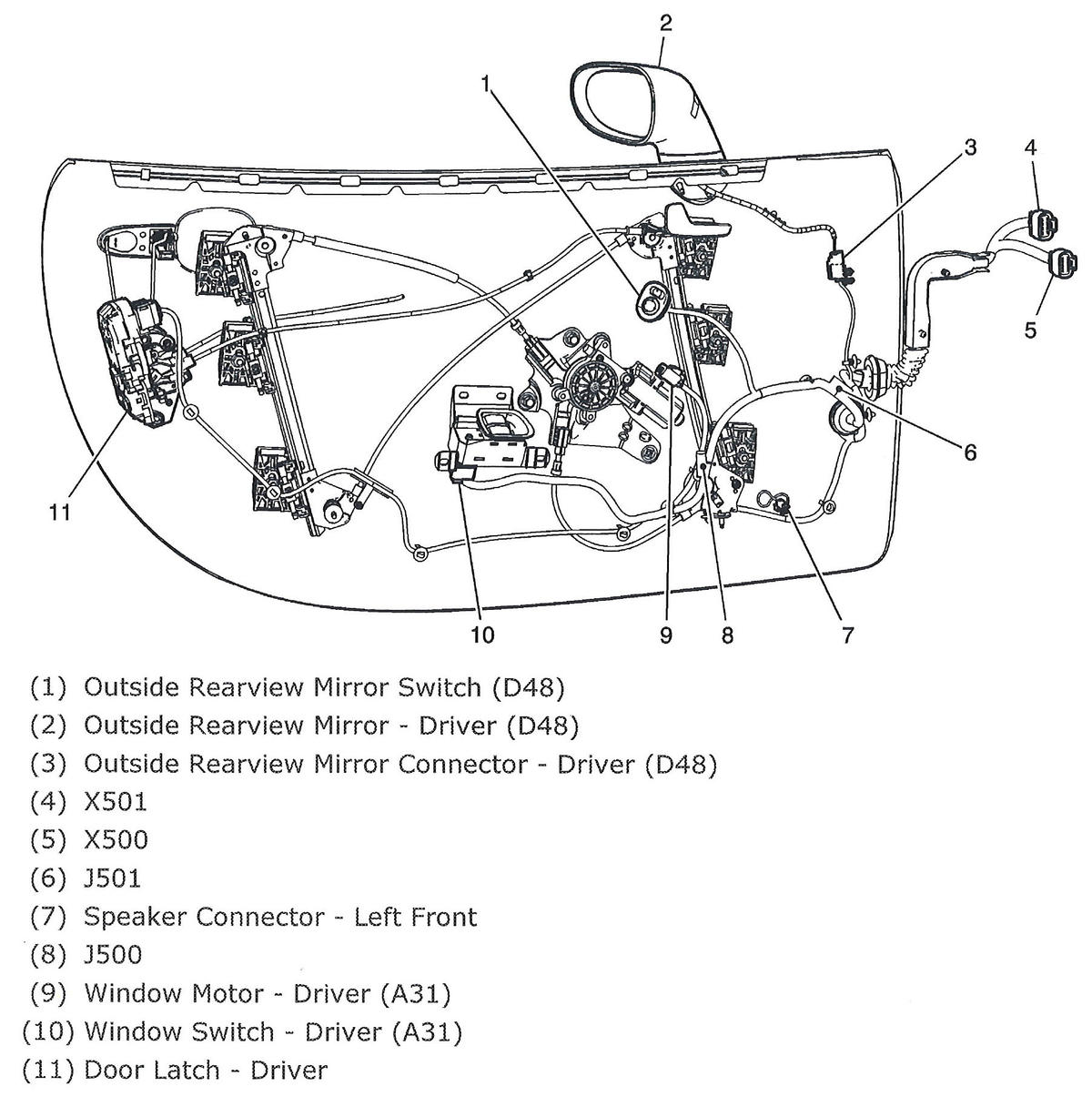

Fig 48: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 49: Rear Chassis Harness
Courtesy of GENERAL MOTORS CORP.
Fig 50: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right Of HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 52: Driver's Door Components
Courtesy of GENERAL MOTORS CORP.

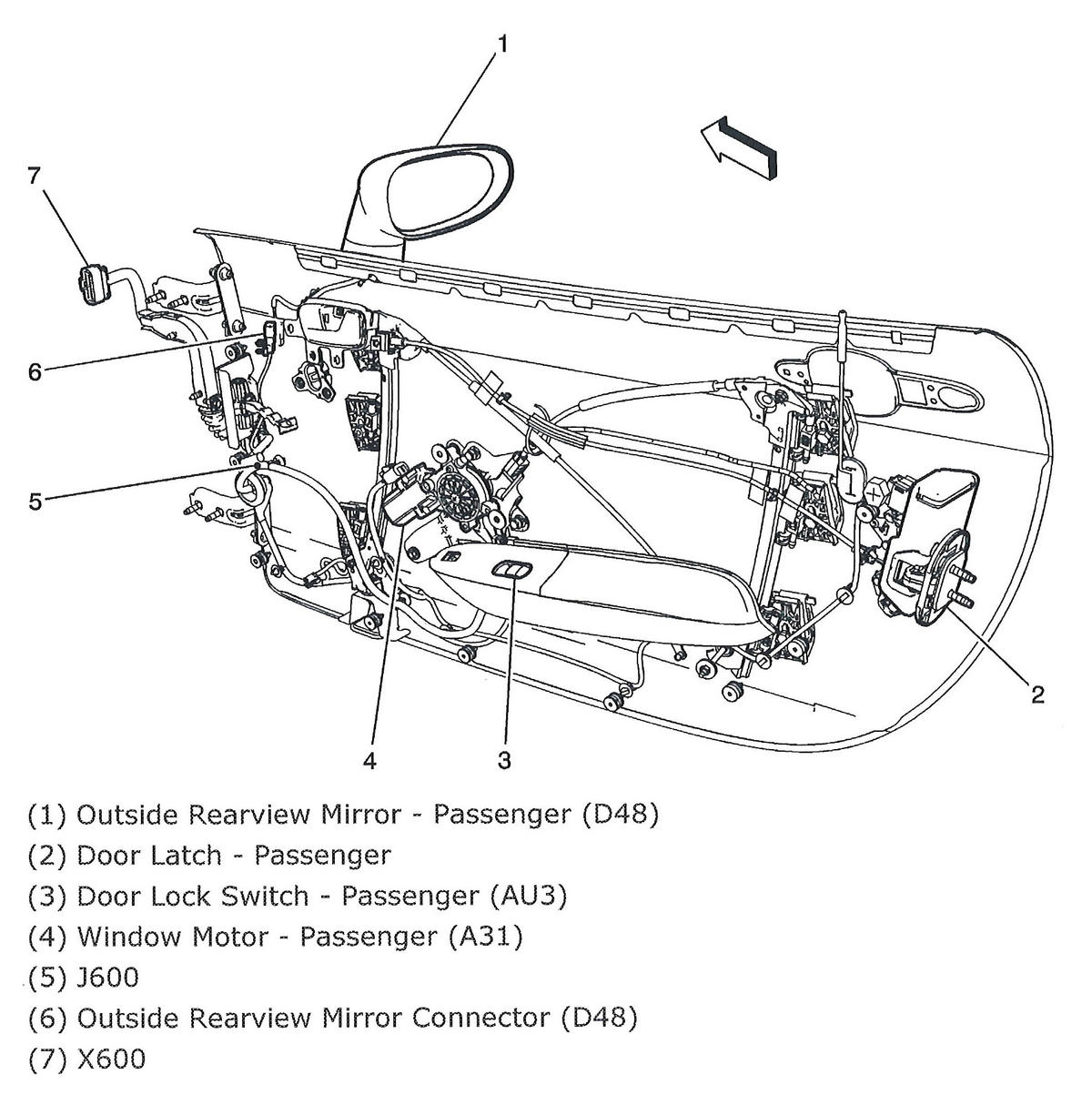

Fig 53: Front Passenger's Door Components
Courtesy of GENERAL MOTORS CORP.

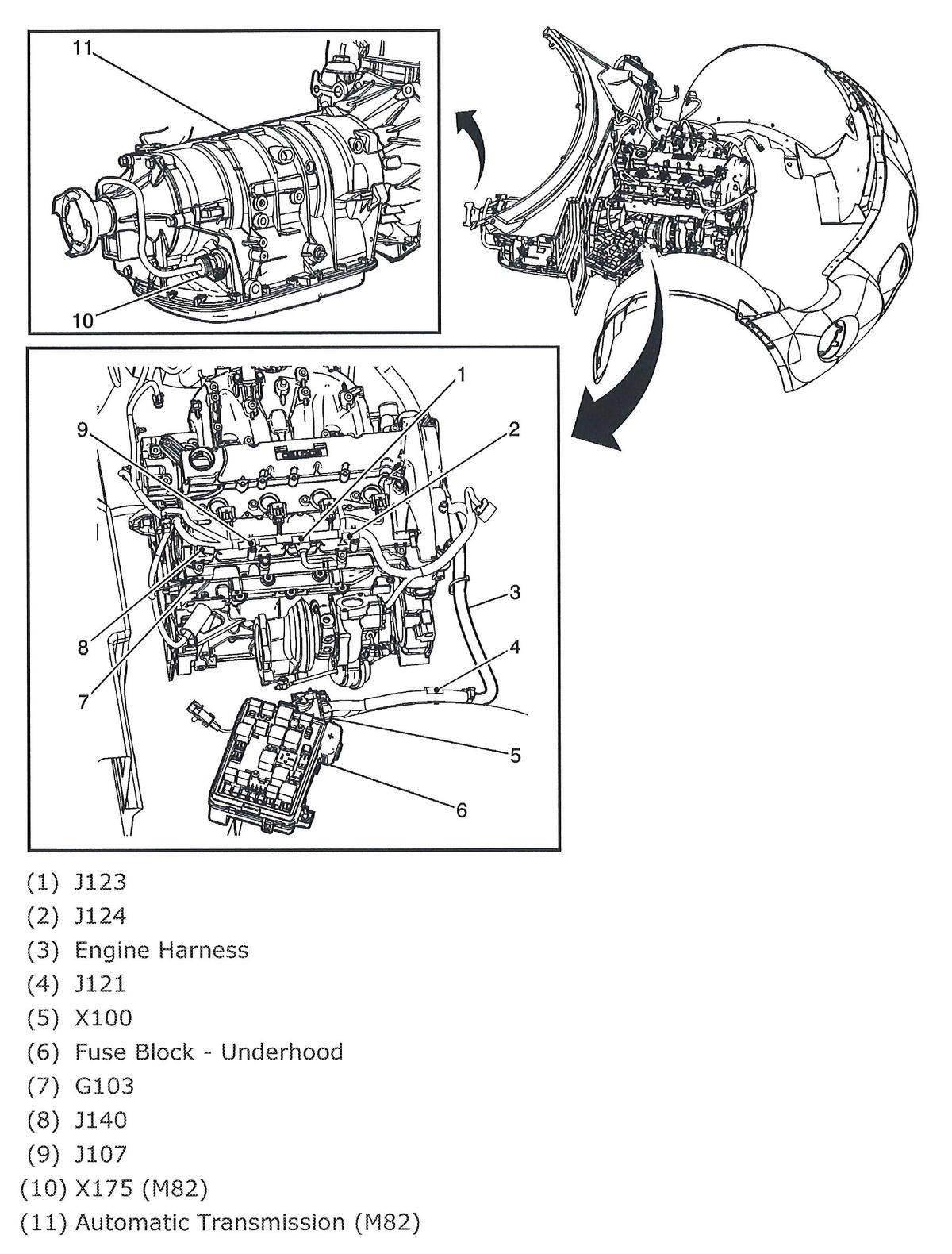

Fig 54: Left Side Of Engine (2.4L A/T)
Courtesy of GENERAL MOTORS CORP.
Fig 55: Left Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Top Left Side Of Engine Components (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 57: Right Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 58: Top Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 59: Forward Lamp
Courtesy of GENERAL MOTORS CORP.

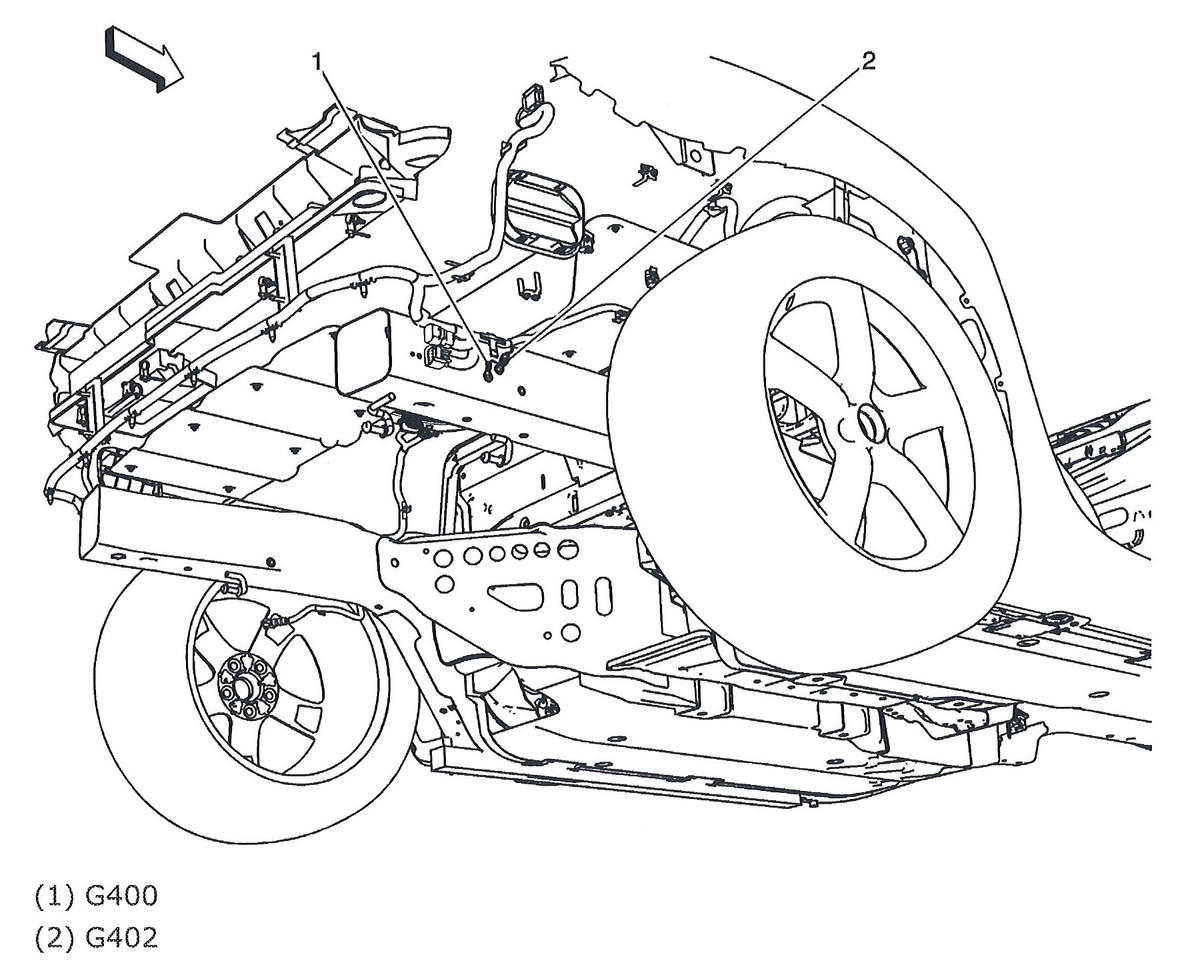

Fig 60: Left Rear Underbody
Courtesy of GENERAL MOTORS CORP.
Fig 61: Right Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Right Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Under Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 64: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 65: Rear Of Vehicle (Convertible)
Courtesy of GENERAL MOTORS CORP.
Fig 66: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
