Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

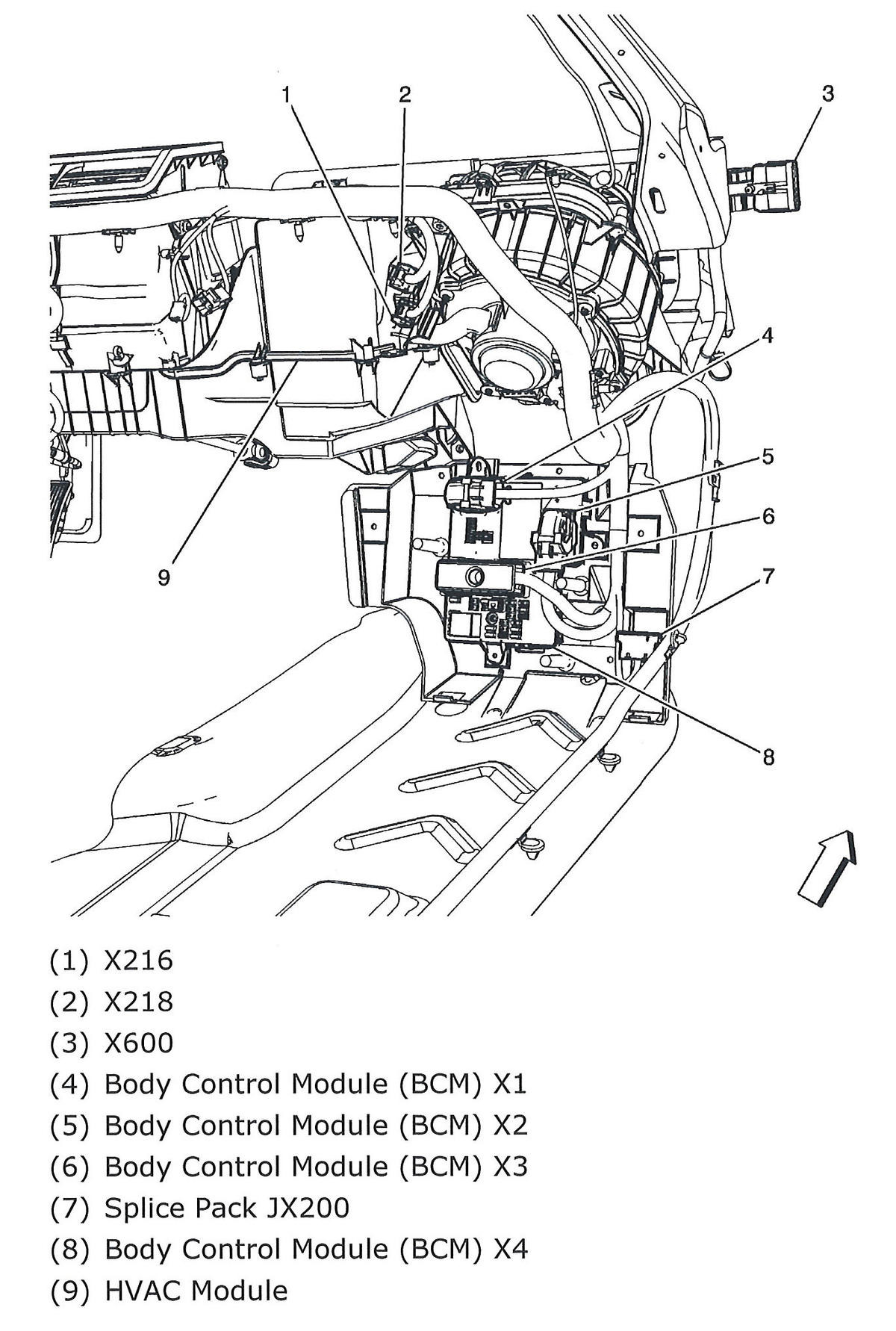

| Body Control Module | Right of HVAC module. See Figure. |
| Electronic Brake Control Module (EBCM) | Left side of engine compartment. See Figure. |
| Engine Control Module (ECM) (4) | Left rear corner of engine compartment. See Figure. |
| HVAC Control Module (6) | Center of dash. See Figure. |
| Inflatable Restraint I/P Module | Under right side of dash. See Figure. |
| Inflatable Restraint Passenger Presence System (PPS) Module | Under front passenger's seat. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under front passenger's seat. See Figure. |
| Inflatable Restraint Steering Wheel Module (1) | In steering wheel. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) | Center OF driver's seat back. See Figure. |
| Theft Deterrent Module (1) | Top right of steering column. See Figure. |
| Transmission Control Module (TCM) (5) | Near brake master cylinder. See Figure. |
| Vehicle Communication Interface Module (VCIM) | Rear of center console. See Figure. |
