Fuel Pump Module

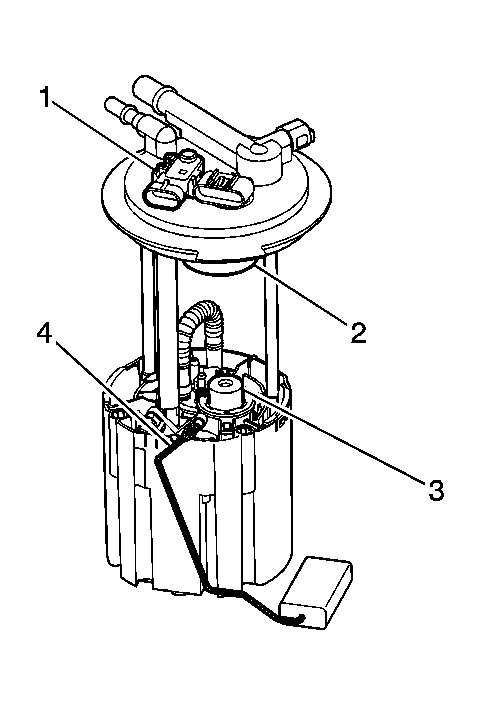

Fig 1: Identifying Fuel Pump Module Components

Courtesy of GENERAL MOTORS CORP.

The fuel pump module consists of the following major components:

• The fill limit vent valve (2)
• The fuel level sensor (4)
• The fuel tank pressure (FTP) sensor (1)
• The fuel pump
• The fuel strainer
• The fuel pressure regulator (3)
