Air Cleaner Outlet Resonator Replacement

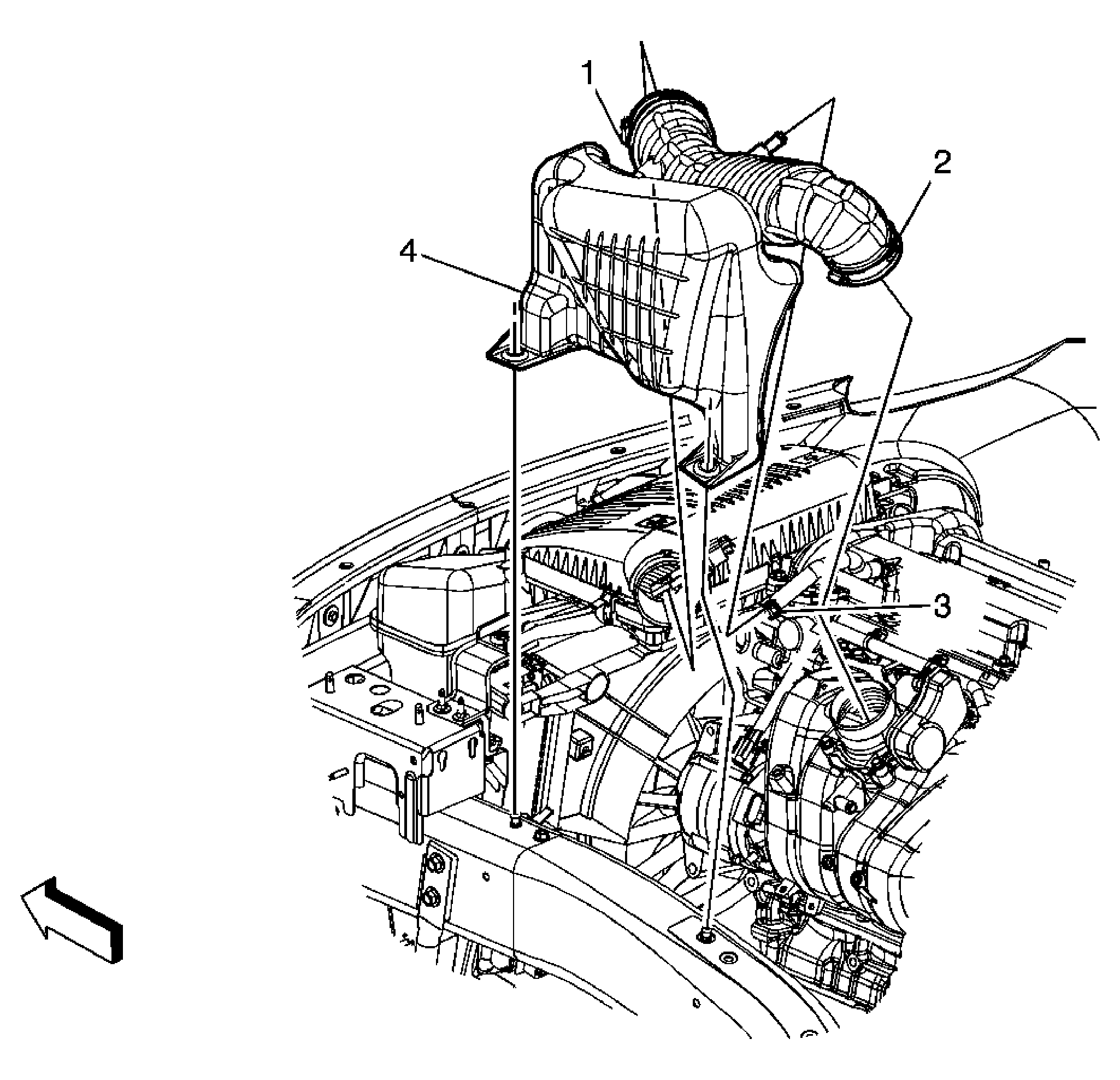

Fig 1: Identifying Air Cleaner Outlet Resonator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Cleaner Outlet Duct Resonator Clamp CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Air Cleaner Outlet Duct Resonator Clamp Tighten: 9 N.m (80 lb in)
3	Positive Crankcase Ventilation Hose Clamp
4	Air Cleaner Outlet Duct Resonator Tip: Pull up on the outlet duct assembly in order to disengage the assembly from the studs.
