Installation Procedure

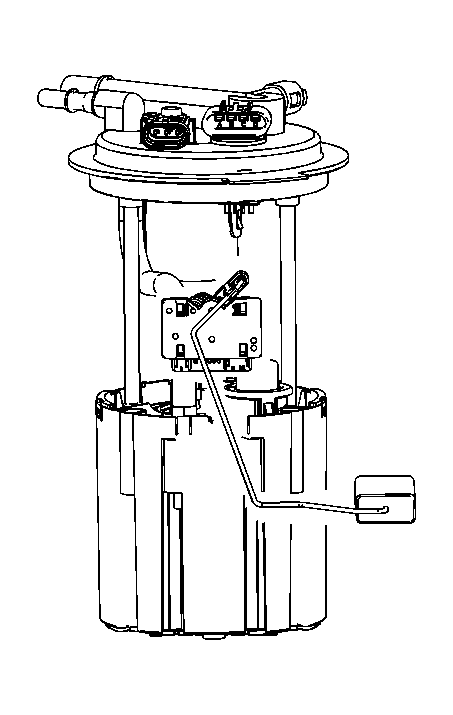

    Fig 1: View Of Fuel Pump Module
    GM1594374Courtesy of GENERAL MOTORS CORP.
  1. Carefully slide the fuel level sensor into the slots on the fuel pump module bowl.
  2. Secure the retaining tab on the sensor into the slot on the pump module bowl.
  3. Install the fuel pump module. Refer to Fuel Pump Module Replacement .
