Fuse Block - Underhood
Electrical Center Identification Views
Fuse Block - Underhood Label - Convertible (LE5 with MA5)
Fuse Block - Underhood Label - Solstice Coupe (LE5 with MA5)
Fuse Block - Underhood Label - Convertible (LE5 with M82)
Fuse Block - Underhood Label - Solstice Coupe (LE5 with M82)
Fuse Block - Underhood Label - Convertible (LNF with MA5)
Fuse Block - Underhood Label - Solstice Coupe (LNF with MA5)
Fuse Block - Underhood Label - Convertible (LNF with M82)
Fuse Block - Underhood Label - Solstice Coupe (LNF with M82)
Fuse Block - Underhood Top View
Fuse Block - Underhood Bottom View

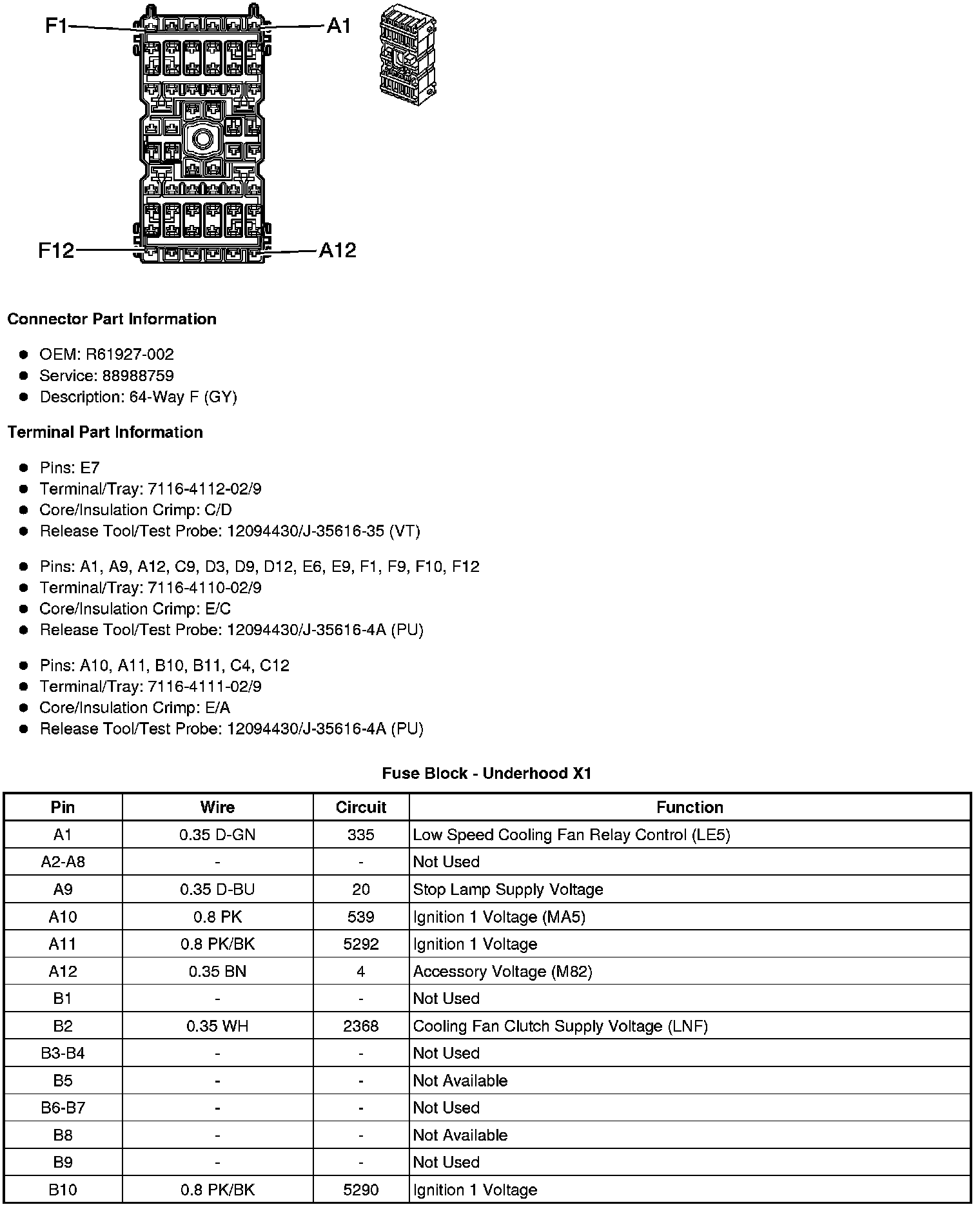

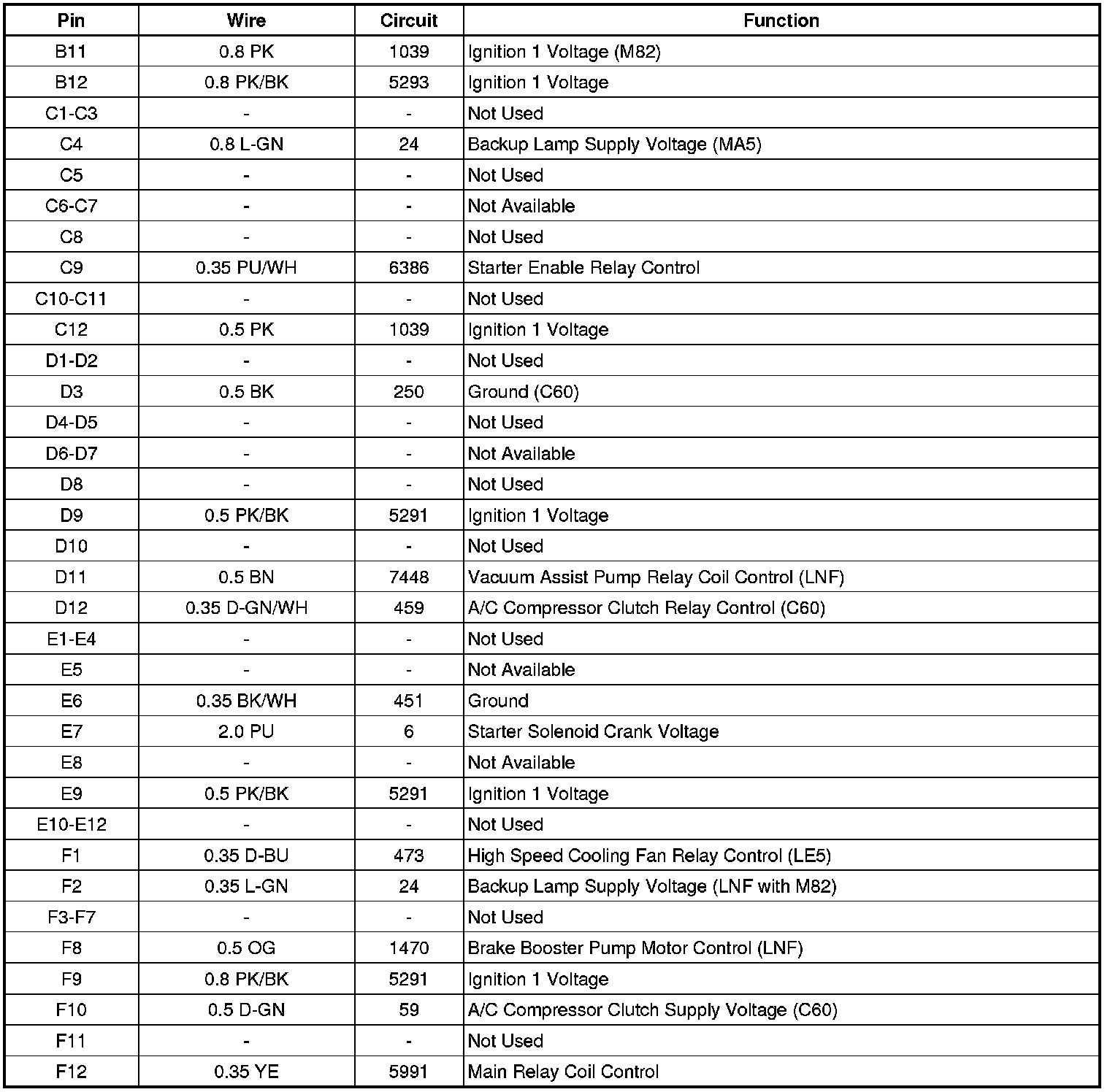

Fuse Block - Underhood X1

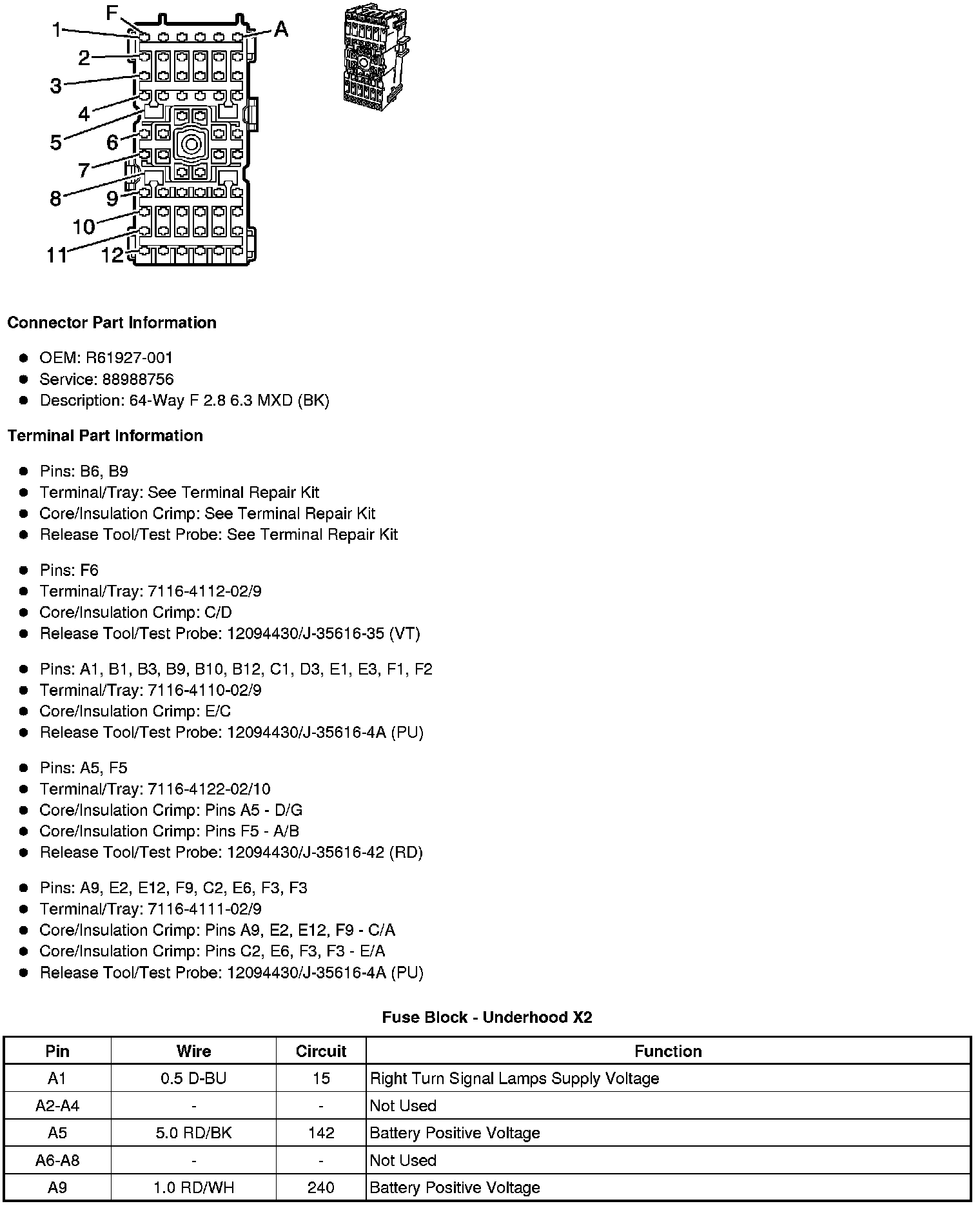

Fuse Block - Underhood X2

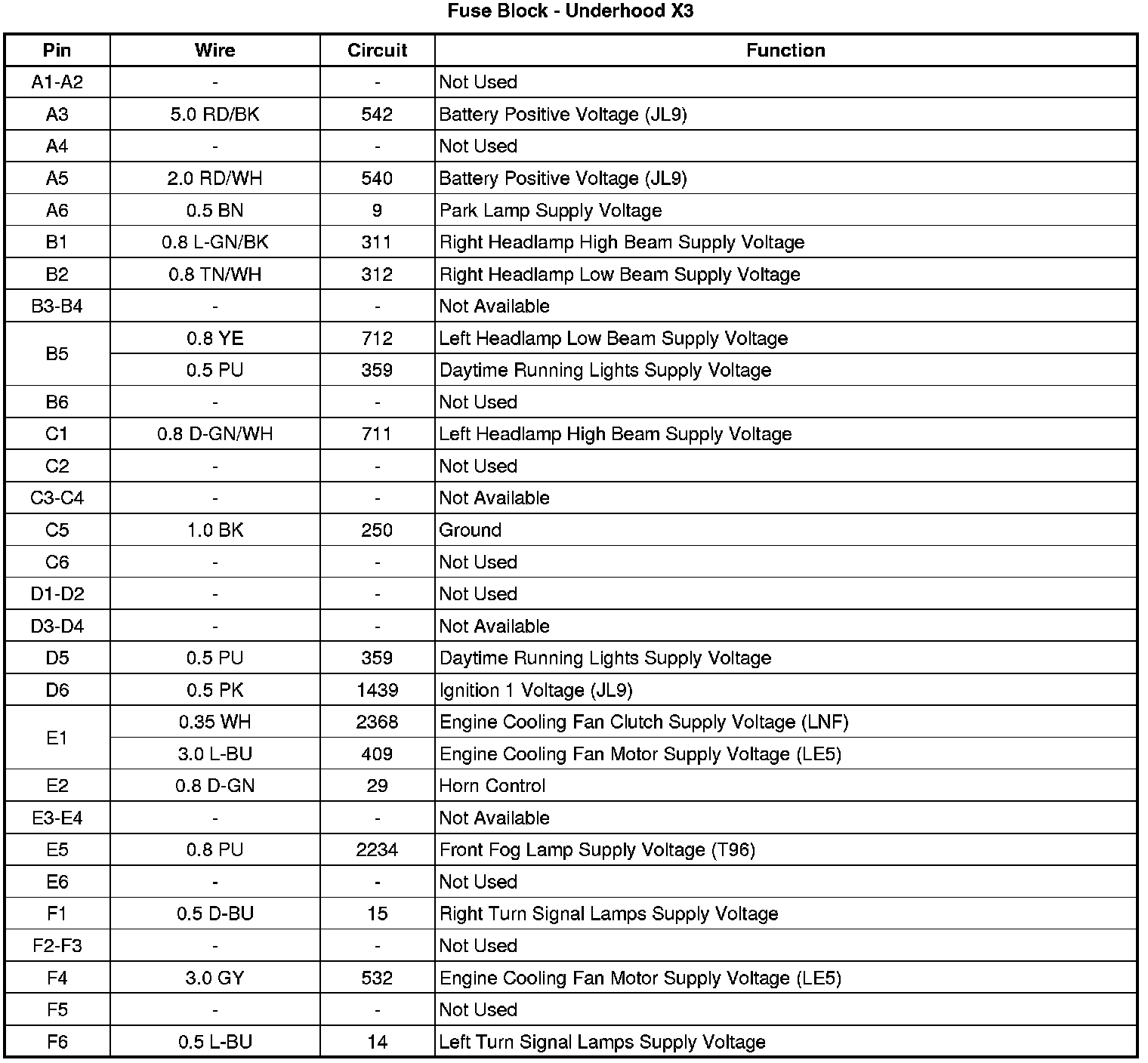

Fuse Block - Underhood X3

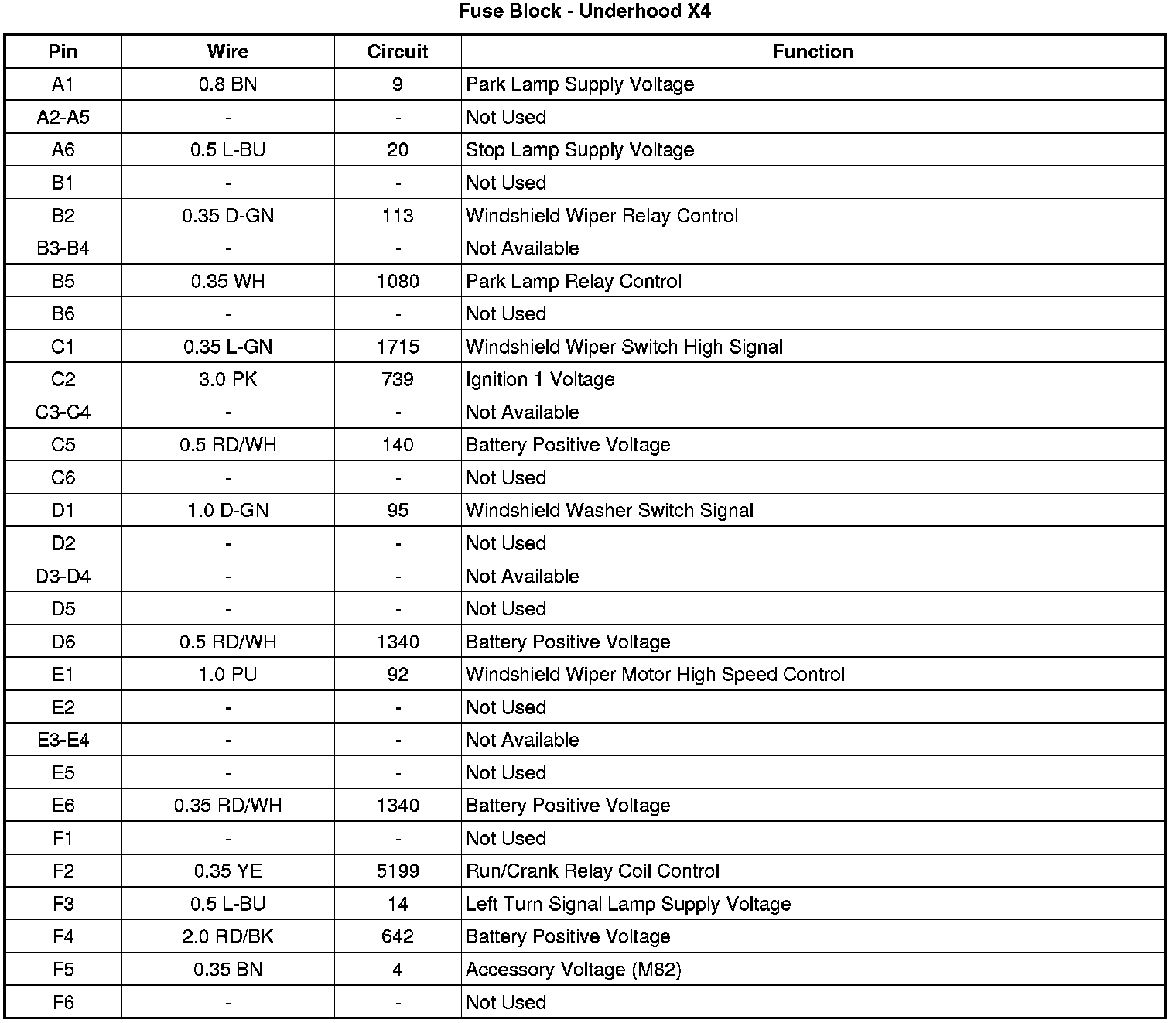

Fuse Block - Underhood X4
Fuse Block - Underhood X5
Fuse Block - Underhood X6
