Engine Controls Schematics

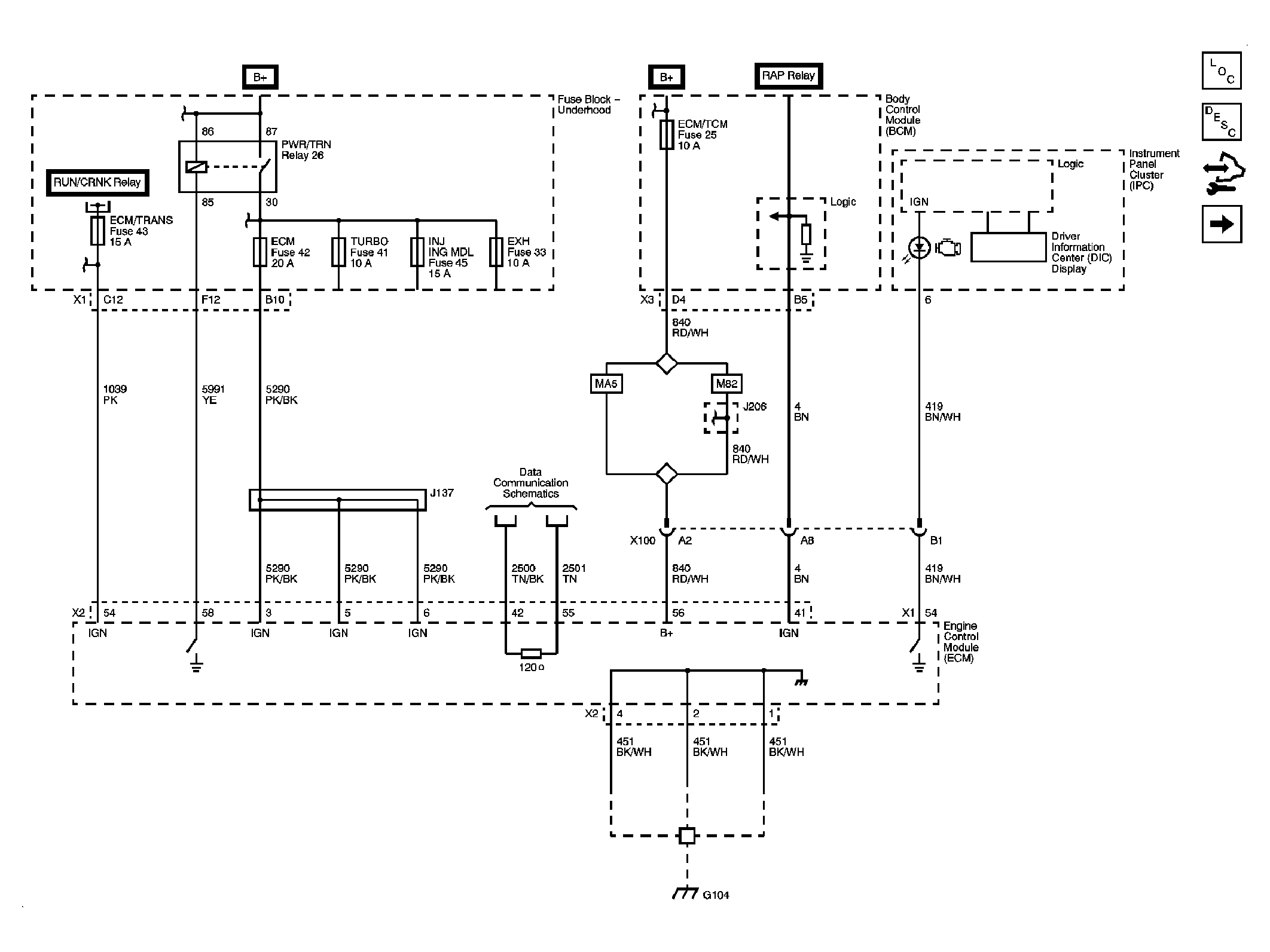

Fig 1: Power, Ground, Data Link & MIL

Courtesy of GENERAL MOTORS CORP.

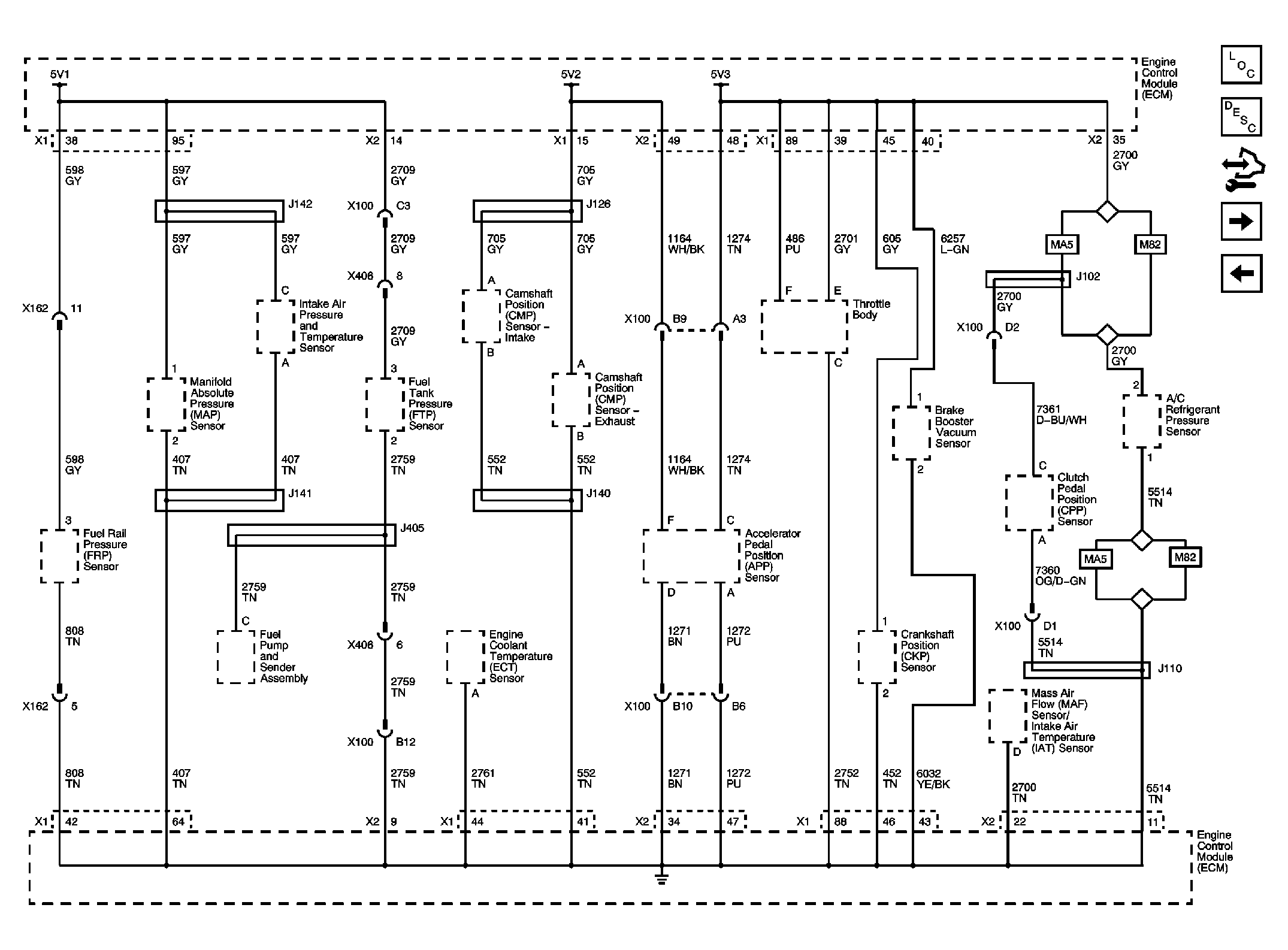

Fig 2: 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

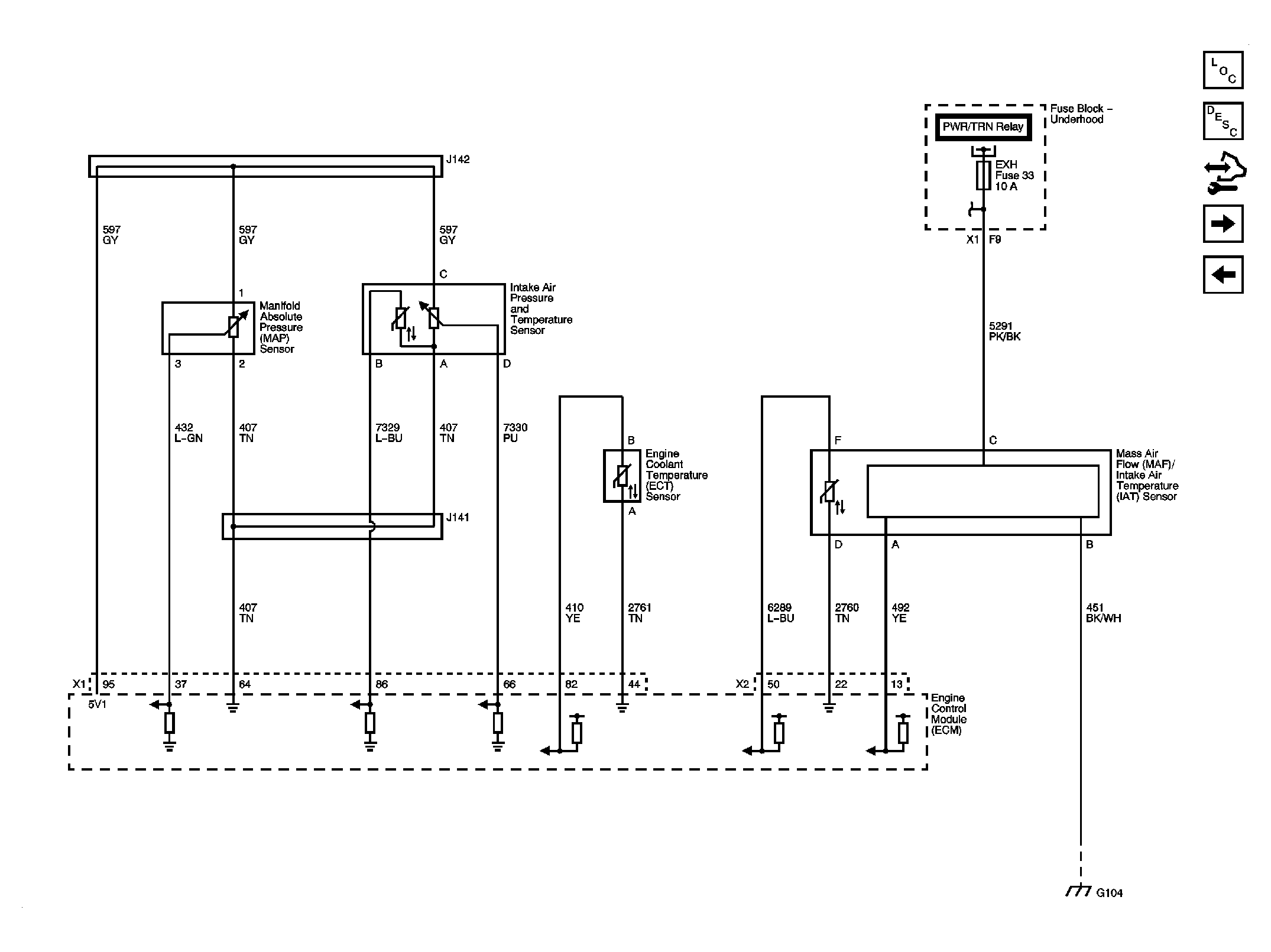

Fig 3: Engine Data Sensors - Pressure & Temperature

Courtesy of GENERAL MOTORS CORP.

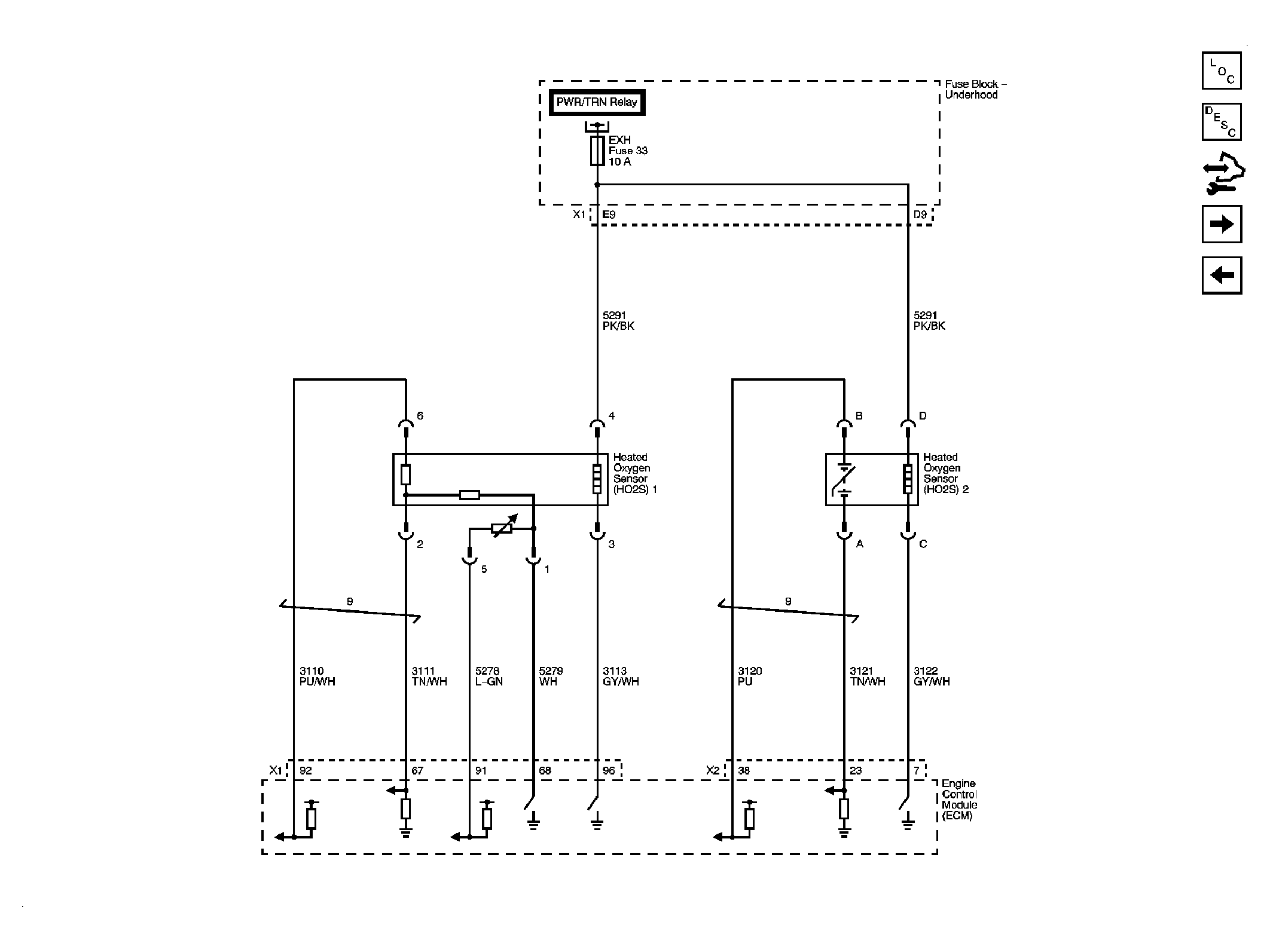

Fig 4: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

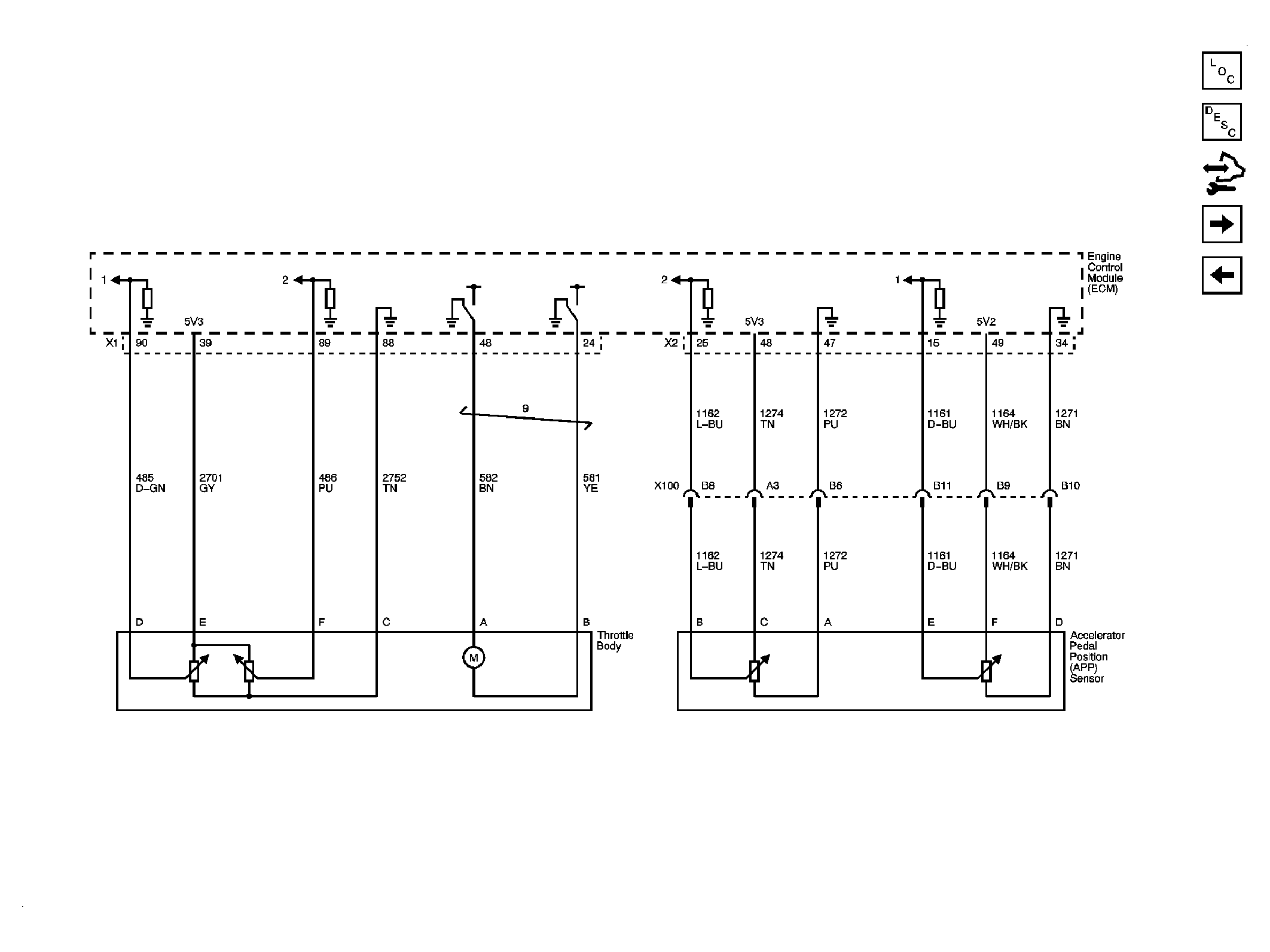

Fig 5: Engine Data Sensors - Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

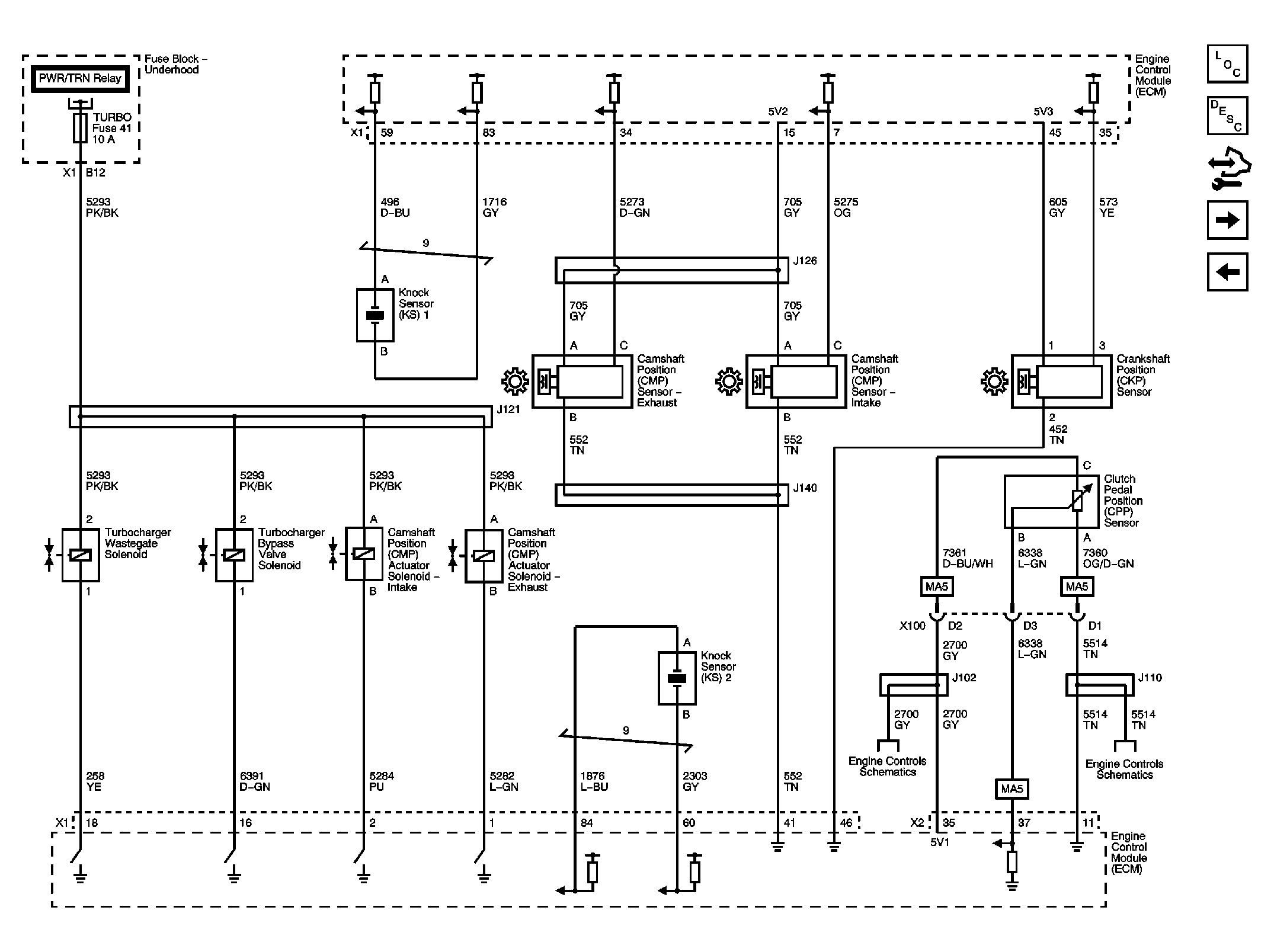

Fig 6: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

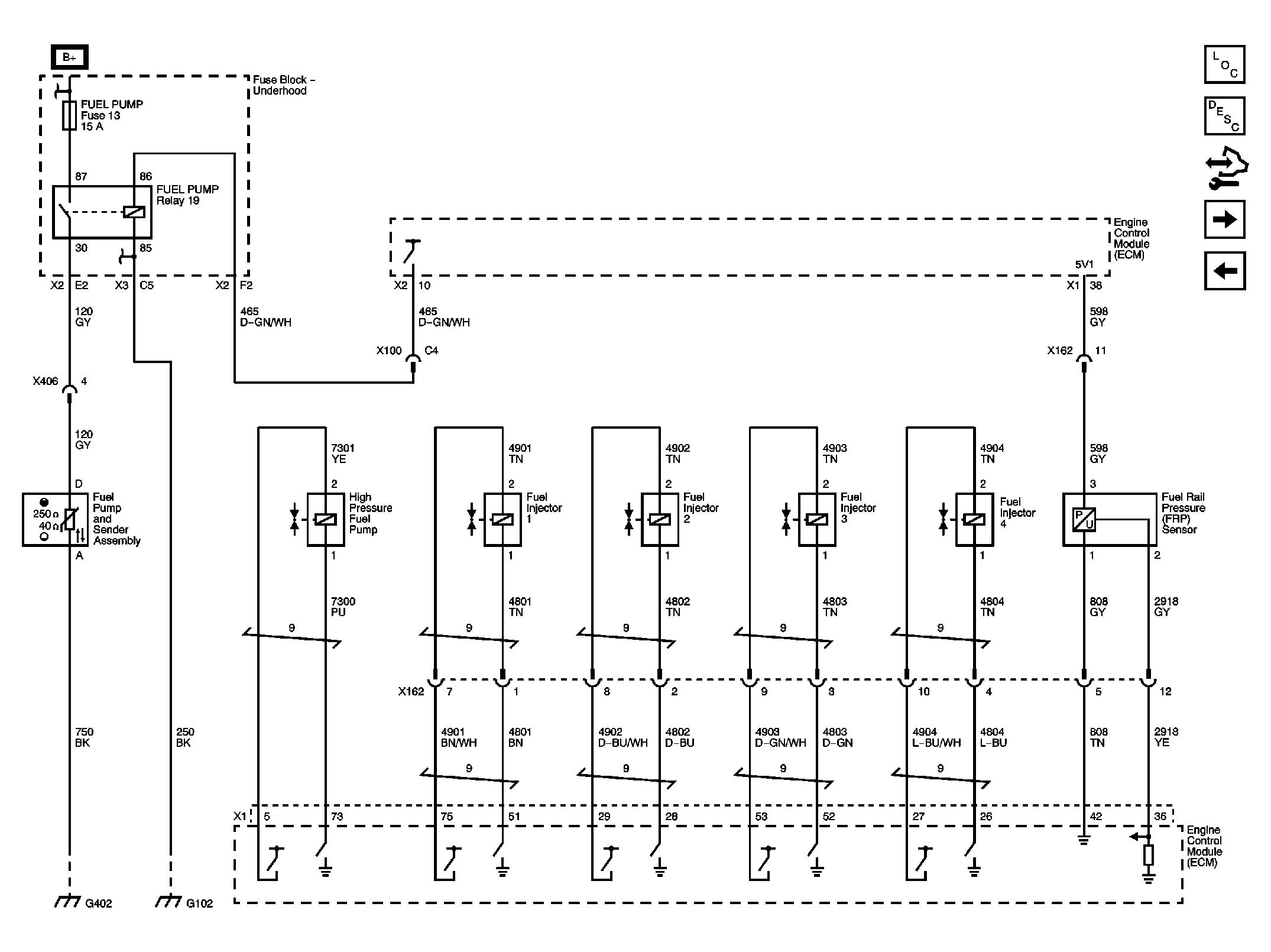

Fig 7: Fuel Controls - Fuel Pump Controls & Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

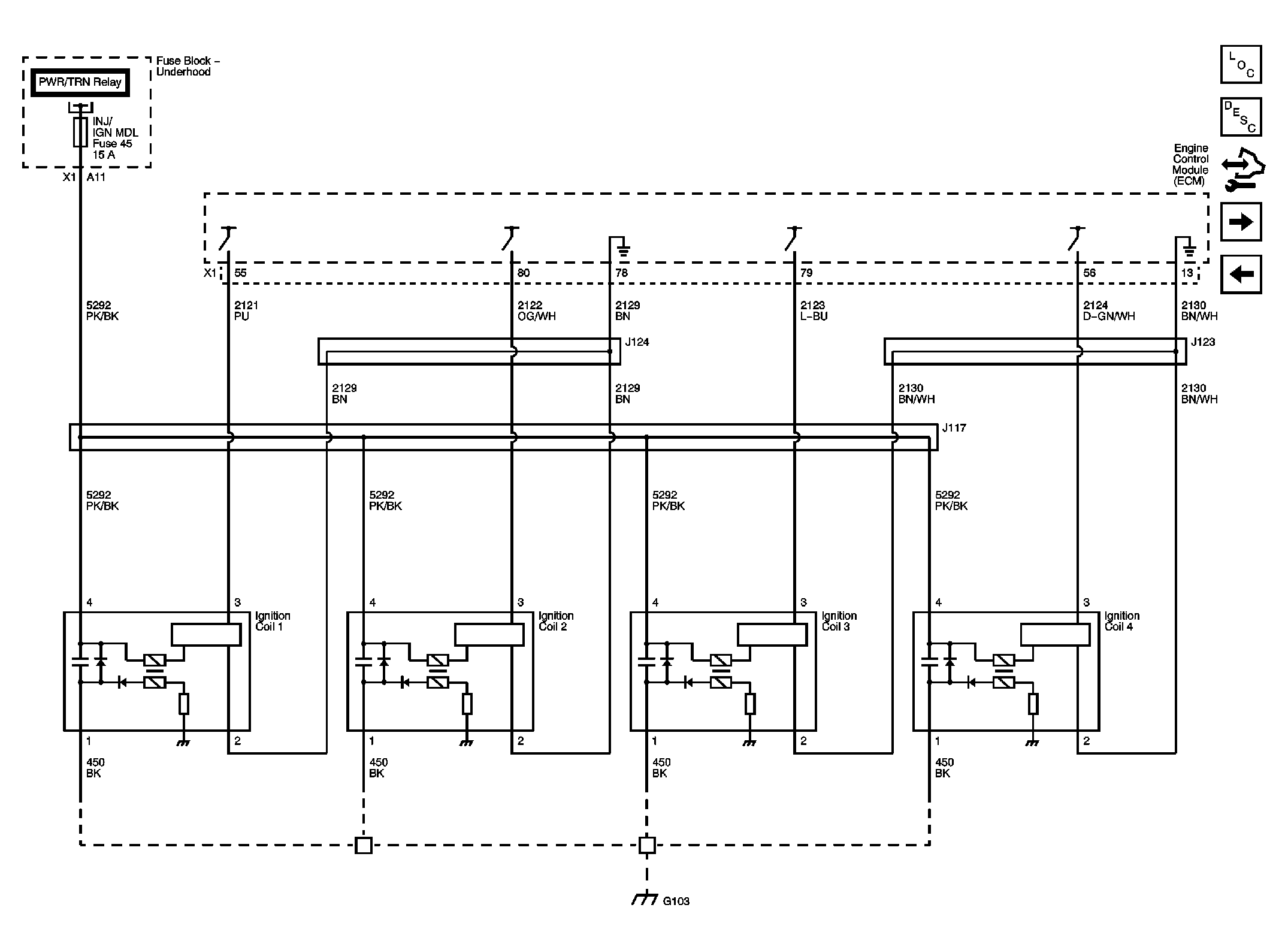

Fig 8: Ignition Controls - Ignition System

Courtesy of GENERAL MOTORS CORP.

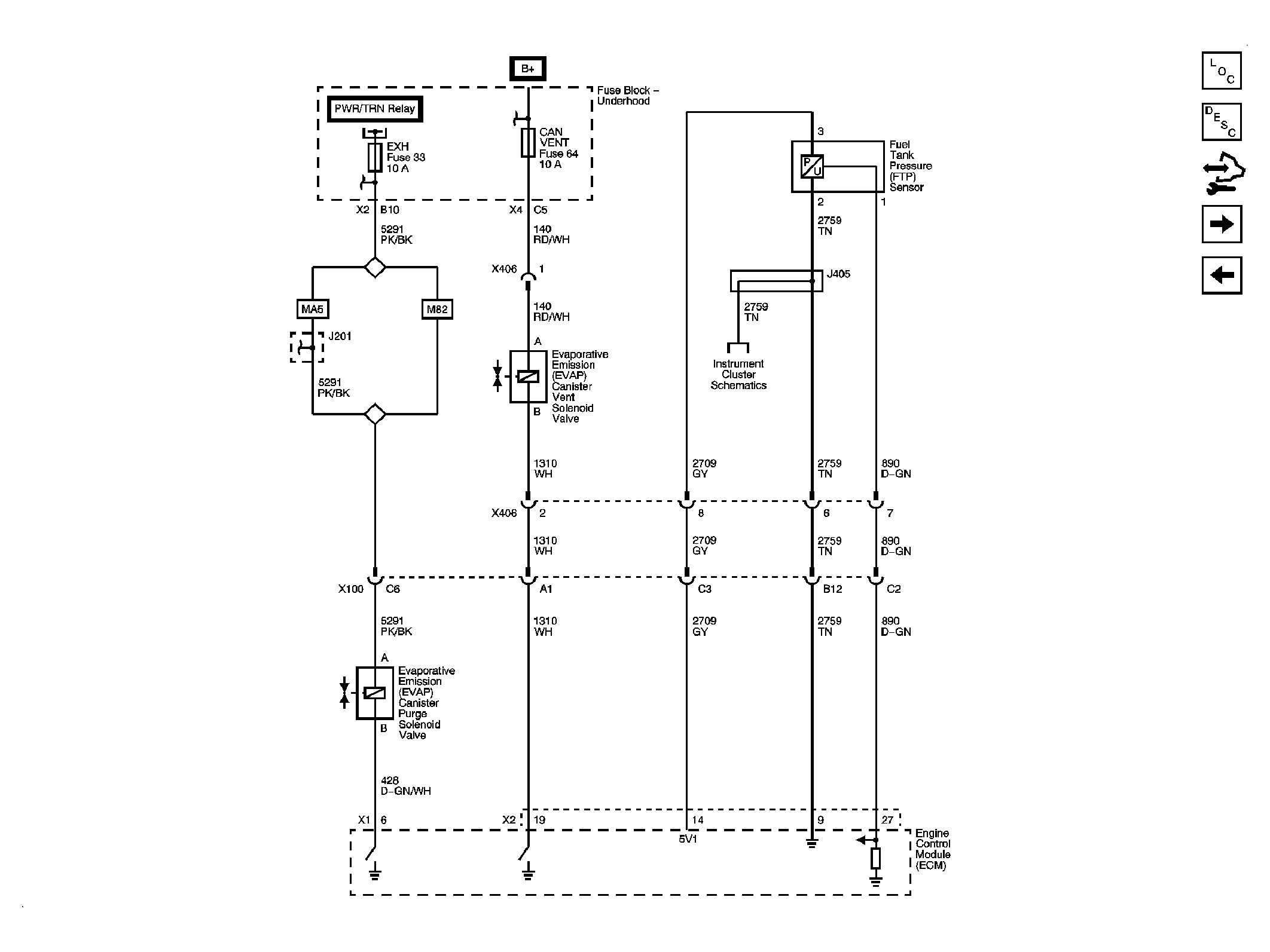

Fig 9: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

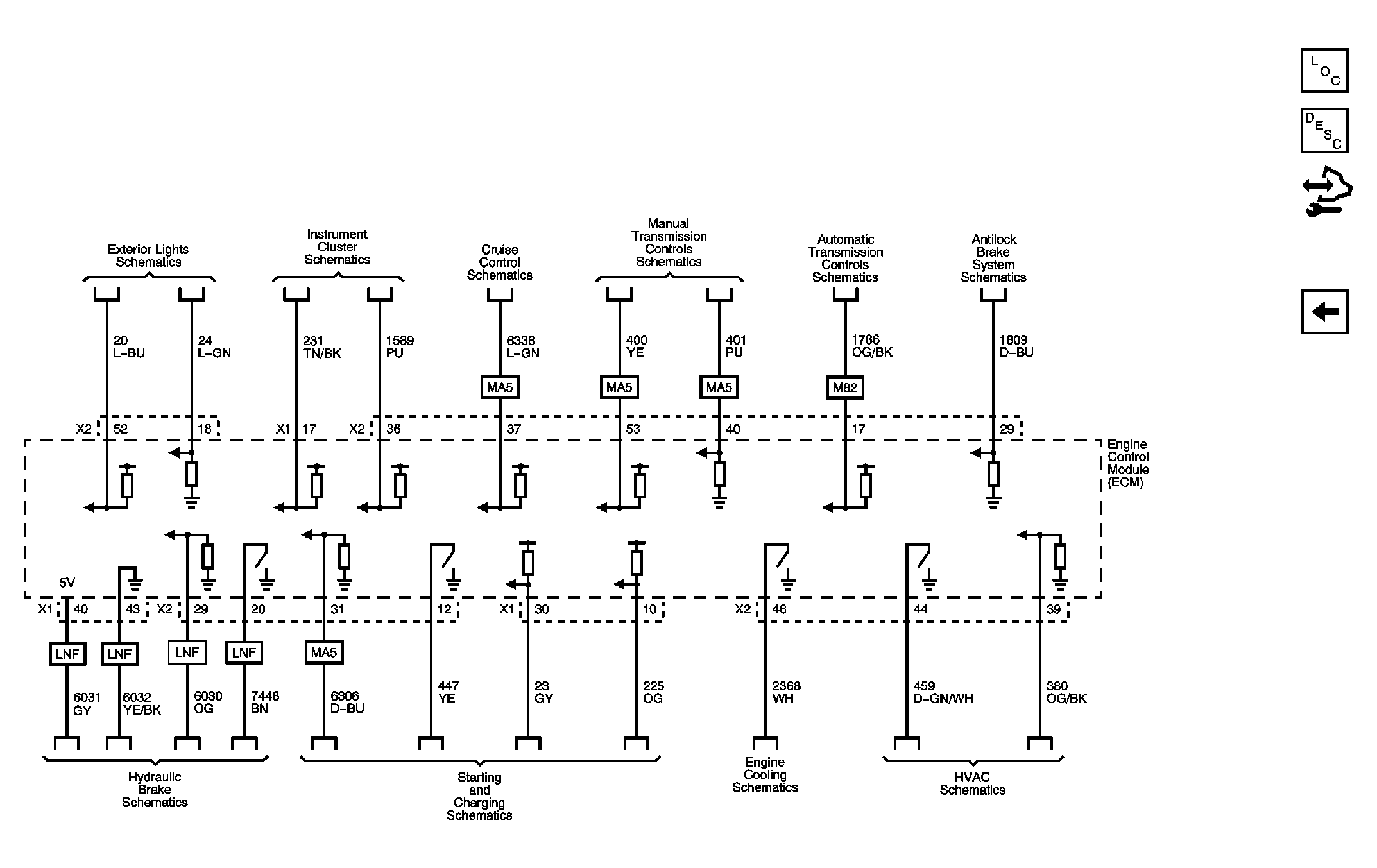

Fig 10: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
