Alternator
Component Connector End Views

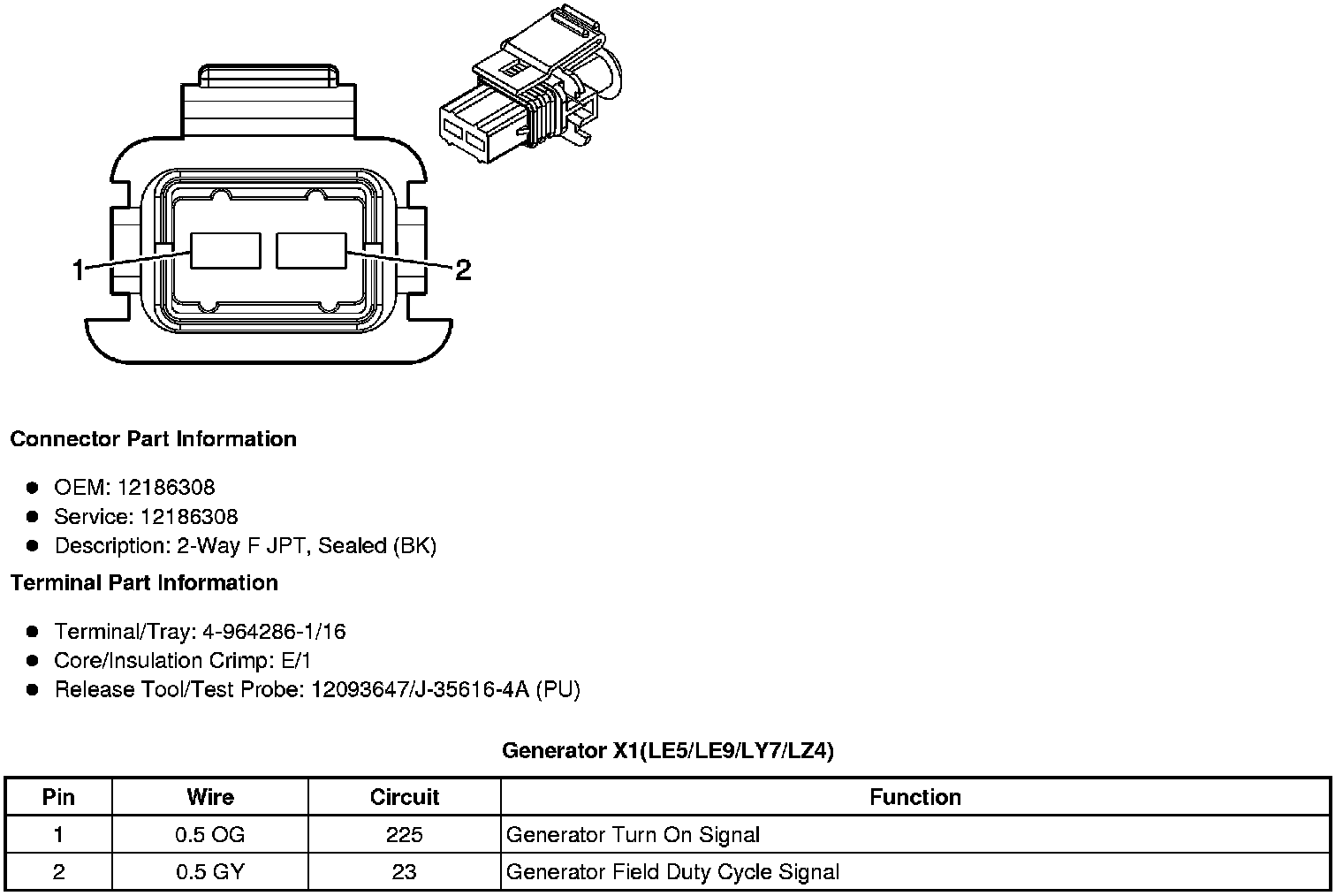

Generator X1(LE5/LE9/LY7/LZ4)

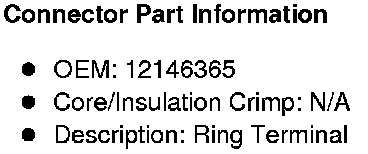

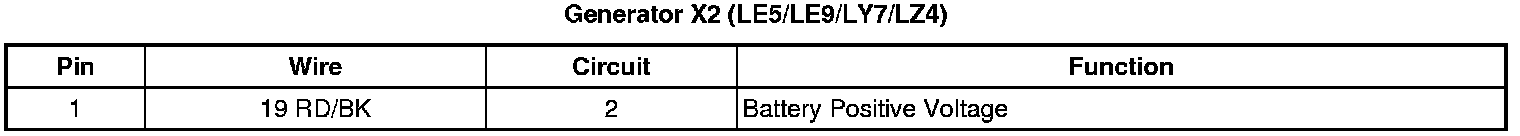

Generator X2 (LE5/LE9/LY7/LZ4)
