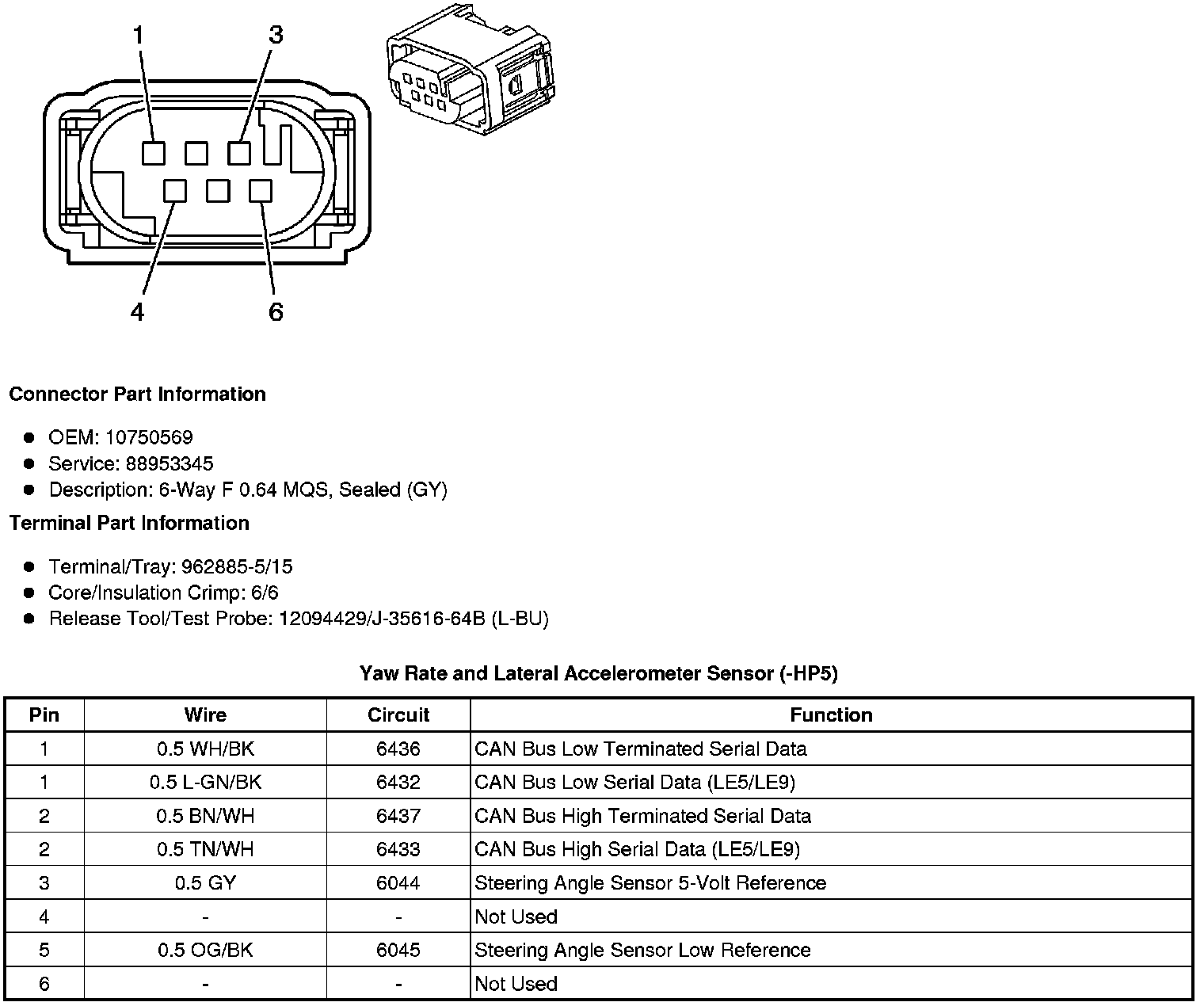

Lateral Accelerometer
Component Connector End Views
Yaw Rate and
Lateral Accelerometer
Sensor (-HP5)
