System Diagram




Component Connector End Views

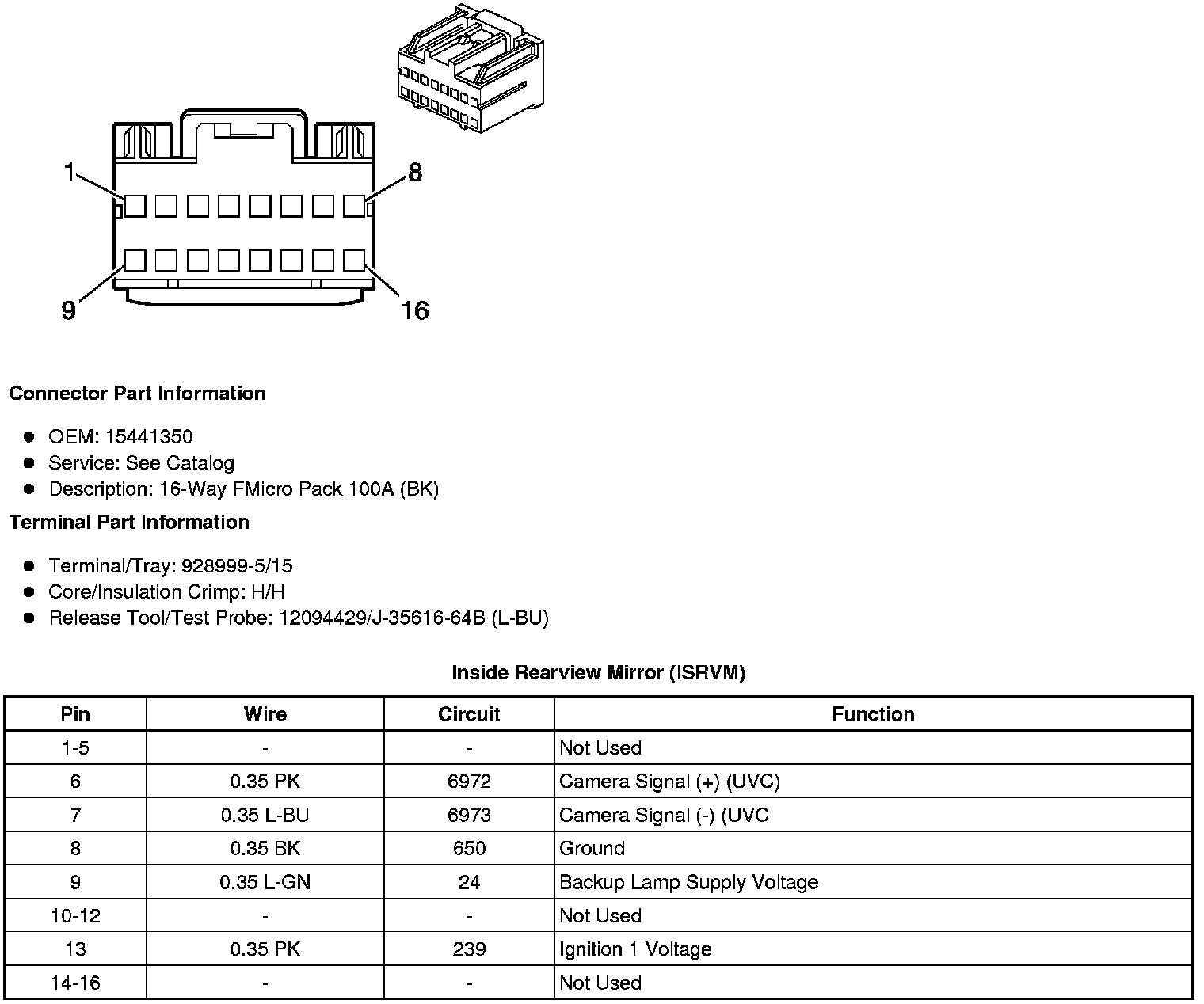

Inside Rearview Mirror (ISRVM)

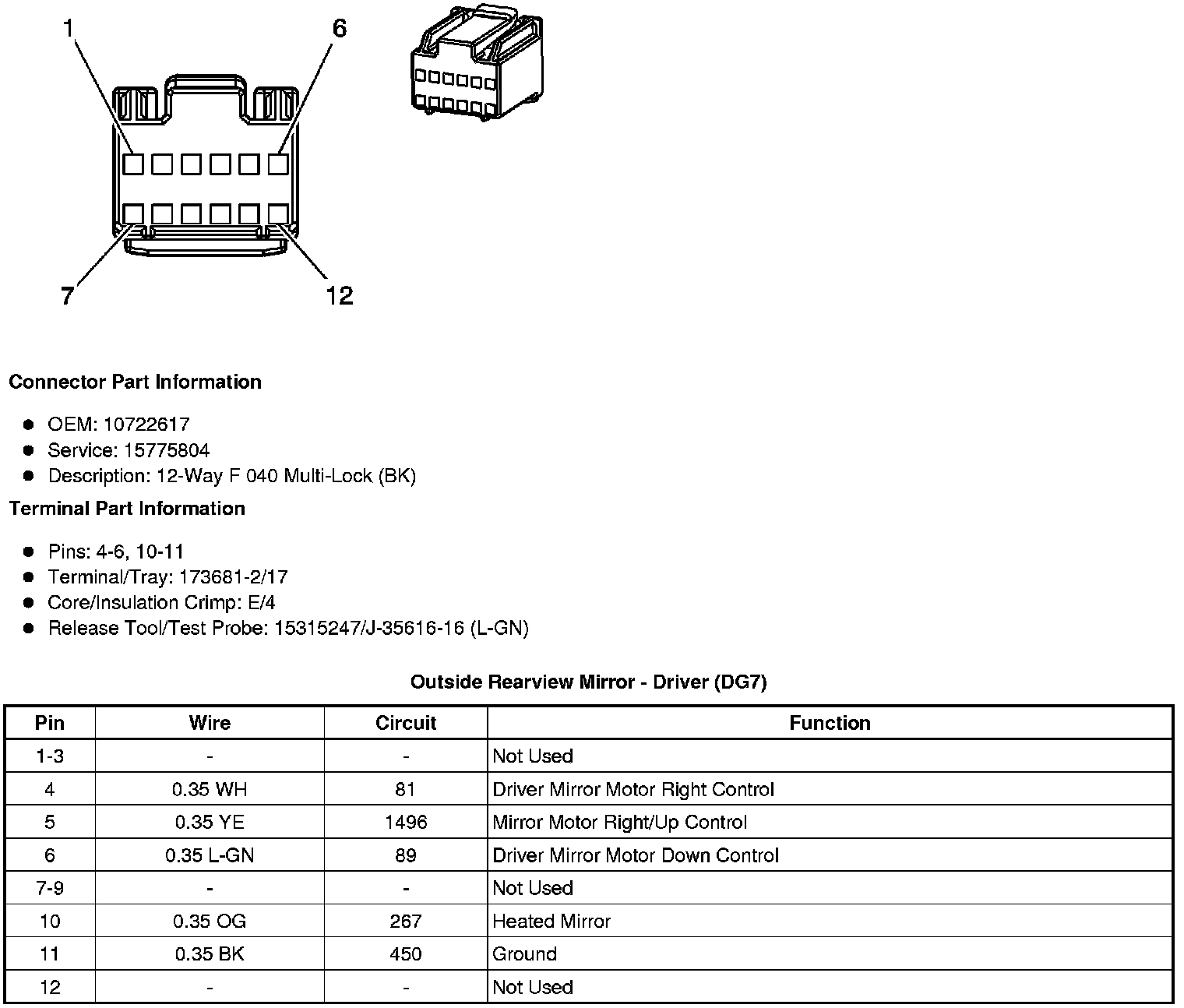

Outside Rearview Mirror - Driver (DG7)

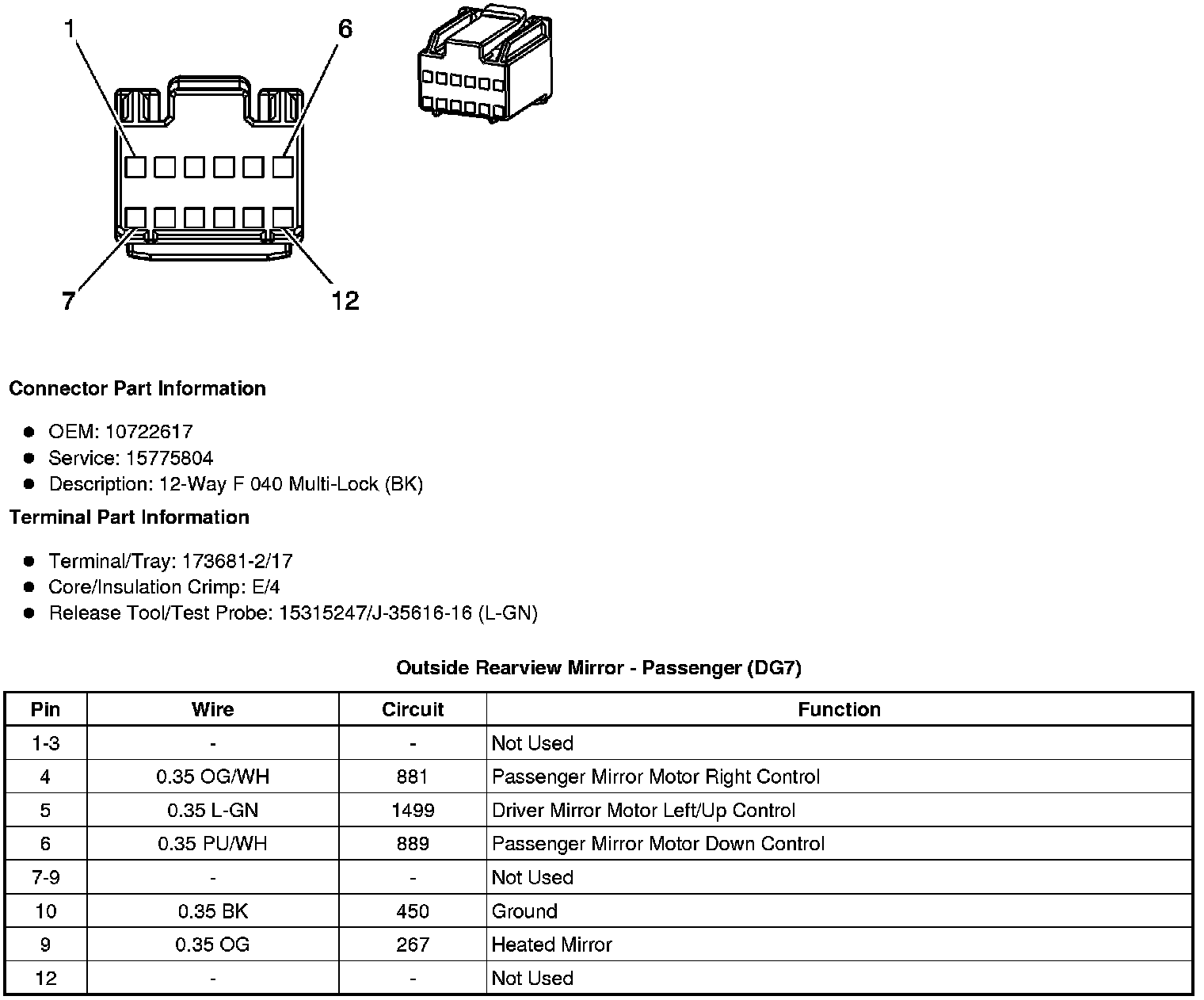

Outside Rearview Mirror - Passenger (DG7)
