Power Window Switch




Component Connector End Views

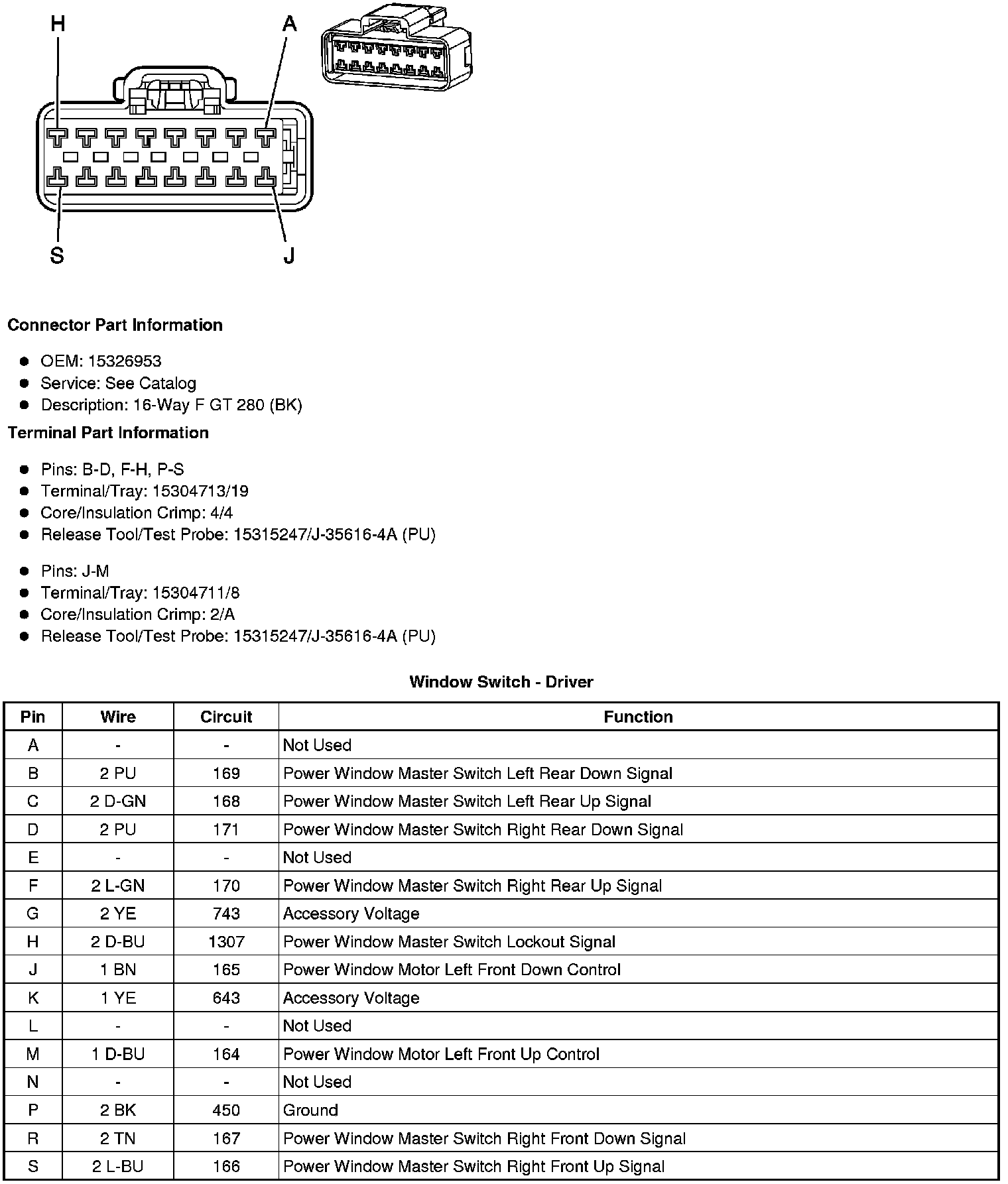

Window Switch - Driver

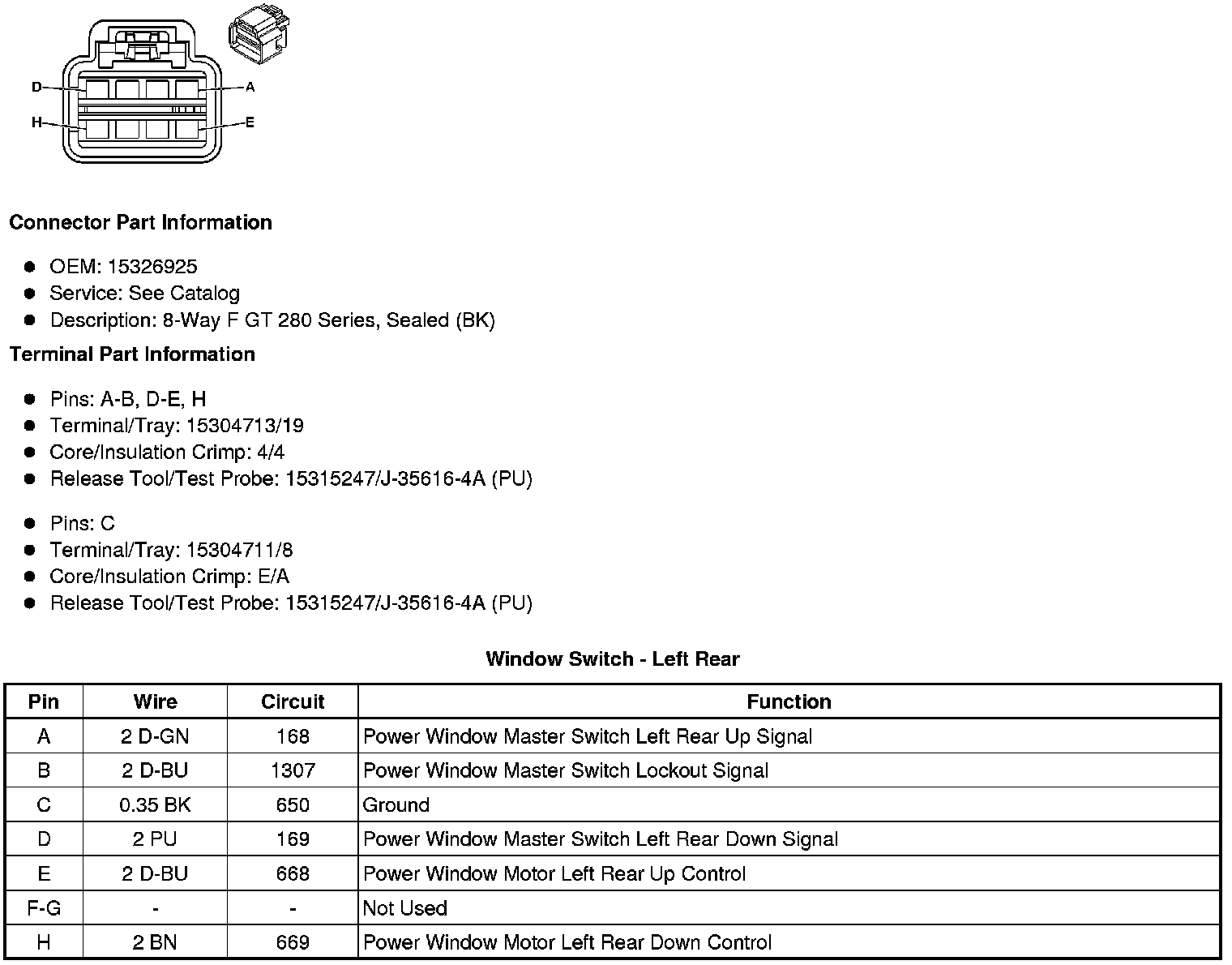

Window Switch - Left Rear

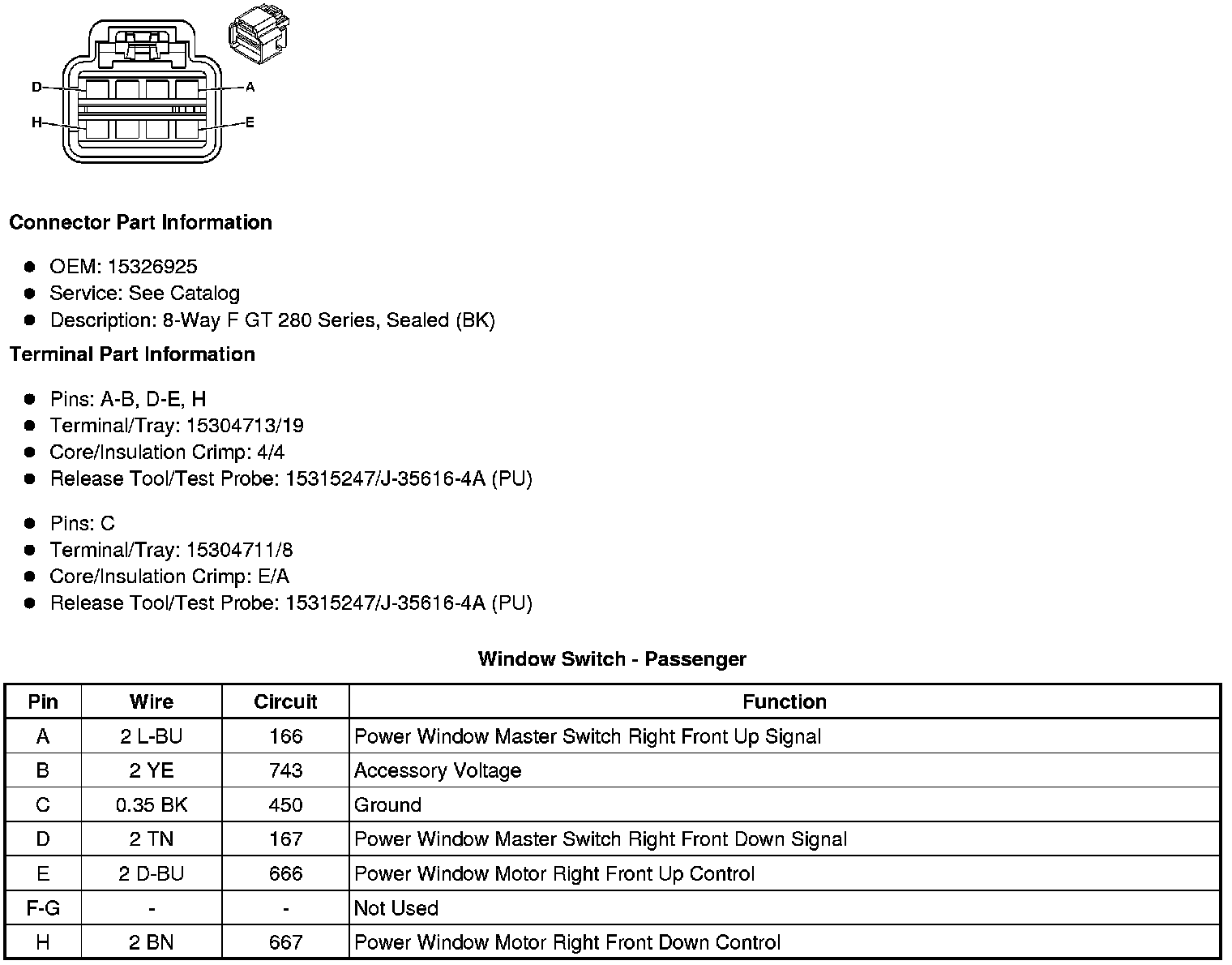

Window Switch - Passenger

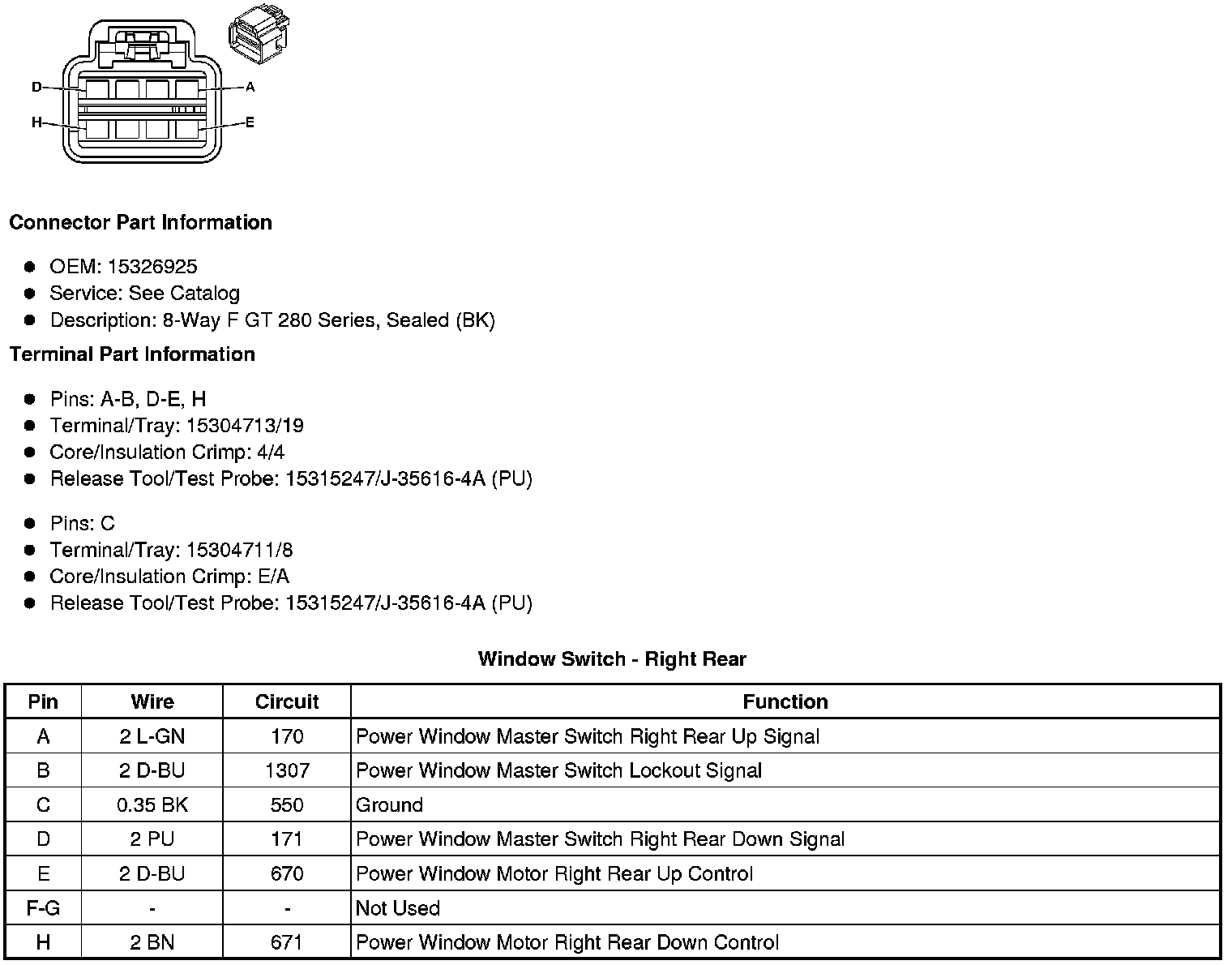

Window Switch - Right Rear
