Steering Control Module




Component Connector End Views

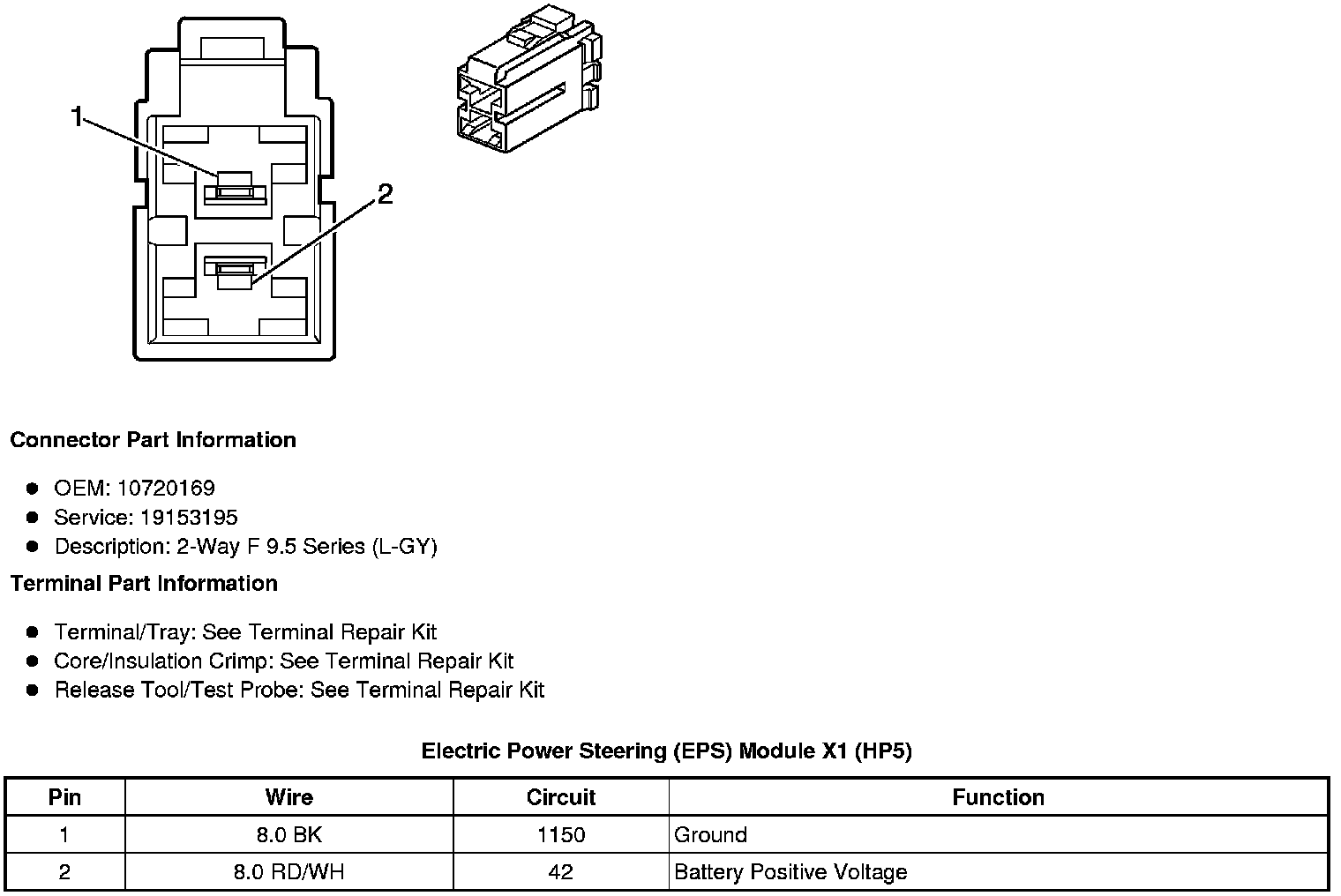

Electric Power Steering (EPS) Module X1 (HP5)

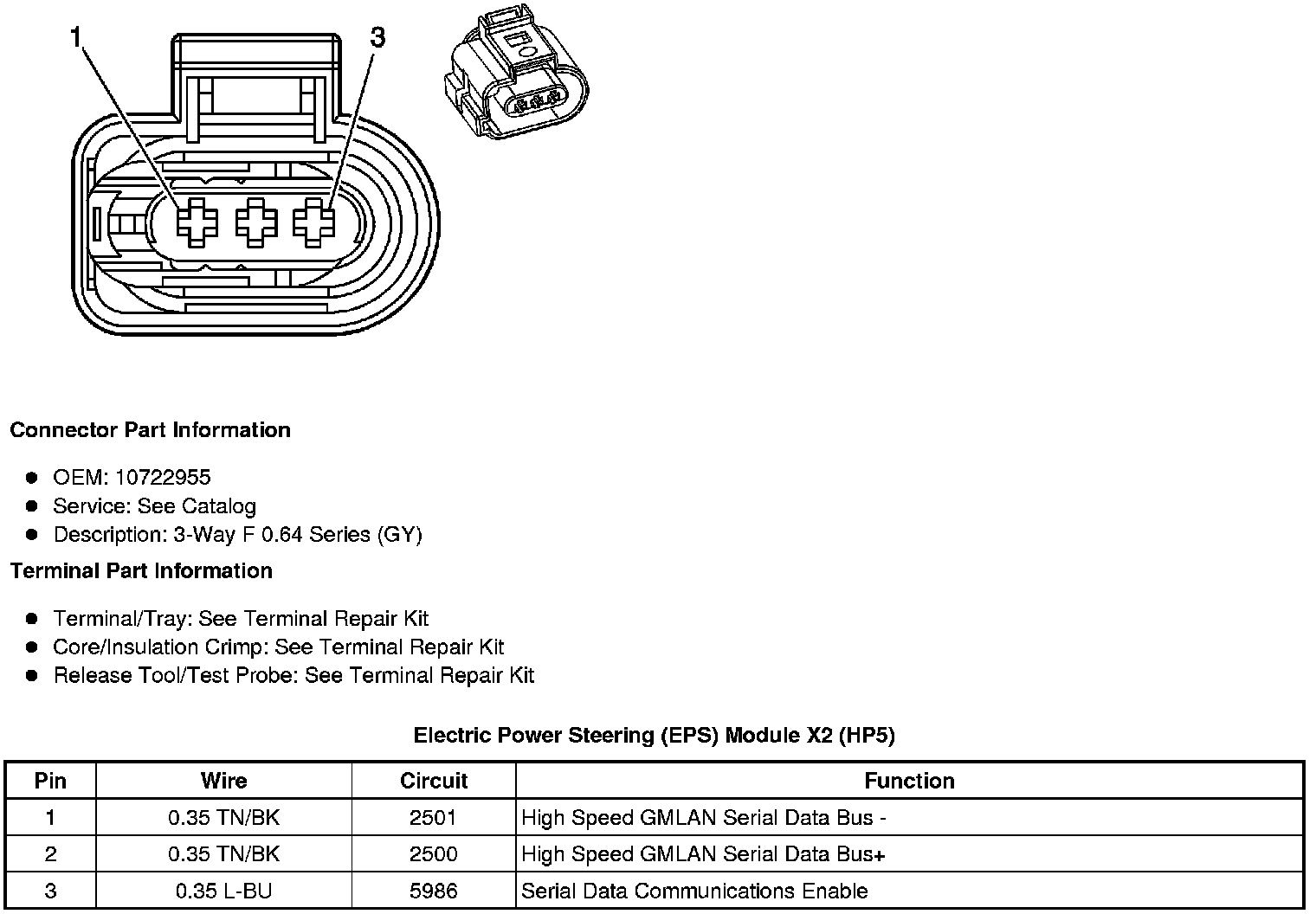

Electric Power Steering (EPS) Module X2 (HP5)

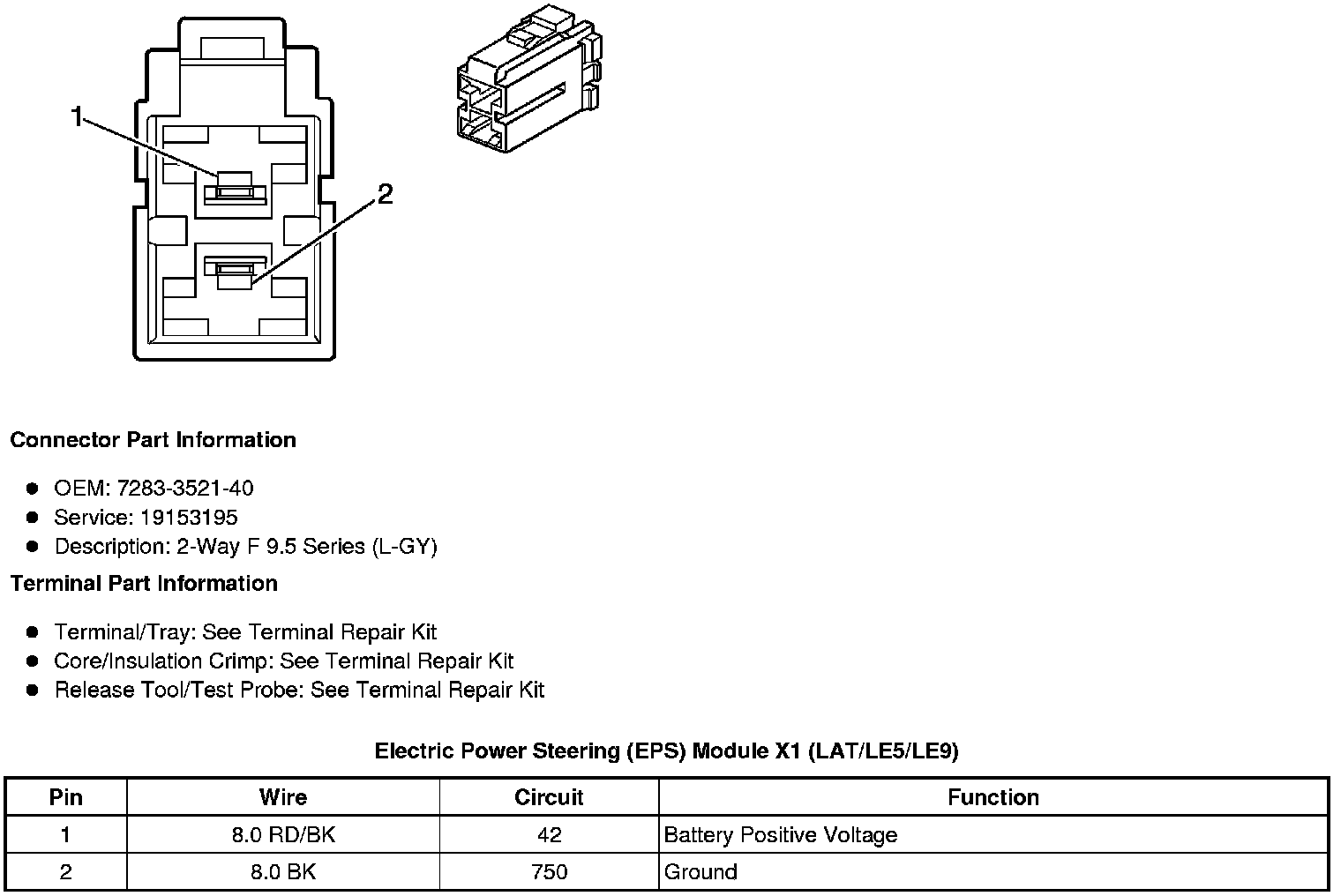

Electric Power Steering (EPS) Module X1 (LAT/LE5/LE9)

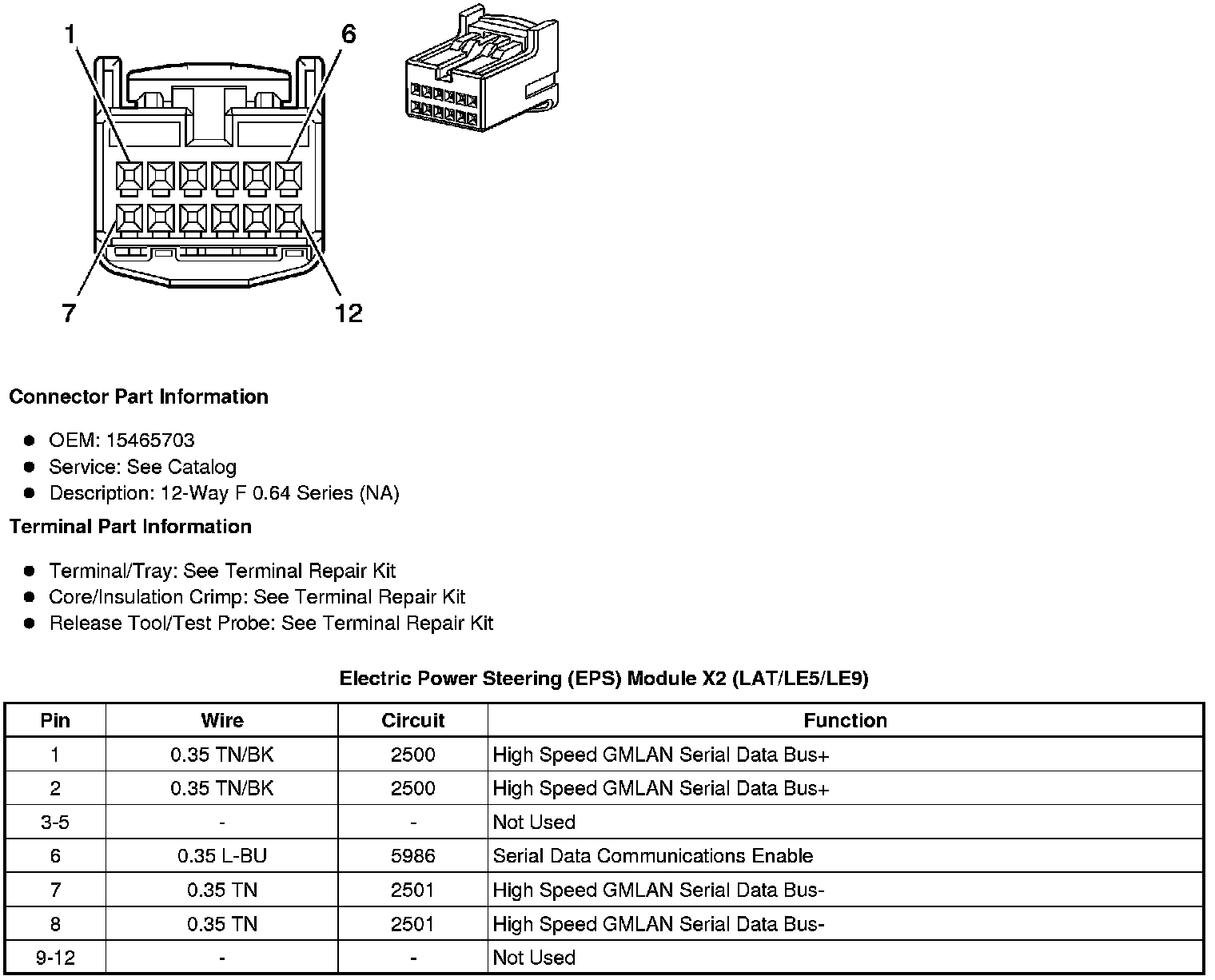

Electric Power Steering (EPS) Module X2 (LAT/LE5/LE9)

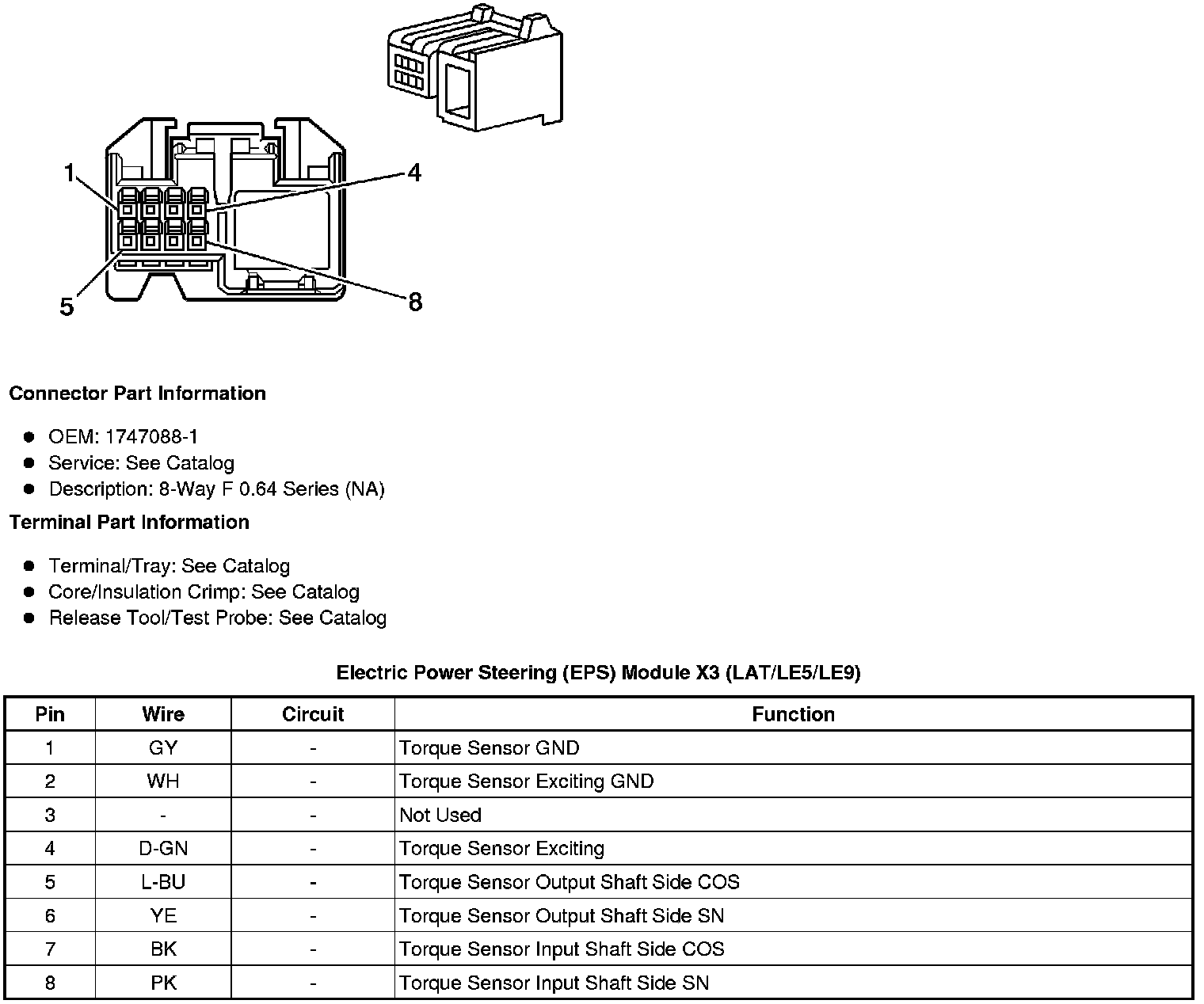

Electric Power Steering (EPS) Module X3 (LAT/LE5/LE9)

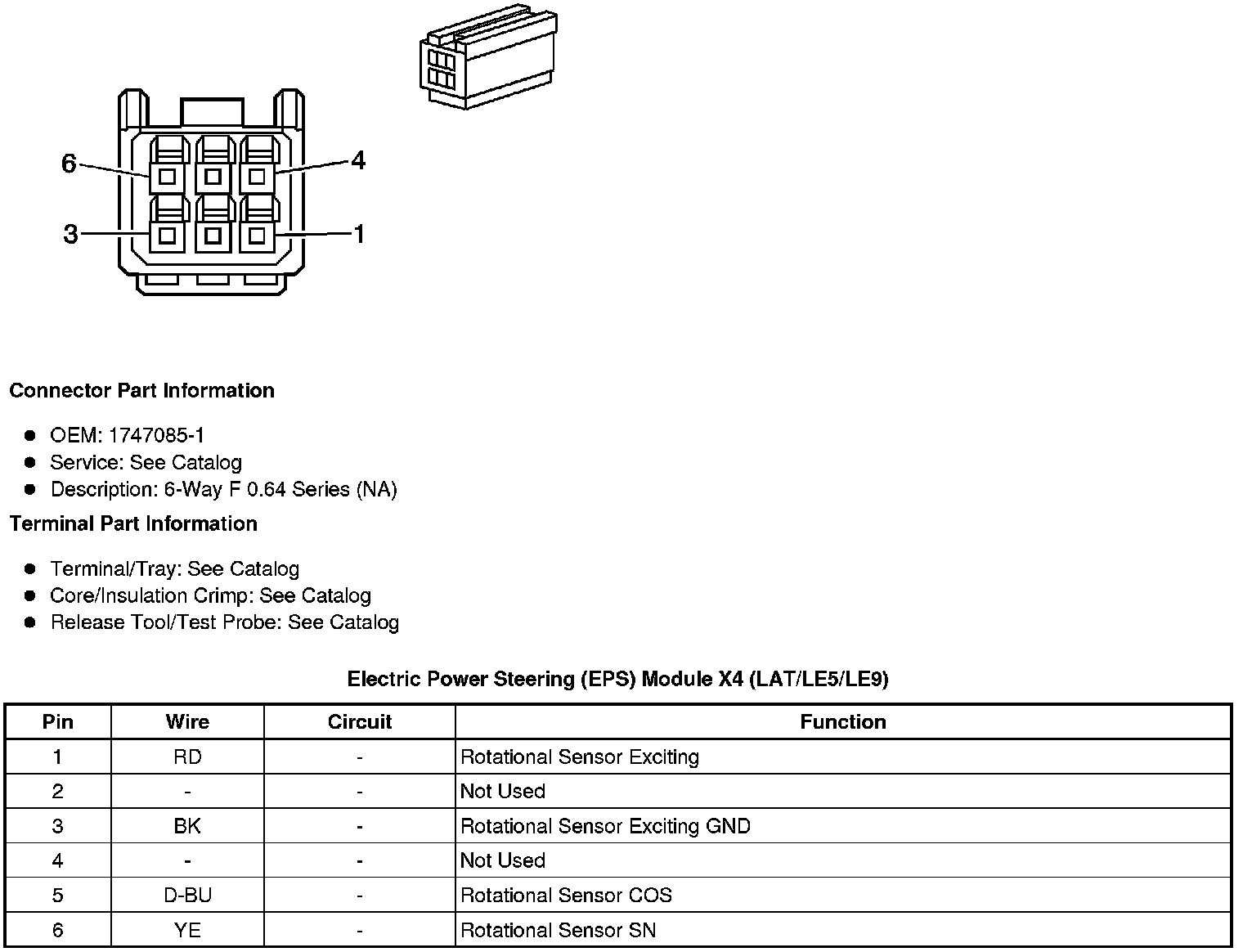

Electric Power Steering (EPS) Module X4 (LAT/LE5/LE9)

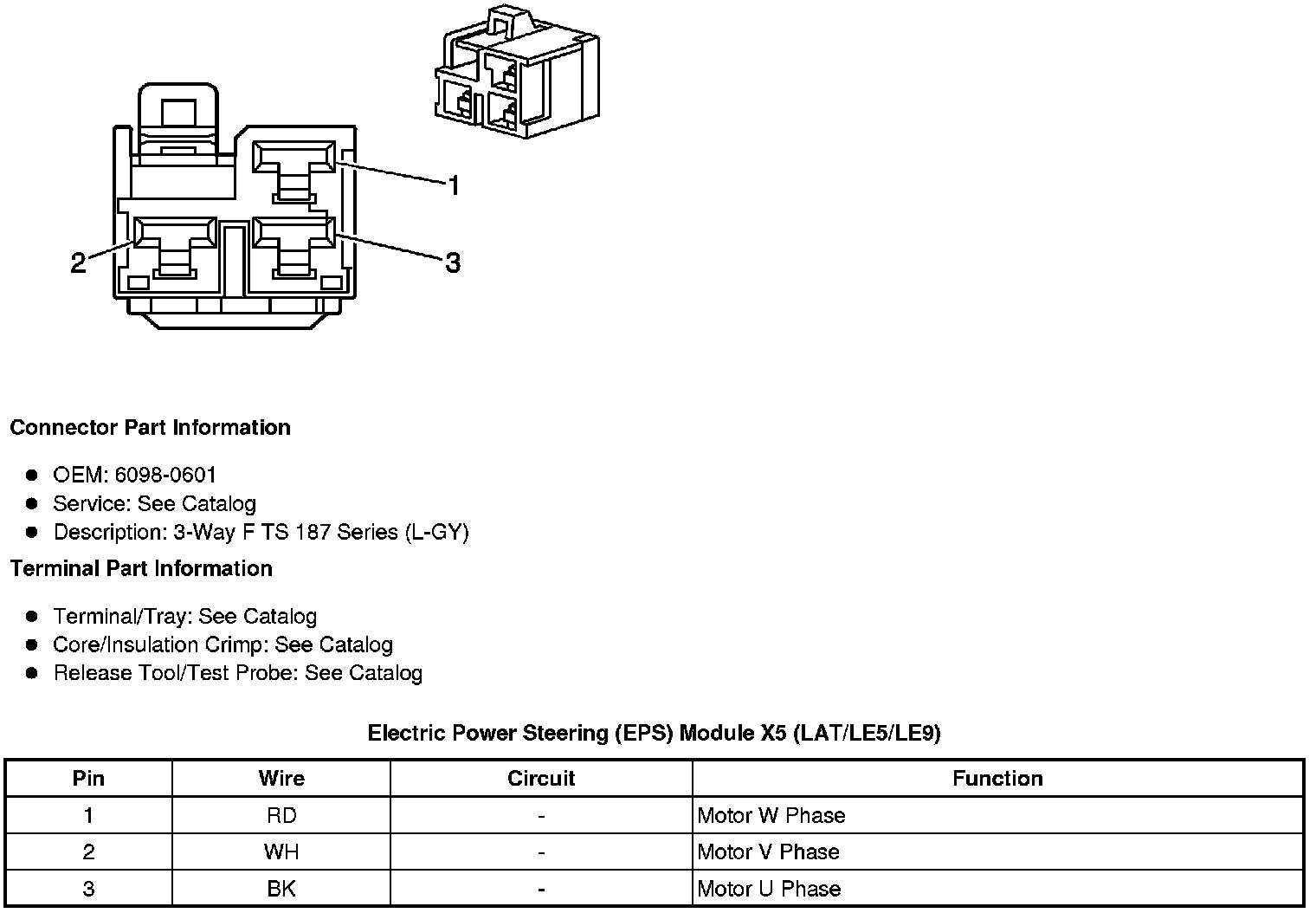

Electric Power Steering (EPS) Module X5 (LAT/LE5/LE9)
