Steering Mounted Controls Transmitter




Component Connector End Views

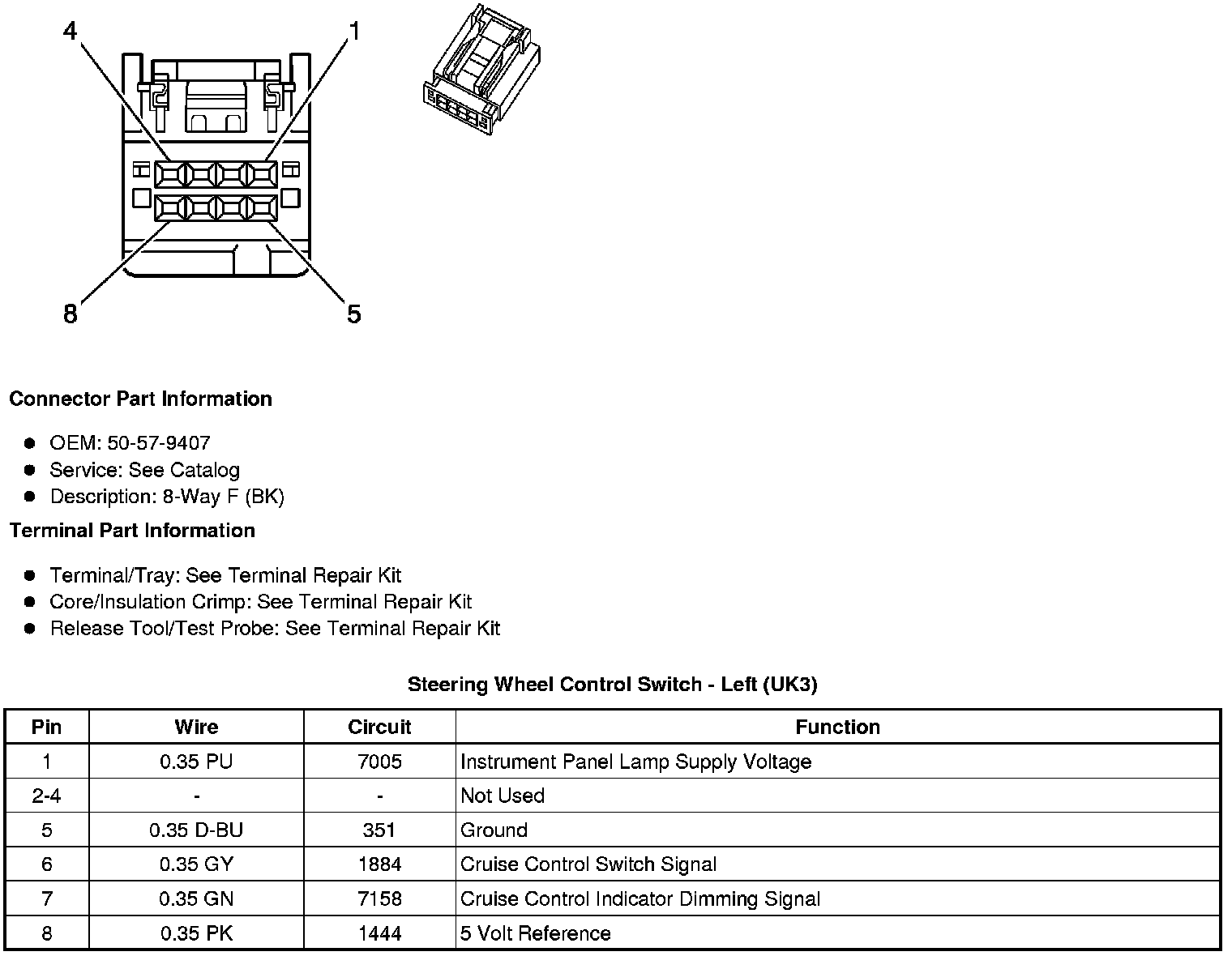

Steering Wheel Control Switch - Left (UK3)

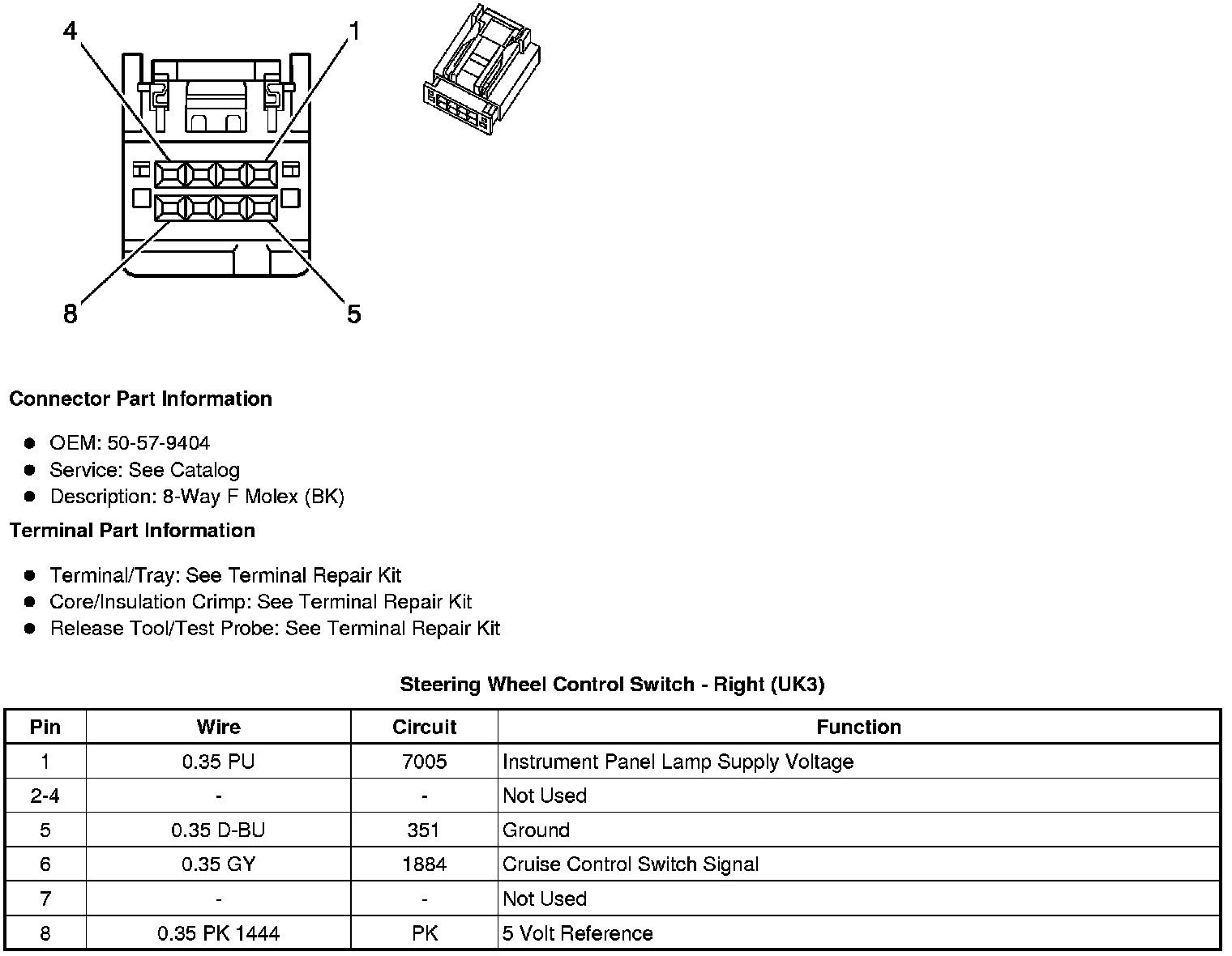

Steering Wheel Control Switch - Right (UK3)
