Body Control Systems




Body Control System Schematics

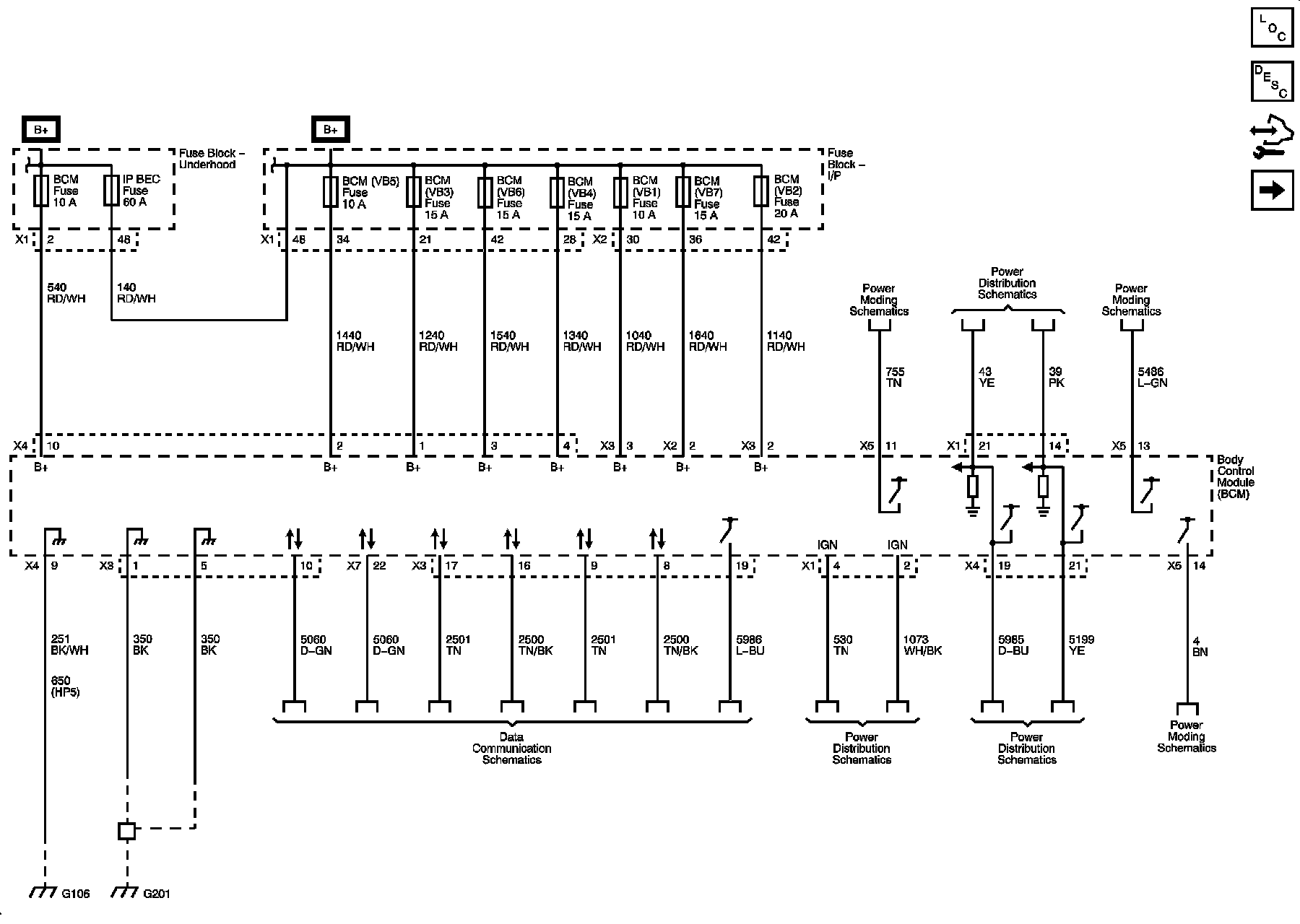

Power, Ground and Data Communications

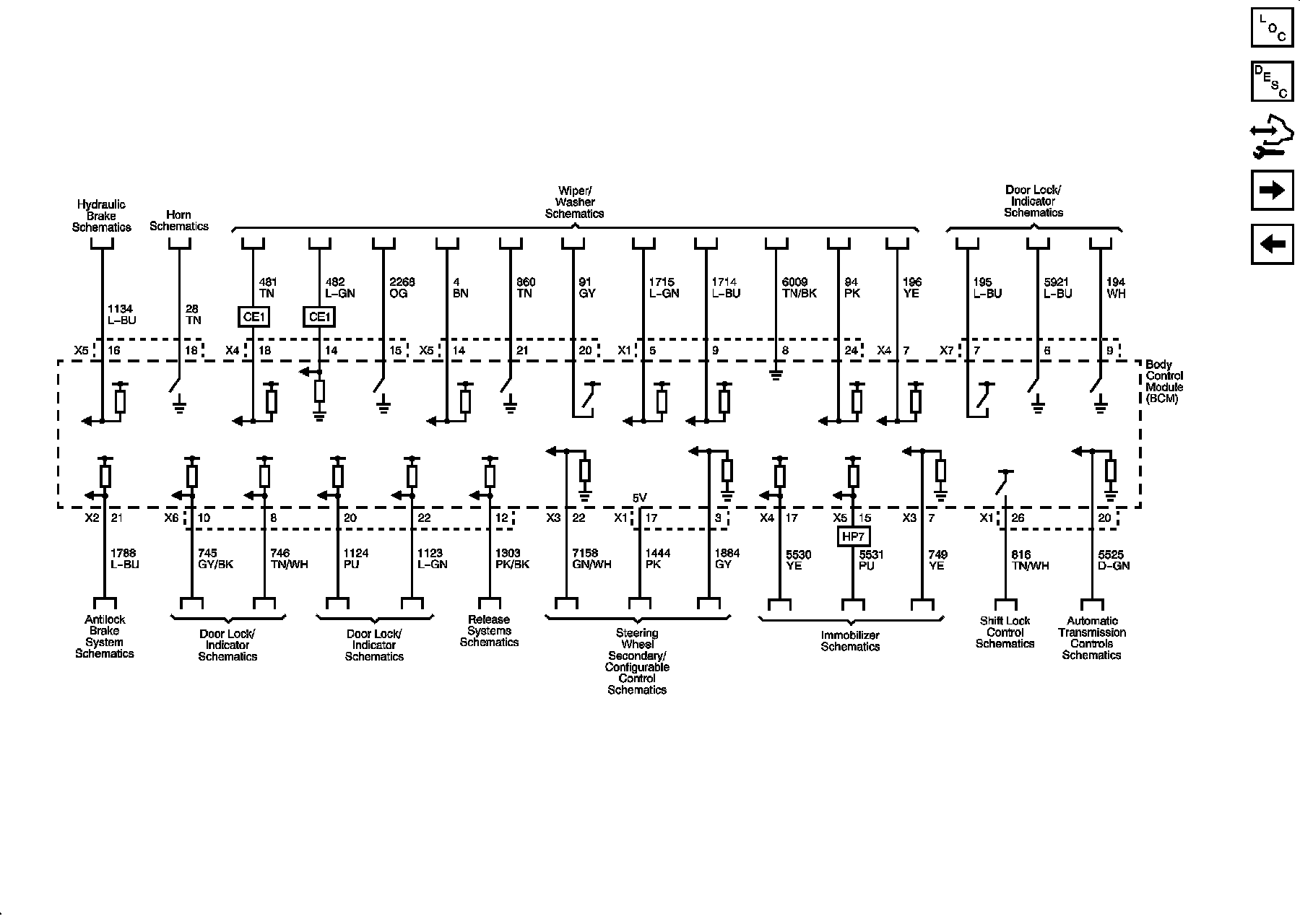

References 1 of 3

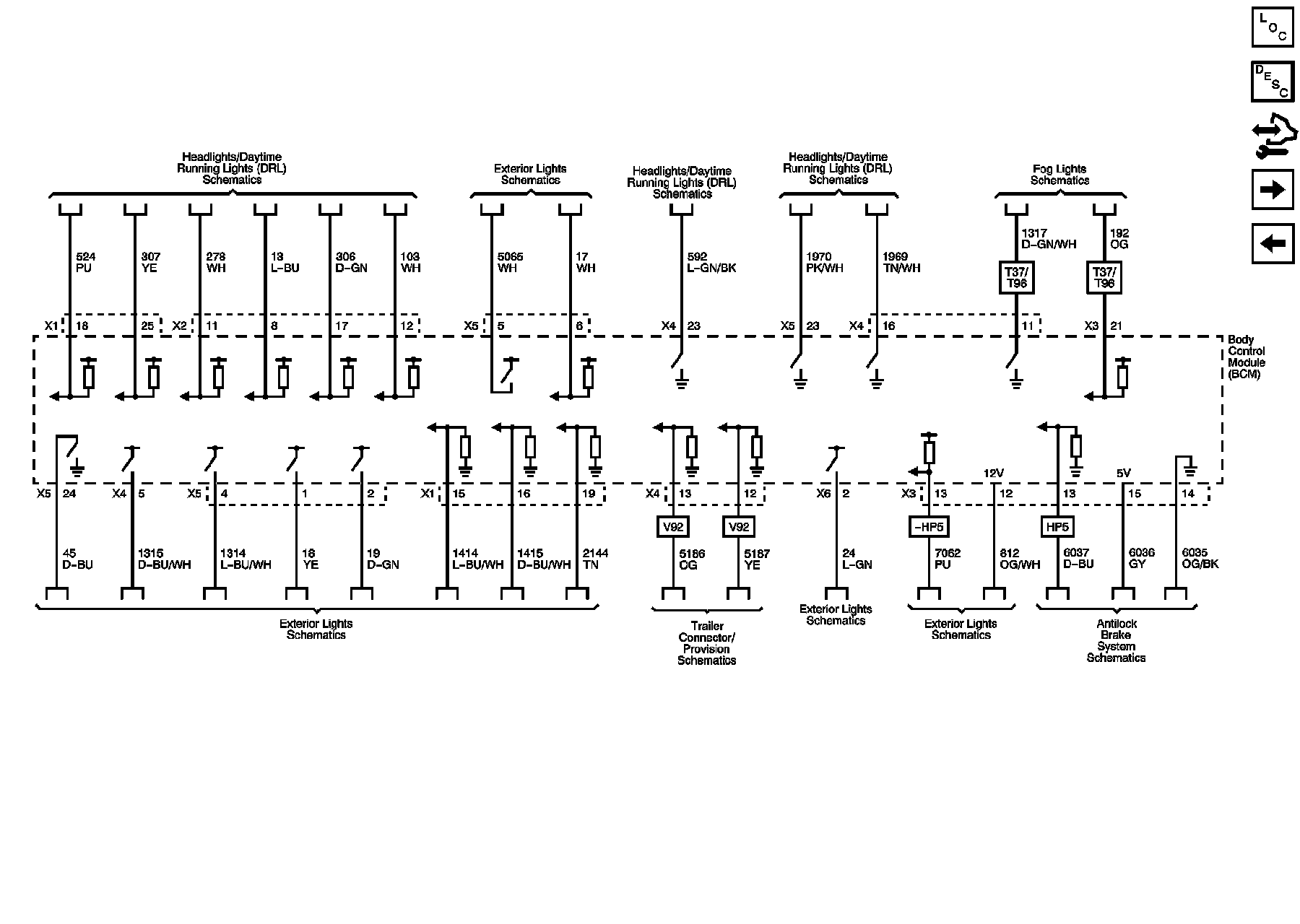

References 2 of 3





References 3 of 3
