Park System Components

Disassembled Views

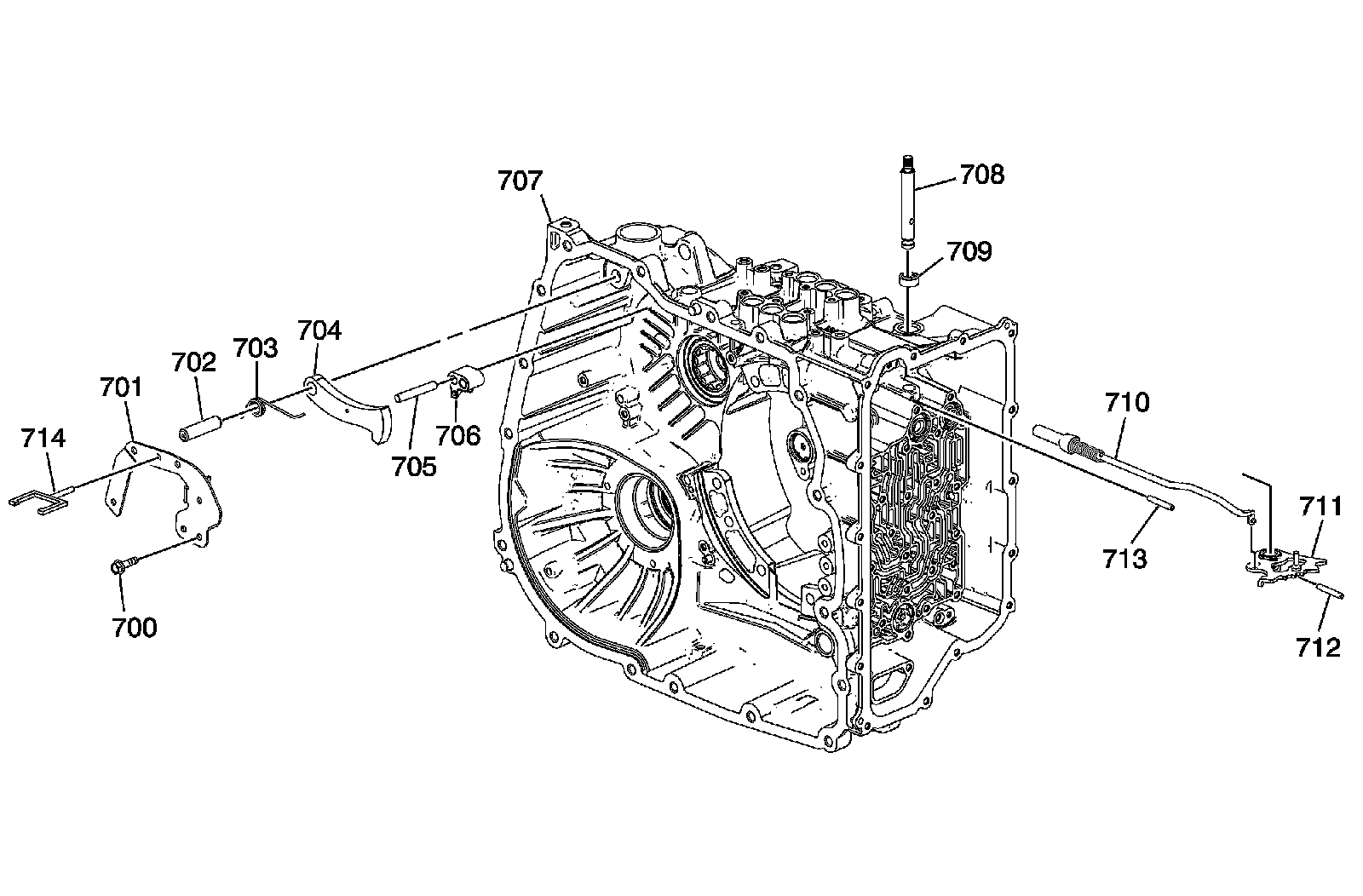

Park System Components




700 - Park Pawl Actuator Bolt M6 x 25 mm Qty: 2
701 - Park Pawl Actuator Bracket
702 - Park Pawl Shaft
703 - Park Pawl Spring
704 - Park Pawl
705 - Park Pawl Actuator Guide Pin
706 - Park Pawl Actuator Guide
707 - A/Trans Case
708 - Manual Shift Shaft
709 - Manual Shift Shaft Seal
710 - Park Pawl Actuator Assembly
711 - Manual Shift Shaft Detent Lever Assembly
712 - Manual Shift Shaft Detent Lever Hub Pin
713 - Manual Shift Shaft Pin
714 - Wiring Harness Conduit Bracket
