Rear Camber Adjustment

Rear Camber Adjustment

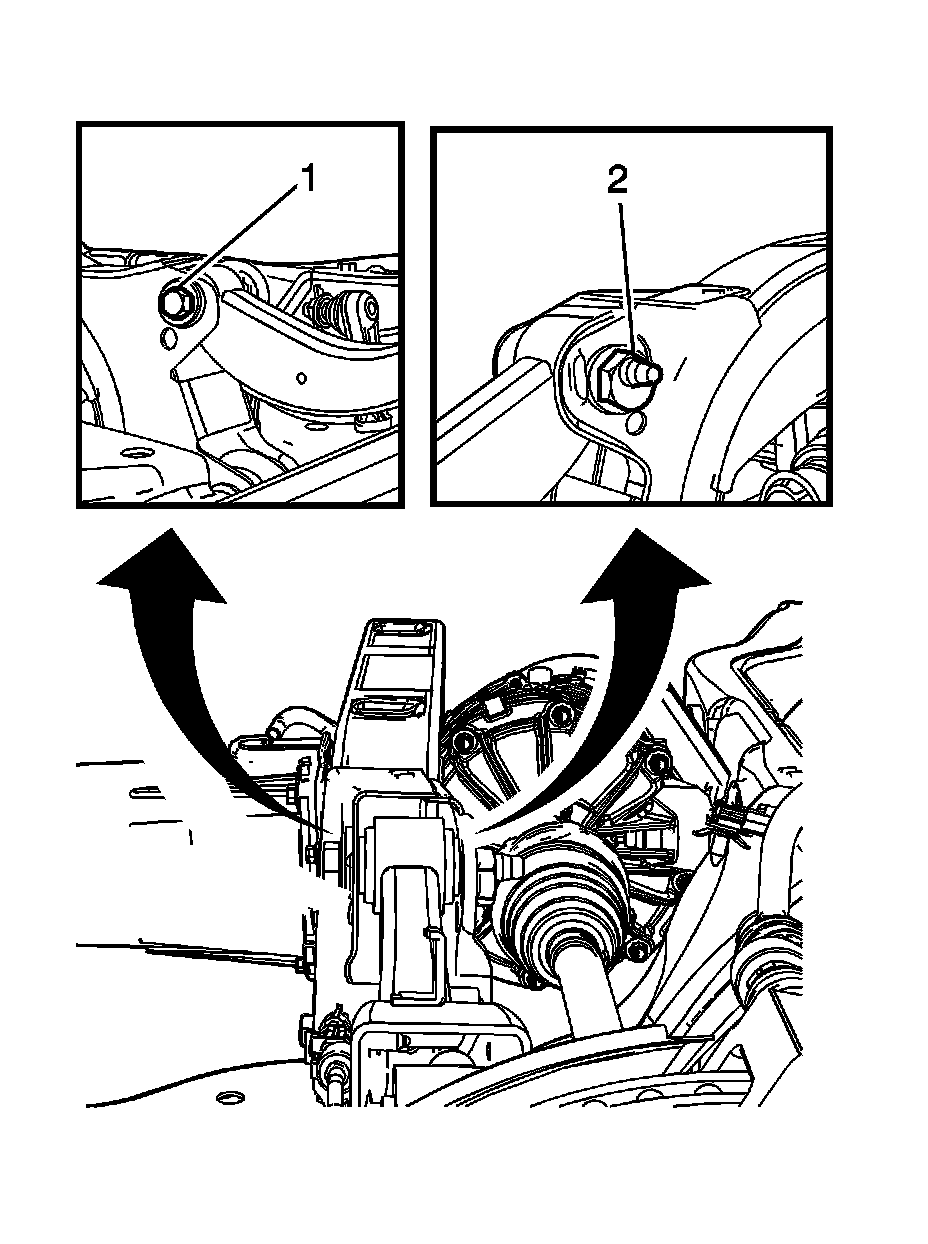

1. Loosen the upper control arm nut (2).
2. Rotate the upper control arm adjusting bolt (1), to adjust the camber.
3. Snug the upper control arm nut (2), do not tighten at this time.
4. Reinspect the rear camber specifications and adjust as necessary.
5. Hold the upper control arm adjusting bolt (1).

Caution: Refer to Fastener Caution (Fastener Caution).

6. Tighten the upper control arm nut (2) to 110 Nm (81 lb ft).
7. Repeat the procedure for the other rear wheel.
