Fuel Level Sensor: Diagrams




Component Connector End Views

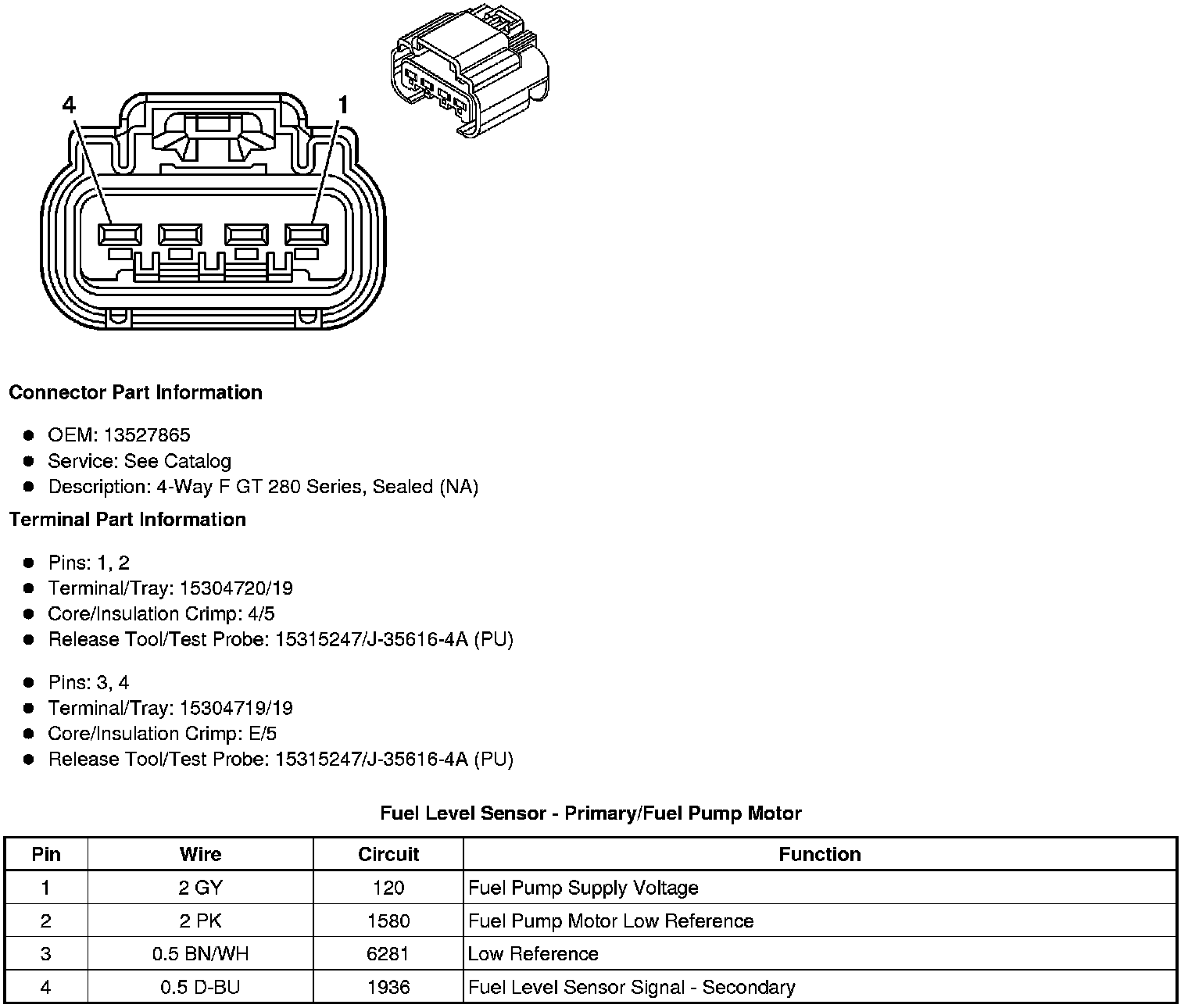

Fuel Level Sensor - Primary/Fuel Pump Motor

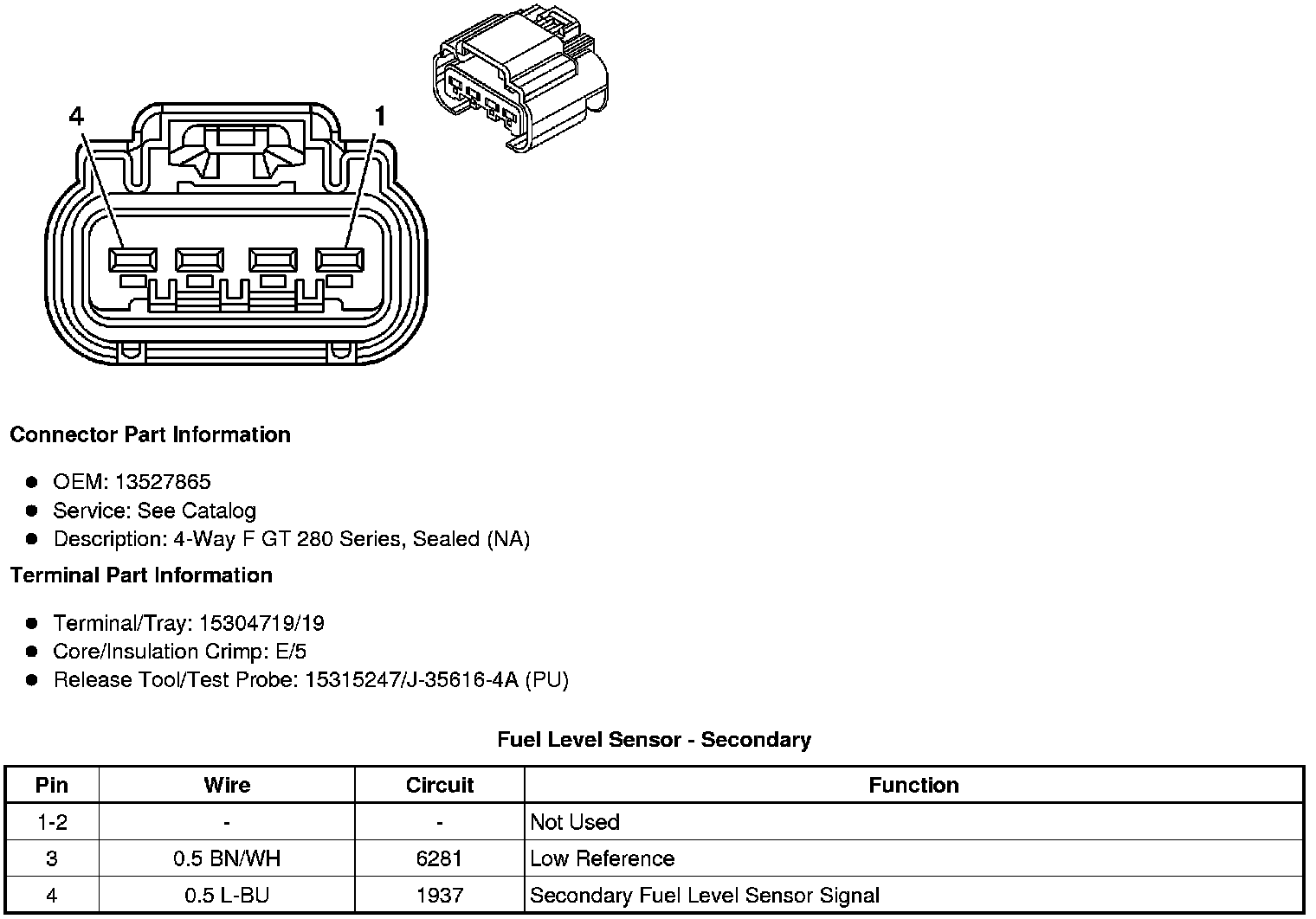

Fuel Level Sensor - Secondary
