Keyless Entry Module: Service and Repair

Remote Control Door Lock Receiver Replacement

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Service Precautions).
1. Disconnect the negative battery cable.
2. Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Service and Repair).

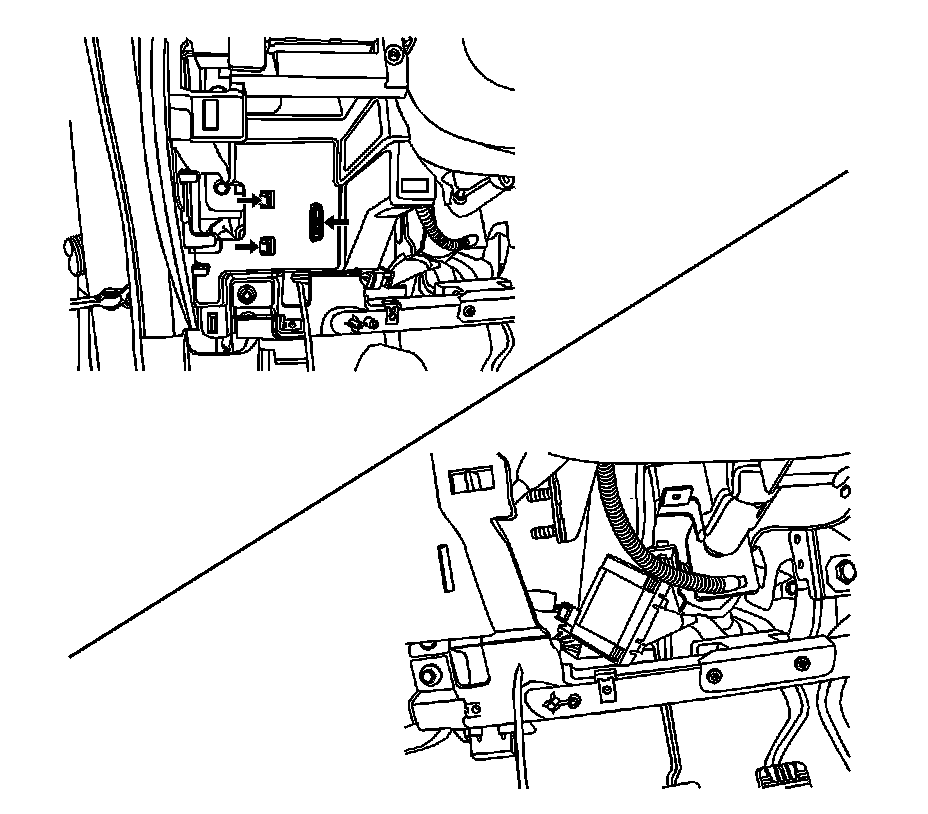

3. Remove the remote control door lock receiver.
4. Disconnect the electrical connector.
Perform the SPO reprogramming when RFA receiver is replaced.

Installation Procedure




1. Connect the electrical connector.
2. Install the remote control door lock receiver.
3. Install the driver knee bolster. Refer to Driver Knee Bolster Replacement (Service and Repair).
4. Connect the negative battery cable.
5. For set up and programming, refer to Control Module References (Programming and Relearning).
