Remote Control Door Lock Receiver Replacement

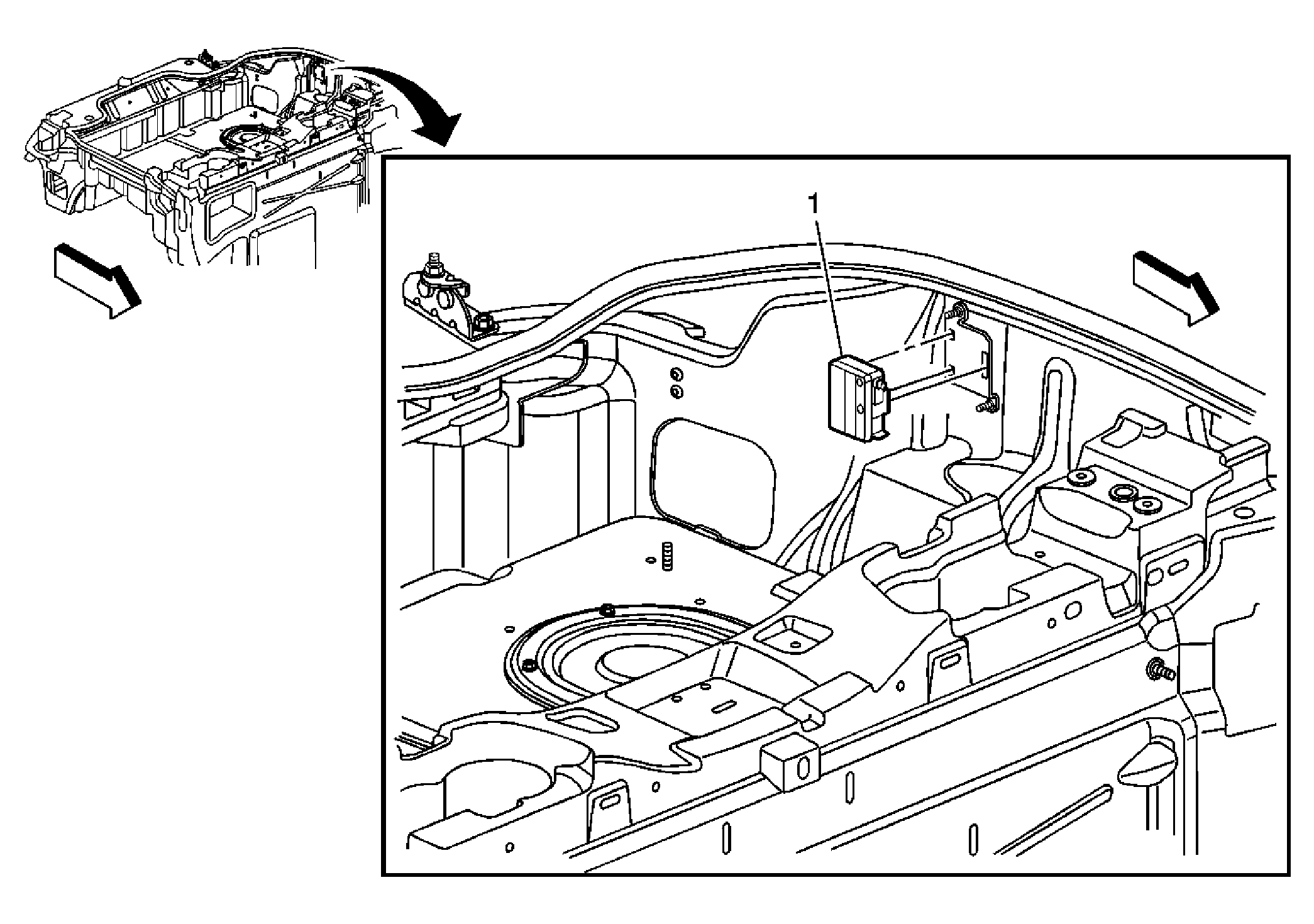

Fig 1: Identifying Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement (Convertible)
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Program the remote control door lock receiver after replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement (Convertible)

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Program the remote control door lock receiver after replacement. Refer to Control Module References .
