Removal Procedure

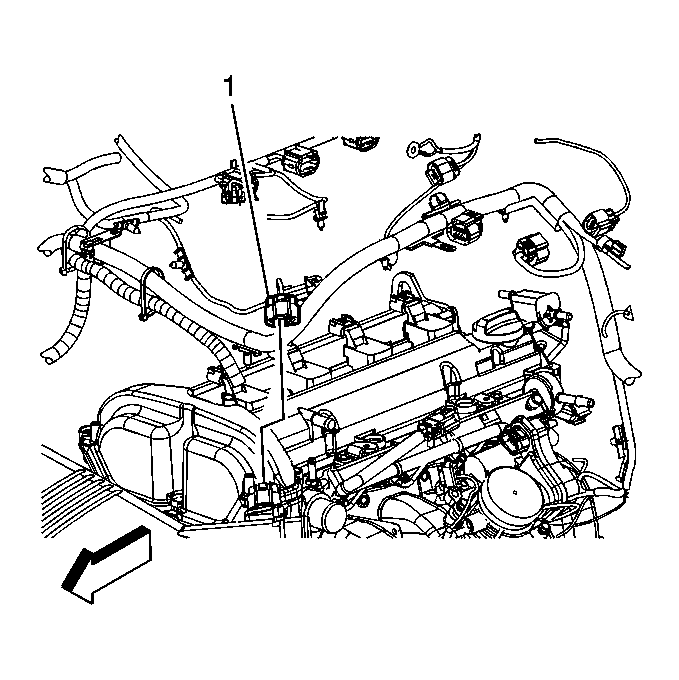

    Fig 1: Identifying MAF/IAT Sensor Electrical Connector
    GM1592530Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector (1).

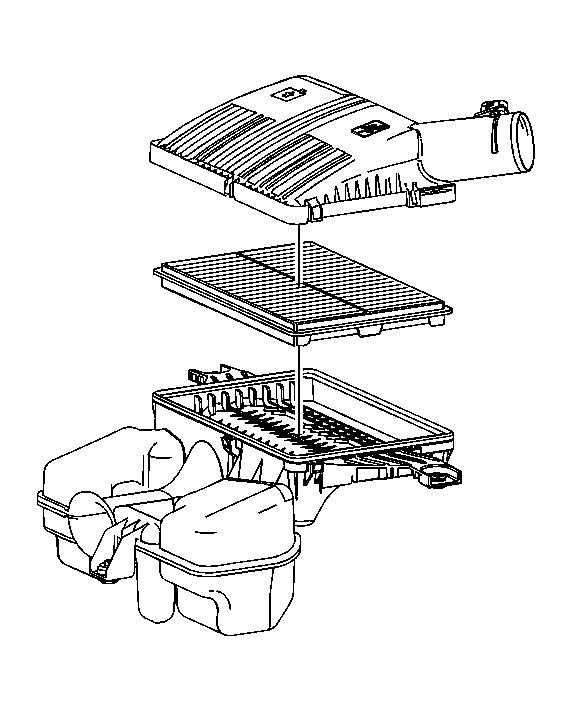

    2. Fig 2: View Of Upper Air Cleaner Cover
    GM1594070Courtesy of GENERAL MOTORS CORP.
  2. Unlatch the upper air cleaner cover retainer clips.
  3. Remove the upper air cleaner cover.
  4. Remove the air cleaner filter from the lower air cleaner housing.
  5. Inspect the air cleaner filter for dust, dirt and water contamination.
  6. Replace as necessary. Refer to Maintenance Schedule (North American Emissions) .
