Installation Procedure

    Fig 1: Identifying CKP Sensor
    GM1578475Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the CKP sensor O-ring seal with clean engine oil.
  2. Install the CKP sensor.
    CAUTION: Refer to Fastener Caution .
  3. Install the CKP sensor bolt.

    Tighten:  Tighten the sensor bolt to 10 N.m (89 lb in).

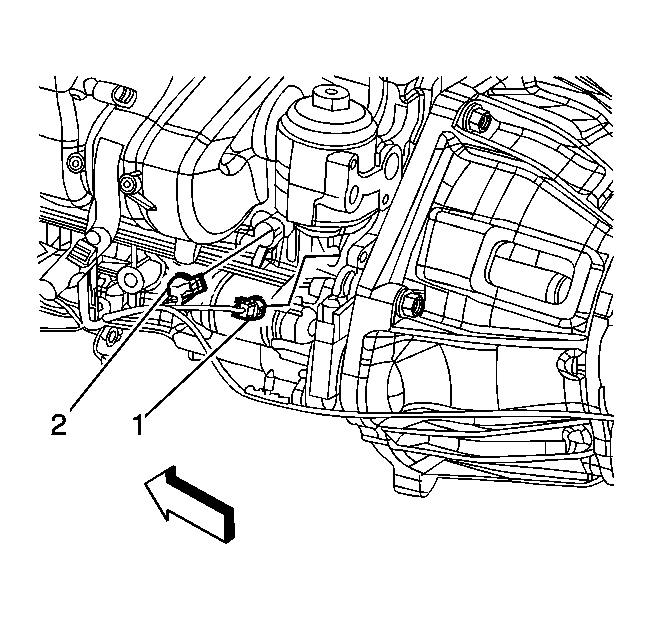

    4. Fig 2: Locating CKP Sensor Electrical Connector
    GM1589842Courtesy of GENERAL MOTORS CORP.
  4. Connect the CKP sensor electrical connector (1).
  5. Install the starter. Refer to Starter Replacement .
