Installation Procedure

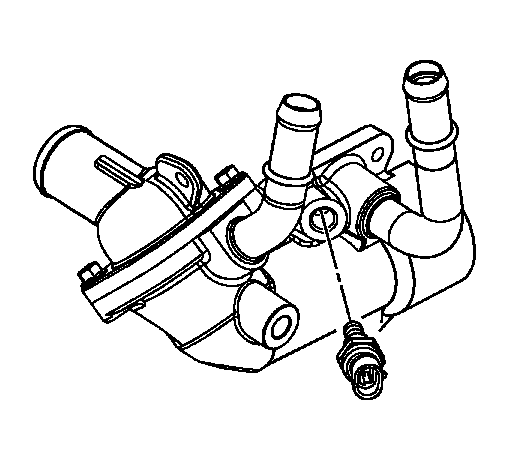

    Fig 1: Identifying ECT Sensor
    GM1713085Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the ECT.

    Tighten:  Tighten the sensor to 20 N.m (15 lb ft).

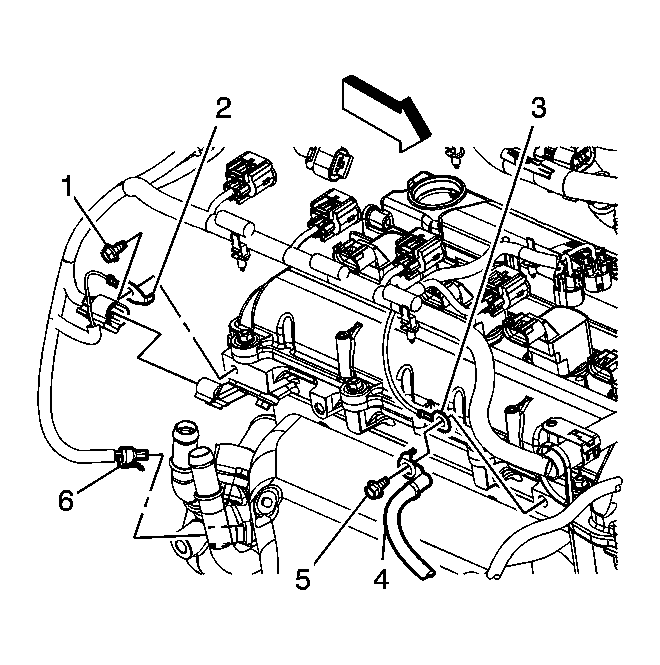

    2. Fig 2: View Of CMP Sensor & ECT Sensor Electrical Connectors
    GM1591858Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness electrical connector (6) to the ECT sensor.
  3. Fill the cooling system as needed. Refer to Cooling System Draining and Filling (GE-47716) or Cooling System Draining and Filling (2.4L LE5) or Cooling System Draining and Filling (Static Fill-LNF) .
