Installation Procedure

NOTE: Rotate the pigtail 90 degrees from vertical before securing the fastener.
    Fig 1: Identifying Knock Sensor
    GM1578476Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the KS.
  2. Install the KS bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

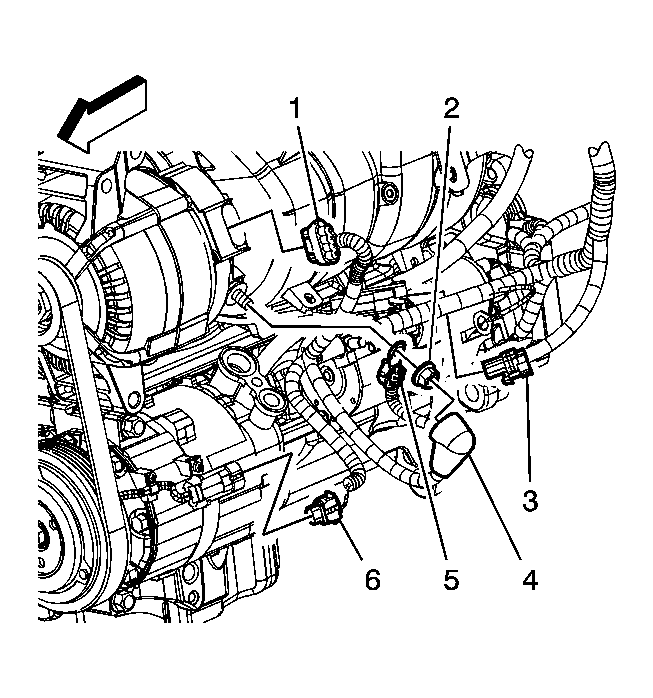

    3. Fig 2: Identifying Engine Harness Electrical Connectors
    GM1590505Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the KS electrical connector (3).
  4. Install the KS electrical connector clip to the oil level indicator tube bracket.
