Installation Procedure

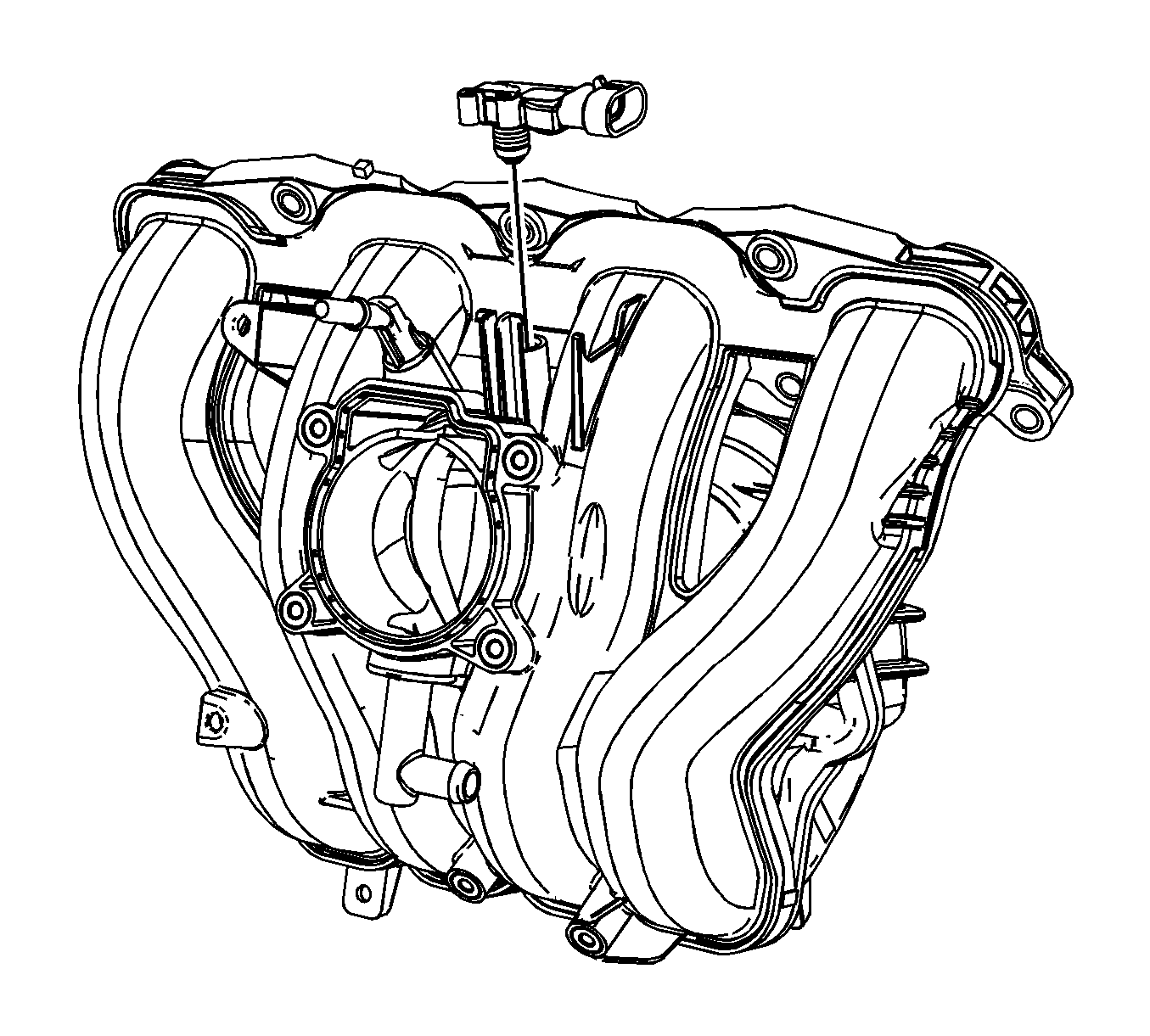

    Fig 1: Identifying MAP Sensor
    GM1581050Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor with the port seal into the intake manifold
  2. Connect the MAP sensor electrical connector.
  3. Install the throttle body. Refer to Throttle Body Assembly Replacement .
