Installation Procedure

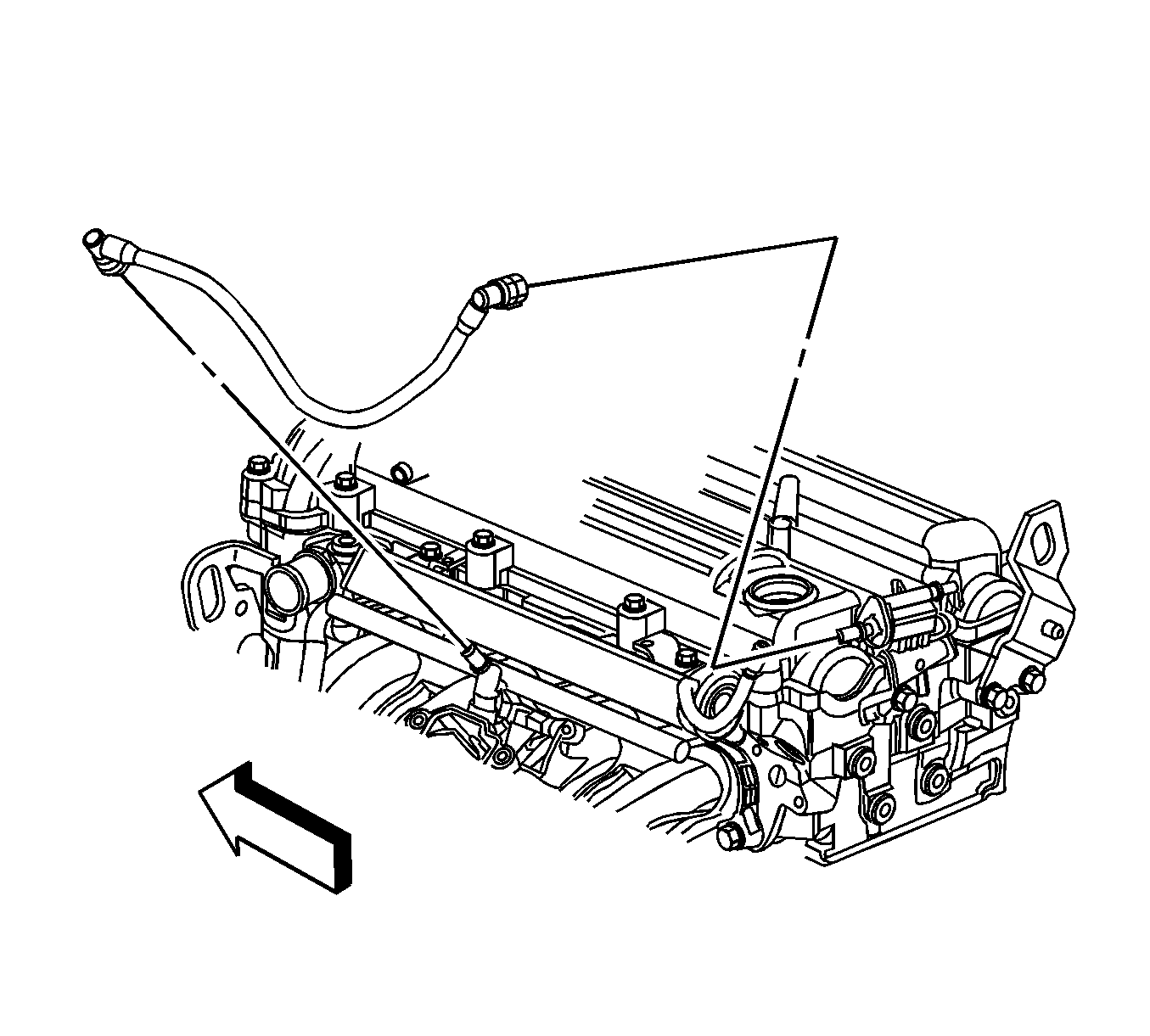

    Fig 1: Identifying EVAP Canister Purge Solenoid Valve Tube
    GM1571757Courtesy of GENERAL MOTORS CORP.
  1. Install the EVAP canister purge valve tube.
  2. Connect the EVAP canister purge valve tube to the intake manifold purge port. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Connect the EVAP canister purge valve tube to the EVAP canister purge solenoid valve. Refer to Plastic Collar Quick Connect Fitting Service .
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Resonator Replacement .
  5. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
