Installation Procedure

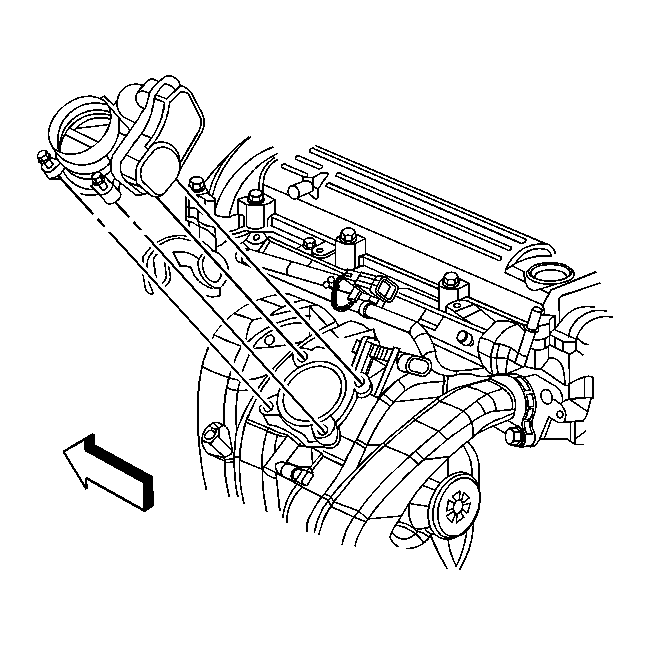

Fig 1: Identifying Throttle Body

Courtesy of GENERAL MOTORS CORP.

Inspect the throttle body gasket and replace if necessary.
Position the throttle body to the intake manifold.
CAUTION: Refer to Fastener Caution .
Install the throttle body bolts and tighten to 10 N.m (89 lb in).

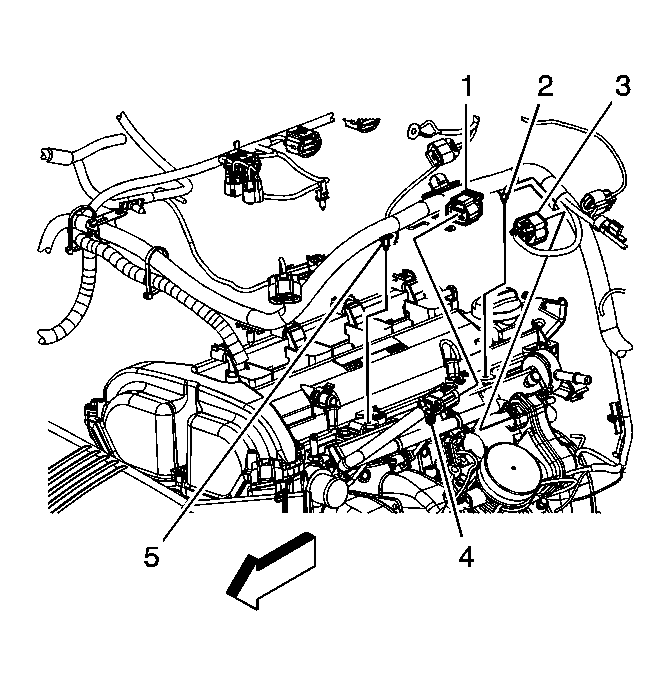

Fig 2: View Of Fuel System Electrical Connectors & Harness Clips

Courtesy of GENERAL MOTORS CORP.

Connect the ETC electrical connector (3).
Install the air cleaner outlet. Refer to Air Cleaner Outlet Resonator Replacement .
Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Perform the throttle learn procedure. Refer to Throttle/Idle Learn .
