Removal Procedure

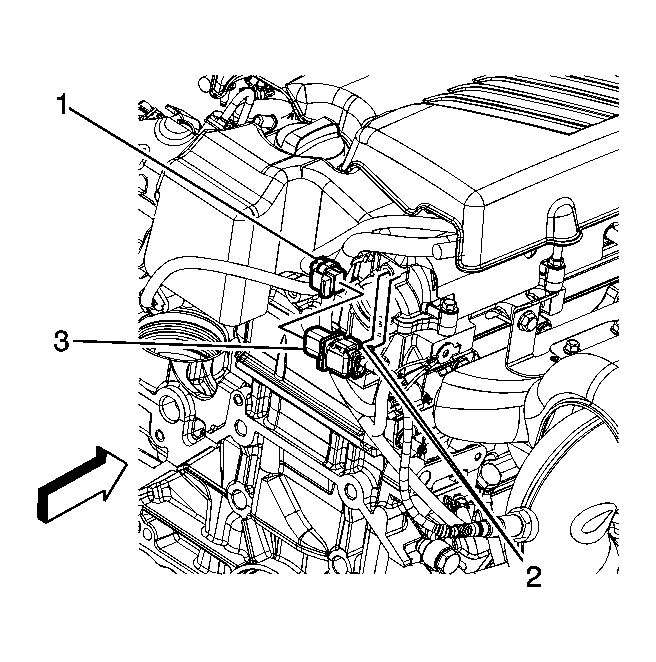

Fig 1: Identifying HO2S Electrical Connector Clip

Courtesy of GENERAL MOTORS CORP.

CAUTION: The oxygen sensor uses a permanently attached pigtail and connector. Do not remove the pigtail from the oxygen sensor. Damage to or removal of the pigtail connector could affect proper operation of the oxygen sensor.

CAUTION: The use of excessive force may damage the threads in the exhaust manifold/pipe.

NOTE:

The in-line connector and louvered end must be kept clear of grease, dirt or other contaminants. Avoid using cleaning solvents of any type. DO NOT drop or roughly handle the heated oxygen sensor (HO2S).
The HO2S may be difficult to remove when the engine temperature is less than 48°C (120°F).

Open the hood.
Remove the connector position assurance (CPA) retainer.
Disconnect the engine wiring harness electrical connector (1) from the HO2S electrical connector (3).
Remove the HO2S electrical connector clip (2) from the camshaft cover.

Fig 2: View Of HO2S 1

Courtesy of GENERAL MOTORS CORP.

Using the J 39194 , remove the position 1 HO2S.
