Installation Procedure

    Fig 1: View Of Ignition Coils
    GM1578474Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the ignition coil(s).
  2. Install the ignition coil bolt(s) and tighten to 10 N.m (89 lb in).

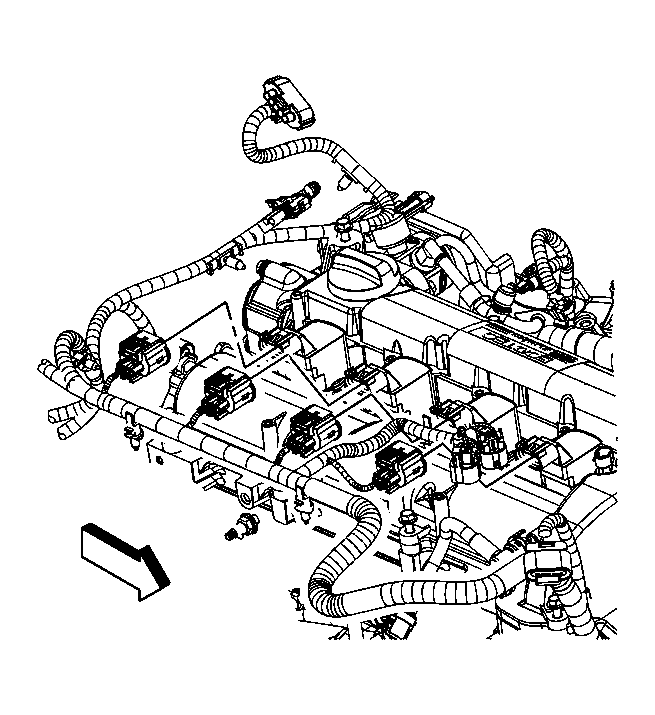

    3. Fig 2: View Of Ignition Coil Electrical Connectors
    GM1825747Courtesy of GENERAL MOTORS CORP.
  3. Connect the ignition coil electrical connector(s).
  4. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
