Installation Procedure

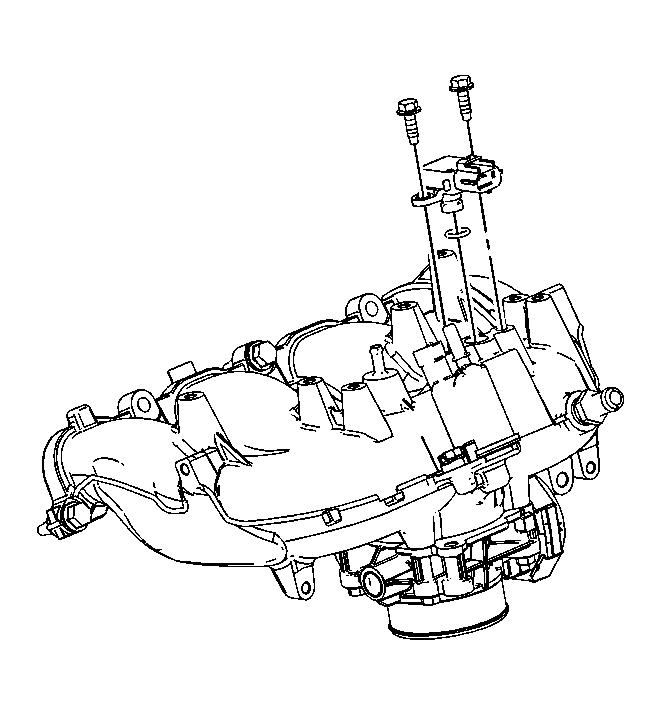

    Fig 1: Identifying MAP Sensor & Bolts
    GM1828338Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the O-ring seal with clean engine oil.
  2. Install the MAP sensor to the intake manifold.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the MAP sensor bolts and tighten to 10 N.m (89 lb in).

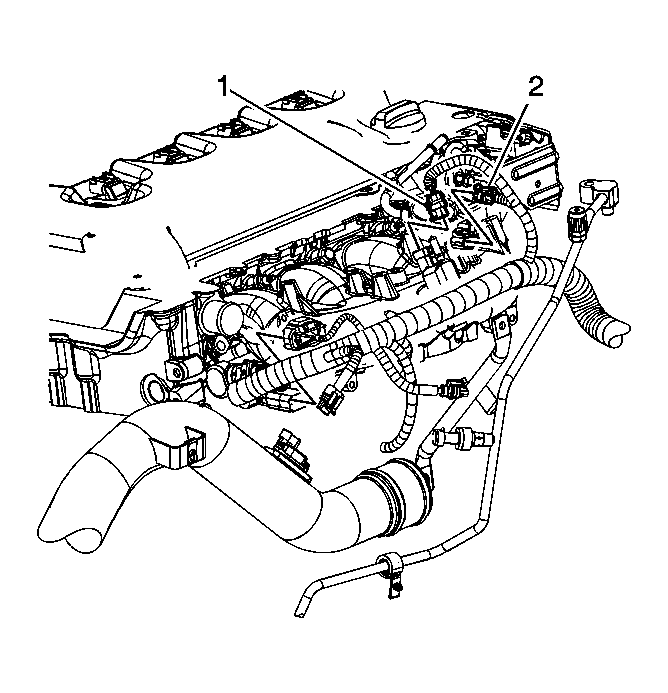

    4. Fig 2: Identifying MAP Sensor Connector
    GM1825525Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (2) to the MAP sensor.
