Installation Procedure

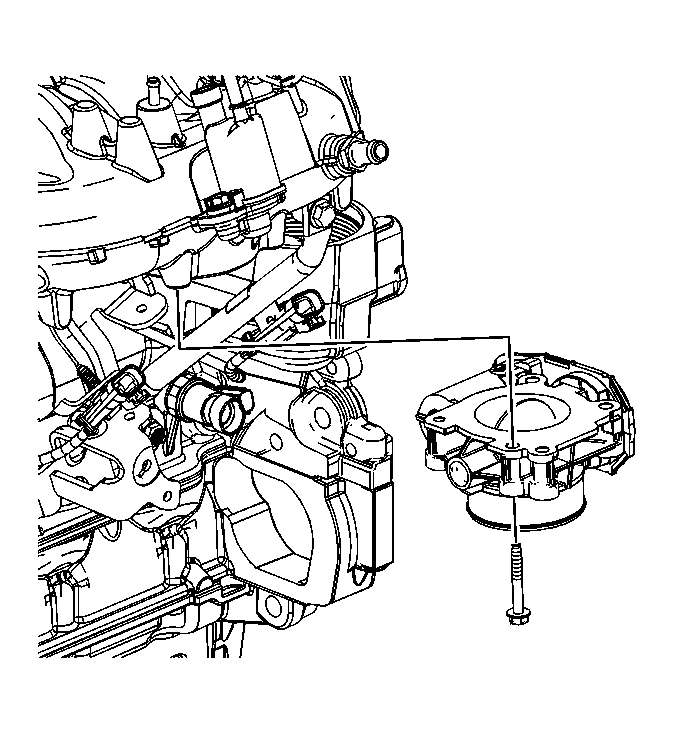

    Fig 1: View Of Throttle Body & Bolts
    GM1769706Courtesy of GENERAL MOTORS CORP.
  1. Inspect the throttle body seal, and replace if necessary.
  2. Position the throttle body to the intake manifold.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the throttle body bolts and tighten to 10 N.m (89 lb in).

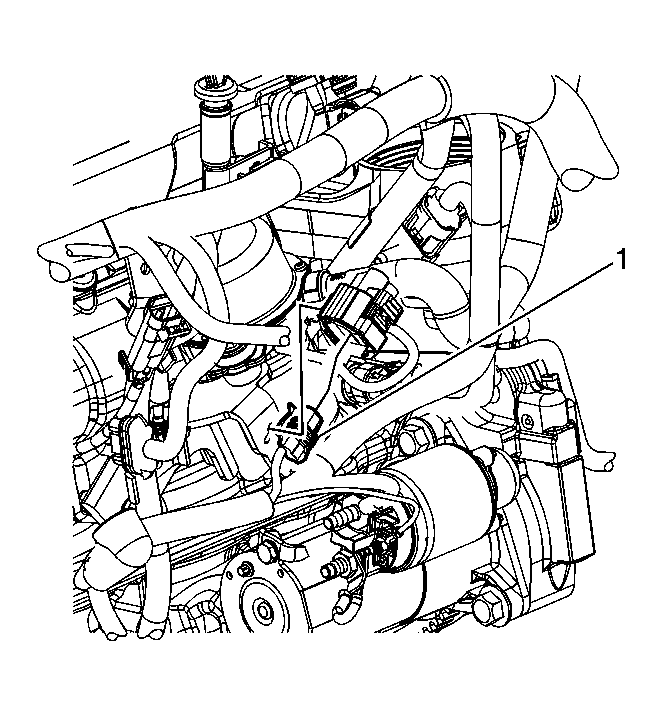

    4. Fig 2: Identifying Brake Booster Auxiliary Pump Connector
    GM1826929Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (1) to the brake booster auxiliary pump.
  5. Install the brake booster auxiliary pump electrical connector clip to the bracket.
    6. Fig 3: Identifying ETC Connector
    GM1825527Courtesy of GENERAL MOTORS CORP.
  6. Connect the engine wiring harness electrical connector (1) to the ETC.
  7. Install the charge air cooler outlet pipe. Refer to Charge Air Cooler Outlet Pipe Replacement .
