Charge Air Bypass Valve Replacement

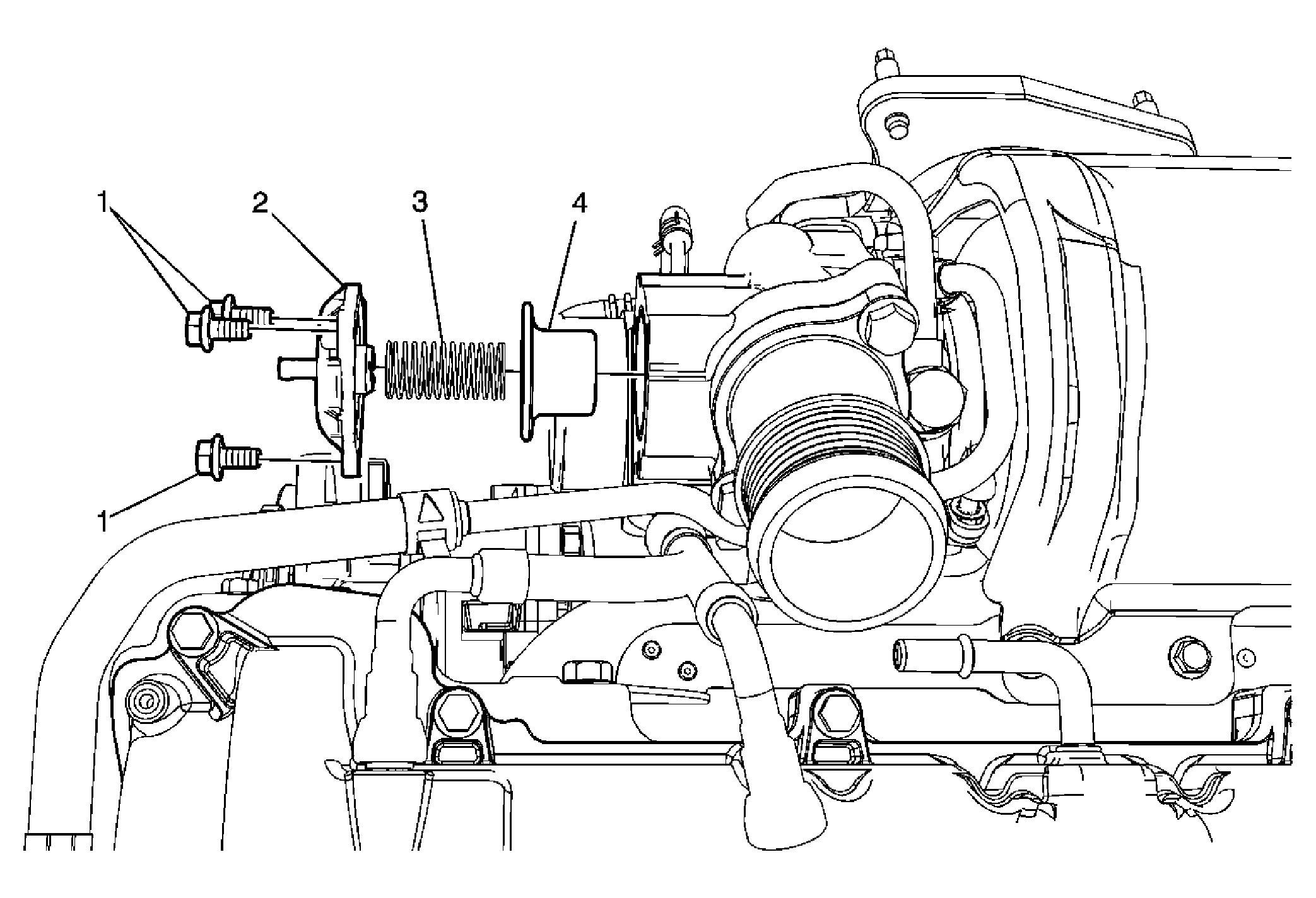

Fig 1: View Of Charge Air Bypass Valve

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Charge Air Bypass Bolt CAUTION: Refer to Fastener Caution . Procedure: Disconnect the vacuum hose. Tighten: 10 N.m (89 lb in)
2	Charge Air Bypass Valve
3	Charge Air Bypass Valve Diaphragm Spring
4	Charge Air Bypass Valve Diaphragm
