Installation Procedure

    Fig 1: Identifying CKP Sensor
    GM1578475Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the CKP sensor O-ring seal with clean engine oil.
  2. Install the CKP sensor.
    CAUTION: Refer to Fastener Caution .
  3. Install the CKP sensor bolt and tighten to 10 N.m (89 lb in).

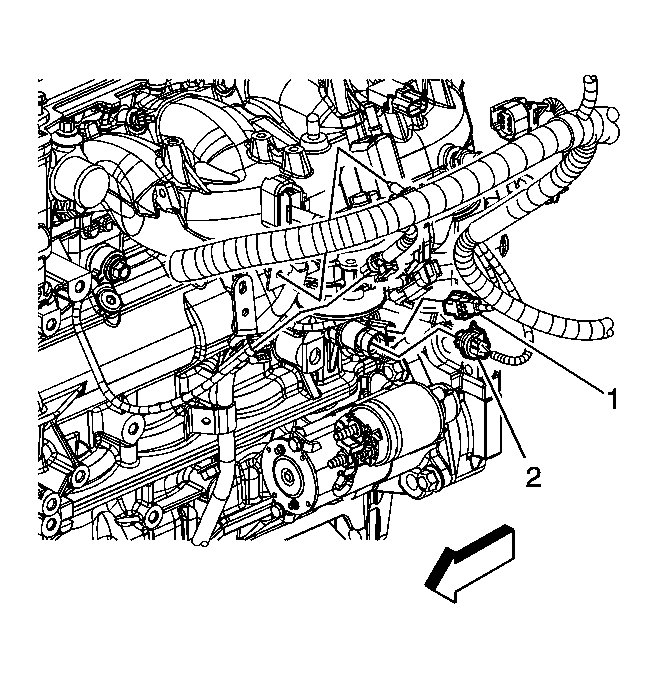

    4. Fig 2: Identifying CKP Sensor Electrical Connector
    GM1716603Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (1) to the CKP sensor.
  5. Install the starter. Refer to Starter Replacement .
