Installation Procedure

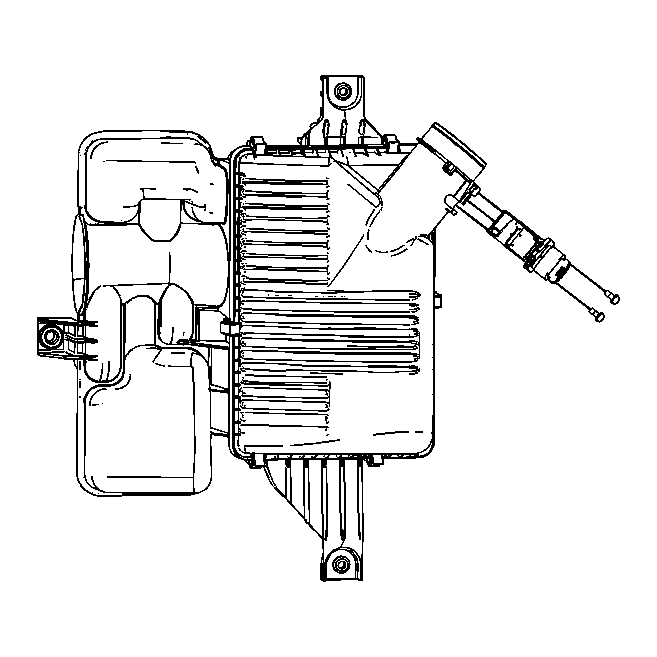

    Fig 1: Identifying MAF Sensor & Screws
    GM1828329Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the MAF sensor.
  2. Install the MAF sensor screws and tighten to 0.6 N.m (5 lb in).

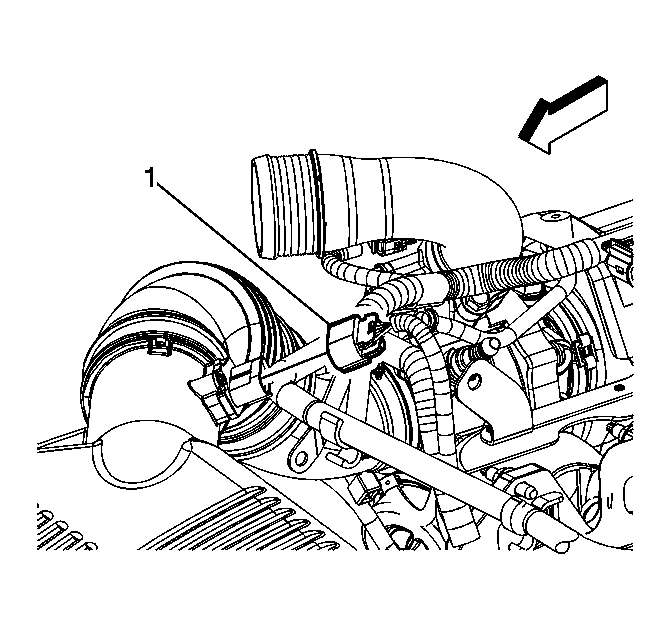

    3. Fig 2: Identifying MAF Sensor Electrical Connector
    GM1826859Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (1) to the MAF sensor.
