On-Vehicle Inspection

  1. CHECK WINDOW LOCK SWITCH
    1. Check that operation of the power windows except the driver side power window is disabled when the window lock switch of the power window master switch is pressed.
    2. Check that the power windows can operate when the window lock switch is pressed again.

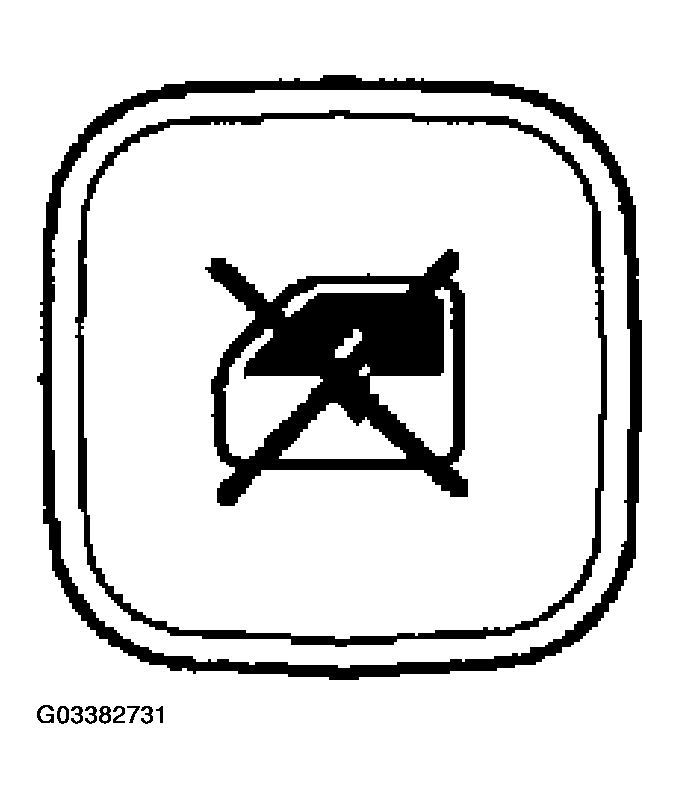

      Fig 1: Checking Window Lock Switch
      G03382731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CHECK MANUAL UP/DOWN FUNCTION
    1. Check that the AUTO switch of the master switch can operate the driver side power window as follows:

      Standard:

      SPECIFIED CONDITION

      Condition Master Switch Switch Operation Power Window
      • Ignition switch ON
      		 AUTO Pulled UP UP (Closed)
      Halfway pushed DOWN DOWN (Open)
    2. Check that each regulator switch can operate each power window as follows:

      Standard:

      SPECIFIED CONDITION

      Condition Switch Switch Operation Power Window
      • Ignition switch ON
      • Window lock switch OFF
      		 Passenger Side Pulled UP UP (Closed)
      Pushed DOWN DOWN (Open)
      Rear LH Pulled UP UP (Closed)
      Pushed DOWN DOWN (Open)
      Rear RH Pulled UP UP (Closed)
      Pushed DOWN DOWN (Open)
  3. CHECK AUTO DOWN FUNCTION
    1. Check that the AUTO switch of the master switch can operate the driver side power window as follows:

      Standard:

      SPECIFIED CONDITION

      Condition Master Switch Switch Operation Power Window
      • Ignition switch ON
      		 AUTO Fully pushed DOWN AUTO DOWN (Fully open)
  4. CHECK REMOTE UP/DOWN FUNCTION
    1. Check that the power window master switch can operate the power windows besides the driver side power window as follows:

      Standard:

      SPECIFIED CONDITION

      Condition Switch Switch Operation Power Window
      • Ignition switch ON
      • Window lock switch OFF
      		 Passenger Side Pulled UP UP (Closed)
      Pushed DOWN DOWN (Open)
      Rear LH Pulled UP UP (Closed)
      Pushed DOWN DOWN (Open)
      Rear RH Pulled UP UP (Closed)
      Pushed DOWN DOWN (Open)
