Speed Sensor Front LH: Replacement

HINT:

Overhaul the RH following the same procedures as for the LH.

1. REMOVE FRONT WHEEL
2. REMOVE BATTERY
3. REMOVE SPEED SENSOR FRONT LH
   1. Disconnect the speed sensor connector.

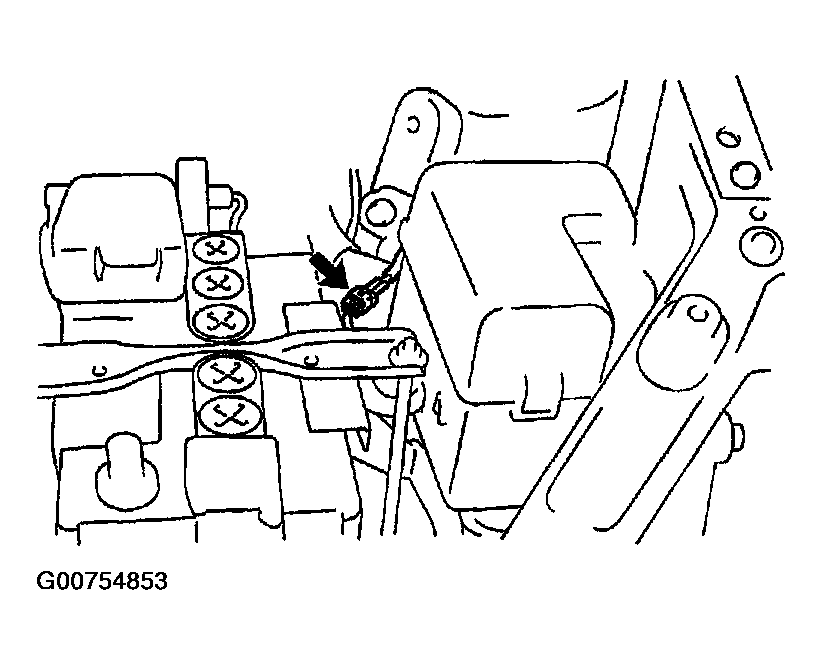

      Fig 1: Disconnecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 clamp bolts holding the speed sensor wire harness from the body and the shock absorber.
   3. Disconnect the resin clip and the speed sensor wire harness from the shock absorber.

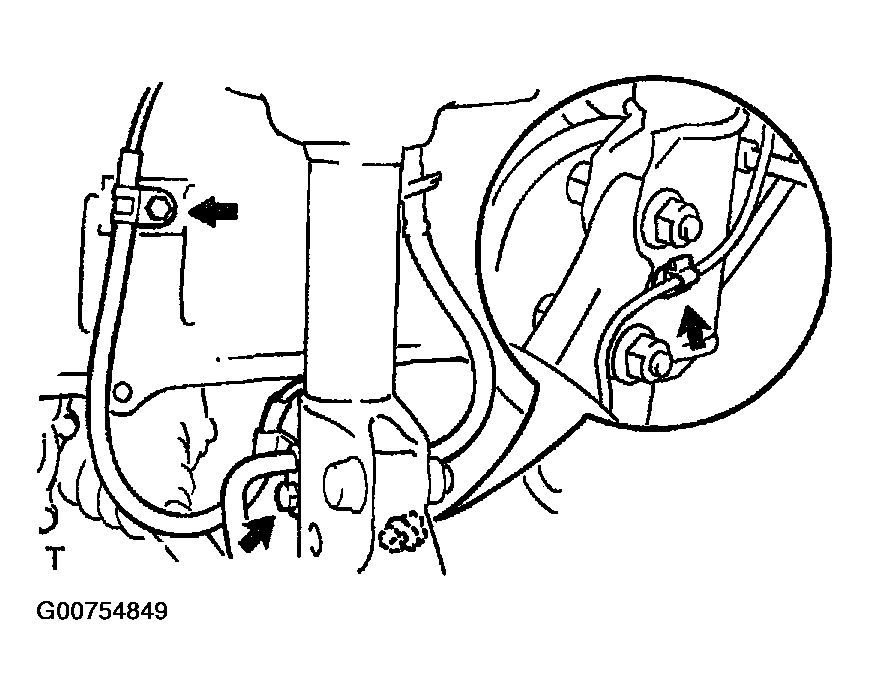

      Fig 2: Disconnecting Resin Clip And Speed Sensor Wire Harness From Shock Absorber

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the bolt and the speed sensor front LH.
   NOTE: Prevent foreign matter from attaching to the sensor tip.

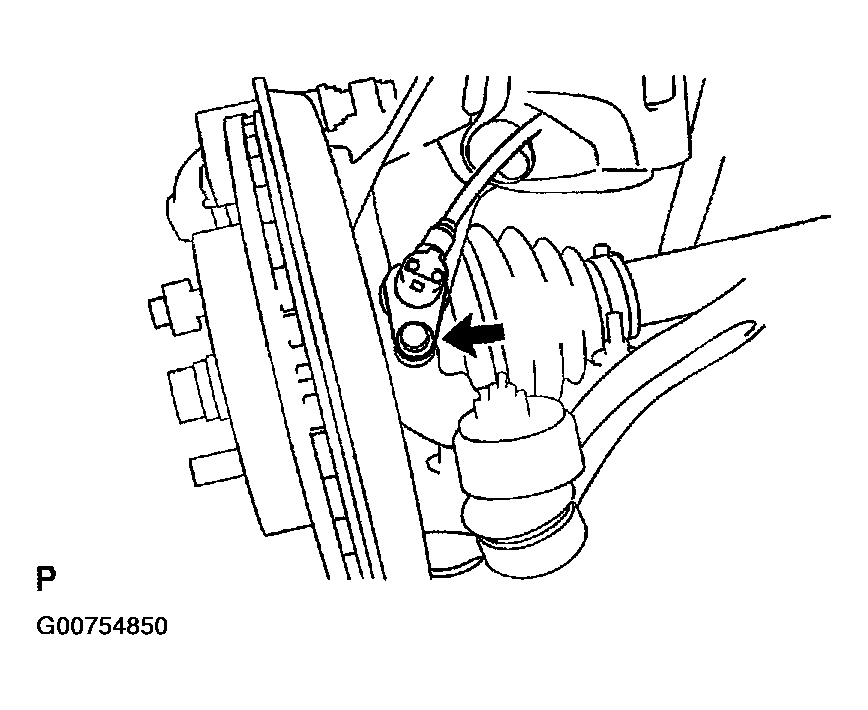

   Fig 3: Removing Bolt And Speed Sensor Front LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL SPEED SENSOR FRONT LH
   1. Install the speed sensor front LH with the bolt.

      Torque: 8.0 N m (82 kgf.cm, 71 in.lbf)

      NOTE: Prevent foreign matter from attaching to the sensor tip.

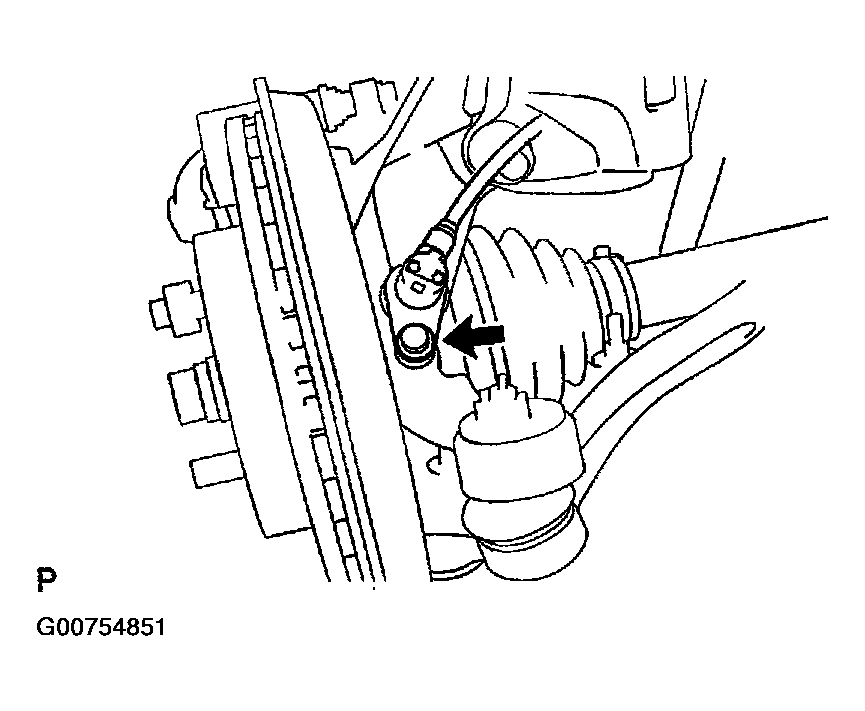

      Fig 4: Installing Speed Sensor Front LH With Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

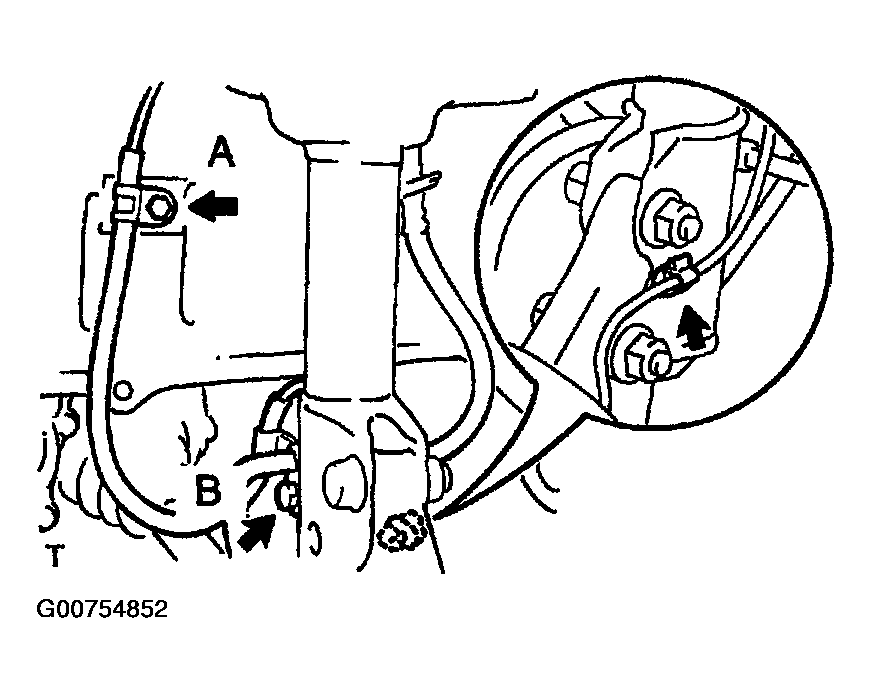

   2. Install the speed sensor wire harness with the 2 bolts on the body and the shock absorber.

      Torque:

      Bolt A: 8.0 N m (82 kgf.cm, 71 in.lbf)

      Bolt B: 29 N m (300 kgf.cm, 21 ft.lbf)

      NOTE: Do not twist the sensor wire when installing the sensor.
   3. Connect the resin clip and the speed sensor wire harness to the shock absorber.
      Fig 5: Connecting Resin Clip And Speed Sensor Wire Harness To Shock Absorber

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Connect the speed sensor connector.

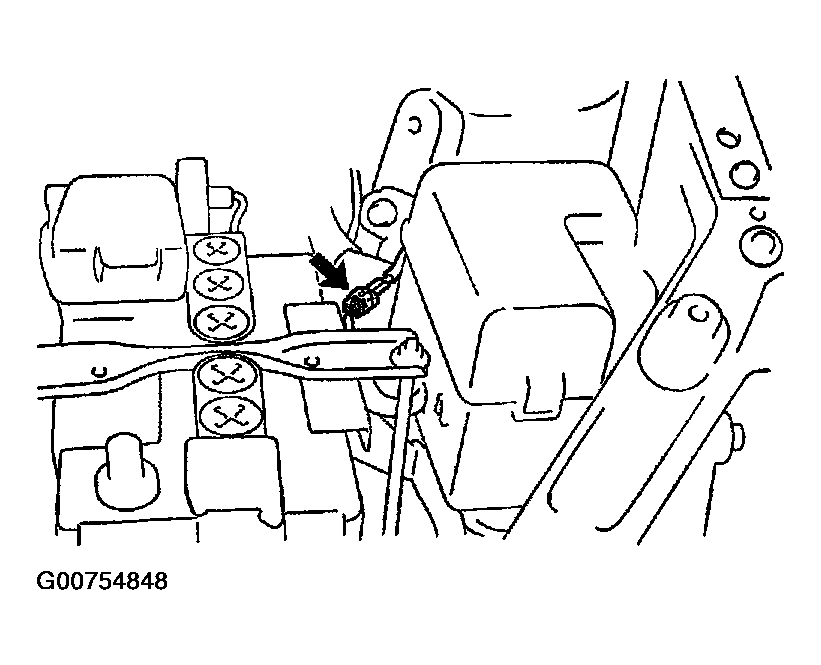

      Fig 6: Connecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL FRONT WHEEL

   Torque: 103 N m (1,050 kgf.cm, 76 ft.lbf)

6. INSTALL BATTERY
7. CHECK ABS SPEED SENSOR SIGNAL (See  ABS SPEED SENSOR SIGNAL  )
