Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

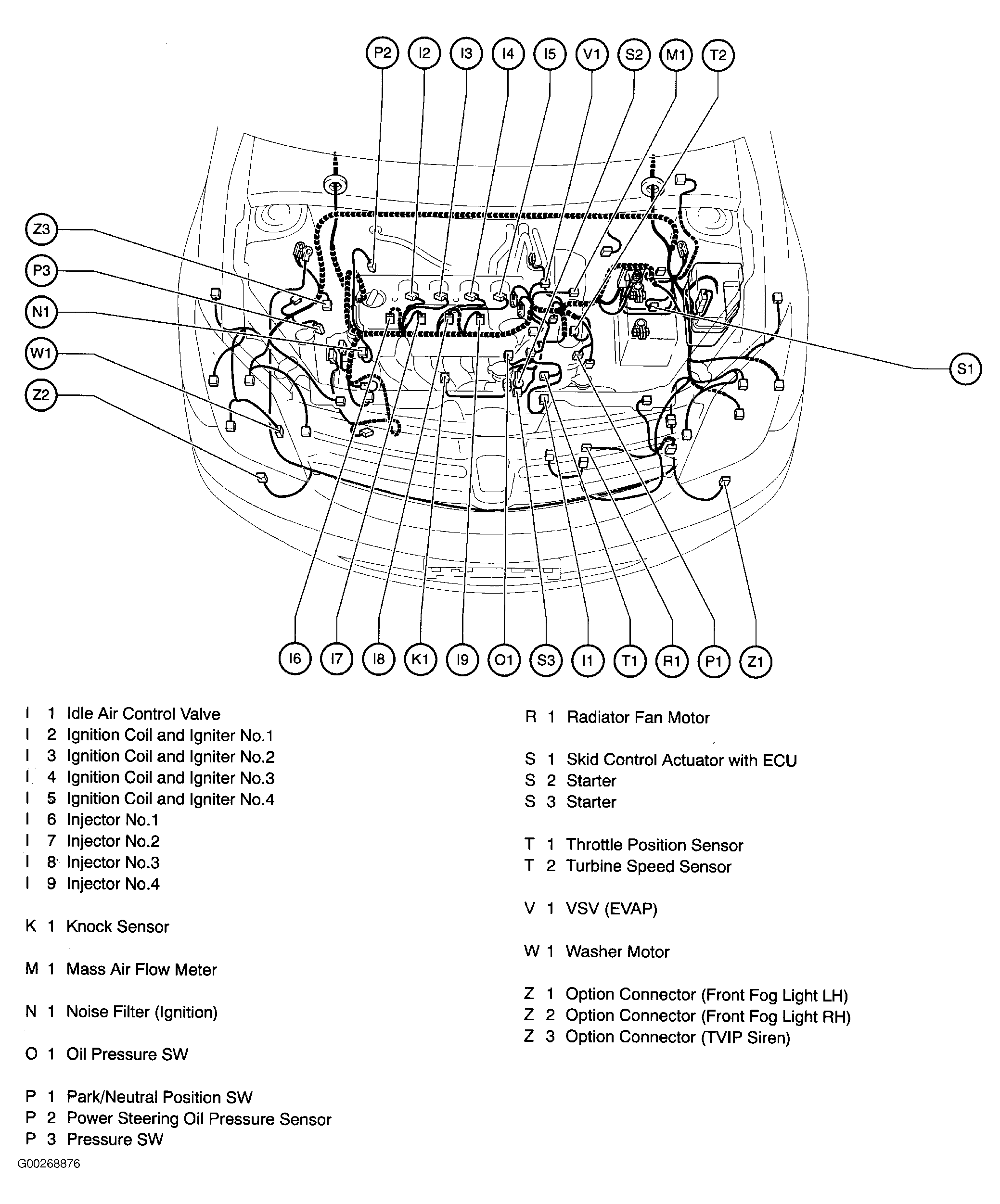

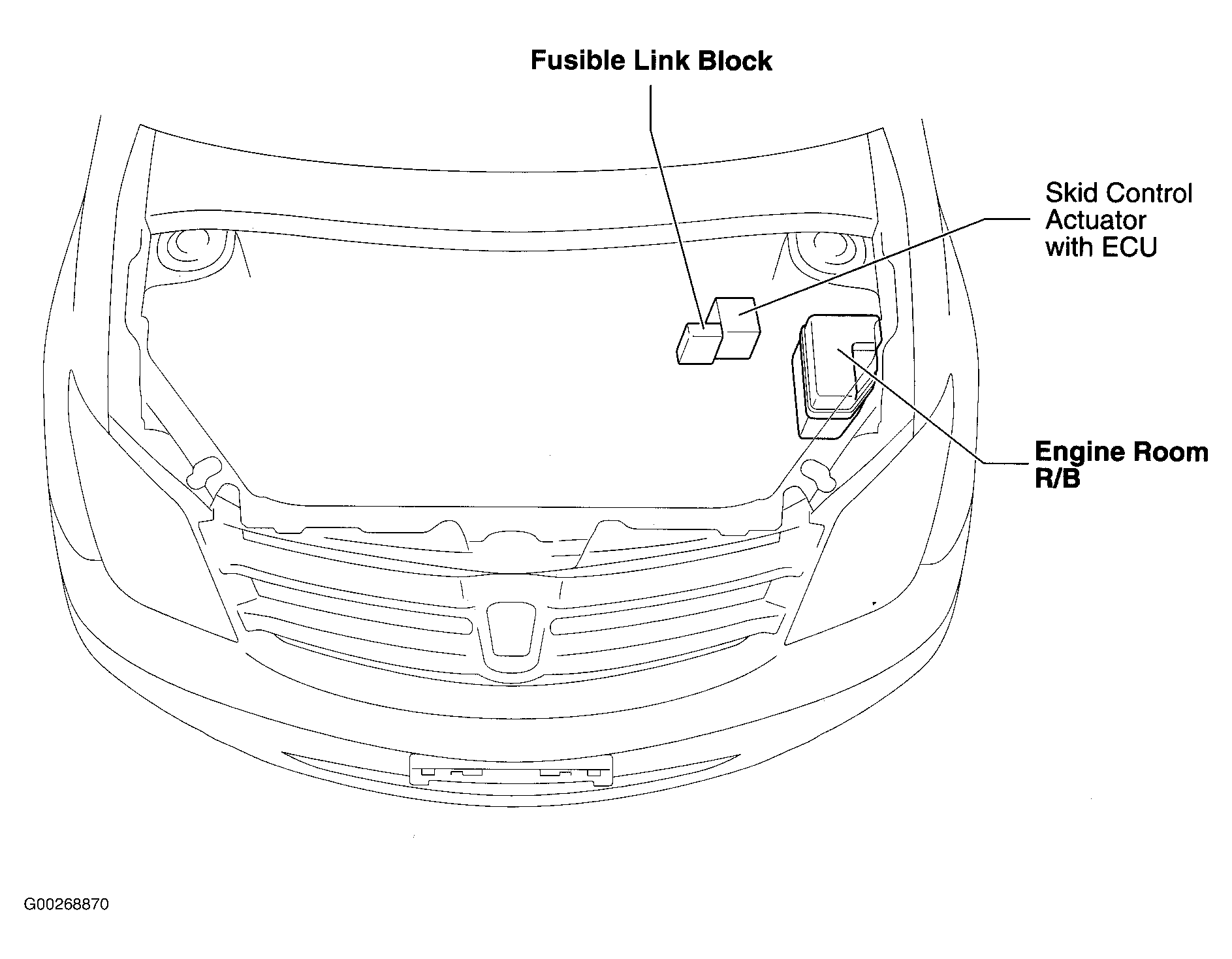

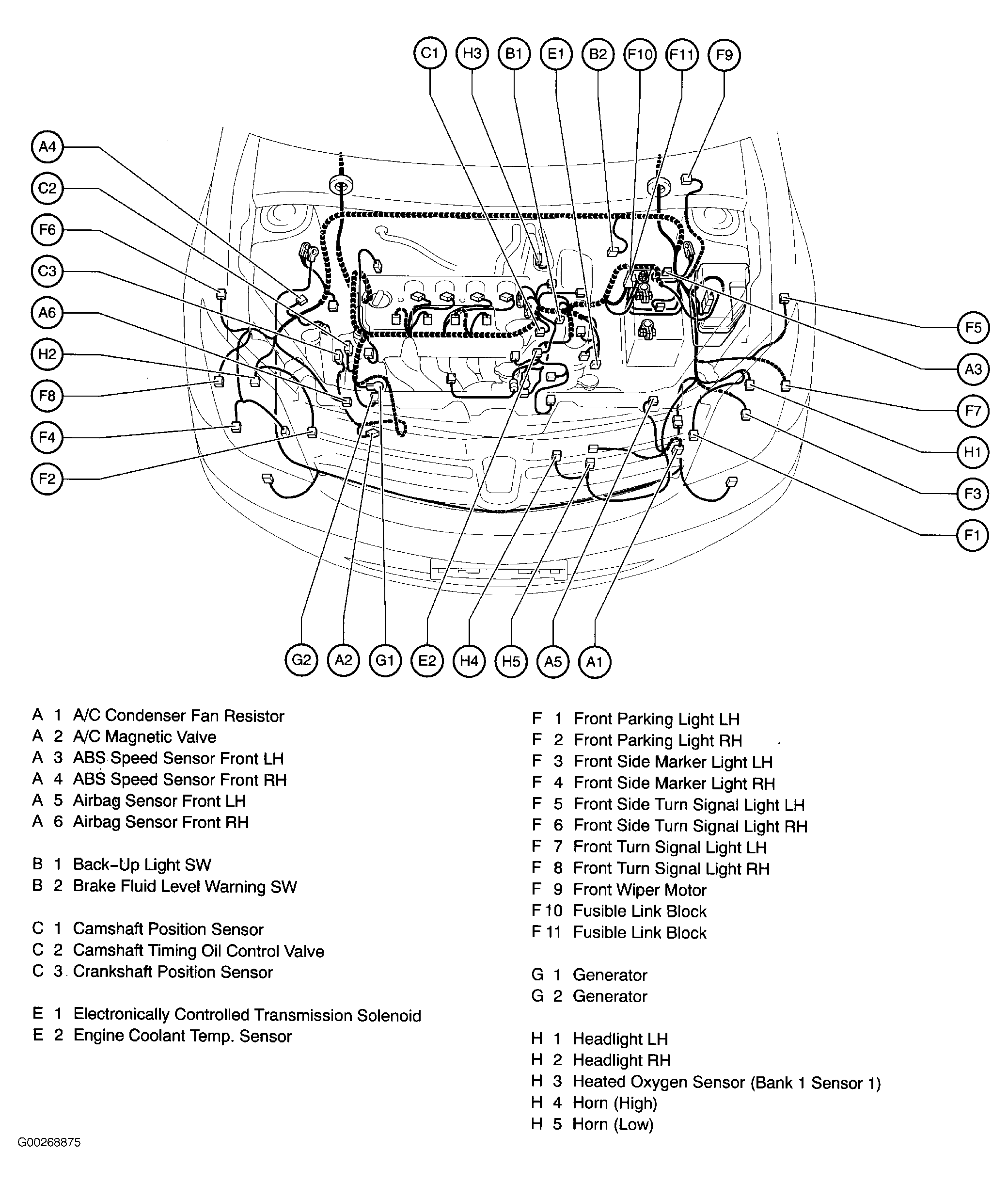

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

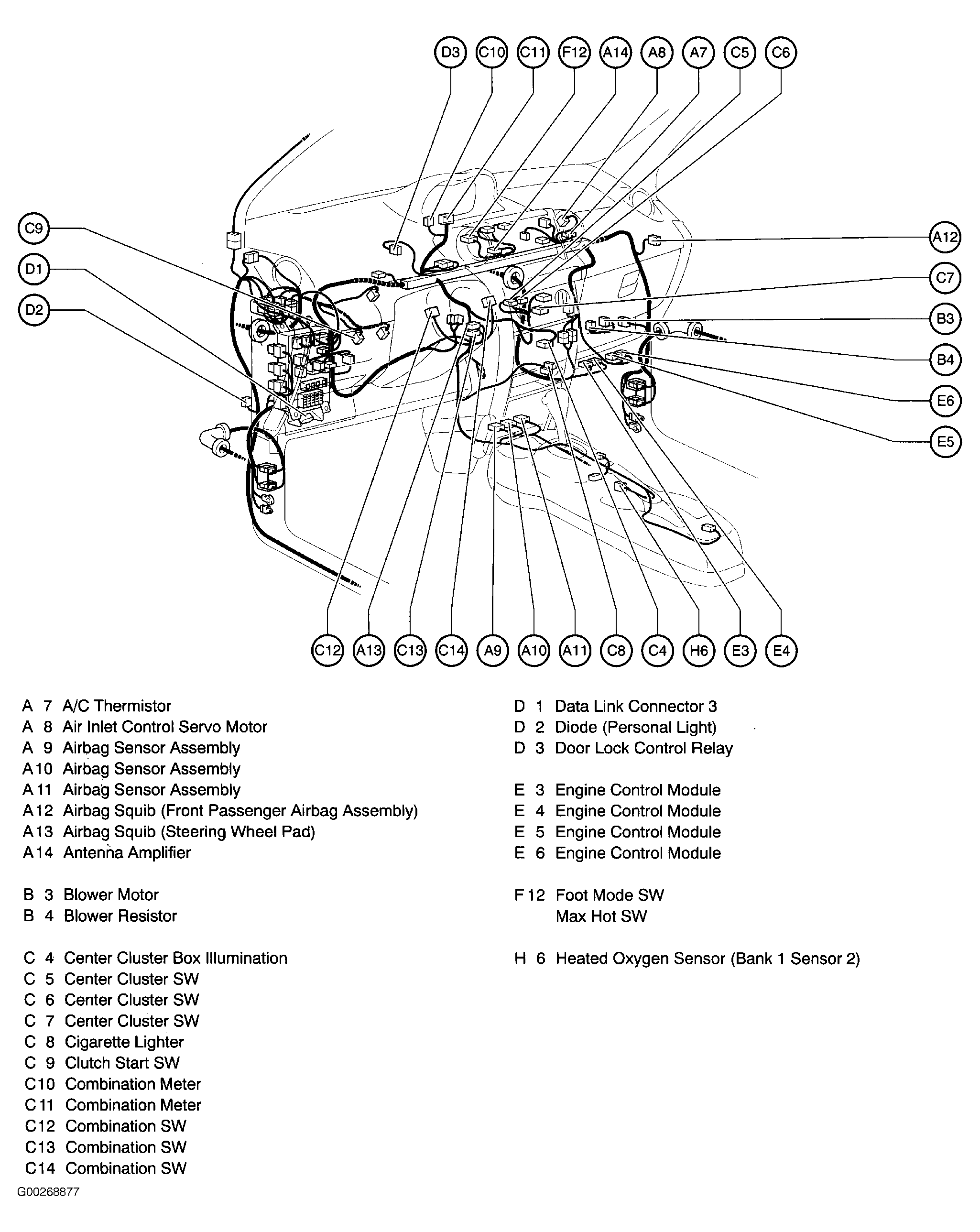

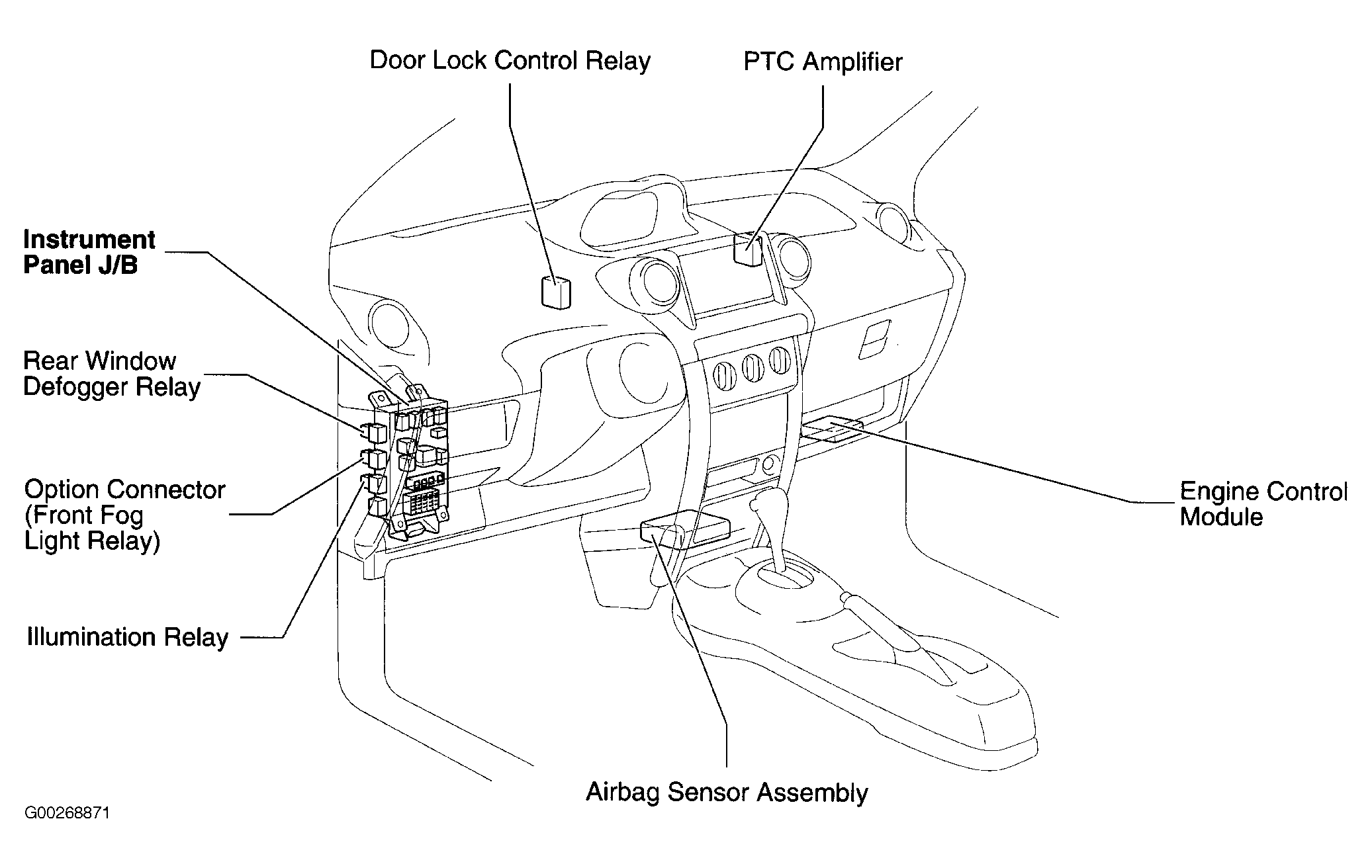

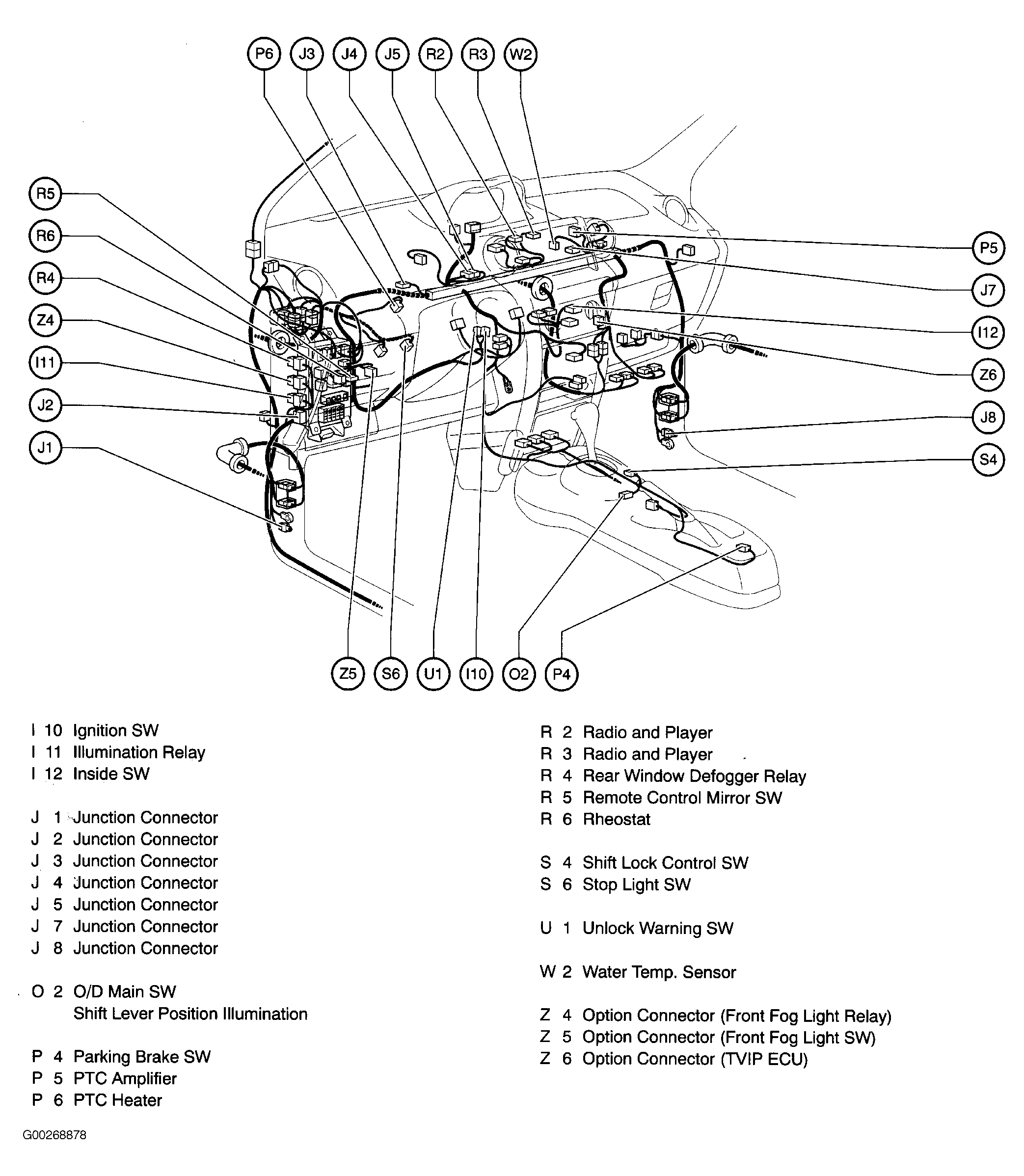

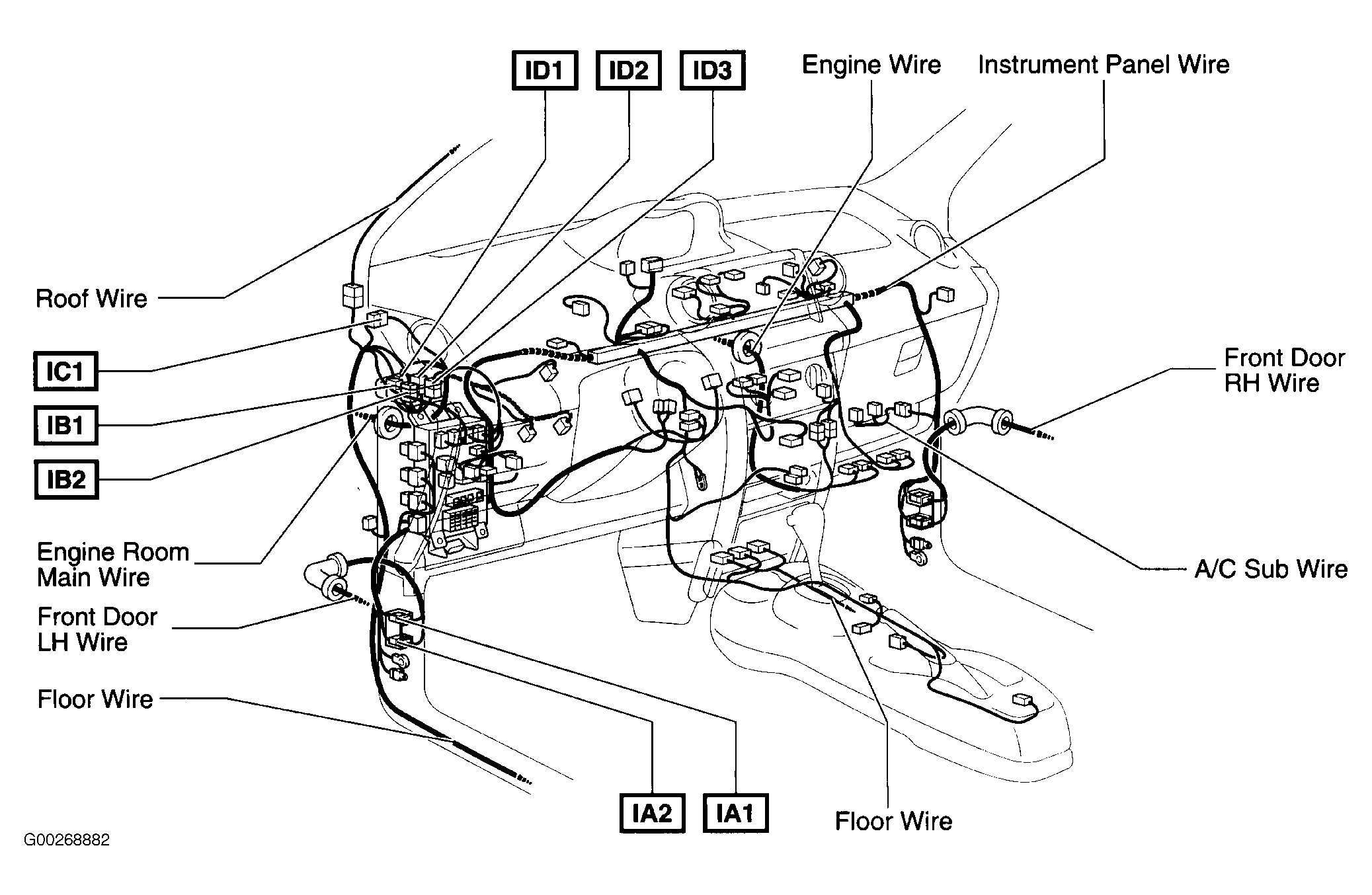

Fig 2: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Illumination Relay
Option Connector (Front Fog Light Relay)
Rear Window Defogger Relay
Door Lock Control Relay

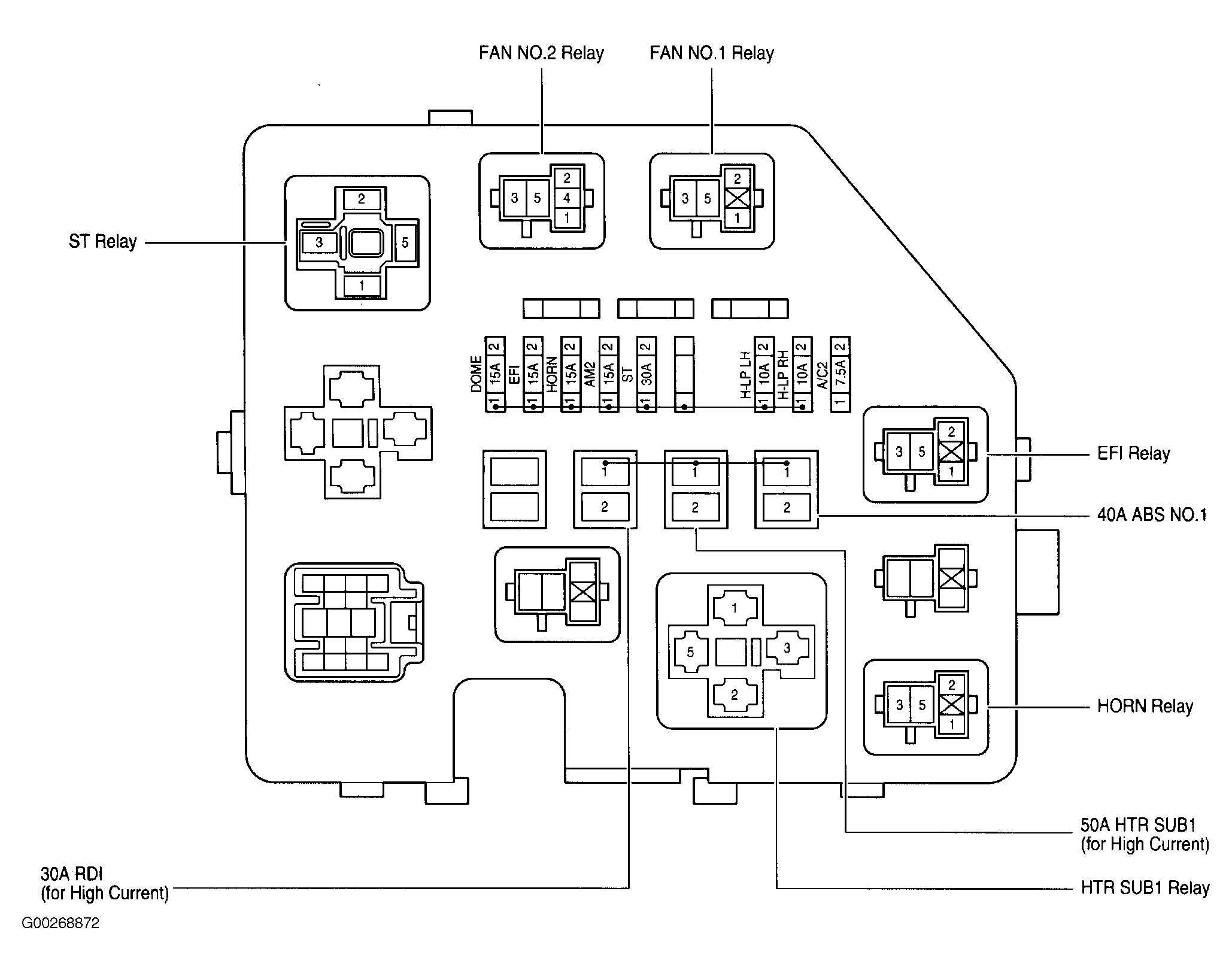

Fig 3: Engine Room R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY BLOCK RELAY IDENTIFICATION

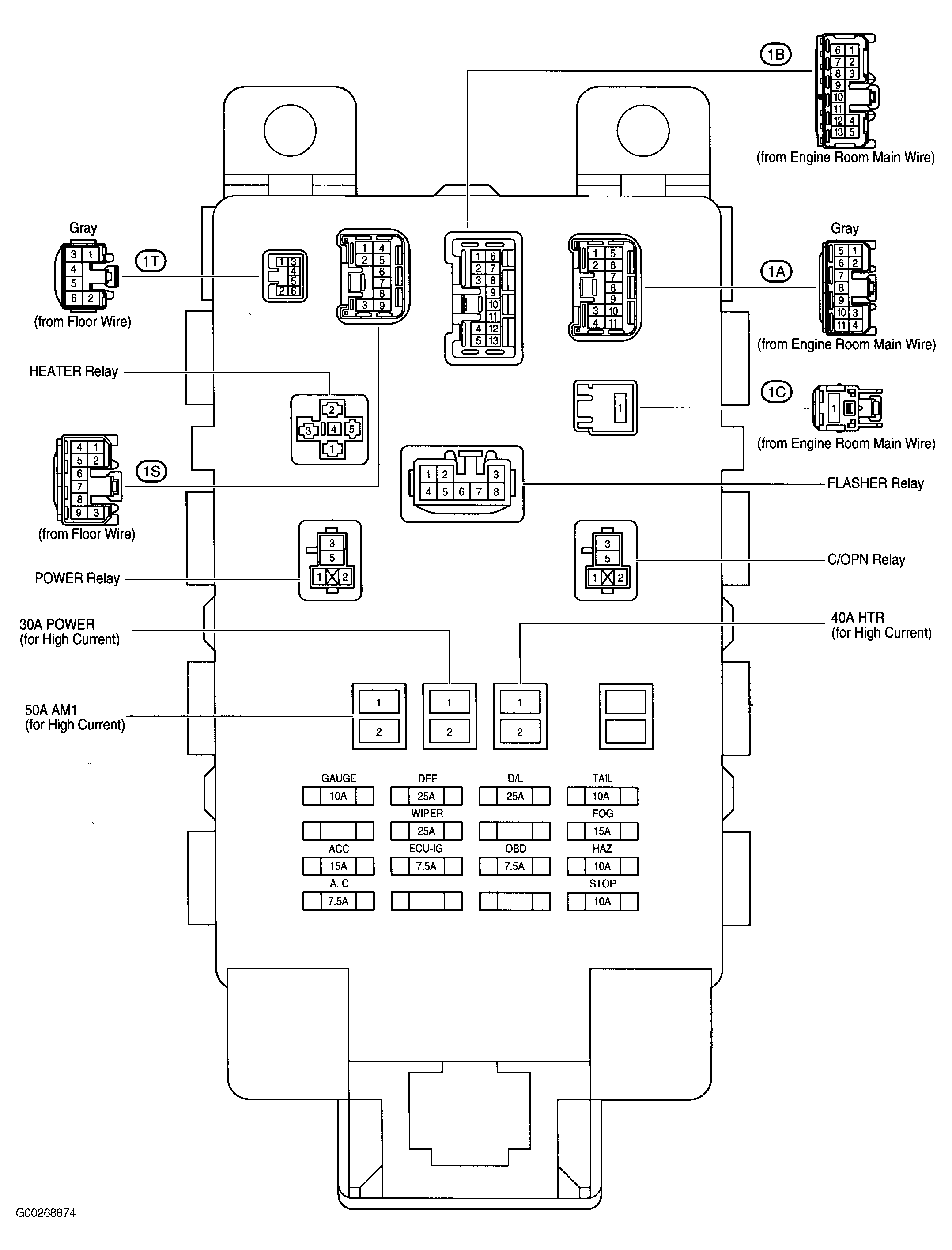

Fig 4: Instrument Panel J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL JUNCTION BLOCK RELAY IDENTIFICATION

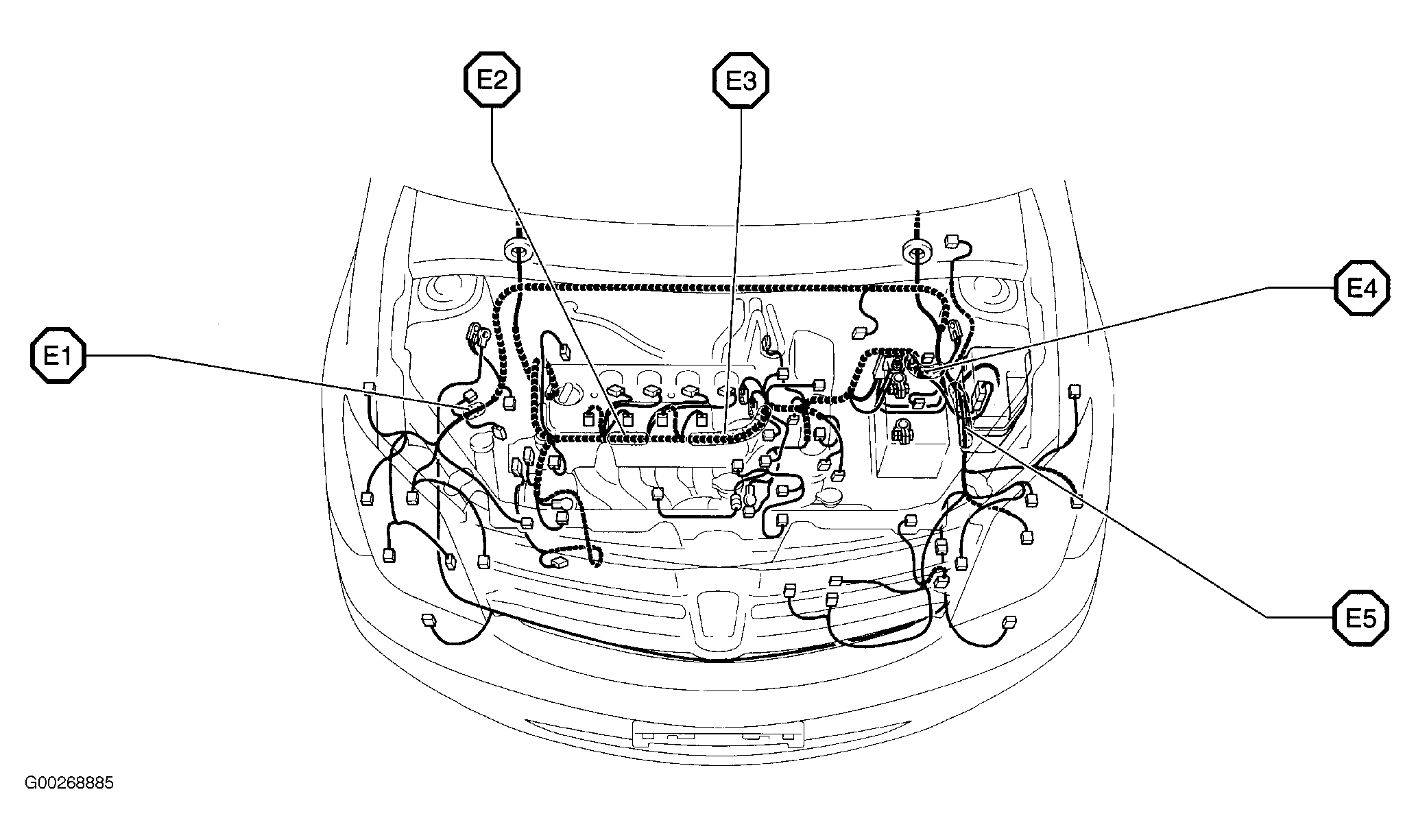

Fig 5: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

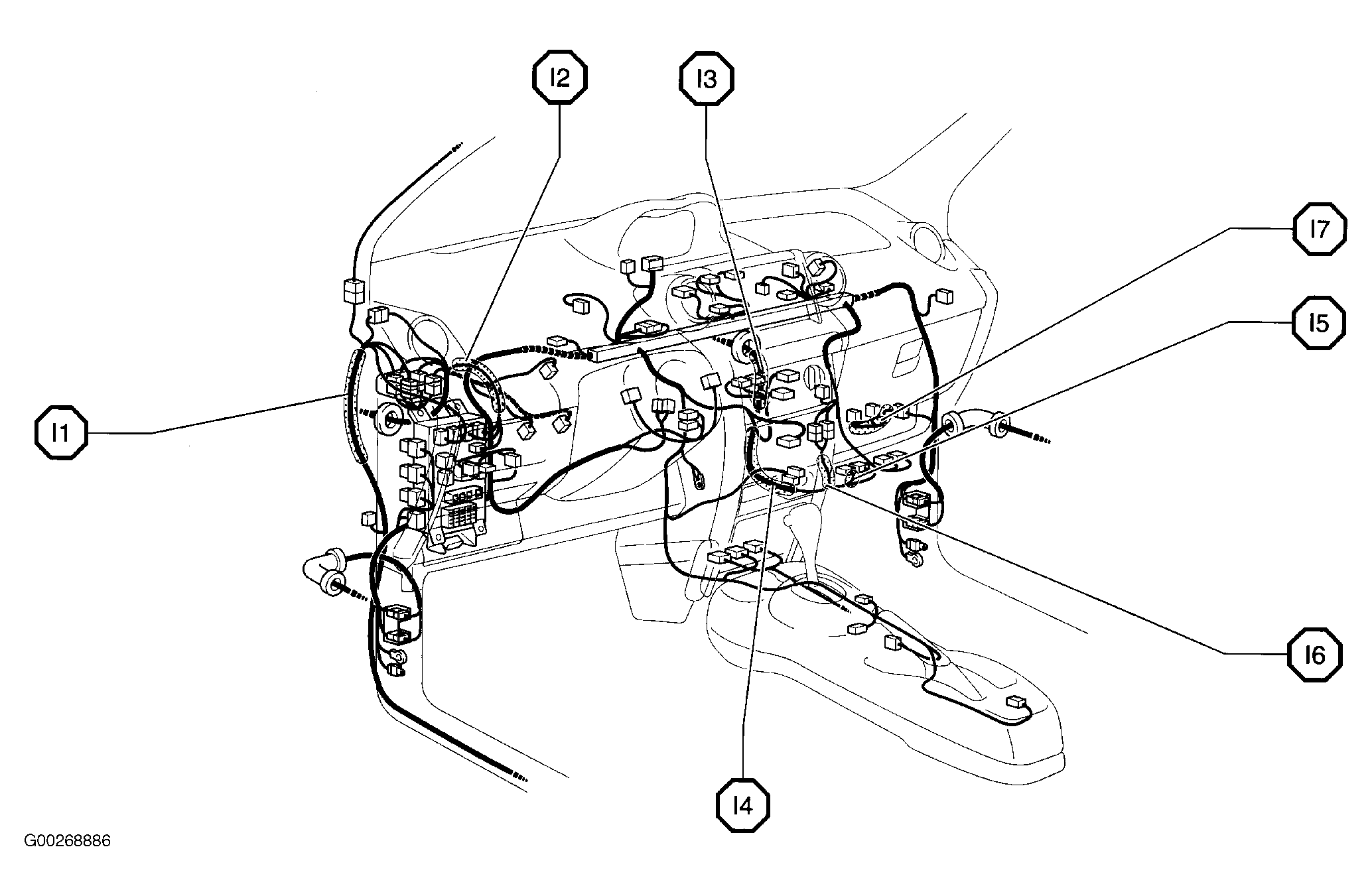

Fig 7: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

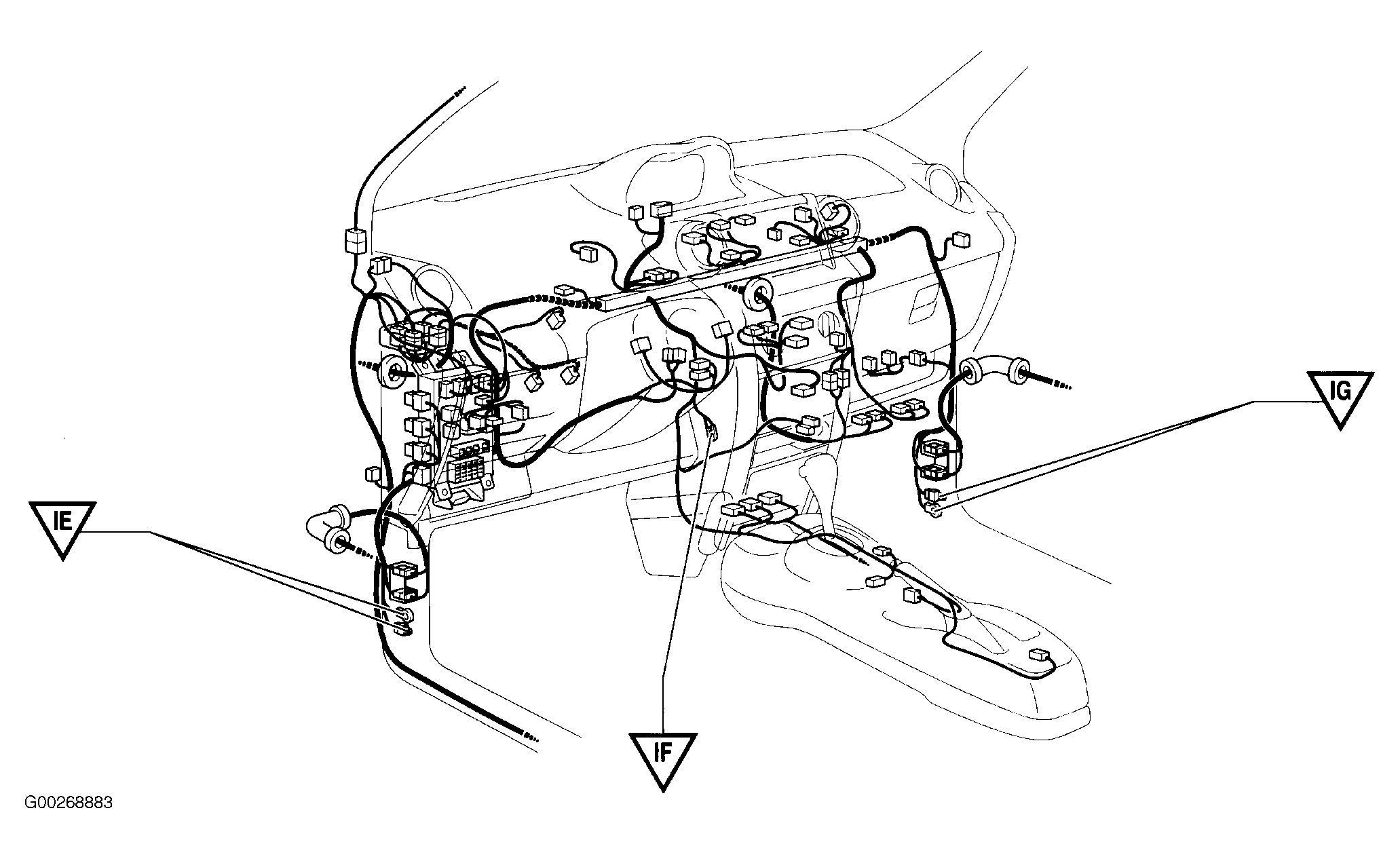

Fig 8: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

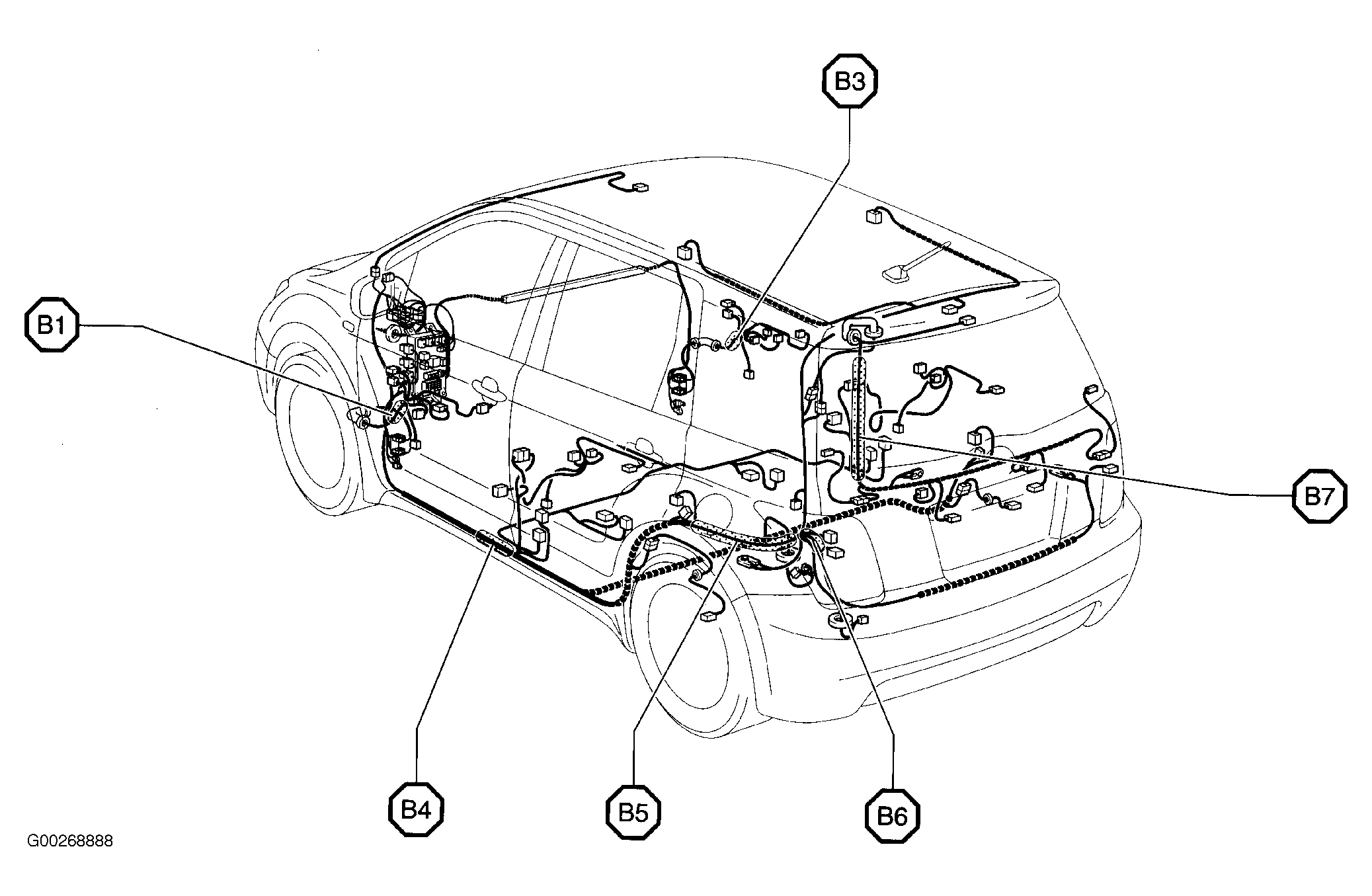

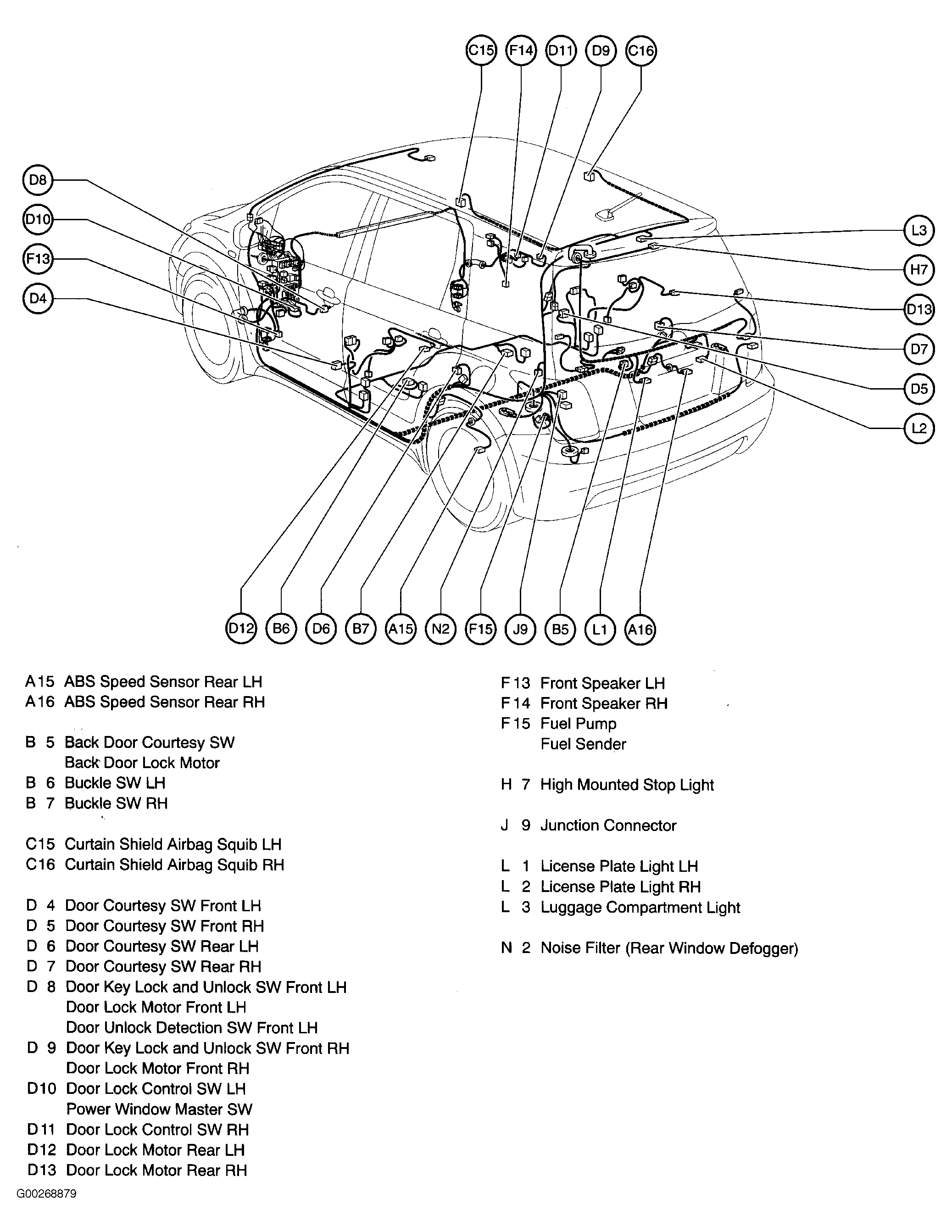

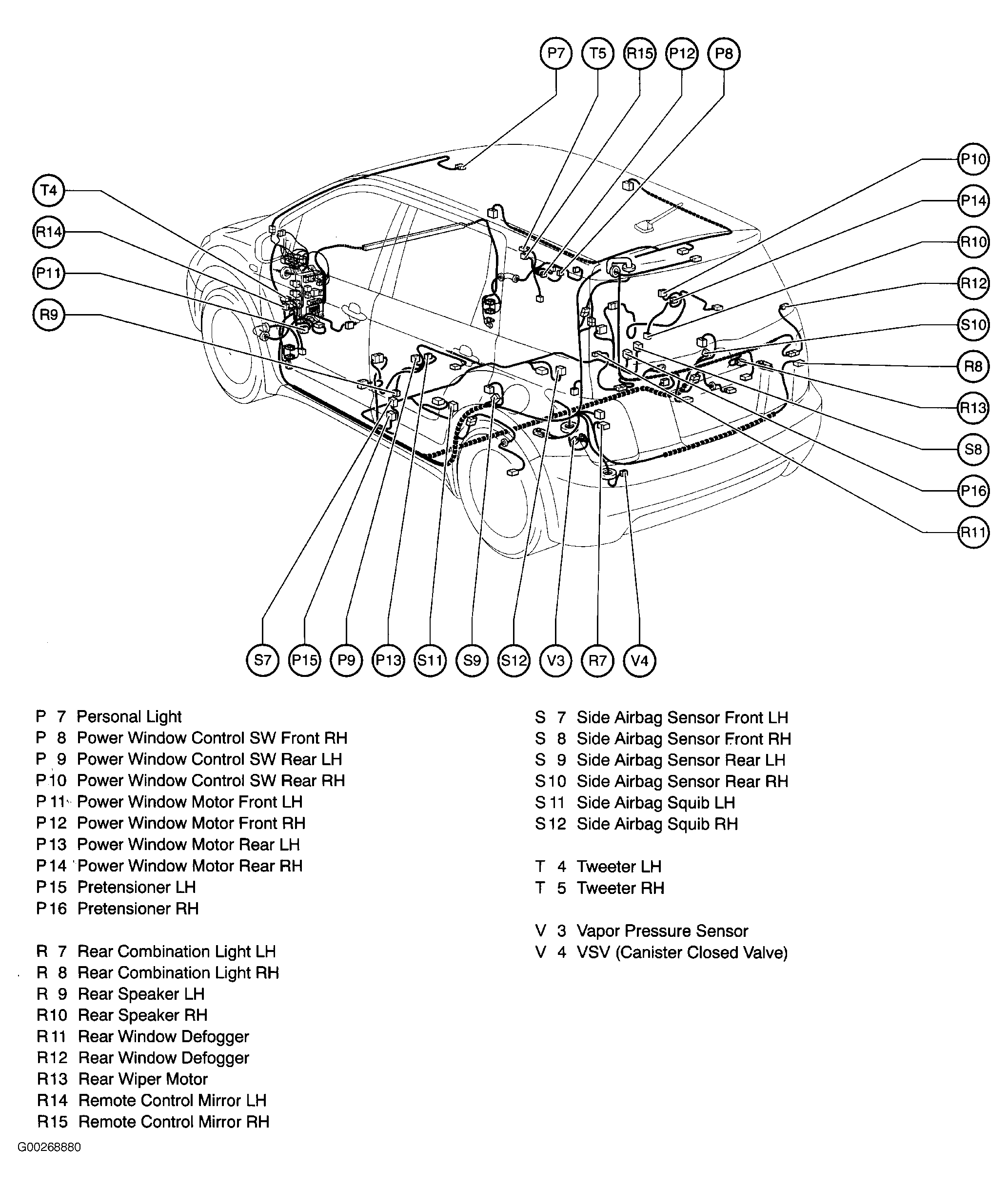

Fig 9: Body

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

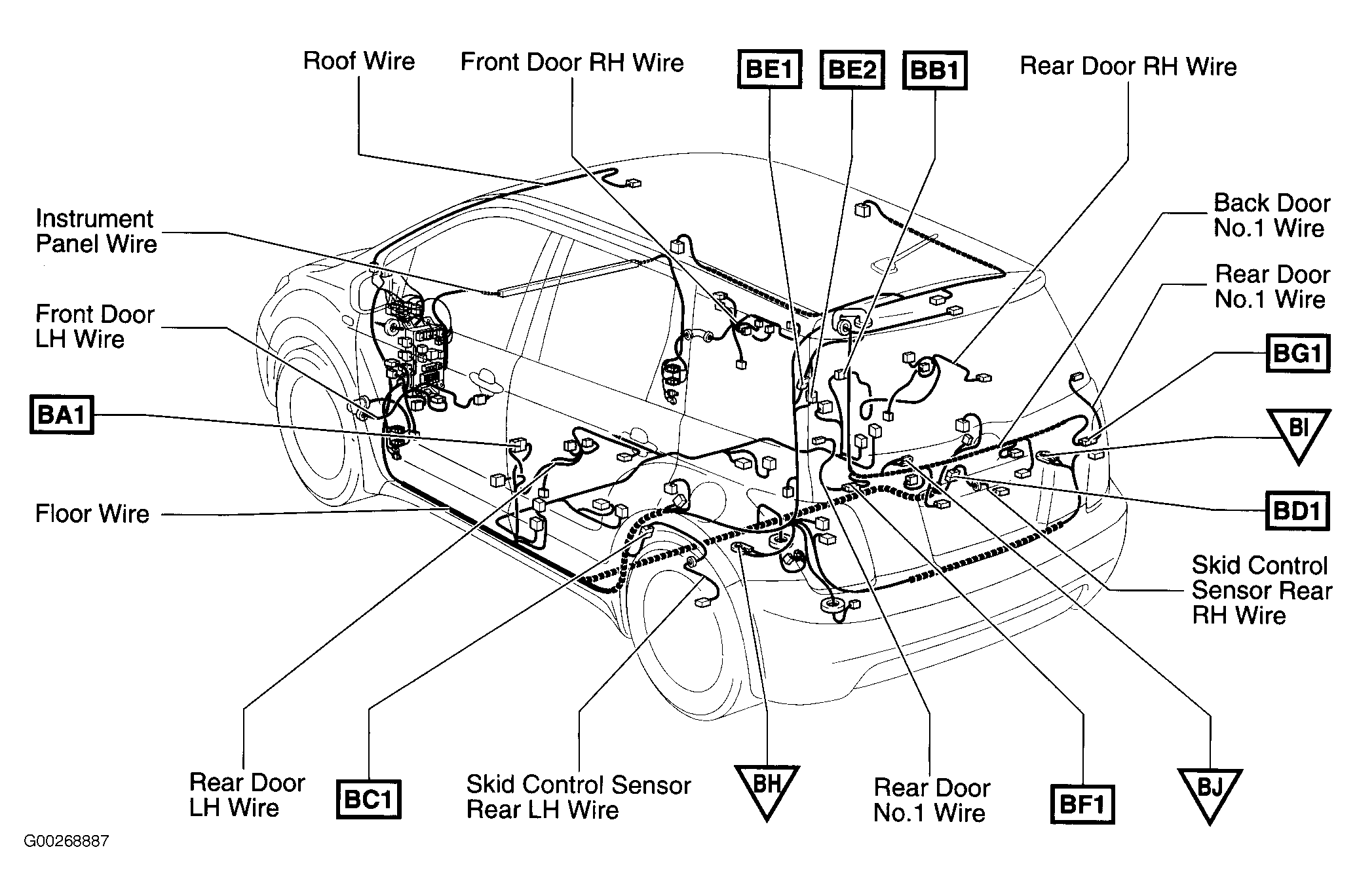

Fig 10: Body

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

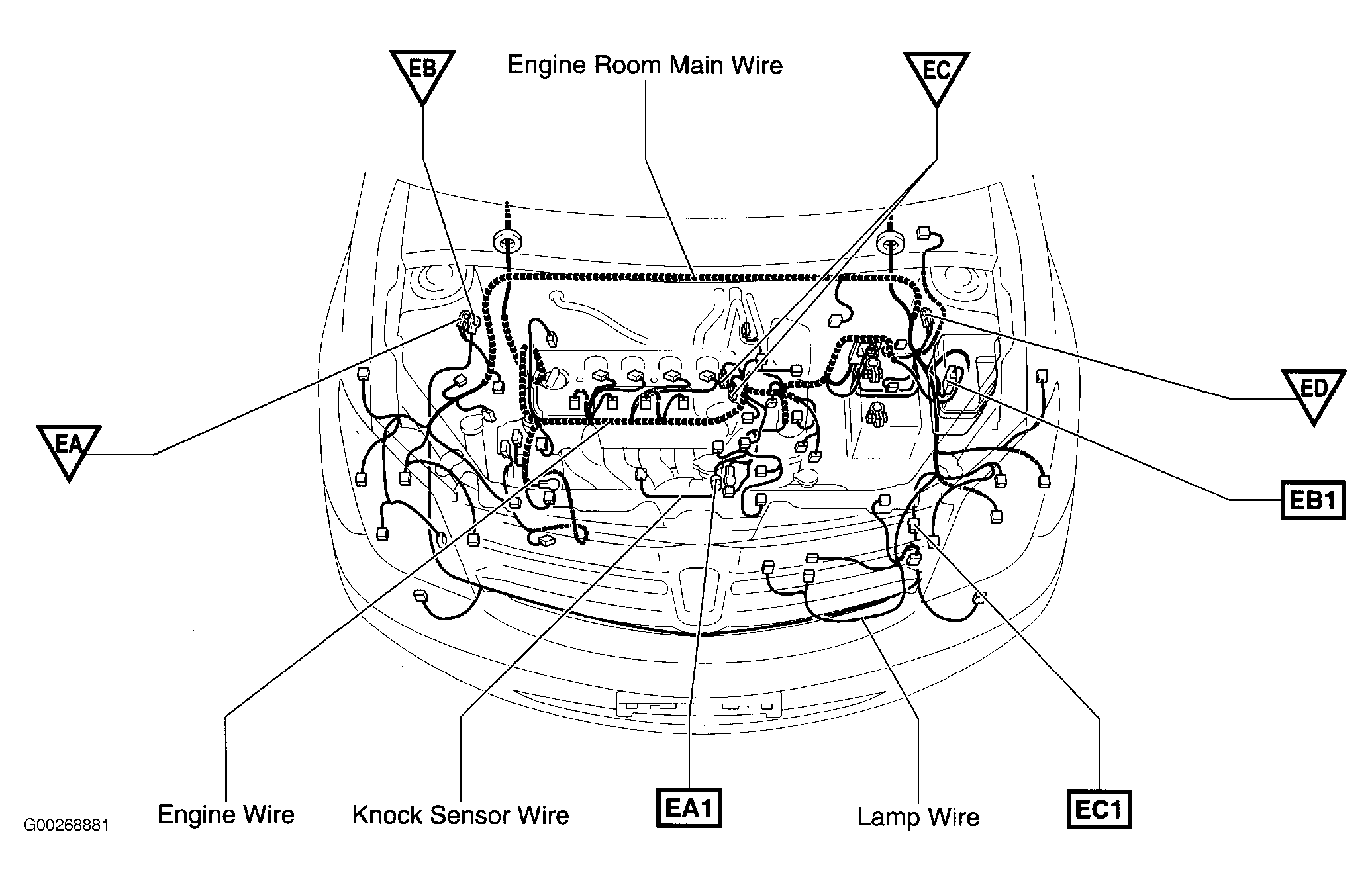

Fig 11: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Compartment

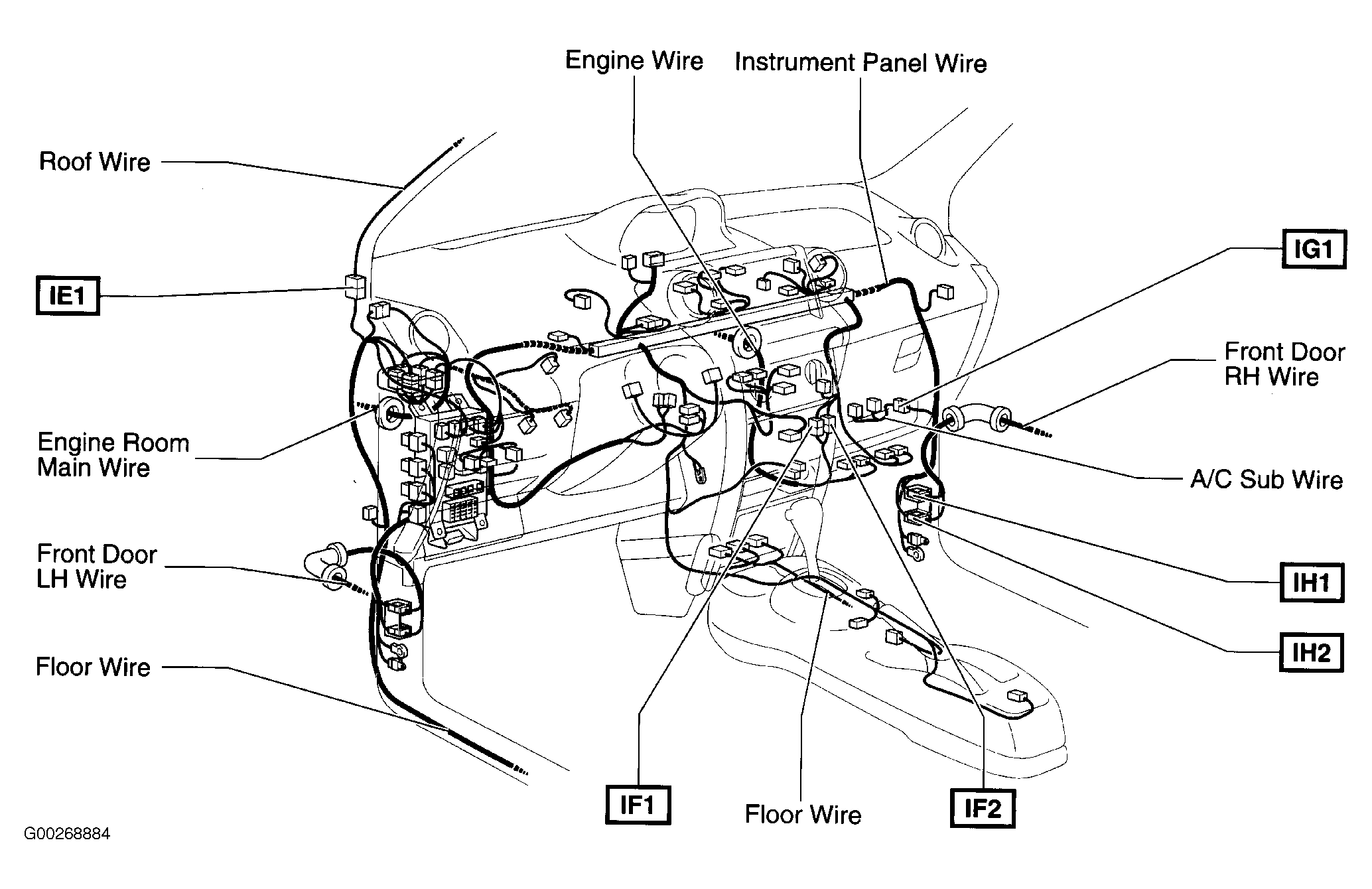

Fig 13: Dash

Fig 14: Dash

Fig 15: Dash

Fig 16: Dash

Fig 17: Body

Fig 18: Body
