Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|

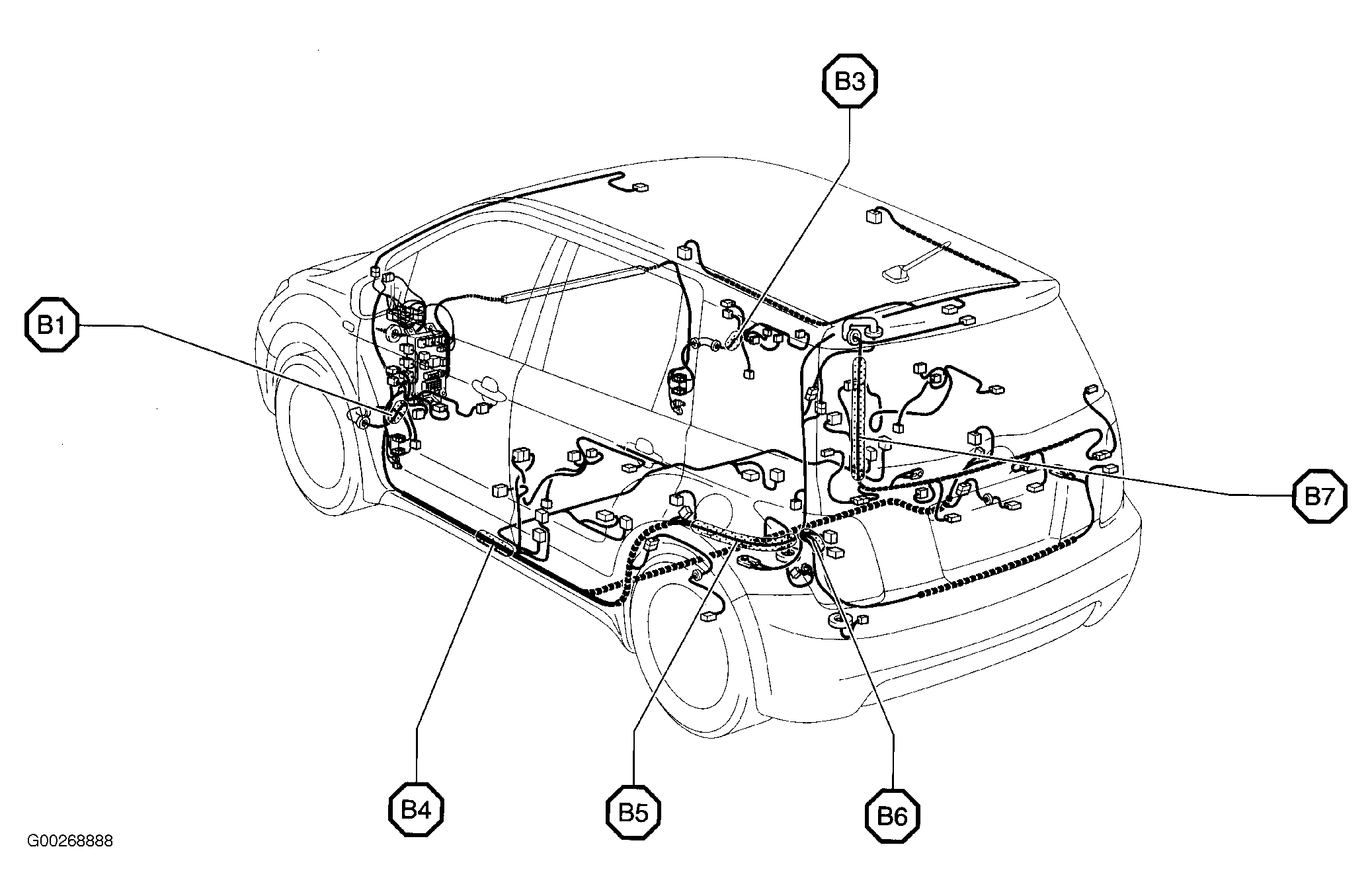

| B1 | In left front door. See Figure. |
| B3 | In right front door. See Figure. |
| B4 | In body harness, below left "B" pillar. See Figure. |
| B5 | In body harness, at left rear of vehicle. See Figure. |
| B6 | In body harness, left rear of vehicle. See Figure. |
| B7 | Upper left side of back door. See Figure. |
| E1 | In engine compartment harness, right side of engine compartment. See Figure. |
| E2 | In engine harness, front center of engine. See Figure. |
| E3 | In engine harness, left front of engine. See Figure. |
| E4 | Left side of engine compartment. See Figure. |
| E5 | Left side of engine compartment. See Figure. |
| I1 | Left end of dash. See Figure. |
| I2 | Left end of dash. See Figure. |
| I3 | Center of dash. See Figure. |
| I4 | Lower center of dash. See Figure. |
| I5 | Lower right side of dash. See Figure. |
| I6 | Lower center of dash. See Figure. |
| I7 | Right side of dash. See Figure. |
