Fuel Injector ASSY: Components

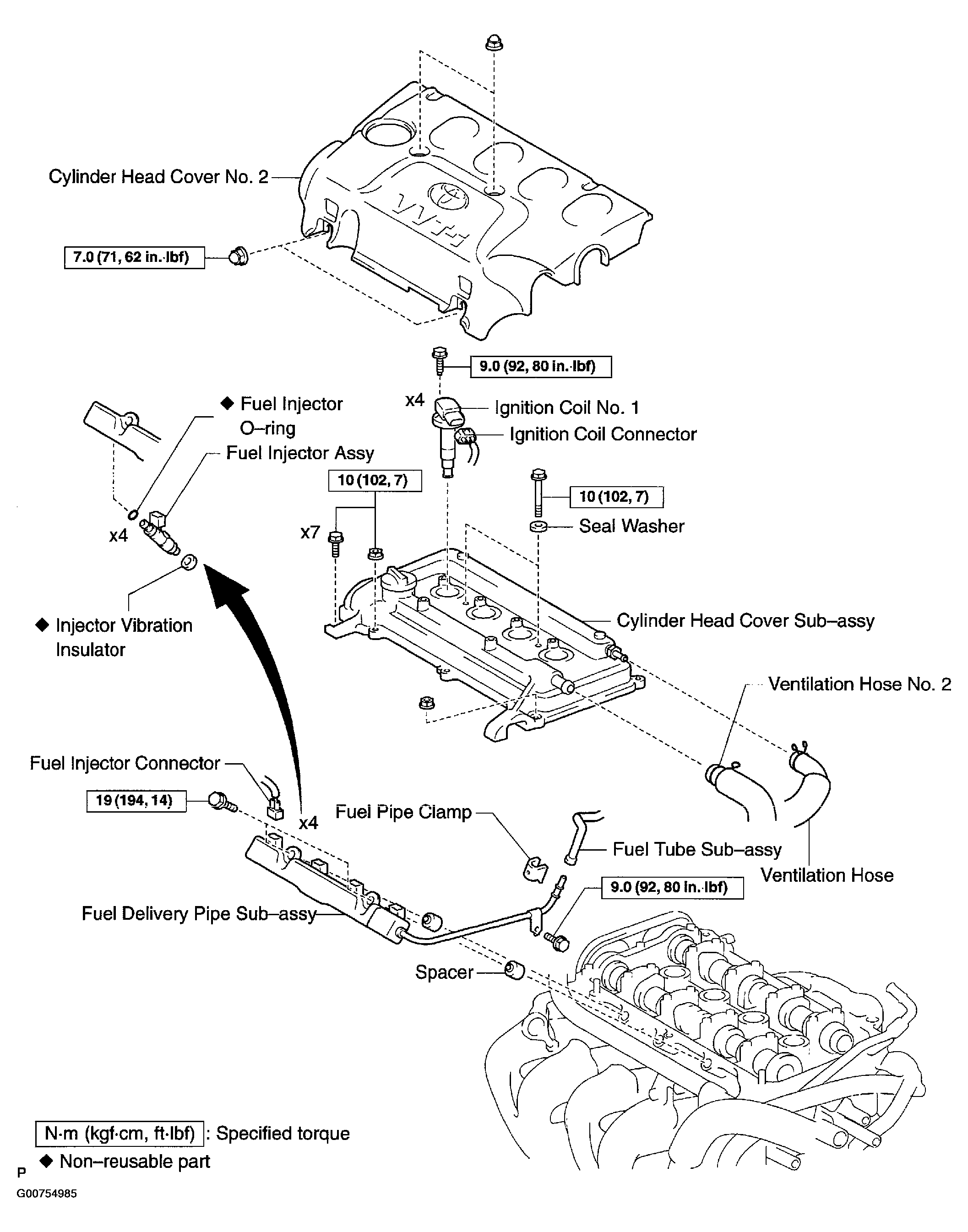

Fig 1: Dissembled View Of Fuel Injector Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
