Fuel Tank ASSY: Components

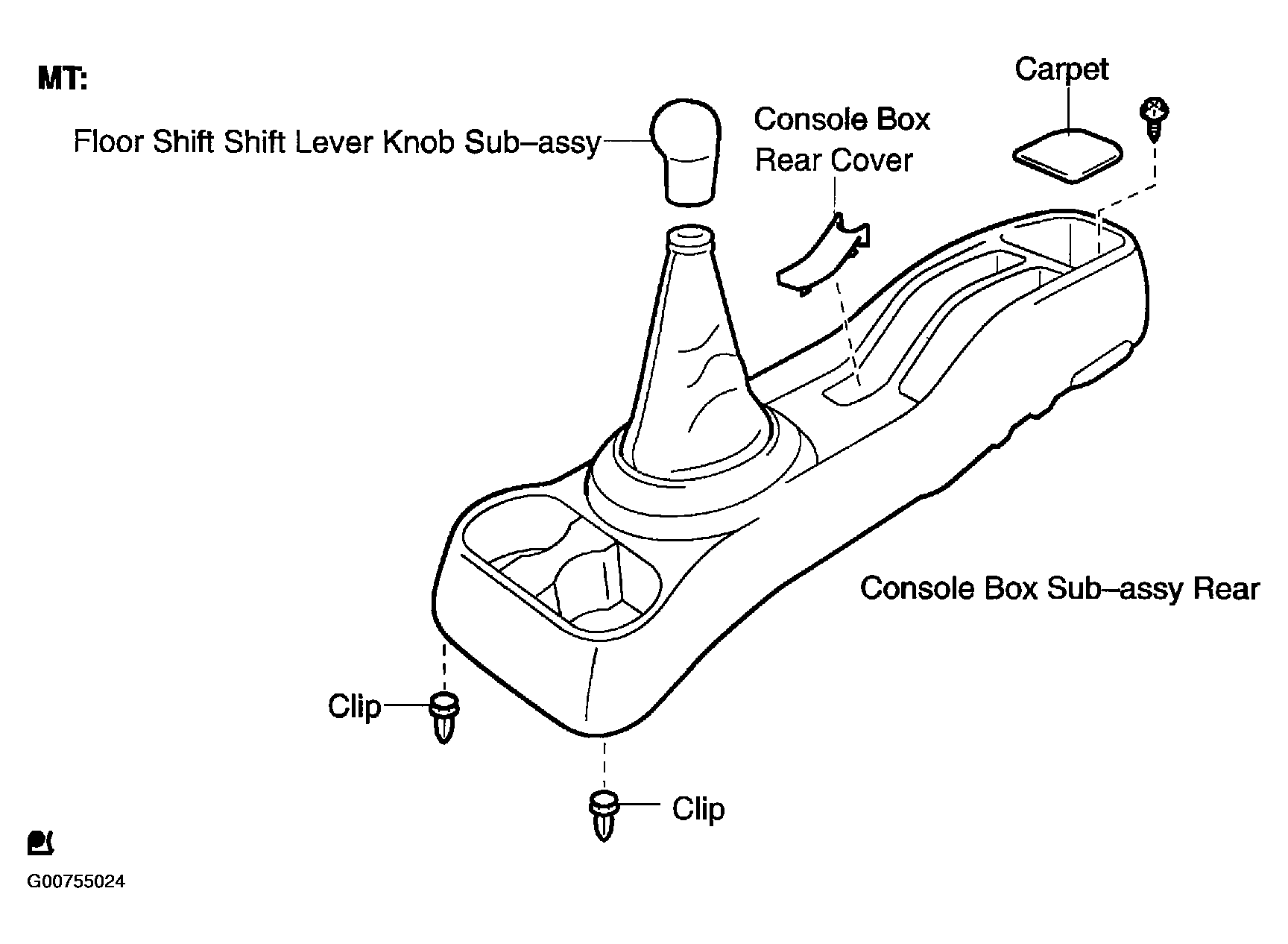

Fig 1: Removing Console Assembly Components - MT
G00755024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

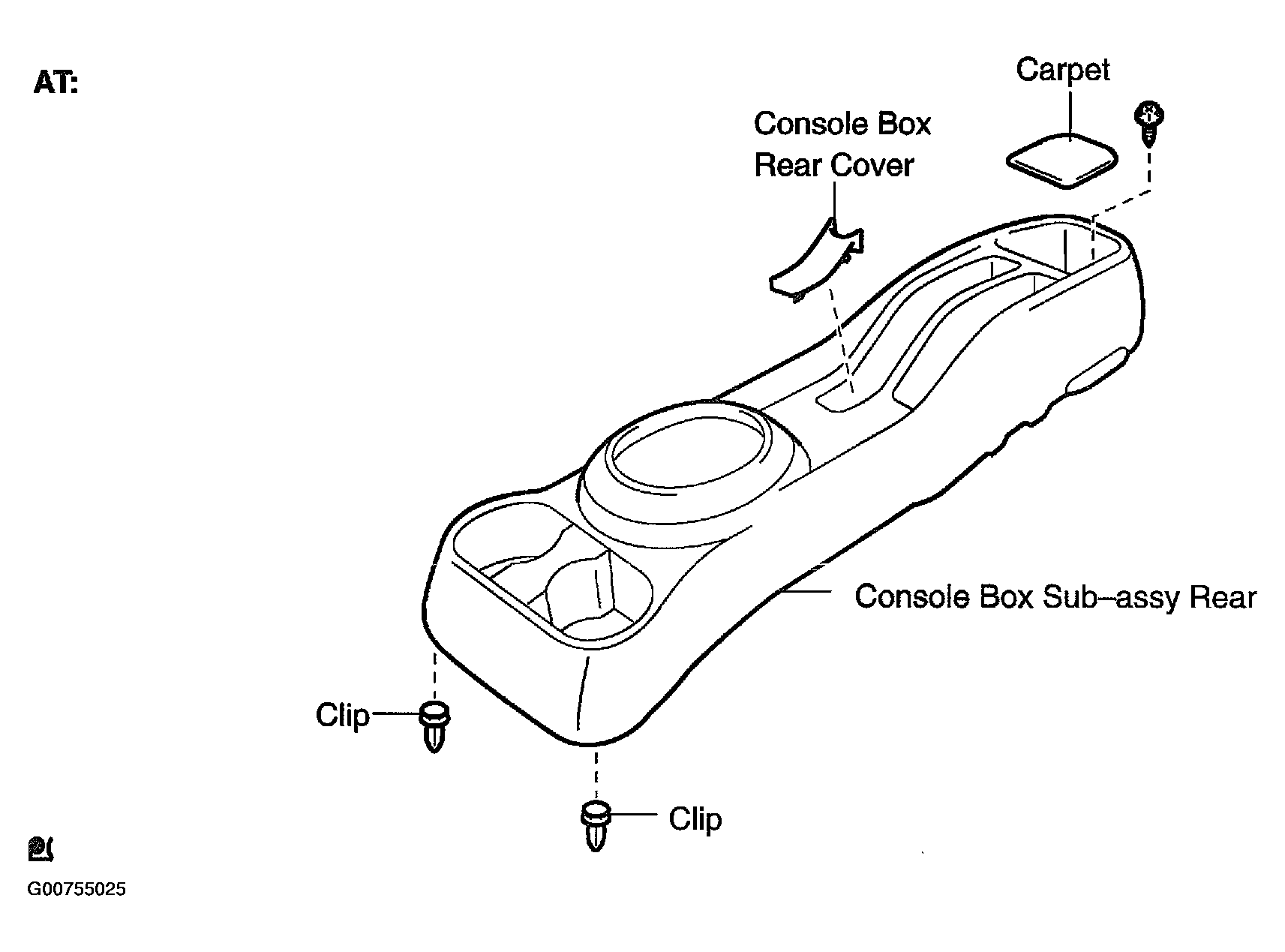

Fig 2: Removing Console Assembly Components - AT
G00755025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

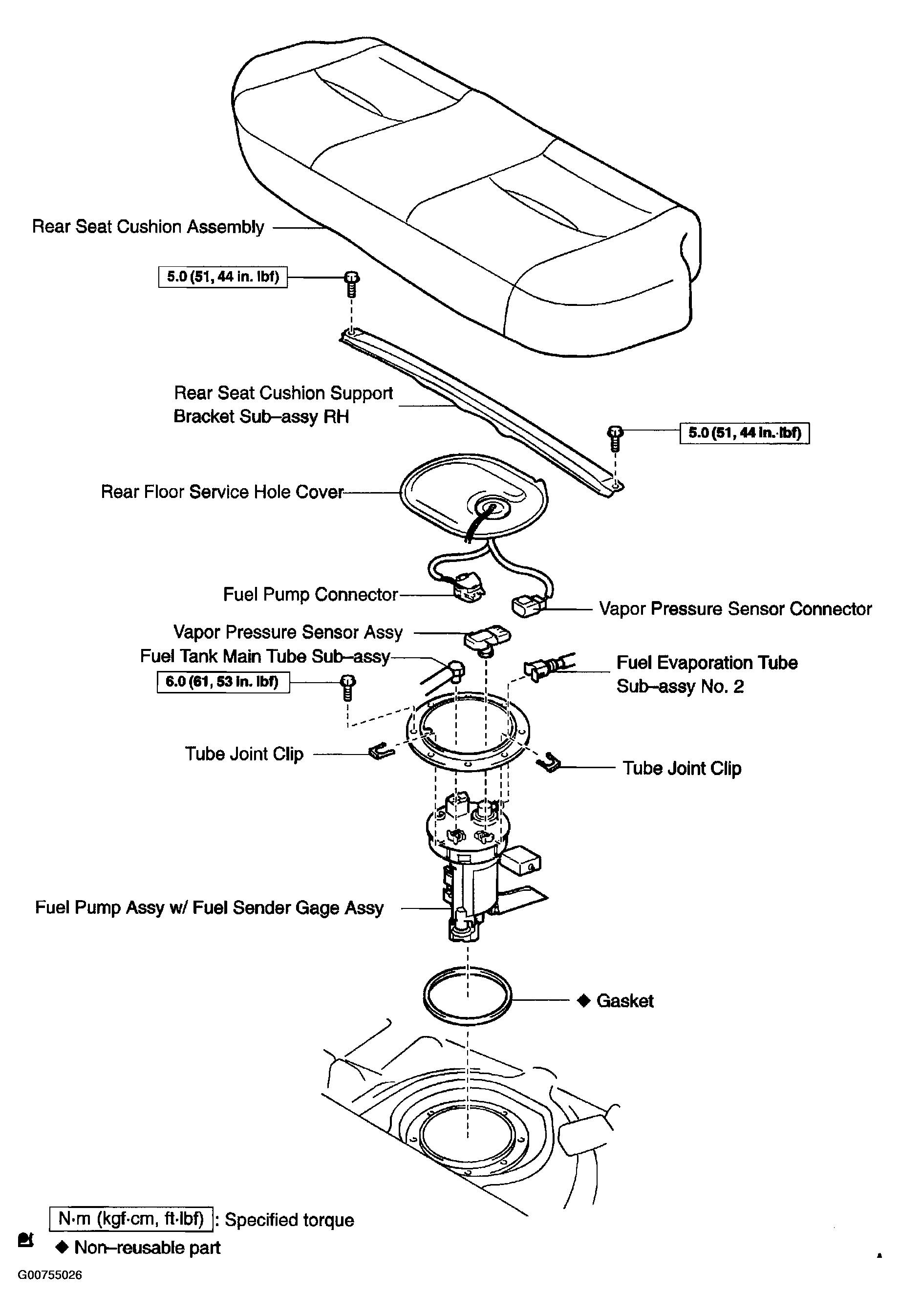

Fig 3: Locating Fuel Tank Assembly Components (1 Of 3)
G00755026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

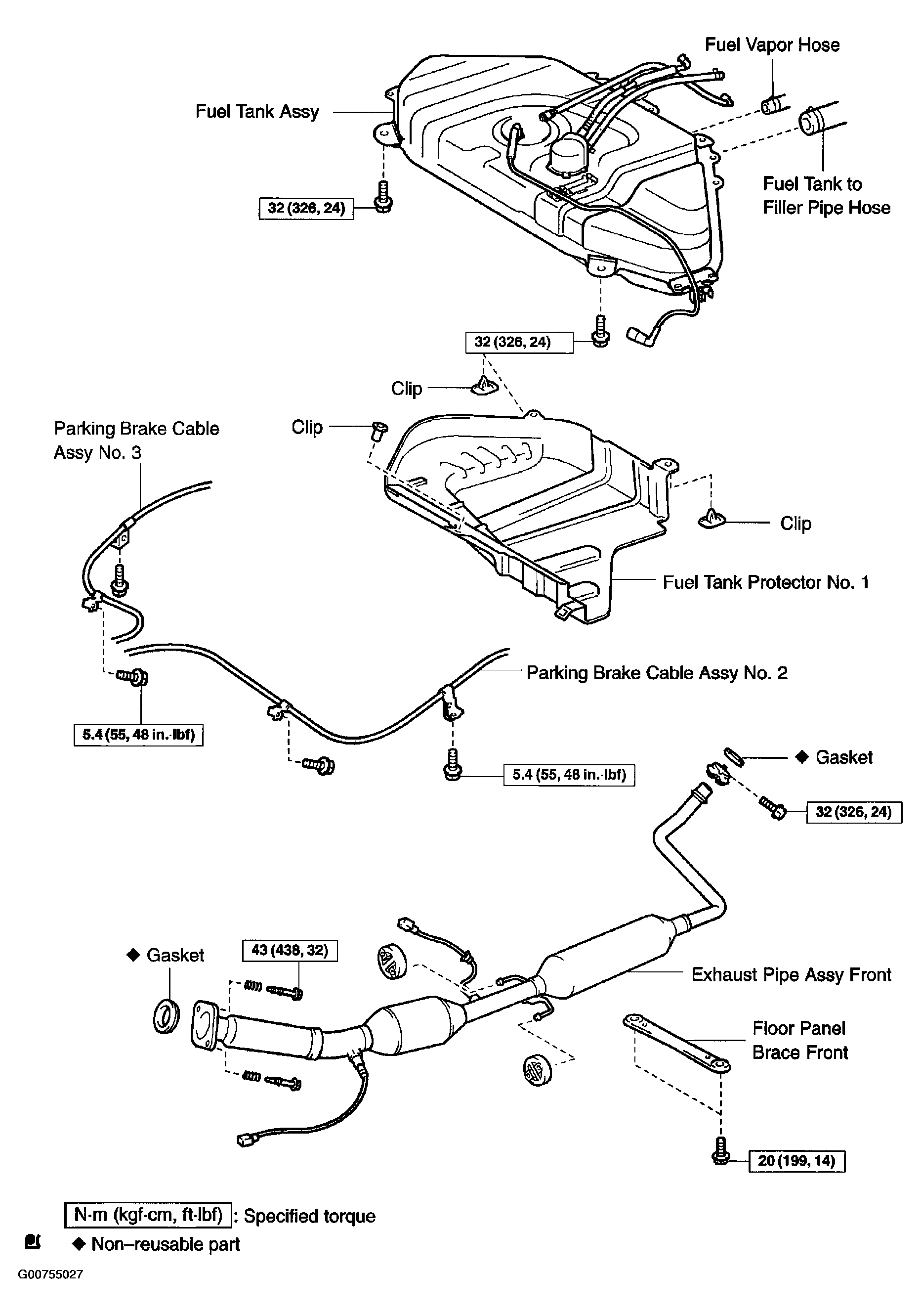

Fig 4: Locating Fuel Tank Assembly Components (2 Of 3)
G00755027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

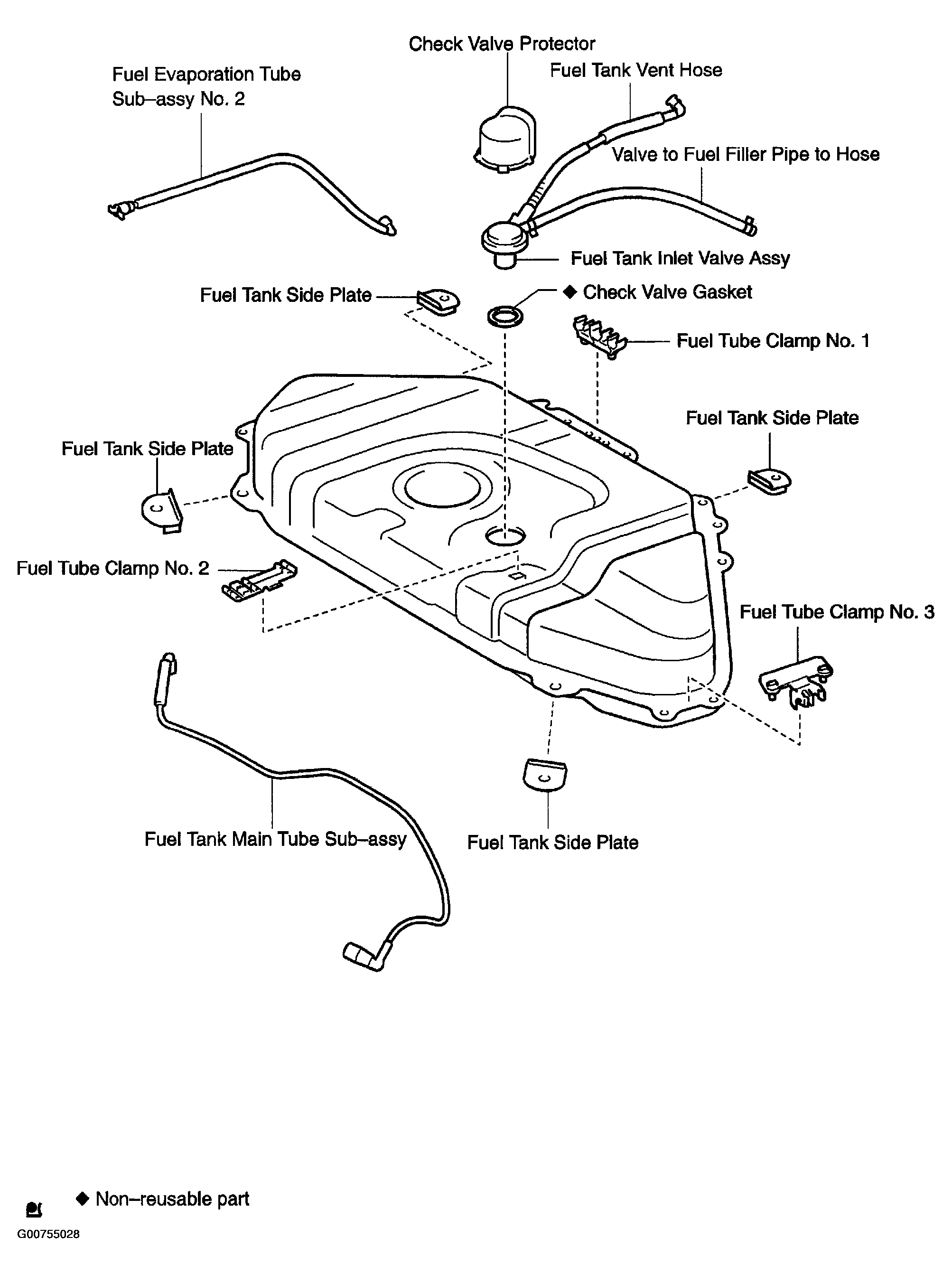

Fig 5: Locating Fuel Tank Assembly Components (3 Of 3)
G00755028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
