Emission Control System: Location

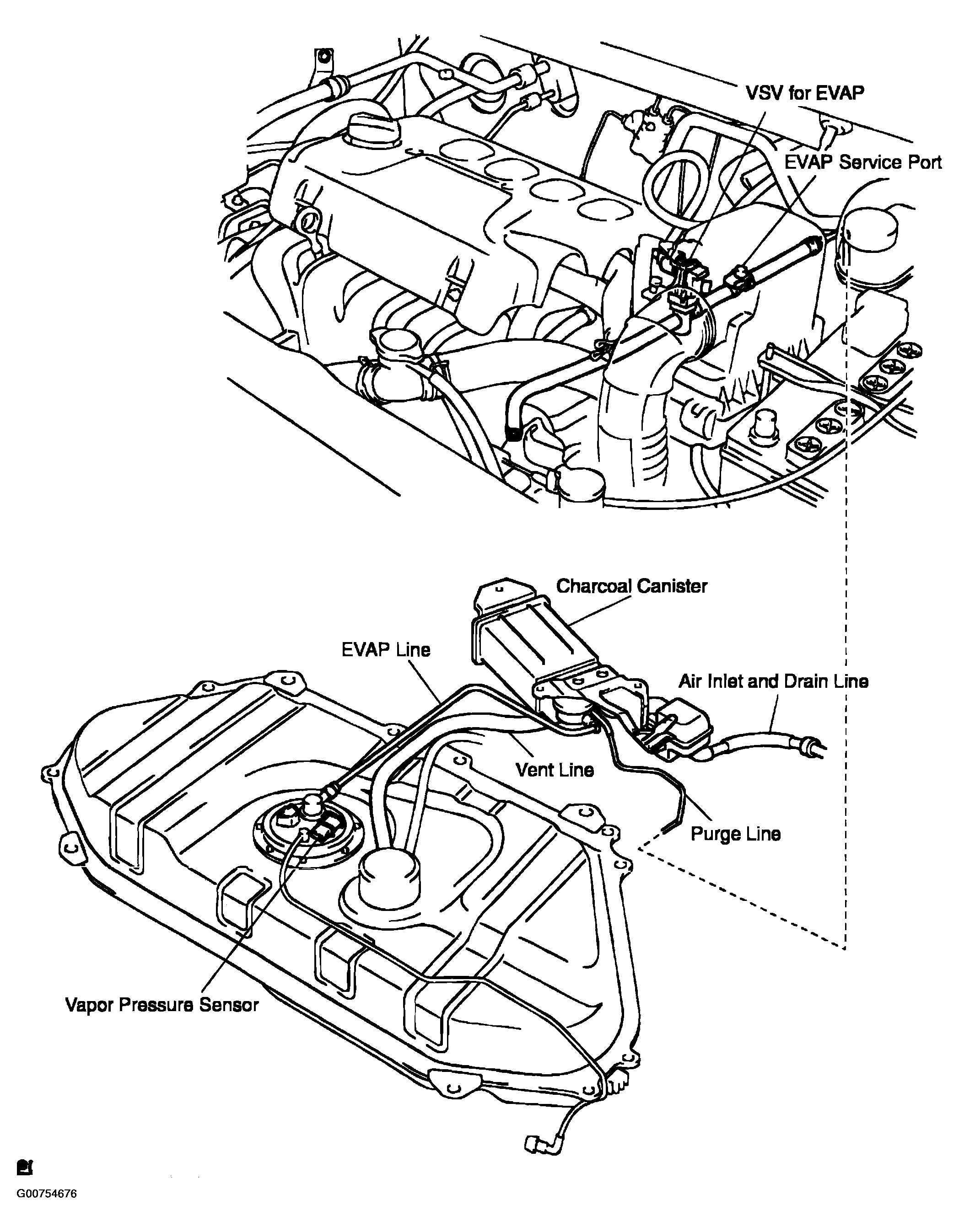

Fig 1: Locating Emission Control System Components
G00754676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

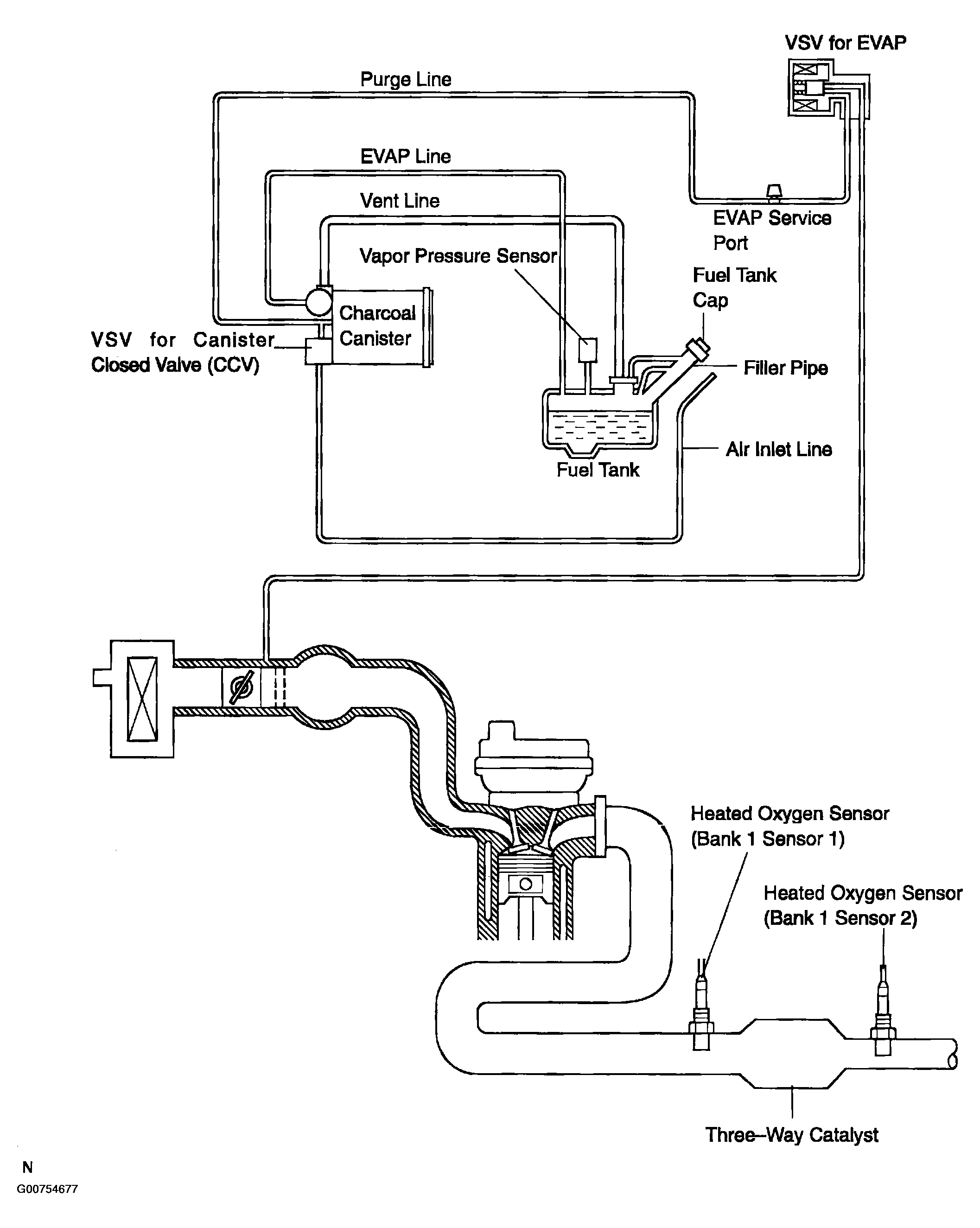

Fig 2: Emission Control System Line Diagram
G00754677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
