Engine Control System - Diagnosis: Location

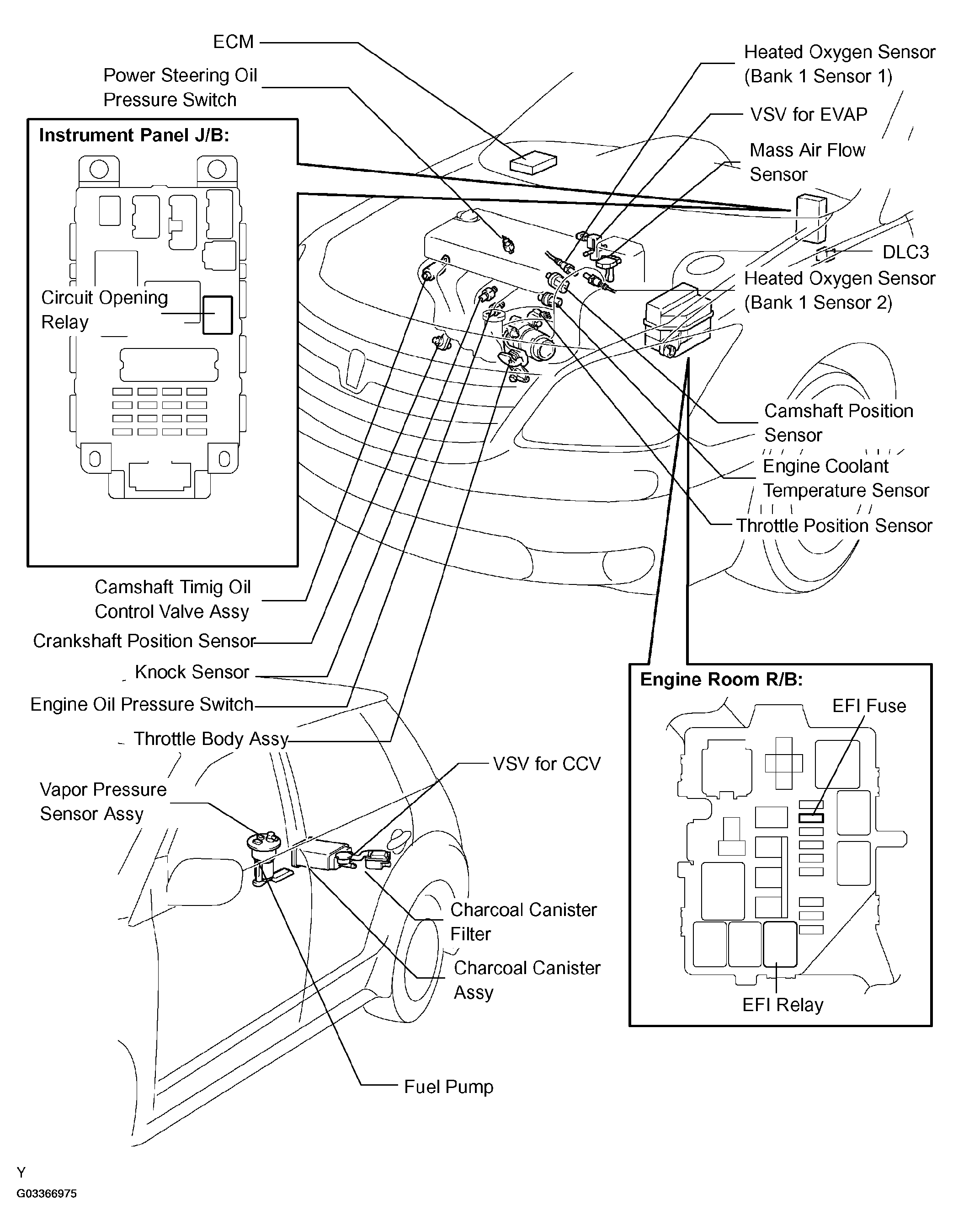

Fig 1: Locating SFI System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
