Removal & Installation and Disassembly & Reassembly

1. Disconnect the mass air flow meter connector.
2. Disconnect the VSV connector.
3. Remove the wire harness clamp.
4. Disconnect the fuel vapor feed hose No. 2.
5. Disconnect the ventilation hose.
6. Disconnect the fuel vapor feed hose No. 1.
7. Unlock the 2 clamp hooks.
8. Loosen the hose clamp and remove the air cleaner cap.

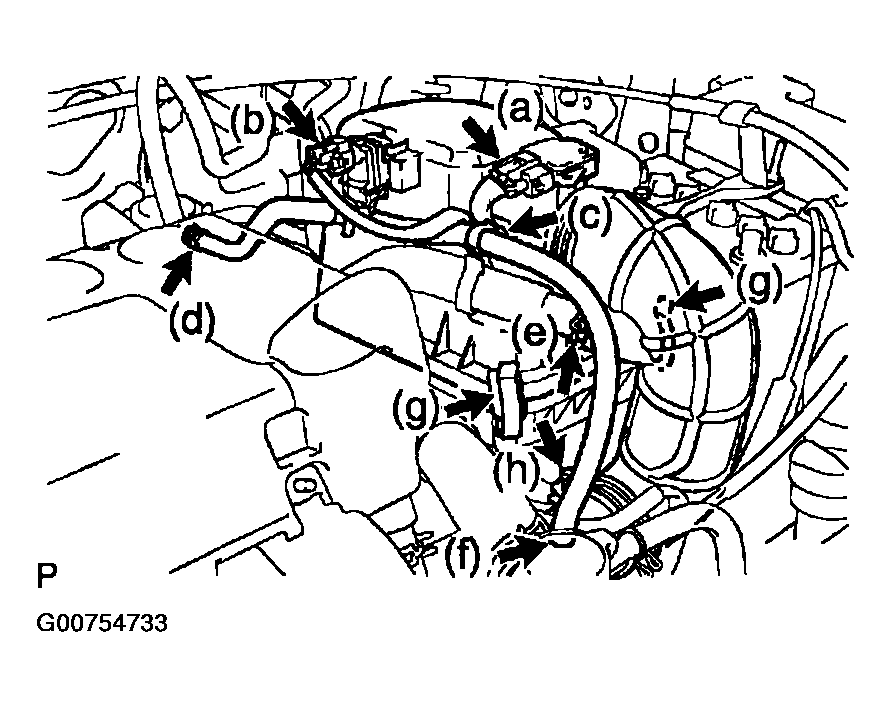

   Fig 1: Locating Throttle Body Assembly Various Components For Removal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Remove the air cleaner filter element.
10. Remove the 4 bolts and air cleaner case.

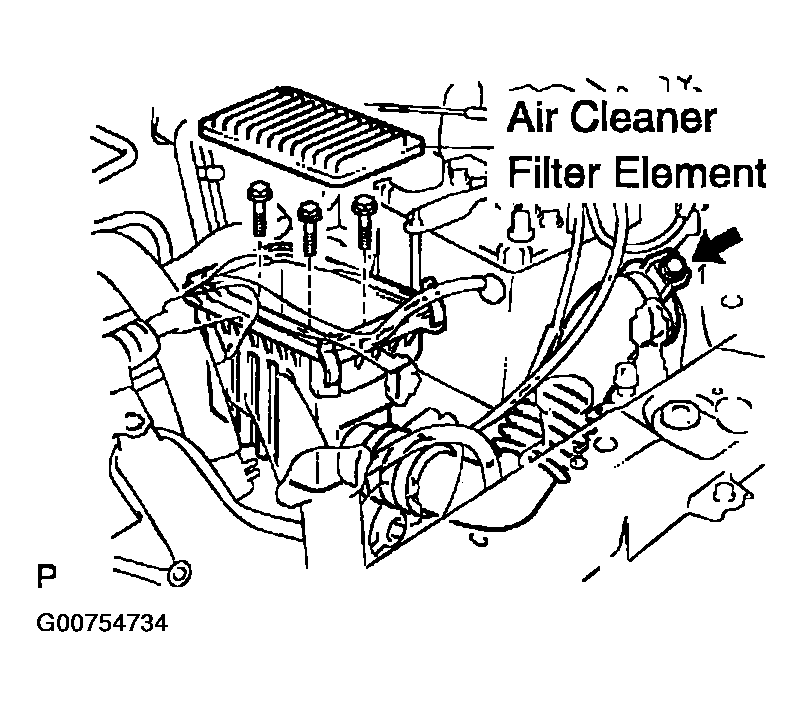

Fig 2: Removing Air Cleaner Filter Element

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Loosen the nut and separate the accelerator control cable.

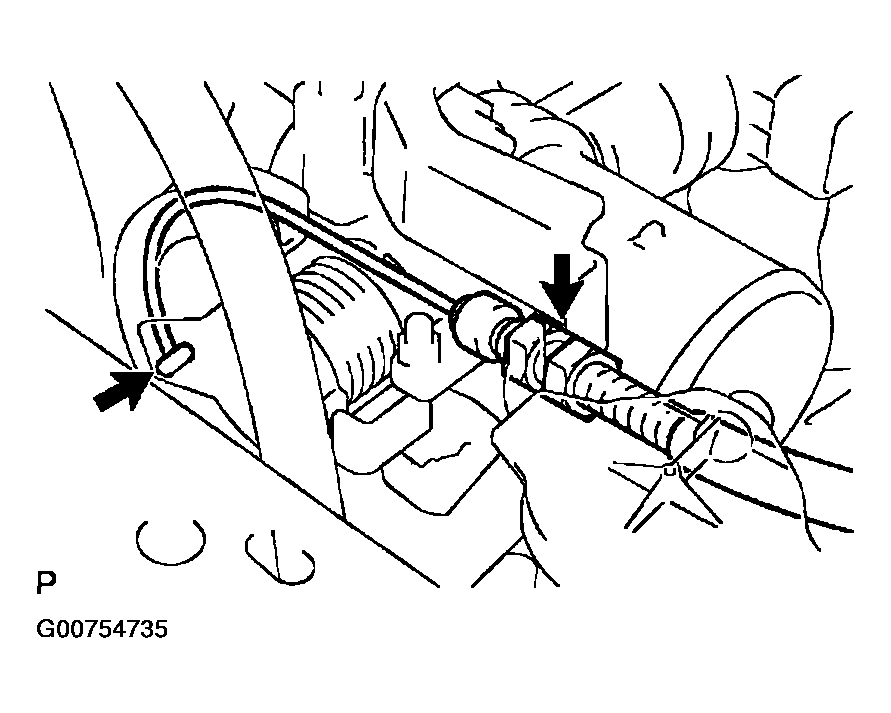

Fig 3: Separating Accelerator Control Cable Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the throttle position sensor connector.
2. Disconnect the hose.
3. Remove the bolt and oil cooler tube clamp.
4. Remove the bolt and transmission oil filler tube.
5. Remove the O-ring from the transmission oil filler tube.

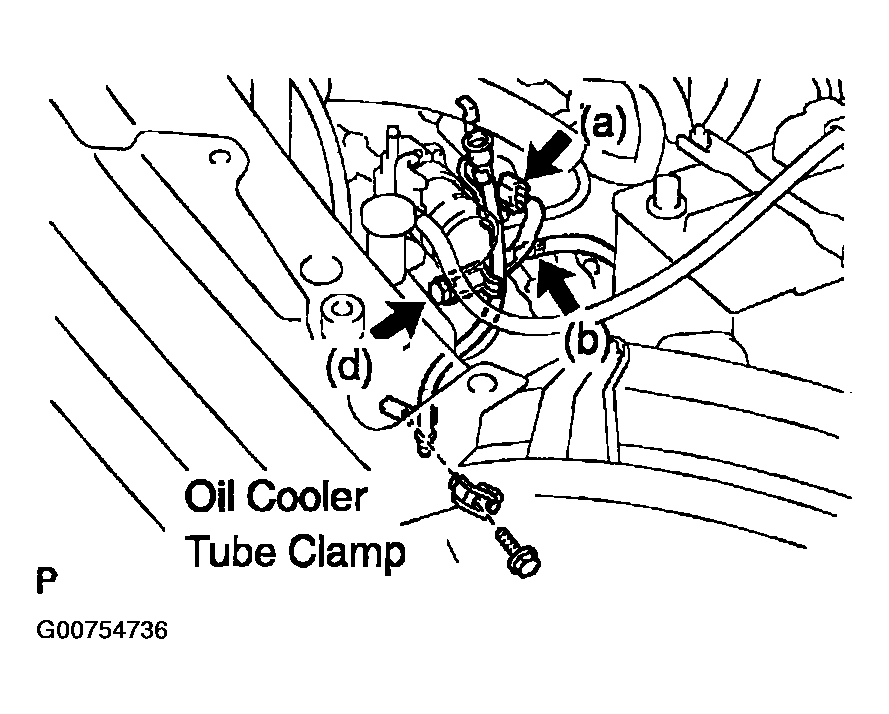

Fig 4: Removing Transmission Oil Filler Tube Sub - Assembly (A/T Transaxle)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the ISC valve connector.
2. Disconnect the throttle position sensor connector.

   (M/T TRANSAXLE)

3. Remove the wire harness clamp.
4. Remove the bolt and 2 nuts, then remove the accelerator control cable bracket and throttle body.
5. Remove the gasket from the intake manifold.

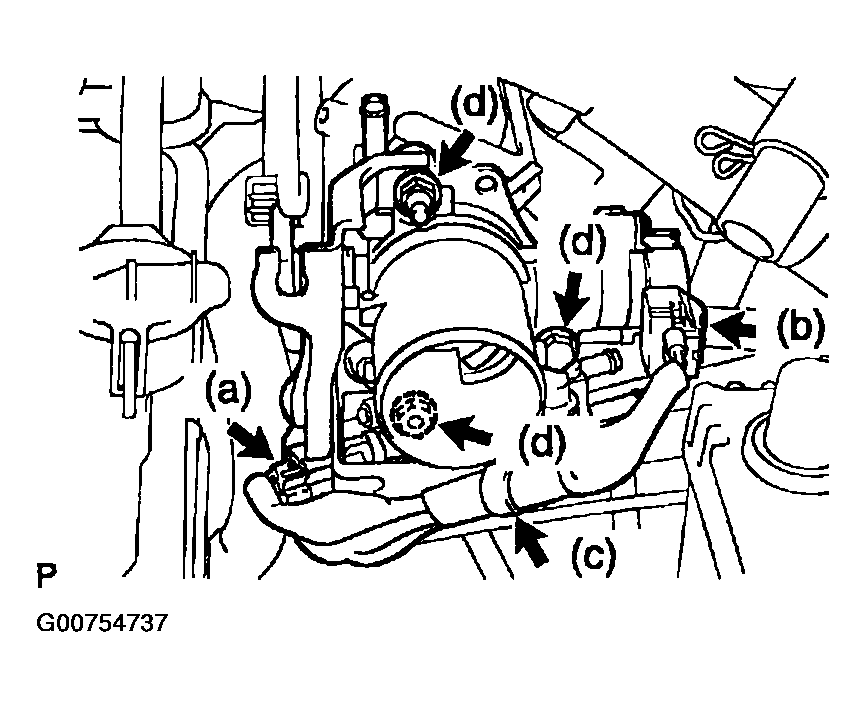

   Fig 5: Removing Throttle Body Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Disconnect the water by-pass hose.
7. Disconnect the water by-pass hose No. 2.

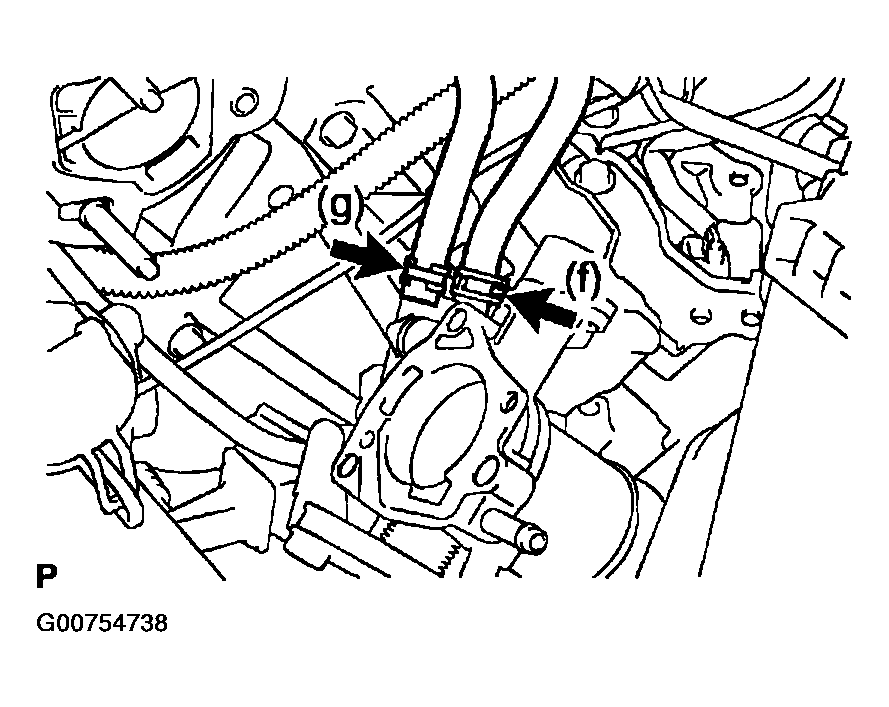

Fig 6: Disconnecting Water By - Pass Hose And Hose No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 3 screws and ISC valve.
2. Remove the gasket from the throttle body.

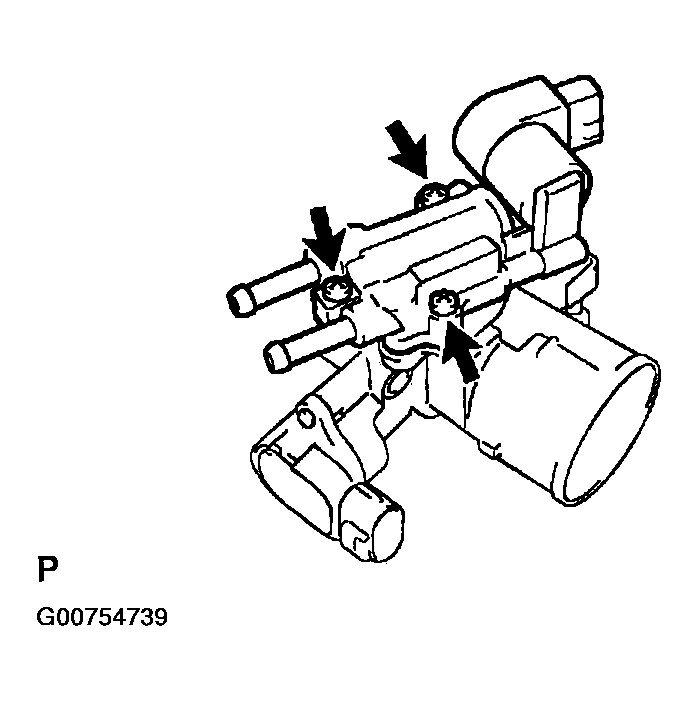

Fig 7: Removing ISC Valve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws and throttle position sensor.

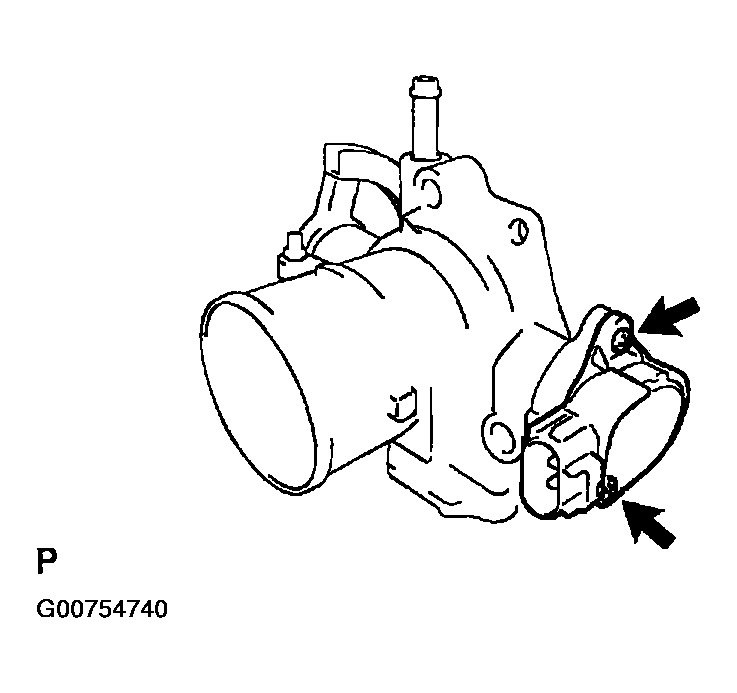

Fig 8: Removing Throttle Position Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Confirm that the throttle valve is fully closed.
2. Insert the throttle position sensor into the throttle body, then rotate the throttle position sensor 45° clockwise until the throttle valve is in the fully closed throttle position.

Torque: 2.0 N.m (20 kgf.cm, 17 in.lbf)

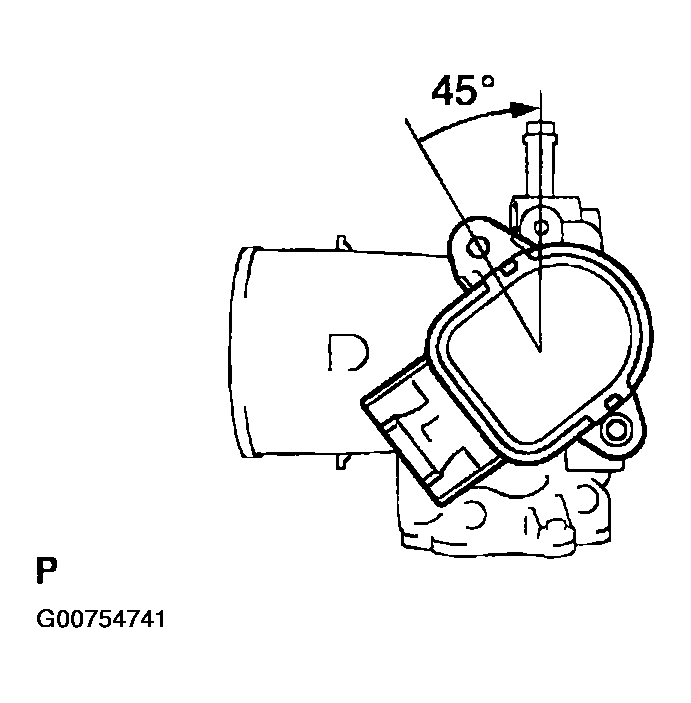

Fig 9: Identifying Throttle Position Sensor Fully Closed Position Angle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new gasket to the throttle body.
2. Install the ISC valve with the 3 screws.

   Torque: 3.4 N.m (35 kgf. cm, 30 in.lbf)

1. Connect the water by-pass hose No. 2.
2. Connect the water by-pass hose.
3. Install a new gasket to the intake manifold.
4. Install the throttle body and accelerator control bracket with the bolt and 2 nuts.

   Torque: 30 N.m (306 kgf.cm, 22 ft.lbf)

5. Install the wire harness clamp.
6. Connect the throttle position sensor connector. (M/T TRANSAXLE)
7. Connect the ISC valve connector.

1. Install a new O-ring to the transmission oil filler tube.
2. Install the transmission oil filler tube with the bolt.

   Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

3. Install the oil cooler tube clamp with the bolt.

   Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

4. Connect the hose.
5. Connect the throttle position sensor connector.

1. Install the accelerator control cable as shown in the illustration.

   Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)

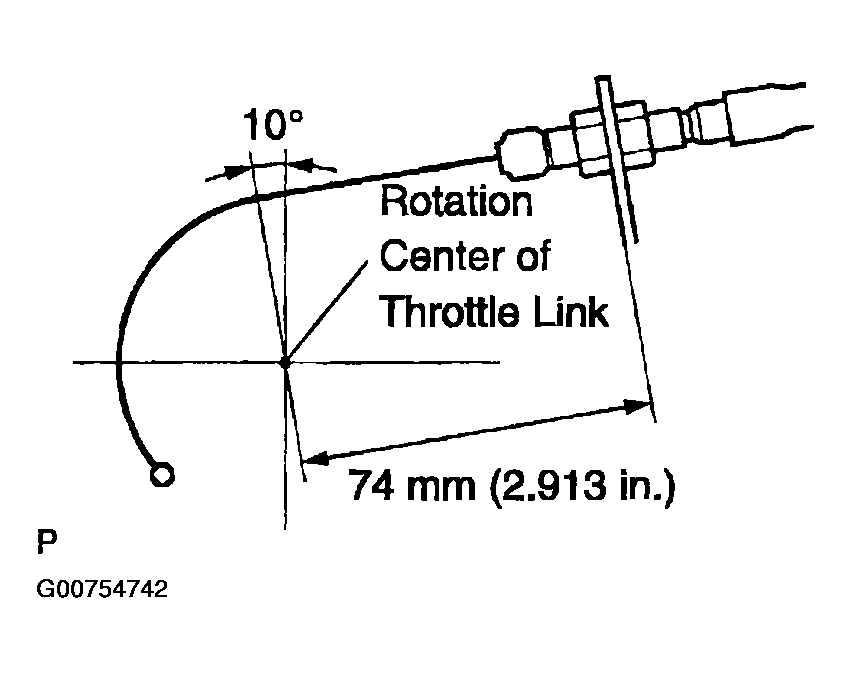

Fig 10: Installing Accelerator Control Cable Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Secure the air cleaner case to the air cleaner bracket with the 3 bolts.

   Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

2. Secure the air cleaner inlet to the engine compartment with the bolt.

   Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
