Inspection Procedure
- CHECK OTHER DTCS OUTPUT (IN ADDITION TO DTC P0420)
- Connect the hand-held tester or the OBD II scan tool to the DLC3.
- Turn the ignition switch ON and push the hand-held tester or the OBD II scan tool main switch ON.
- Select the item "DIAGNOSIS / OBD/MOBD / DTC INFO / CURRENT CODES".
- Read the DTCs using the hand-held tester or the OBD II scan tool.
Result:
DTCS OUTPUTDisplay (DTC Output) Proceed To Only "P0420" Is Output A "P0420" And Other DTCs Are Output B NOTE: If any other codes besides "P0420" are output, perform the troubleshooting for those DTCs first.
- B : GO TO RELEVANT DTC CHART (See DIAGNOSTIC TROUBLE CODE CHART )
- A : Go to next step.
- CHECK FOR EXHAUST GAS LEAKAGE
- NG : REPAIR OR REPLACE EXHAUST GAS LEAKAGE POINT (See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
- OK : Go to next step.
- INSPECT HEATED OXYGEN SENSOR (BANK 1 SENSOR 1) (See
DTC CHECK/CLEAR 6)
Refer to the hint below.
- NG : REPLACE HEATED OXYGEN SENSOR
- OK : Go to next step.
- INSPECT HEATED OXYGEN SENSOR (BANK 1 SENSOR 2) (See
DTC P0136 OXYGEN SENSOR CIRCUIT MALFUNCTION (BANK 1 SENSOR 2) )
Refer to the hint below.
- NG : REPLACE HEATED OXYGEN SENSOR
- OK : REPLACE THREE-WAY CATALYTIC CONVERTER (EXHAUST MANIFOLD)
The following procedure enables the technician to identify a trouble area if malfunction in both front and rear heated oxygen sensors other than the catalyst converter, or the malfunction that indicates the actual air-fuel ratio extremely RICH or LEAN.
- Perform ACTIVE TEST using the hand-held tester (A/F CONTROL).NOTE: "A/F CONTROL" is ACTIVE TEST which changes the injection volume -12.5 % or +25 %.
- Connect the hand-held tester to the DLC3 on the vehicle.
- Turn the ignition switch ON.
- Warm up the engine by running the engine at 2,500 rpm for approximately 3 minutes.
- Select the item "DIAGNOSIS/ENHANCED OBD II/ACTIVE TEST/ A/F CONTROL".
- Perform "A/F CONTROL" with the engine in an idle condition (press the right or left button).
Result:
Heated oxygen sensor reacts in accordance with increase and decrease of injection volume:
+25 % --> rich output: More than 0.55 V
-12.5 % --> lean output: Less than 0.4 V

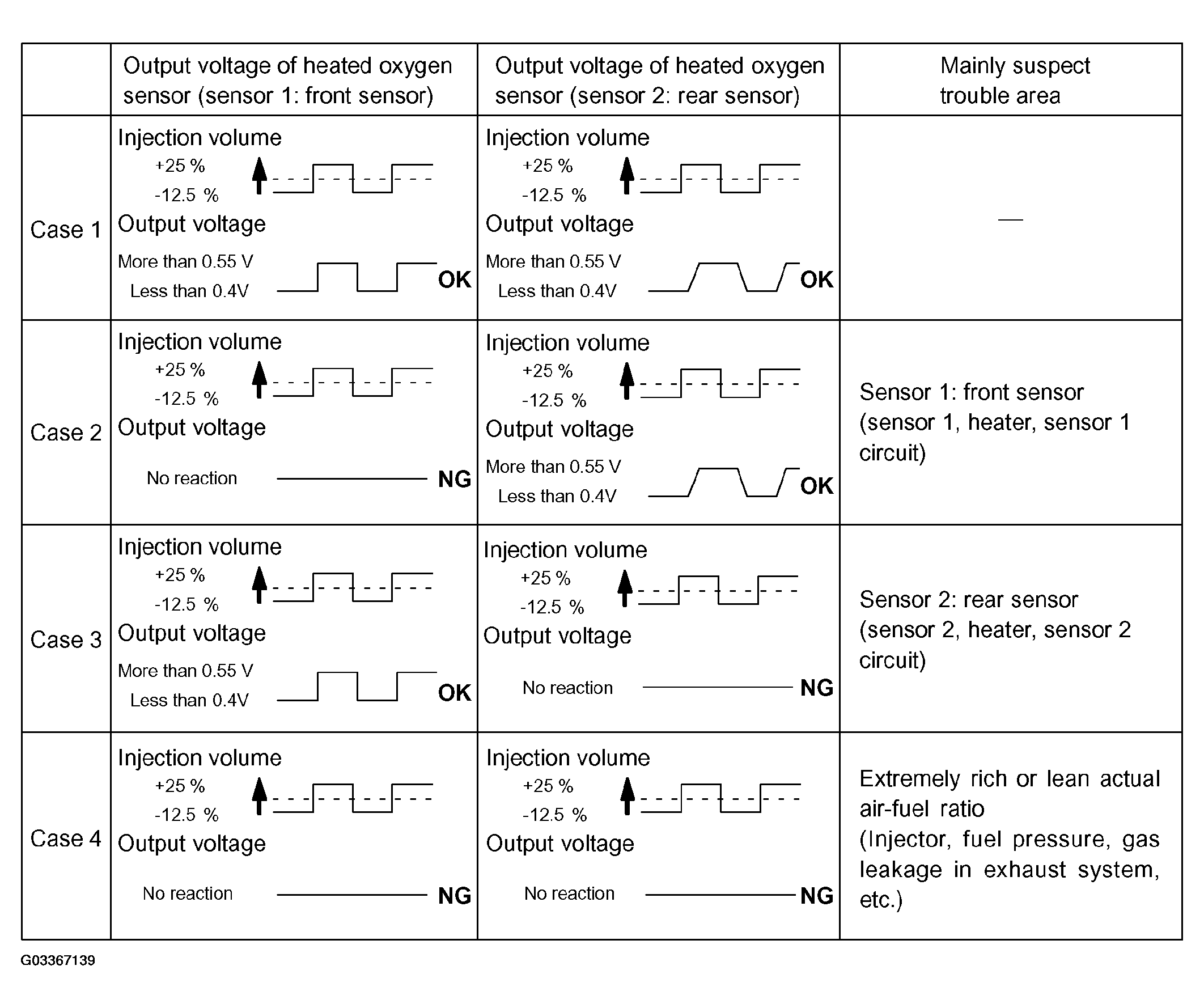

NOTE: There is a delay of few seconds in the sensor 1 (front sensor) output, and there is about 20 seconds delay at maximum in the sensor 2 (rear sensor).The following A/F CONTROL procedure enables the technician to check and graph the voltage outputs of both the heated oxygen sensors.
For displaying the graph indication, enter "ACTIVE TEST / A/F CONTROL / USER DATA", then select "O2S B1S1 and O2S B1S2" by pressing "YES" button and push "ENTER" button before pressing "F4" button.
