List Of Disable A Monitor

NOTE: This table indicates ECM monitoring status for the items in the upper columns if the DTCs in each line on the left are being set.

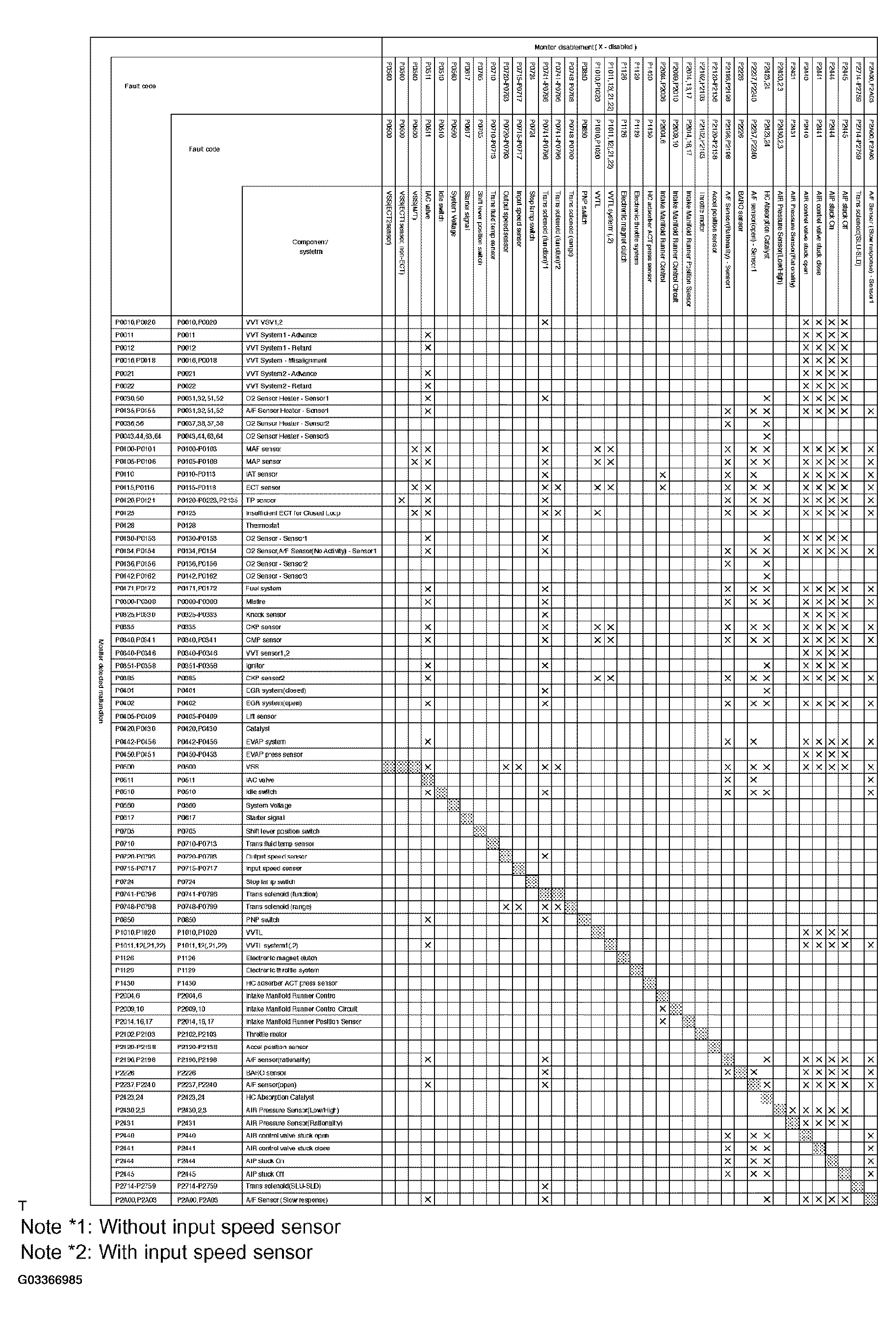

Fig 1: Monitor Disable Lists (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

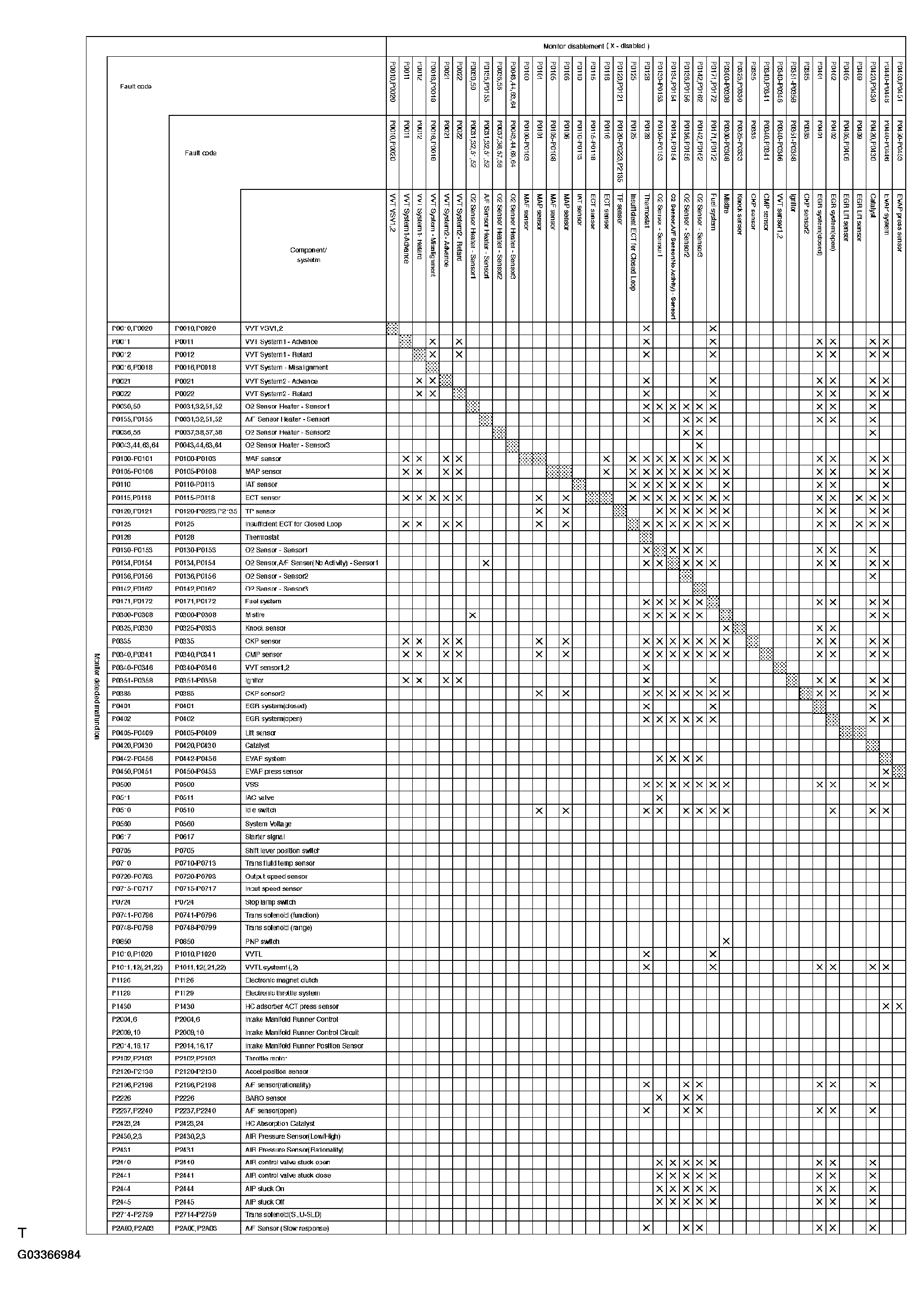

Fig 2: Monitor Disable Lists (2 Of 2)

Note *1: Without input speed sensor

Note *2: With input speed sensor
