Stop Light Switch Circuit: Wiring Diagram

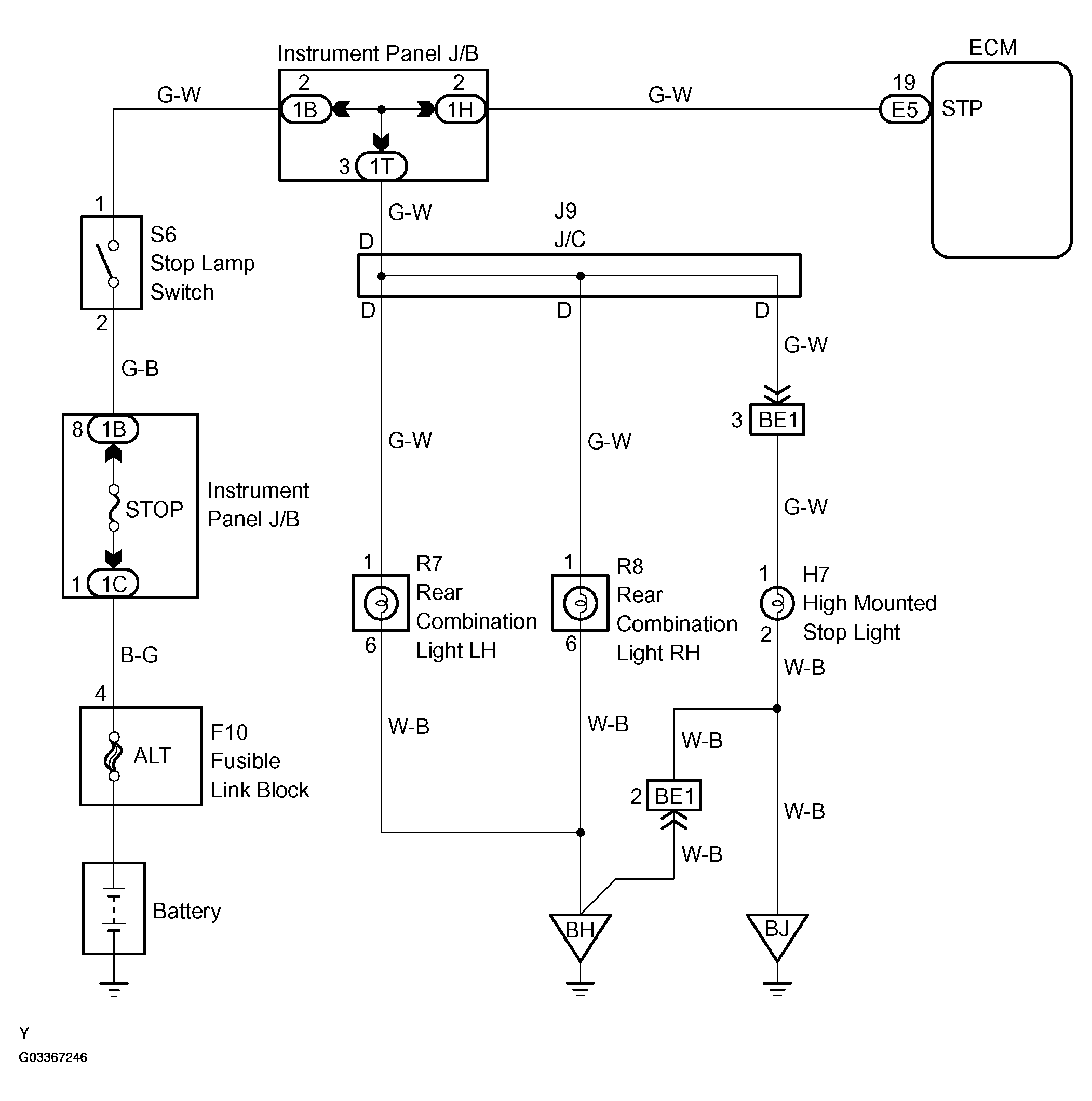

Fig 1: Stop Light Switch Wiring Diagram
G03367246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
